  4. Rubber lined Y type strainer
  • Rubber lined Y type strainer
  • Rubber lined Y type strainer
  • Rubber lined Y type strainer
  • Rubber lined Y type strainer
Rubber lined Y type strainerRubber lined Y type strainerRubber lined Y type strainerRubber lined Y type strainer

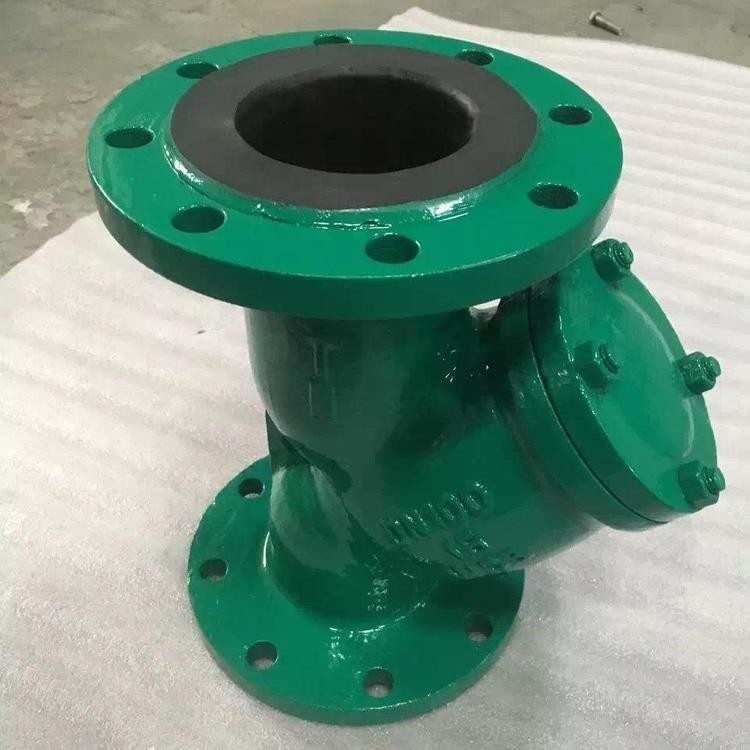

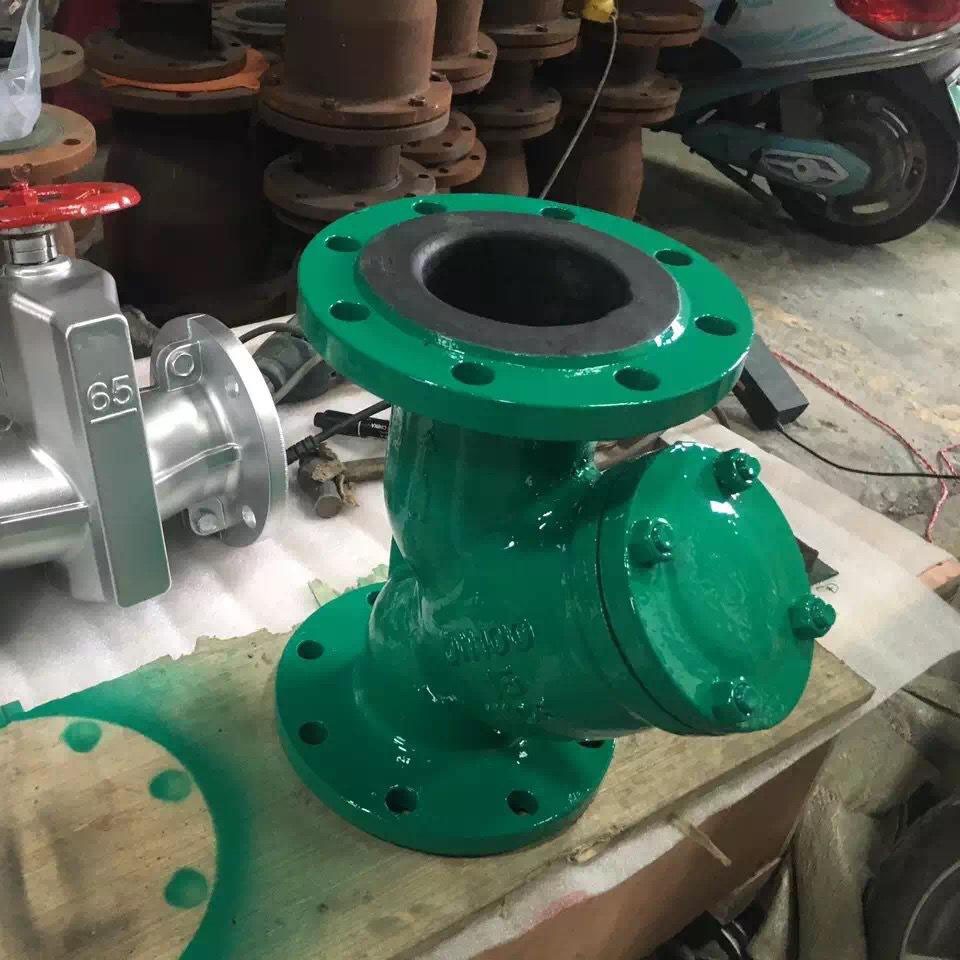

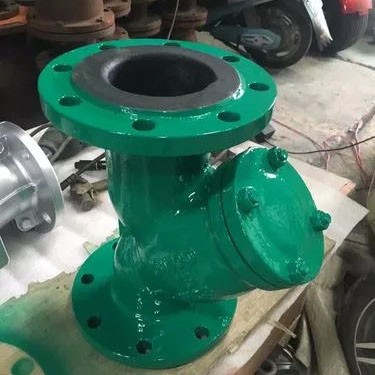

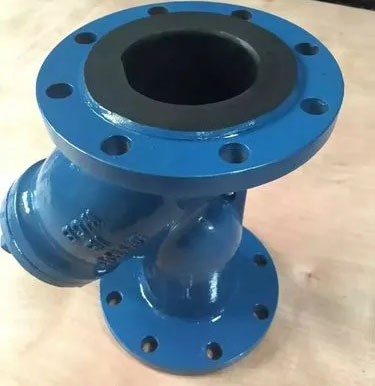

Rubber lined Y type strainer

  • Design and Testing Standard : As per Manufacturer's Standard
  • Drilling : ASA #150, DIN 2632 / 33, BS 10 TABLE D, E, F
  • Lining Material Options : Rubber -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI
  • Spark Test (Lined Flanges) : 15 K.V.D.C.
  • Rubber lined Y type strainer With Drain Ball Valve , rubber Lined Basket Type Filter Strainer , rubber Lined T Type Strainer
    Inquiry Send Email

    Description

    Rubber lined Y Type Strainer

    Rubber lined Y type strainer features Uni Directional Bolted Cover with Drain Plug, Full Port Y Type Body fully lined with rubber having flanged ends connection as per Class 150.

    Our rubber Lined Y Type Strainers of Filters has a rubber lined ductile iron, cast steel and stainless steel body. The rubber lining and rubber mesh basket ensure long life in the most arduous conditions.

    The rubber Lined Y Type Strainers is designed to give minimum pressure losses using a large area rubber filter basket.  The standard screen size is 300µ but we are able to supply various sized mesh filter screens to suit client's application.

    The filter basket can be removed for cleaning or changing without removing the ptfe lined y type strainerfrom the pipe line. The filter basket assembly is supplied with a rubber drain plug to drain fluid prior to basket removal.

    Technical Specifications of Rubber lined Y type strainer

    1) Design and Testing Standard : As per Manufacturer's Standard

    2) Size Range : 25 mm to 200 mm

    3) Flange : As per ANSI B16.5 / B16.42

    4) Drilling : ASA #150, DIN 2632 / 33, BS 10 TABLE D, E, F

    5) Face to Face : As per Manufacturer's Standard

    6) Lining Thickness : 3 to 5 mm

    7) Body M.O.C. : Ductile Iron GGG40.3 / ASTM A395, Cast Steel ASTM A216 Gr.WCB

    8) Filter Element / Drain Plug :Rubber  -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI

    9) Degree of Filtration : Ø1mm Perforated PTFE Filter

    10) Lining Material Options :Rubber  -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI

    11) Test and Inspection : Hydraulic Test : Body (Shell) 20 Kg/Cm

    12) Spark Test (Lined Flanges) : 15 K.V.D.C.

    13) Design Options : Y Type Strainer With Drain Ball Valve, Rubber Lined Basket Type Filter Strainer, RubberLined T type strainer
