  4. Forged Globe Valve 800LBS (Npt & Sw Ends
  • Forged Globe Valve 800LBS (Npt & Sw Ends)
  • Forged Globe Valve 800LBS (Npt & Sw Ends)
  • Forged Globe Valve 800LBS (Npt & Sw Ends)
  • Forged Globe Valve 800LBS (Npt & Sw Ends)
Forged Globe Valve 800LBS (Npt & Sw Ends)Forged Globe Valve 800LBS (Npt & Sw Ends)Forged Globe Valve 800LBS (Npt & Sw Ends)Forged Globe Valve 800LBS (Npt & Sw Ends)

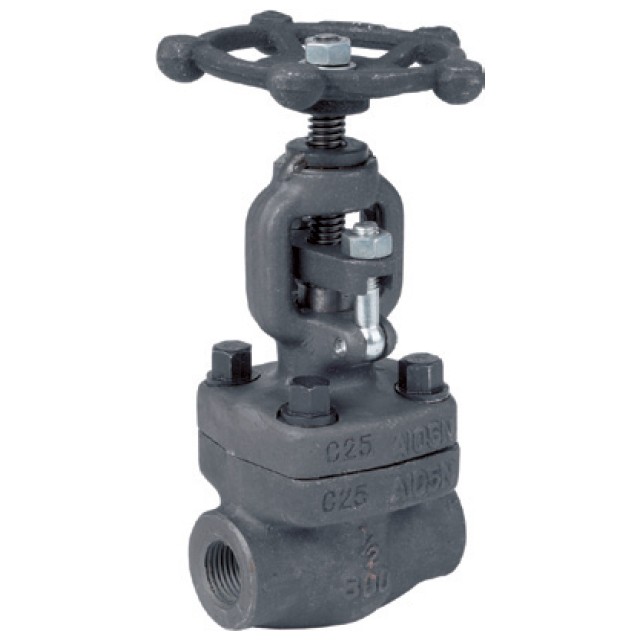

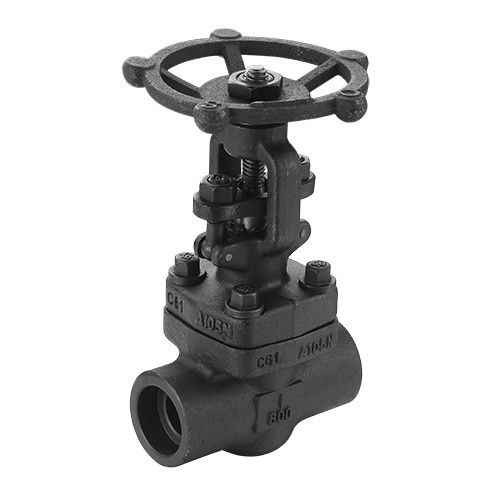

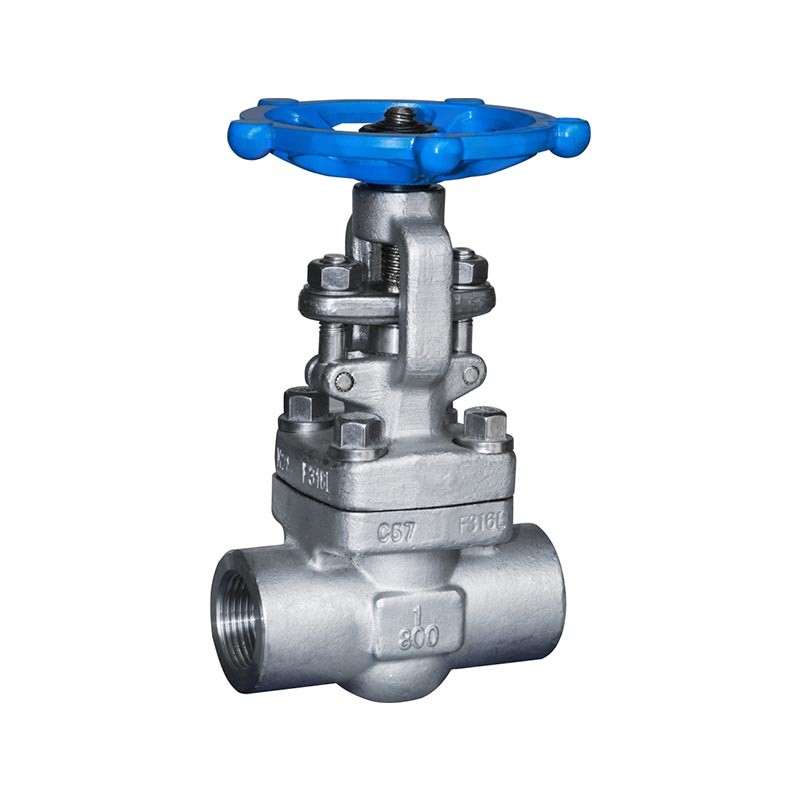

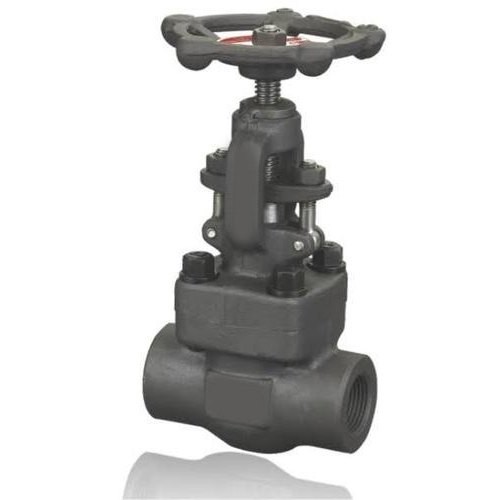

Forged Globe Valve 800LBS (Npt & Sw Ends)

  • Product Item:J61Y
  • Design and Manufacrture: API602, BS5352, ASME B16.34
  • Body material: A105, LF2, F5, F11, F22, F304, F304L, F316, F316L
  • Socket Welding as per ANSI B16.11
  • Structure: BB, OS&Y
  • Api 602 Alloy Forge globe valve a105 Globe Valve 800lb , Buy Forged Steel Astm A105 800lb , Api 6d Standard Globe Valves , Globe Valve Drawing
    Inquiry Send Email

    Description


    Forged Steel Globe Valve Supplier, Offers Industrial, Api, OS&Y, Forged Carbon Steel, Alloy Steel and Stainless Steel Globe Valves, Stop Valves, Full Port, Regular Port, Reduced Port, Trim in 13CR, 8#, 5#, and Stainless Steel (SS304, SS316).
    The Metal Seated Forged Steel Globe Valve Designed To Rising Stem and B.B./W.B & PSB. Designs For Sizes 1/2in to 2in, Pressure Rating Ansi Class 150Lbs to 2500Lbs, SW, NPT, BW, Flanged, Handwheel Operated or Bare Stem As Per ISO 5211.
    Plug Disc and Needle Disc Supplied.

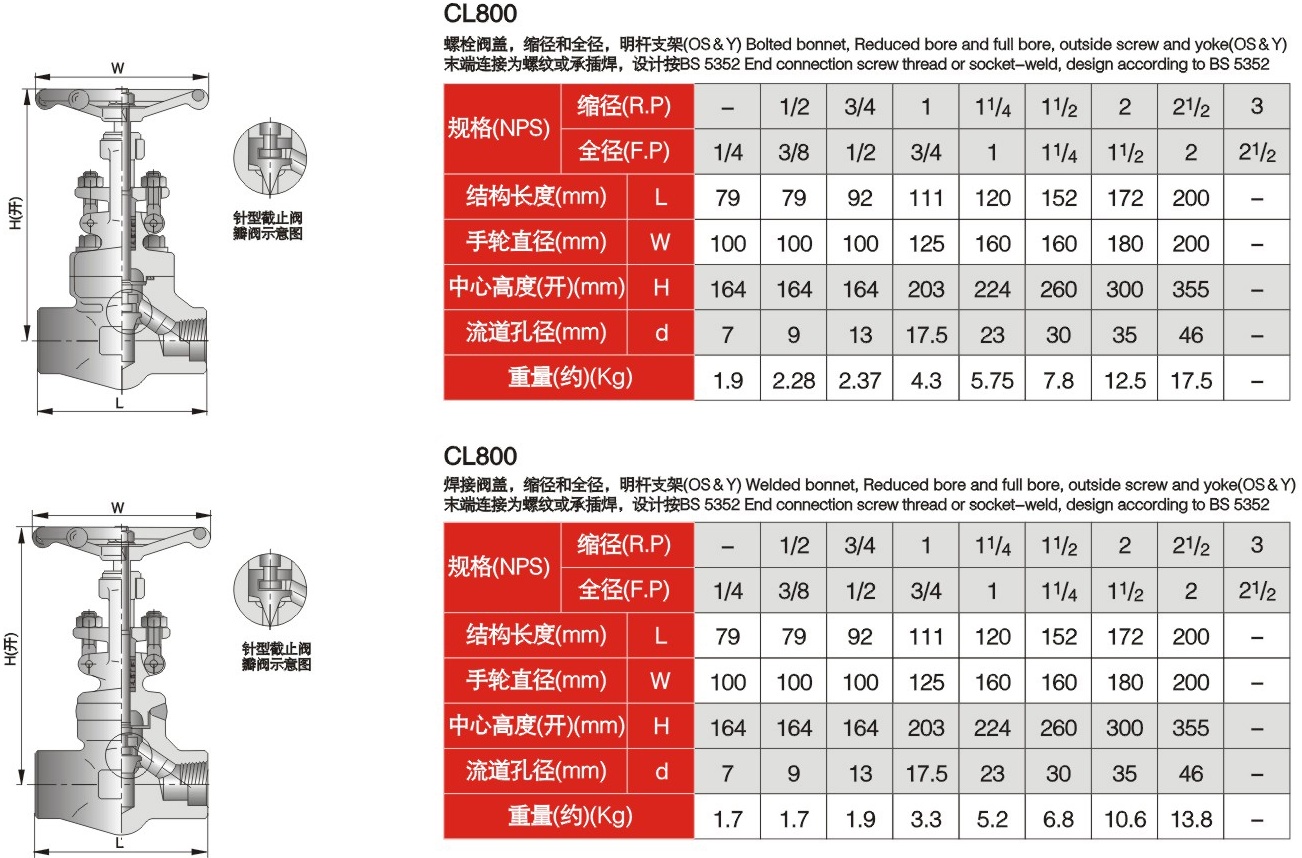

    Specifications For Forged Globe Valve 800LBS (NPT, SW Ends)

    1. Design & Manufacture: API 602
    2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet
    3. Bore Type: Full Port / Reduced Port
    4. Size Range: 1/2" to 2"
    5. Pressure Ratings: ANSI 800LB (CLASS 800#)
    6. End Connections: Threaded (NPT, Screwed, BSP), Socket Weld.
    7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent
    8. Various Trim Materials are Available to Suit Different Service Conditions: No. 1#, 5#, 8#, 12# Trim.
    9. NACE MR 0175
    10. Test and Inspection: API598
    11. Handwheel Opearted, Other Type Actuator Please Specify.


    Inquiry Us





    RELATED PRODUCTS

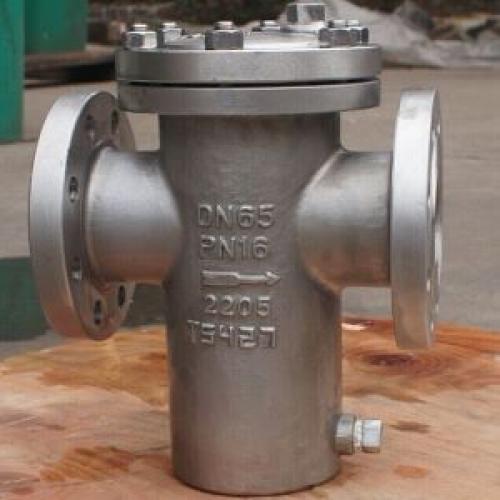

    TEMPORARY STRAINER

    TEMPORARY STRAINER

    Forged trunnion mounted ball valve

    Forged trunnion mounted ball valve

    Metal Seat Lubricated Plug Valve

    Metal Seat Lubricated Plug Valve

    API 609 Wafer Type Metal To Metal Butterfly Valve

    API 609 Wafer Type Metal To Metal Butterfly Valve

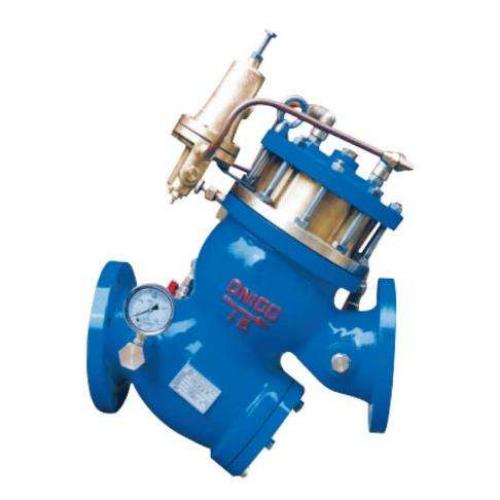

    500X Pressure Relief/Pressure Sustaining Valve
