  • 100X Float Ball Control Valve
  • 100X Float Ball Control Valve
  • 100X Float Ball Control Valve
  • 100X Float Ball Control Valve
100X Float Ball Control Valve100X Float Ball Control Valve100X Float Ball Control Valve100X Float Ball Control Valve

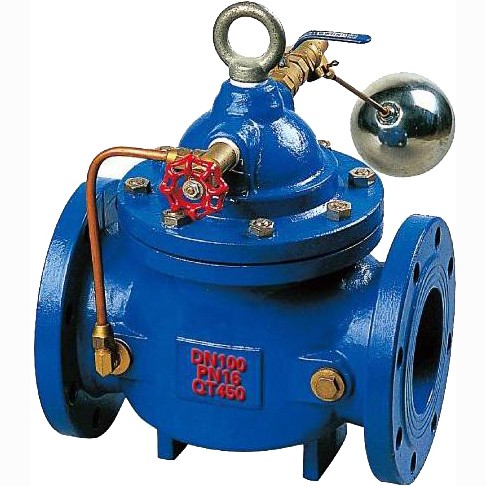

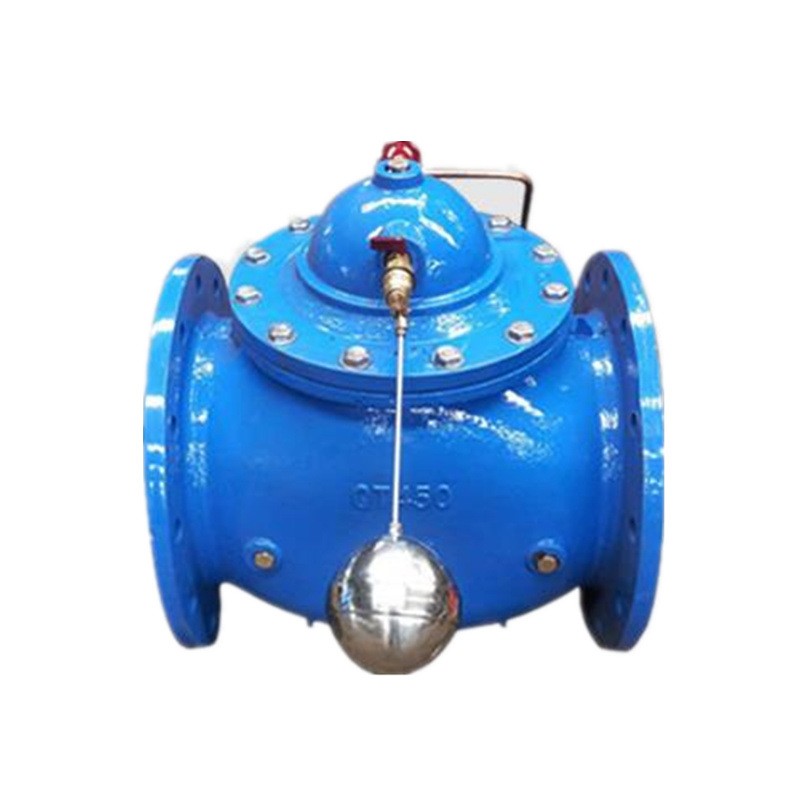

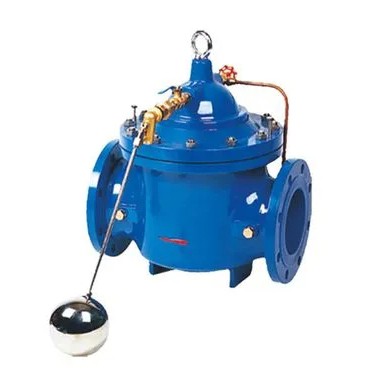

100X Float Ball Control Valve

  • Product Item:100X
  • Nominal Pressure: 1.0, 1.6, 2.5MPa
  • Body/Cover WCB(ZG230-450);WCC(ZG270-500);WC6(ZG15CRMO); CF8(304);CF8M(316);CF3(304L);CF3M(316L)
  • Pressure: PN10/PN16/PN25/Class 150
  • Size range: DN25mm-DN600mm(1"-24")
  • 100X Float Ball Control Valve , Water Level Control Valve , 100X Remote Float Valve
    Inquiry Send Email

    Description

    100X Float Ball Control Valve

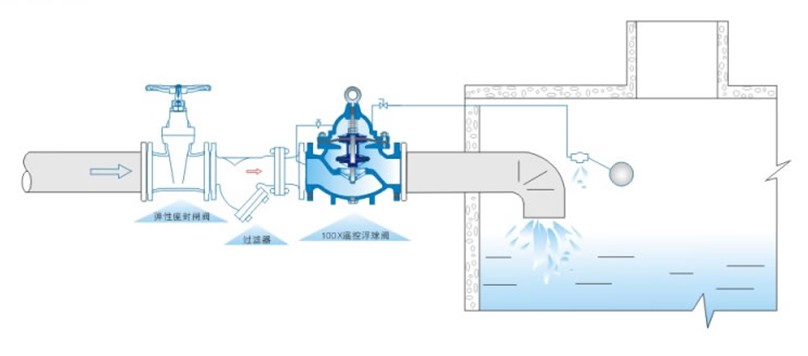

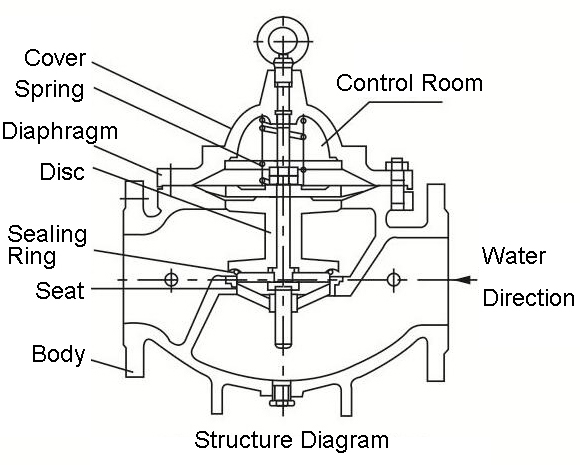

    100X Float Ball Control Valve (Water Level Control Valve) is a kind of hydraulic pressure control valve which consists of a main valve(as shown in the figure), pilot valve, needle valve, ball valve and pressure gauge etc.It is usually installed at the inlet port of the water pool or elevated water tower to control the water level. when the water level reaches the set height, the main valve is controlled by the floating ball valve to stop water supply; When water level falls below the set height, the main valve through the float switch to open the inlet to fill water automatically.

    This valve has the advantages of precision control,convenient maintenance,reliable sealing, long service life.

    We have two types structure of this valve ,Diaphragm type and piston .Diaphragm type is suitable for the pipe of under DN450MM but if the pipe diameter is bigger than DN450MM, We recommend piston type.

    This valve is designed and manufactured according to the standard of AMSE/API/BS/DIN/GB.

    Valve Material

    Parts Material
    Body/Cover WCB(ZG230-450);WCC(ZG270-500);WC6(ZG15CRMO);
    CF8(304);CF8M(316);CF3(304L);CF3M(316L)
    Core/Seat 304(0Cr18Ni9);316(0Cr17Ni12Mo2);316L(00Cr17Ni14Mo2)
    Packing PTFE;R.TFE;Graphite
    Sealing Gasket XB350;PTFE;
    Membrane Cover A3;304
    Corrugated Diaphragm Nitrile Butadiene Rubber
    Spring 60Si2Mn;50CrVA
    Stem 304;316;316L;17-4PH

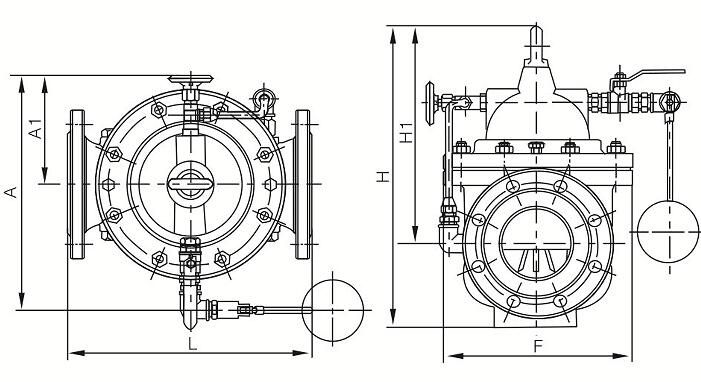

    Overall Dimensions

    Units: mm

    DN Dimensions
    L A1 A H1 H F
    20 150 130 325 179 212 116
    25 160 130 325 179 212 116
    32 180 130 325 179 212 116
    40 200 140 335 210 265 168
    50 203 140 335 210 265 168
    65 216 140 335 215 310 180
    80 241 145 345 245 350 210
    100 292 155 365 305 460 284
    125 330 165 385 365 520 310
    150 356 180 410 415 570 370
    200 495 205 465 510 840 463
    250 622 225 505 560 890 525
    300 698 245 545 658 1030 625
    350 787 275 595 696 1090 705
    400 914 285 625 735 1150 778
    450 978 285 625 735 1150 778
    500 978 410 780 750 1110 690
    600 1230 456 888 850 1286 785
