H42X Silent Check Valve, Cast iron, WCBH42X Silent Check Valve, Cast iron, WCBH42X Silent Check Valve, Cast iron, WCBH42X Silent Check Valve, Cast iron, WCB

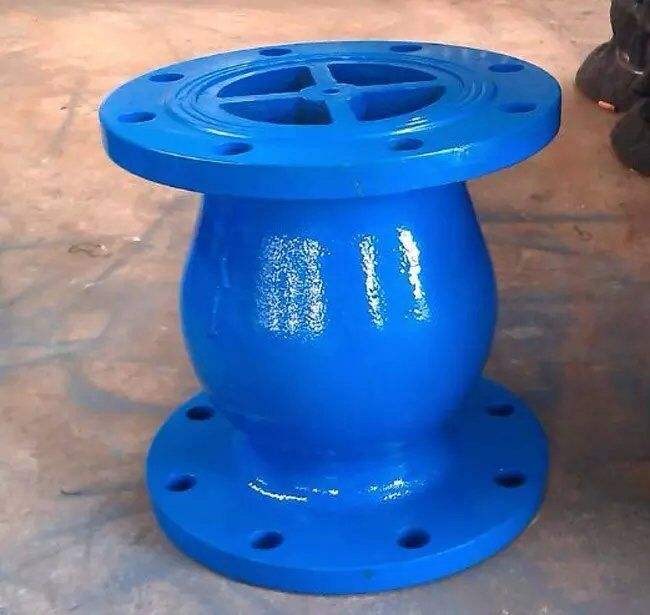

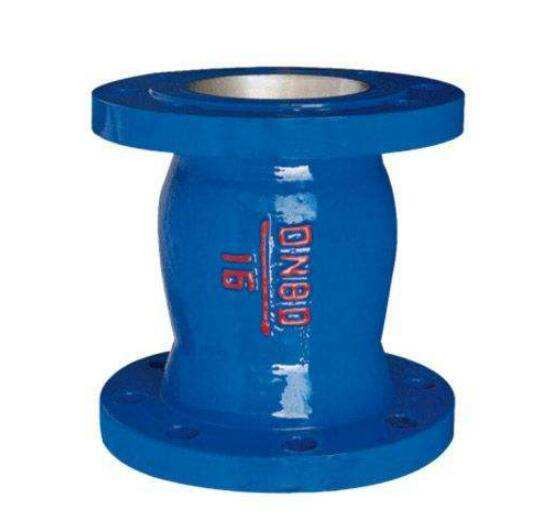

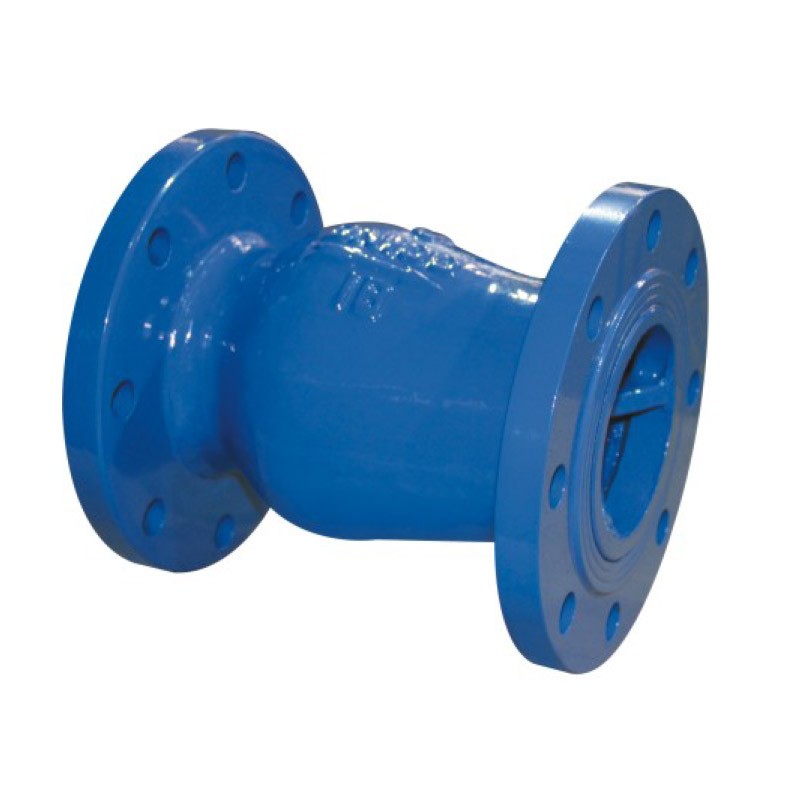

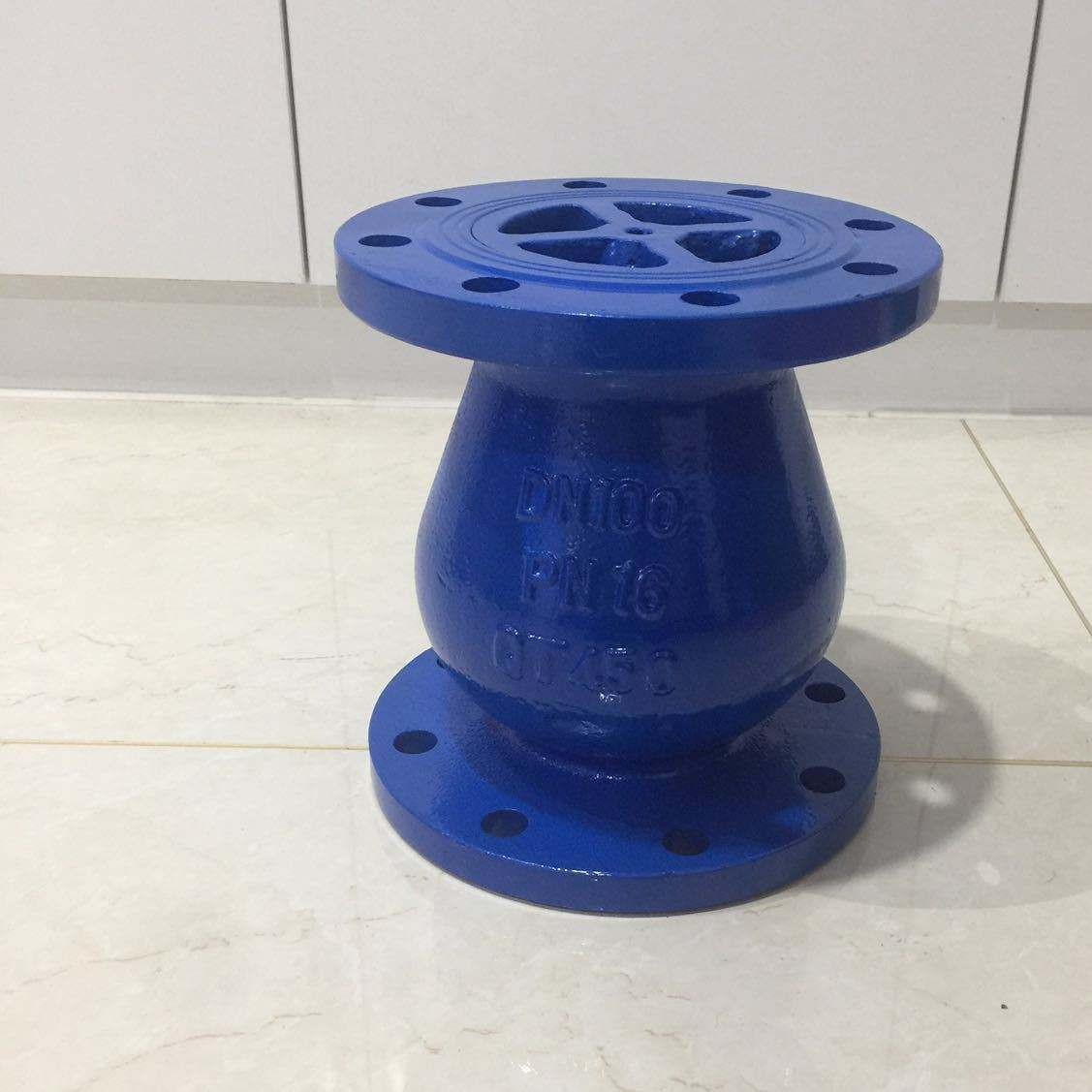

H42X Silent Check Valve, Cast iron, WCB

  • Product Item:H42X
  • Desgin is BS EN 1074-3 or BS EN 12334 or BS 5163 Standard
  • Body/Bonnet: GGG40/50
  • Work pressure: PN10/16/25;
  • Connection acc. to EN1074, BS5163, ISO 7259
  • Silent Check Valve , DI Silent check valve , Stainless steel check valve
    Inquiry Send Email

    Description

    H42X Silent Check Valve, Cast iron, WCB

    Silent Check Valve is desgin with BS EN 1074-3 or BS EN 12334 or BS 5163 Standard. The silent check valve have advantage as below:

    - Reasonable and Streamlined Design
    - Small nosize for direct flow or backflow
    - 0.2 Bar Head Loss
    - Integral body and flow guide
    - Disc with full rubber coated

    1- Body/Bonnet: GGG40/50

    2- Seat/Stem/Spring: SS304
    3- Bushes: C61900

    4- DISC: GGG40/50 + EPDM Coating
    5- Epoxy Resin coating internal & external, thickness above 300 micron
    6- Work pressure: PN10/16/25;

    7- Size range: 2" to 24"
    8- Connection acc. to EN1074, BS5163, ISO 7259
