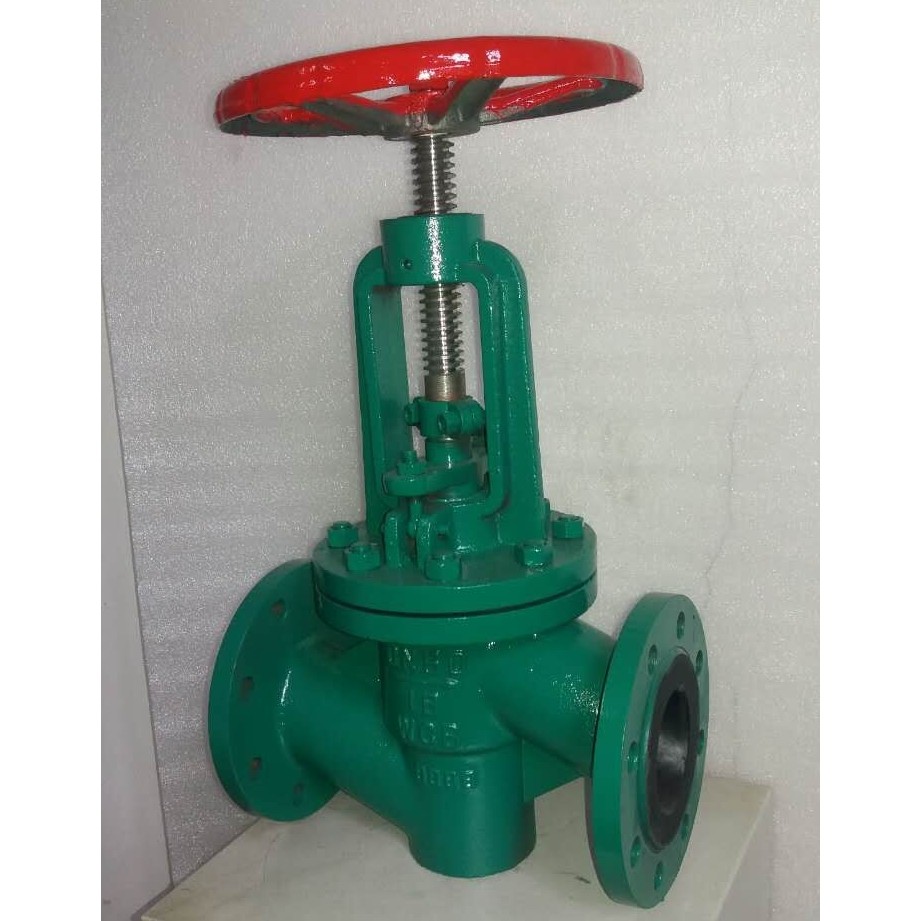

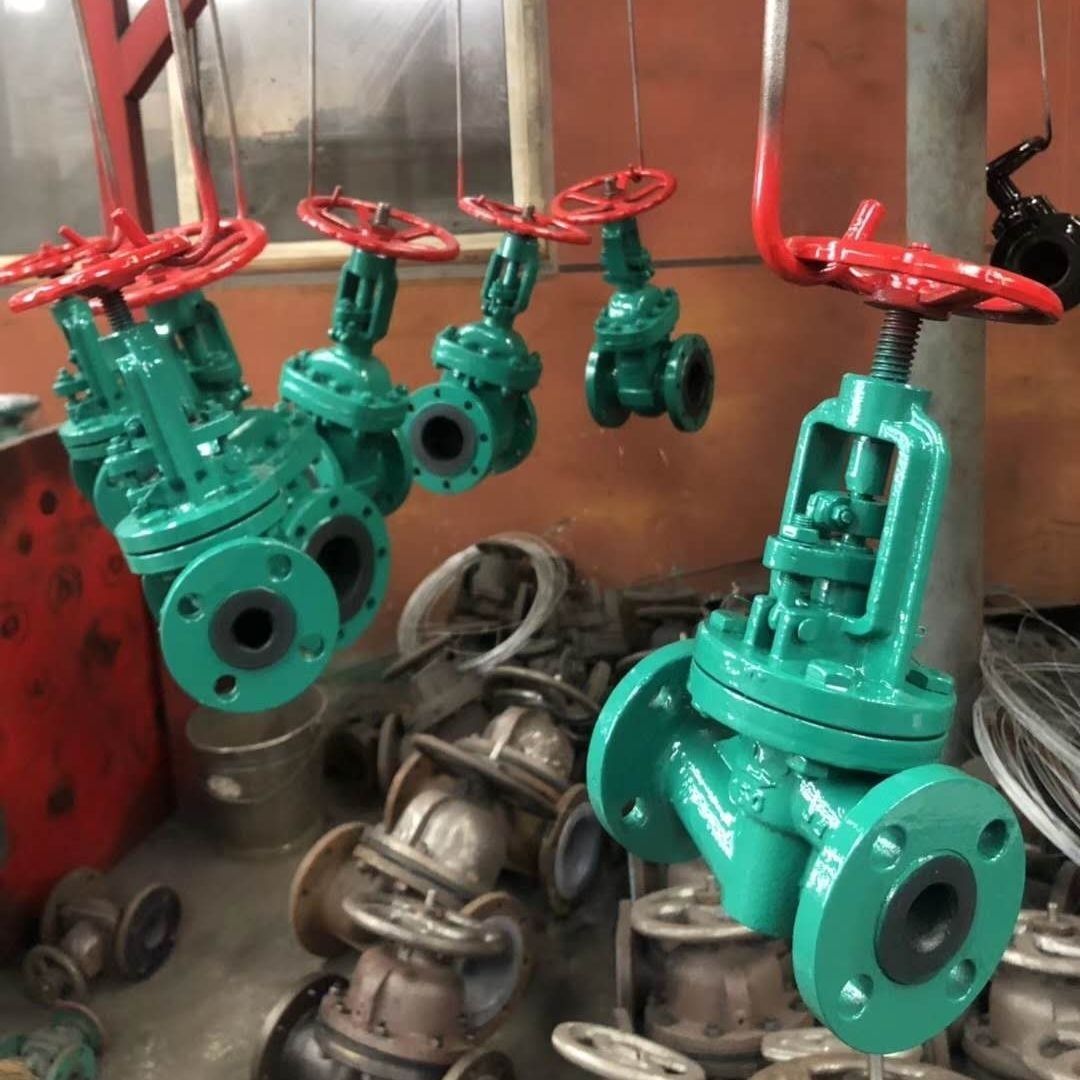

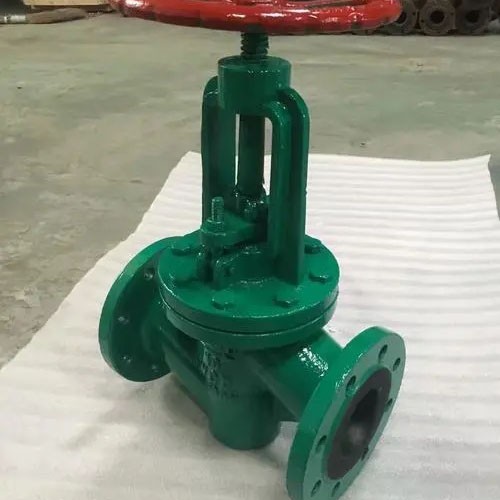

Rubber Lined Globe Valve

  • Product Item:J41F46
  • Design and Manufacture Standard: ASME B16.34, HG/T 3704
  • Body Material: WCB, ASTM A395, CF8, CF8M
  • Lining Material: Rubber -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI
  • Nominal Diameter: 1/2"-14"(DN15~DN350)
  • Rubber Lined Globe Valve , rubber lined Y type globe valve , Rubber Lined Angle Globe Valve , Rubber lined straight globe valve
    Inquiry Send Email

    Description


    Rubber Lined Globe Valve

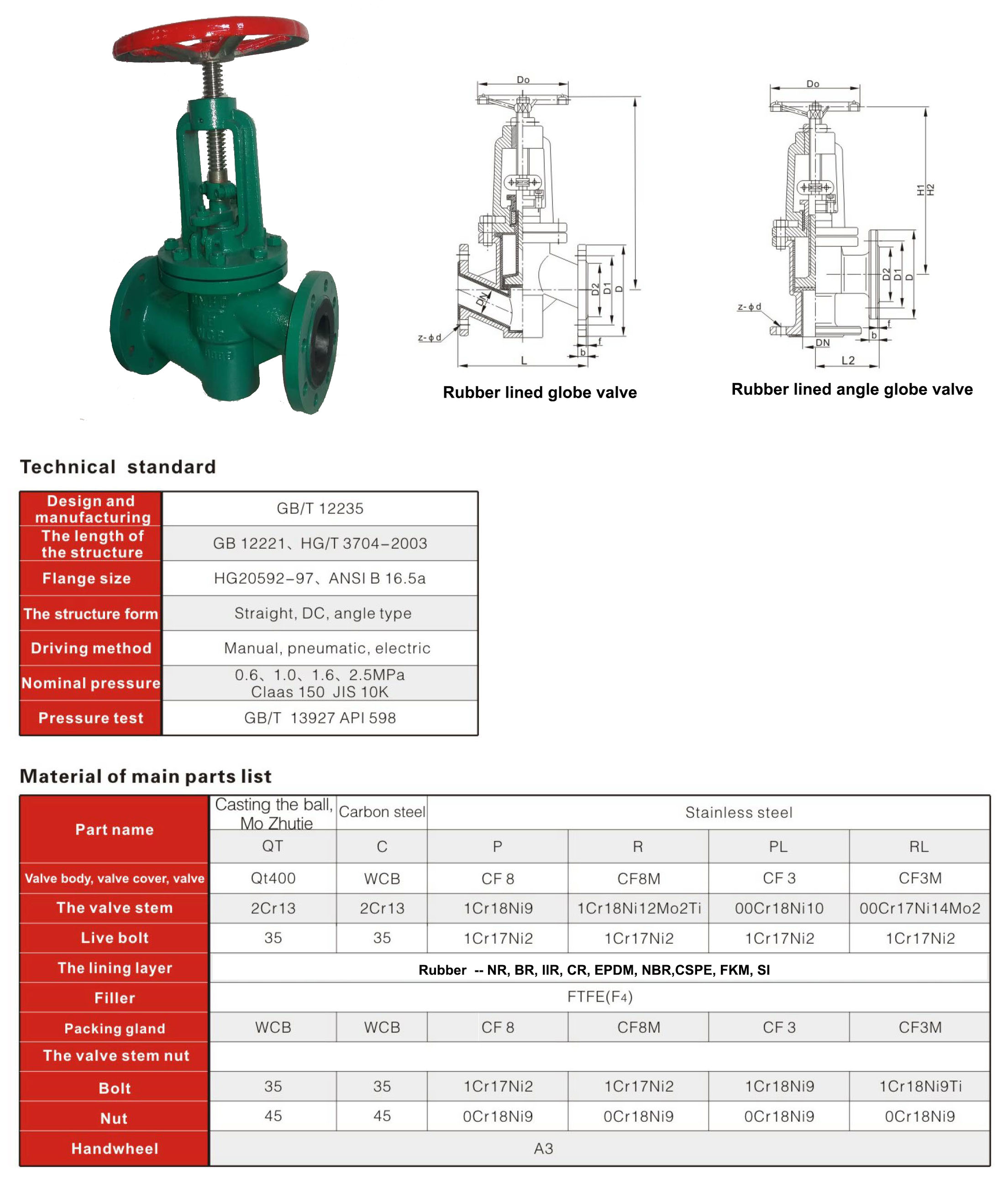

    Technical Specification

    Design and Manufacture Standard: ASME B16.34, HG/T 3704
    Face-to-face Dimension: ASME B16.10, GB/T 12221
    Flange Standard: ASME B 16.5, GB/T 9119, DIN, JIS
    Inspection and Testing: API 598, GB/T 13927

    Product Specification

    Body Material: WCB, ASTM A395, CF8, CF8M
    Lining Material: Rubber  -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI
    Nominal Diameter: 1/2"-14"(DN15~DN350)
    Pressure Range: Class150, PN10, PN16

    Operation Method: Manual, Worn gear, Electric, Pneumatic actuator
