Description
PSB Forged Check Valve Pressure Seal Bonnet To Class 900LBS, 1500LBS, 2500LBS, Sw, Npt, Screwed, Threaded Ends, NPS 1/2 to NPS 2, Full Bore, Reduced Bore Forged Steel Piston, Swing Type Check Valves, Carbon Steel, Stainless Steel, Duplex Steel Hard Seat Check Valve Supplier, Exporter.

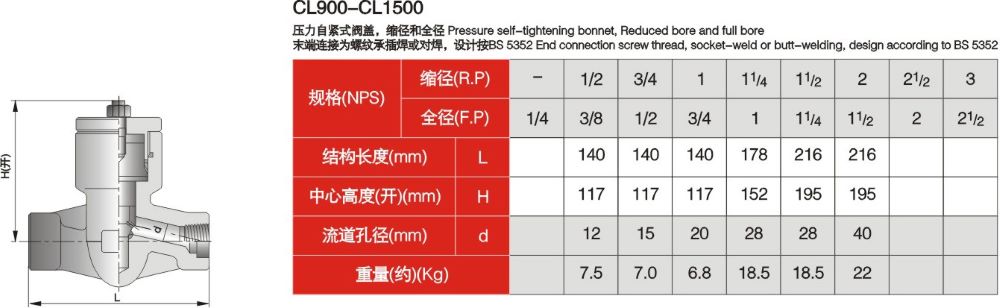

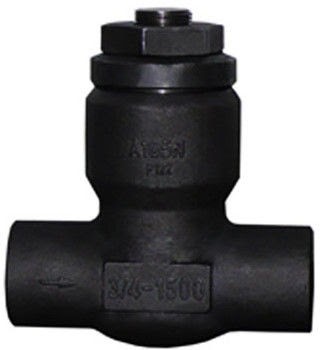

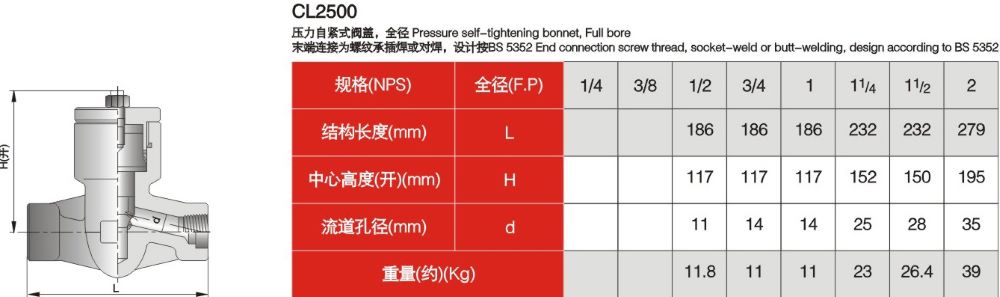

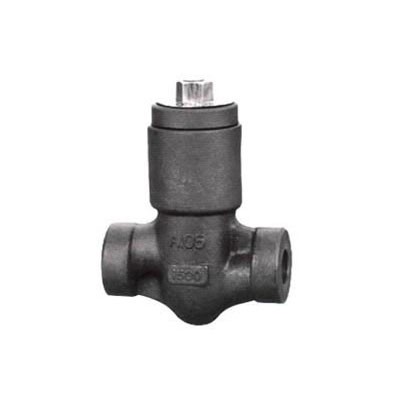

FORGED STEEL CHECK VALVE 900LBS - 1500LBS - 2500LBS (PRESSURE SEAL BONNET)
- Design & Manufacture: BS5352

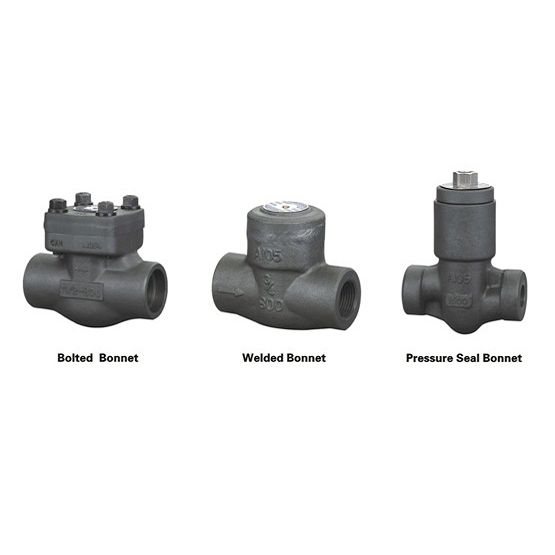

- Constructions: Pressure Self - Sealing Bonnet
- Bore Type: Full Bort, Reduced Bore
- Size Range: 1/2" to 2"
- Pressure Ratings: ANSI 900LB, 1500LB & 2500LB
- End Connections: Butt Weld, Socket Weld
- Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent
- Various Trim Materials are Available to Suit Different Service Conditions
- NACE MR 0175 on Request
- Test and Inspection: API598
