Description
Technical Specification

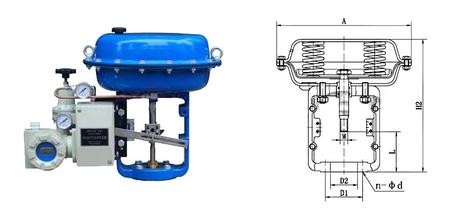

Pneumatic Diaphragm Actuator with multi-spring structure, light weight, small volume, high performance and large output force. The working principles areas follows: electricity or gas signal from controller will enter the diaphragm room after converted into air pressure by positioner to form push force to act on the diagram and make the push rod move. Meanwhile the spring is compressed until the acting force is balanced with counter-acting force to make the push rod reach preset position.
Products Range
Action Type: Air To Open,Air To Close
Products Size: 22#，23#，34#，45#，56#
Spring Range: 40~200kPa, 80~240kPa,
Rated Sroke Range:16~100mm
Suitable Ambient Temperature Range: -60~70℃

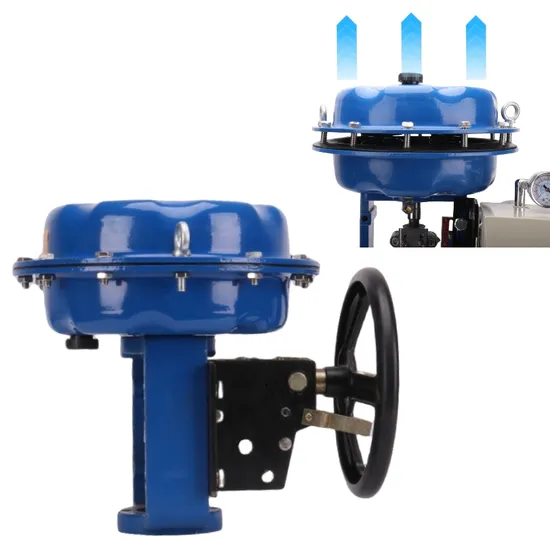

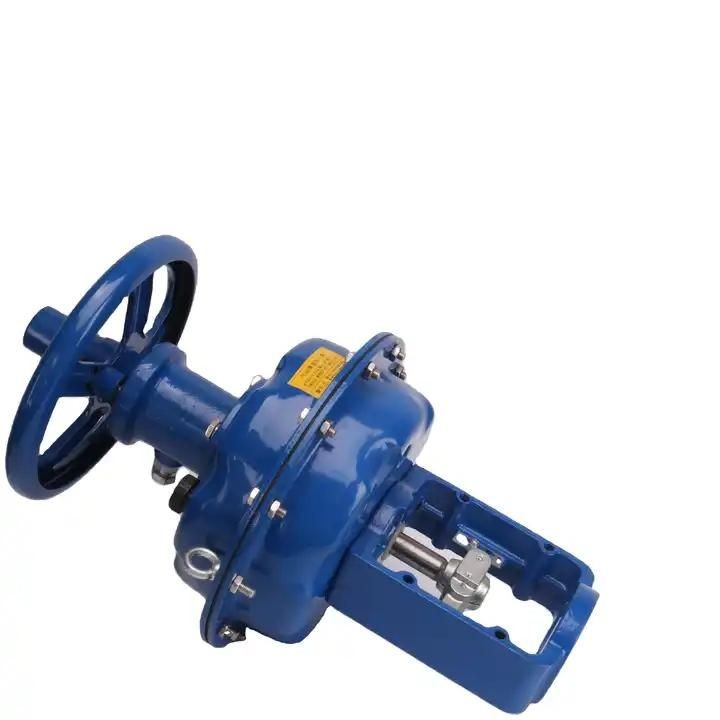

Handwheel Type：Top Mounted,Side Mounted
Features
Low overall height
– Design of leg posts and diaphragm casing allows for
maximum strength with minimum overall height.
Long service lift
– Diaphragm casing are rugged, thick-walled,
internally coated steel construction providing stability
and corrosion protection.
High trust capability
– Molded and reinforced diaphragm permits higher
pressure to provide maximum thrust for a given
diaphragm size.
High dynamic stability and frequency response
– Shallow casing means reduced volume, thereby
minimizing response time.
Reduced hysteresis
– Multi-spring design provides diaphragm stability and
improves operational repeatability.
Standard Specification
|
Type |
Single Acting(Multi-spring) |
|||||
|
Action |
Reverse action(RA), Direct action(DA) |
|||||
|
Actuator Model |
ZH_22 |
ZH_23 |
ZH_34 |
ZH_45 |
ZH_56 |
|
|
Effective Diaphram Area(cm2) |
350 |
350 |
560 |
900 |
1400 |
|
|
Max.Stroke(mm) |
16 |
25 |
40 |
60 |
100 |
|
|
Materials |
Case |
CS(Press) |
||||
|
Diaphragm |
EPDM* |
|||||
|
Shaft(Output rod) |
SS410(H.Cr plated) |
|||||
|
Yoke |
A216 WCB |
|||||
|
Air Supply Pressure kPa (kgf/cm2 G) |
140(1.4), 240(2.4) , 320(3.2) |
|||||
|
Spring Range kPa (kgf/cm2 G) |
20 to 100(0.2 to 1.0), 40 to 200 (0.4 to 2.0), 80 to 240 (0.8 to 2.4)
|
|||||
|
Air connection
|
3/8G internal thread
|
|||||
|
Ambient Temperature
|
Standard type……………………………………………－10～＋70℃ High temperature service (option)…………………… 0～＋100℃ Low temperature service (option)…………………… －40～＋40℃ |
|||||
|
Painting |
RAL5017(Powder Coating)* |
|||||
|
Additional Options |
Mechanisms |
Top-mounted H/W, Top worm-mounted H/W, Side mounted H/W. |
||||
|
Accessories |
E/P Positioner, P/P Positioner, Air set, Limit S/W, Solenoid valve, Booster relay, Speed controller, Lock-up valve, etc. |
|||||
[Notes] (1) *: Manufactured and attached as according to customer's order.
(2) For the optional items, refer to the specification sheets and installation drawings of respective accessories.
(3) Top worm-mounted H/W option is only available for actuator model ZH_56.
Action and Model
|
Action |
Actuators Model |
||||
|
Direct |
ZHA22 |
ZHA23 |
ZHA34 |
ZHA45 |
ZHA56 |
|
Reverse |
ZHB22 |
ZHB23 |
ZHB34 |
ZHB45 |
ZHB56 |

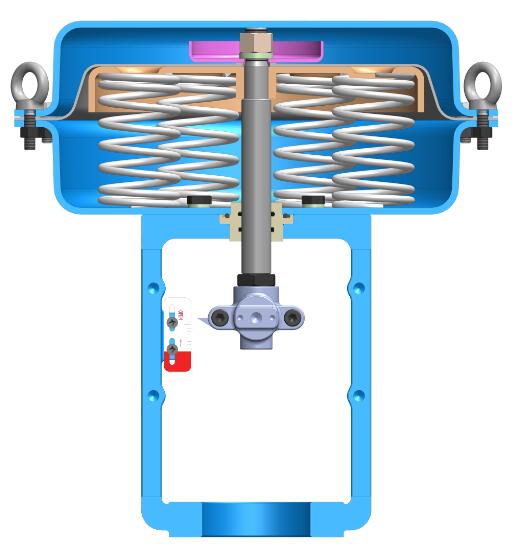

1) Direct action
As the air pressure fed to the top chamber of the diaphragm case increases, the actuator stem moves downward.
Direct Action(ZH_A)
2) Reverse action
As the air pressure fed to the bottom chamber of the diaphragm case increases, the actuator stem moves upward.
Reverse Action(ZH_B)
