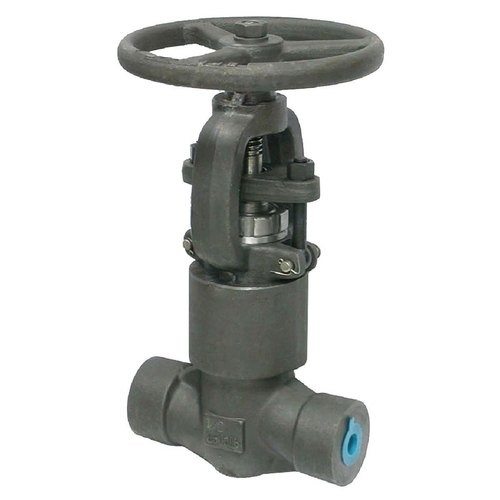

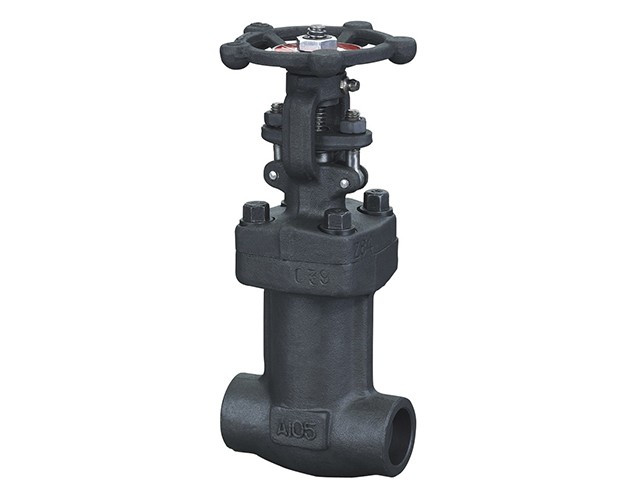

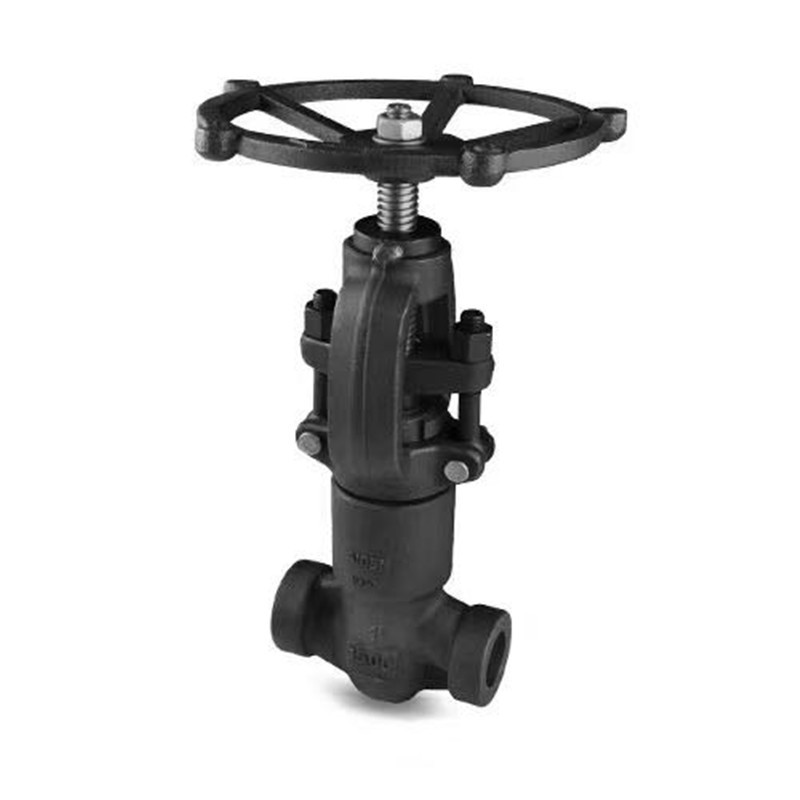

Pressure sealing bonnet forged gate valve1500LBS - 2500LBS

Pressure sealing bonnet forged gate valve1500LBS - 2500LBS

Product Item：Z41Y

Design and Manufacrture: API602, ASME B16.34

Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;

End Connections: Flanged (RF, RJ), Butt weld (BW)

Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent;

Description

PSB Forged Gate Valve High Pressure To Ansi Class 1500Lbs, 2500Lbs, Self Sealing, Pressure Seal Bonnet, API 602, Solid Wedge, OS&Y, Rising Stem Forged Steel Gate Valves, Socket Weld, SW, Screwed, Threaded, NPS Ends, NPS1/2 to NPS2 Carbon Steel, Stainless Steel, Duplex Steel Manual Gate Valve Supplier and Exporter.

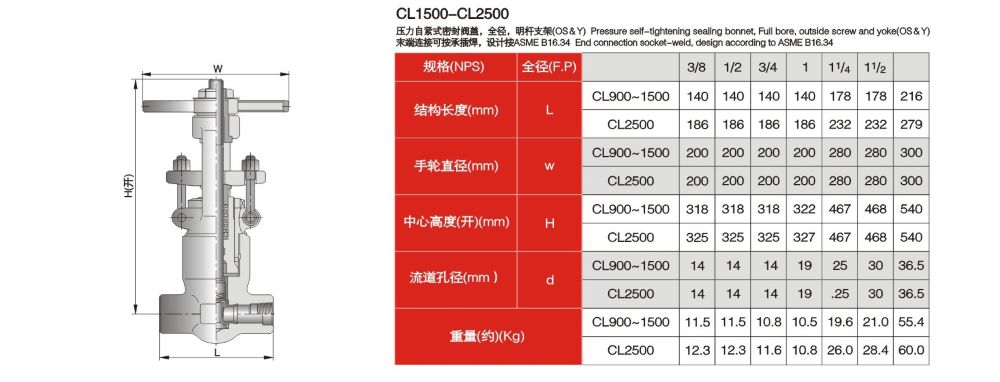

Specifications For Forged Gate Valve Pressure Seal 1500LBS - 2500LBS (SW, NPT Ends)

1. Design & Manufacture: API 602
2. Constructions: OS&Y, Pressure Sealed Bonnet, PSB
3. Full Port/ Reduced Port
4. Size Range: 1/2inch to 2inch
5. Pressure Ratings: ANSI 1500Lbs & 2500Lbs
6. End Connections: Socket Weld, SW, NPT, Threaded
7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51, F53 or Equivalent
8. Various Trim Materials are Available to Suit Different Service Conditions
9. NACE MR 0175 on Request
10. Test and Inspection: API598
