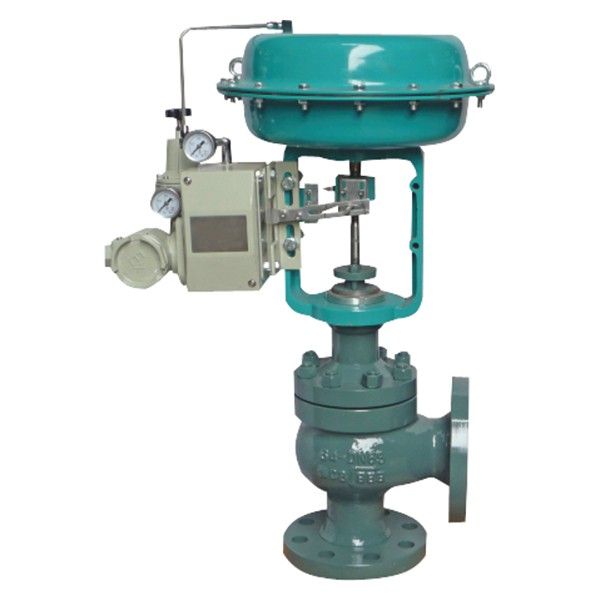

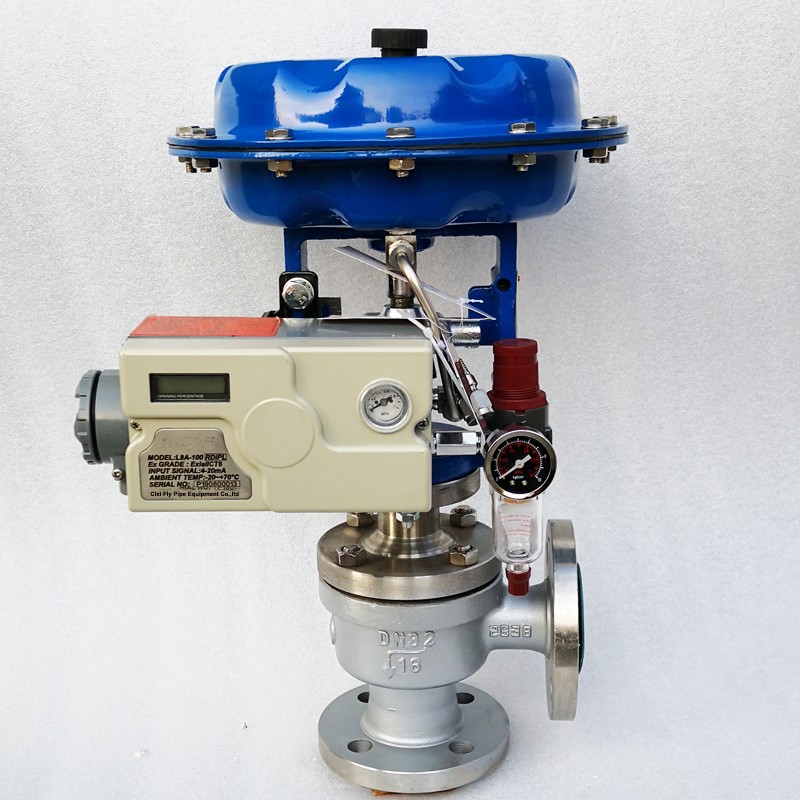

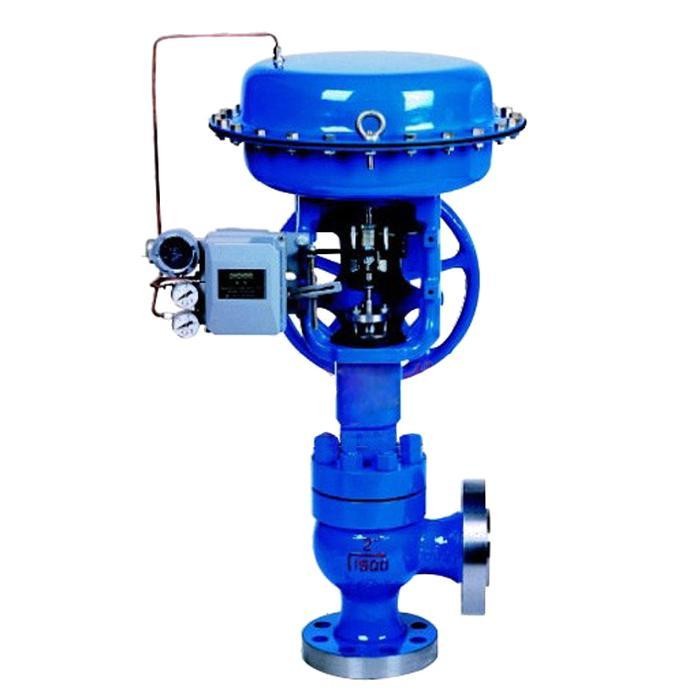

  • ZMBS Pneumatic angle control valve
  • ZMBS Pneumatic angle control valve
  • ZMBS Pneumatic angle control valve
ZMBS Pneumatic angle control valve ZMBS Pneumatic angle control valve ZMBS Pneumatic angle control valve

ZMBS Pneumatic angle control valve

  • Port size:DN20~200, NPS 3/4〞~ 8〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Temperature :-196~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Pneumatic angle control valve , angle control valve , stainless steel angle control valve
    Inquiry Send Email

    Description

    • PNEUMATIC ANGLE CONTROL VALVE FEATURE

      Pneumatic angle control valve is specially designed for the medium which is high viscosity, easy to crystallize, containing suspended particles and 90 degree angle area.Pneumatic angle control valve can choose single seat or balanced sleeve disc,which can be used on some high pressure differential or multistage adjustment.
    • Pneumatic angle control valve main advantage as below:
      01.Pneumatic Angle Control Valve is used for large viscosity, easy crystallization,and easy coagulation situation, etc.
      02.Actuator of Pneumatic angle control valve  adopts multi-spring circular equal layout, using high strength rubber diaphragm actuation parts, with small structure and large output force
      03. Small pressure differential loss, accurate flow control
      04.No dead corner in the Pneumatic angle control valve, easy to clean, also applicable for food industry.
    • PNEUMATIC ANGLE CONTROL VALVE SPECIFICATION

       Pneumatic angle control valve  Body type: angle casting globe type
      Spool type: single seat,cage guiede
      Nominal size: DN20~200 NPS 3/4〞~ 8〞
      Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
      Connection: flange: FF、RF、MF、RTJ
      Welding: SW、BW
      Flange dimension: According to to IEC 60534
      Pneumatic angle control valve Bonnet type: Ⅰ:standard type(-20℃~230℃)
      Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
      Ⅲ:Low temperature extended type(-196℃~ -45℃)
      Ⅳ:Bellow seal type
      Ⅴ:Warm insulation Jacket type
      Packing: V type PFTE packing, flex. graphite packing, etc.
      Gasket: Metal graphite packing
      Control valve Actuator: Pneumatic:multi-spring diaphragm actuator, piston type actuator.
    • PNEUMATIC ANGLE CONTROL VALVE STRUCTURE


    • PNEUMATIC ANGLE CONTROL VALVE MATERIAL

      Component name Control Valve Material
      Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
      Valve spool/Seat 304/316/316L(overlaying stellite alloy)
      Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
      Bellow 304,316,316L
      Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
      Stem 2Cr13/17-4PH/304/316/316L
      Diaphragm Cover Normal:Q235,Special:304
      Diaphragm NBR with reinforced polyester fabric
      Spring Normal:60Si2Mn,Special:50CrVa
    • PNEUMATIC ANGLE CONTROL VALVE PERFORMANCE

      Pneumatic angle control valve Flow characteristic Linear, percentage
      Allowable range 50: 1 (CV<6.3 30: 1)
      Rated Cv value Percentage 1.6~630/ linear CV1.8~690
      Pneumatic angle control valve
      Allowable leakage
      Metal seal:  IV grade(0.01% rated capacity)
      Soft seal: VI grade(foam grade)
      Leakage standard:  GB/T 4213
      Pneumatic angle control valve  Performance
      Intrinsic error(%) ±1.5
      Return difference(%) ≤1.5
      Dead zone(%) ≤0.6
      Difference from beginning to end point(%) ±2.5
      Rated travel difference(%) ≤2.5
    • PNEUMATIC ANGLE CONTROL VALVE SPECIAL REQUIRMENT

      Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
      low temperature test.
      Special treatment Trim nitrogen treatment, seat hard alloy treatment.
      Special rinse Degreasing and dehydration treatment
      Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
      Special dimension Customized face to face length or dimension
      Test and inspection Third party test report
    • PNEUMATIC ANGLE CONTROL VALVE ACTUATOR PARAMETER

      Pneumatic angle control valve
      Type\ Method
      Pneumatic diaphragm actuator
      ZH23~ZH56
      Multi-spring type
      Usage Regulating type, ON-OFF type
      Air supply pressure or Power supply voltage Air supply pressure (Spring range)
      140(20~100)Kpa G
      240 (40~200) Kpa G
      280 (80~240) Kpa G
      Connector Air pipe connector: RC1/4
      Direct action Pressure increase, stem descend, valve close.
      Reaction Pressure increase, stem ascend, valve open.
      Input signal 40~20mA.DC(with positioner)
      Lag ≤1%FS(with positioner)
      Linear type 2%FS(with positioner)
      Environmental temperature -10℃~+70℃
      Pneumatic angle control valve
      Accessories
      E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
      Non-standard accessories, need special customized notes.
    • PNEUMATIC ANGLE CONTROL VALVE TECHNICAL PARAMETER

      Seat diameter(mm) 10 12 15 20 25 32 40 50 65 80 100 125 150 200
      Rated Cv Percentage 1.6 2.5 4.0 6.3 10 16 25 40 63 100 160 250 400 630
      Linear 1.8 2.8 4.4 6.9 11 17.6 27.5 44 69 110 176 275 440 690
      Nominal size Travel Option flow coefficient Cv(★ standard ●recommended ○customized)
      DN20 16mm ● ● ● ★
      DN25 ● ● ● ● ★
      DN32 25 mm ○ ○ ○ ○ ○ ★
      DN40   ○ ○ ○ ○ ● ★
      DN50     ○ ○ ○ ● ● ★
      DN65 40mm           ○ ○ ○ ★
      DN80           ○ ○ ○ ● ★
      DN100           ○ ○ ○ ● ● ★
      DN125 60mm                 ○ ○ ○ ★
      DN150                   ○ ○ ● ★
      DN200                   ○ ○ ● ● ★
      Pneumatic diaphragm effective area,  Ae (cm2) ZHA/B-22 ZHA/B-23 ZHA/B-34 ZHA/B-45
      350 350 560 900
      Action Spring range Pneumatic angle control valve  Metal seal allowable pressure difference(MPa)
      Air open 20-100KPa 4.46 3.09 1.98 1.16 0.7 0.44 0.28 0.18 0.17 0.11 0.07 0.07 0.05 0.03
      40-200 KPa 6.4 6.4 5.94 3.34 2.14 1.31 0.84 0.53 0.51 0.33 0.21 0.22 0.15 0.09
      80-240 KPa 6.4 6.4 6.4 6.4 4.99 3.05 1.95 1.25 1.18 0.78 0.5 0.51 0.36 0.21
      Air close 20-100KPa 6.4 6.19 3.96 2.23 2.14 0.87 0.56 0.35 0.34 0.22 0.14 0.15 0.1 0.06
      40-200 KPa 6.4 6.4 6.4 6.4 6.4 5.86 3.64 2.3 2.21 1.43 0.91 0.95 0.66 0.37
      80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 5.04 3.18 3.06 1.98 1.26 1.32 0.92 0.52
