  • PTFE seat rubber lined pneumatic diaphragm valve
  • PTFE seat rubber lined pneumatic diaphragm valve
  • PTFE seat rubber lined pneumatic diaphragm valve
PTFE seat rubber lined pneumatic diaphragm valvePTFE seat rubber lined pneumatic diaphragm valvePTFE seat rubber lined pneumatic diaphragm valve

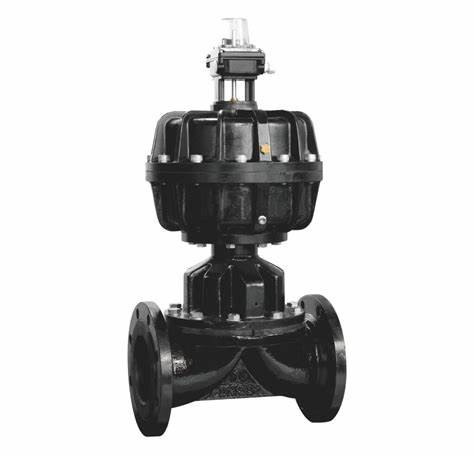

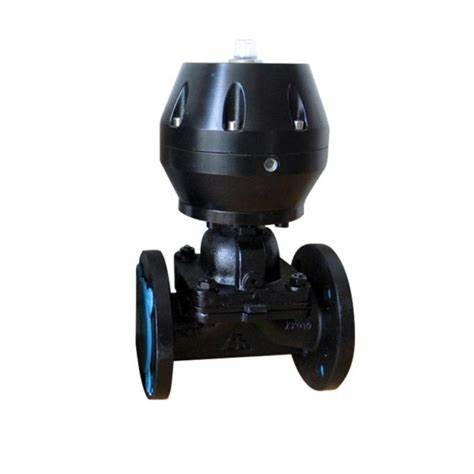

PTFE seat rubber lined pneumatic diaphragm valve

  • Product Item:GL641F46
  • Max working pressure : EPDM diaphragm 10bar, PTFE diaphragm 8bar
  • Diaphragm Material : EPDM,EPDM+PTFE
  • Body: WCB, SS316,SS316L
  • Max working temperature: 150°C
  • PTFE seat rubber lined pneumatic diaphragm valve , pneumatic diaphragm valve , pneumatic lined diaphragm valve
    Inquiry Send Email

    Description

    Description

    Description
    Max working pressure : EPDM diaphragm 10bar, PTFE diaphragm 8bar
    Max working temperature: 150°C
    Pressure supply: 5.5bar
    Diaphragm Material : EPDM,EPDM+PTFE
    Body: WCB, SS316,SS316L
    Ends: Flange

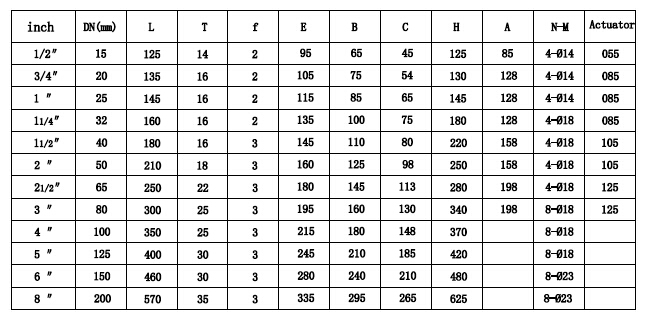

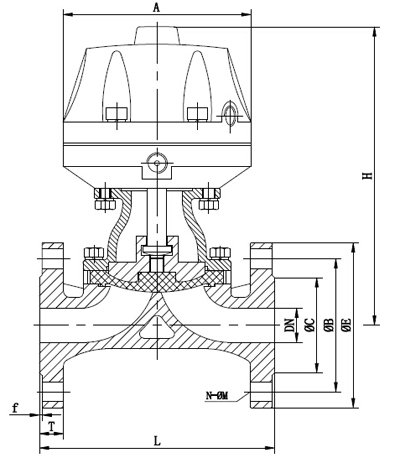

    Size: 1/2″ – 10″ (15mm – 250mm)
    End connections:
    ASME B16.34 class 150、ASME B16.34 class 300
    DIN PN16、PN20
    JIS 10K、20K

    Pneumatic Actuator
    Control: Double acting,
    Single acting normally closed
    Single acting normally open

    Pneumatic accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel
