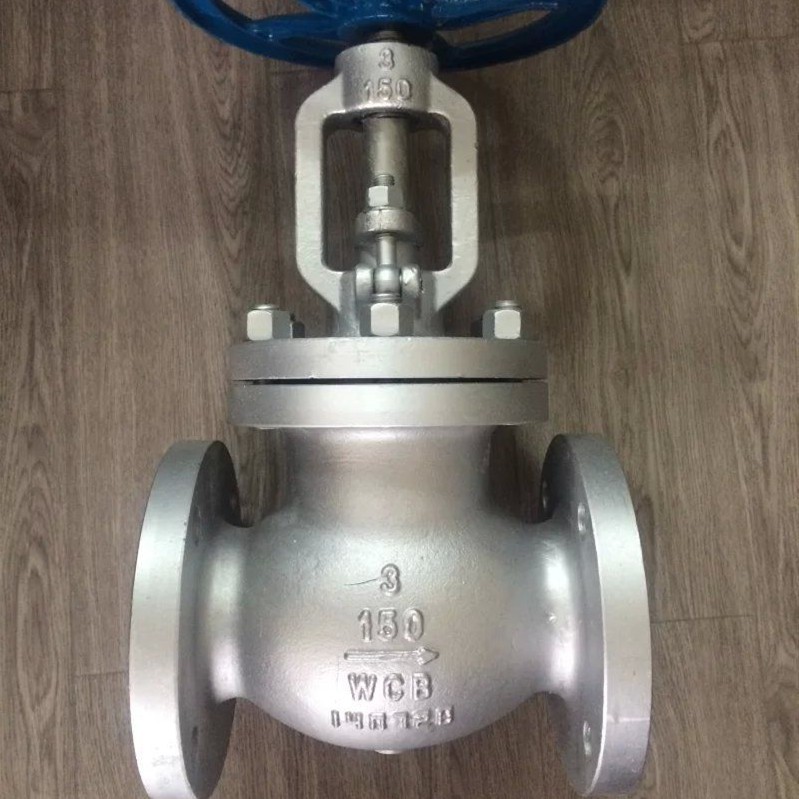

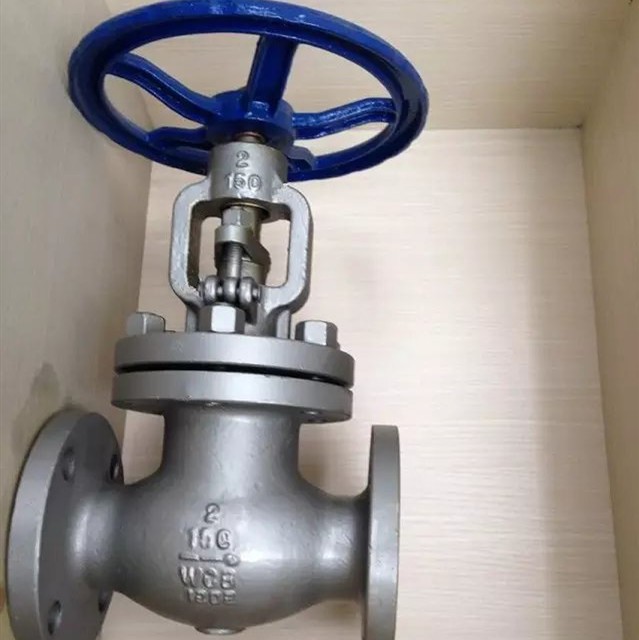

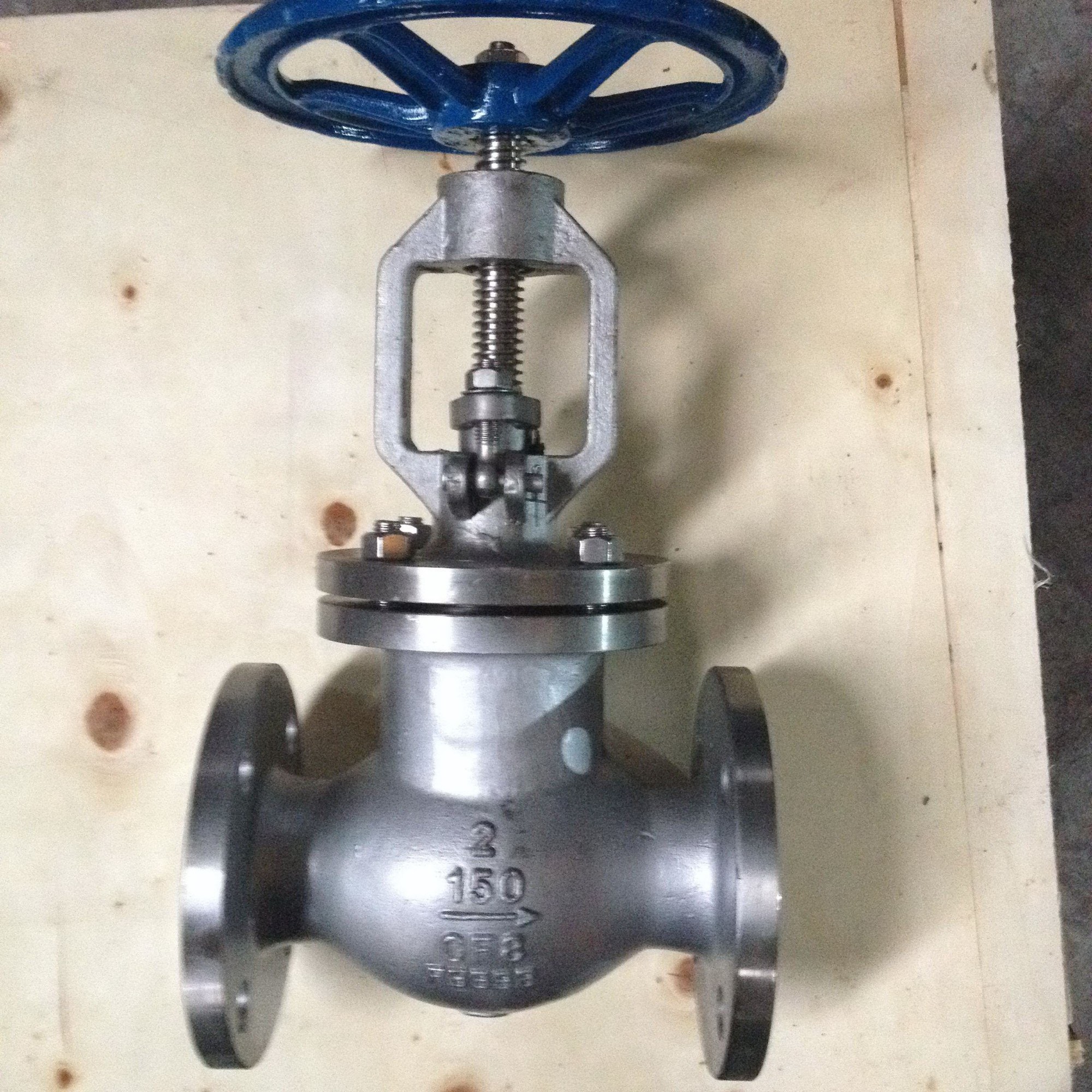

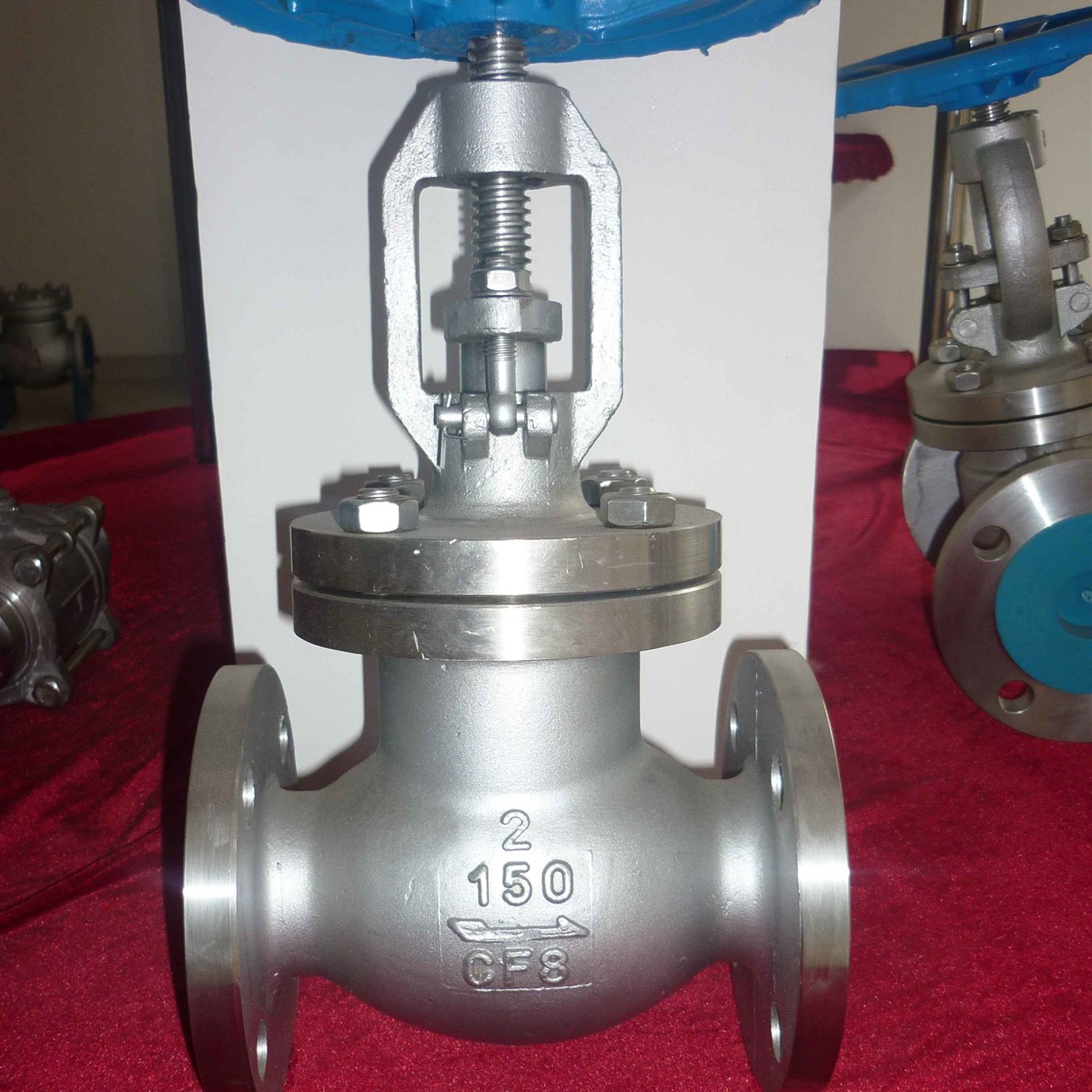

  • BS1873 Globe Valve
  • BS1873 Globe Valve
  • BS1873 Globe Valve
  • BS1873 Globe Valve
BS1873 Globe ValveBS1873 Globe ValveBS1873 Globe ValveBS1873 Globe Valve

BS1873 Globe Valve

  • Product Item:J41H
  • Design standard as per: BS1873、GB/T 12235.
  • Material:Carbon steel,Stainless steel,Alloy steel,chrome-molybdenum steel,etc.
  • Nominal diameter: 1/2"~24"(DN15~DN600
  • Pressure range:Class150~2500(PN10~PN420
  • BS1873 Globe Valve , Cast Steel Globe Valve , Stainless steel globe valve
    Inquiry Send Email

    Description


    BS1873 Globe Valve Class 150

    Type: J41H/Y
    Size:2"-36"
    Pressure Range:Class 150∽Class 1500
    Working Temp.:≤425°
    Material:Carbon steel,Stainless steel,Alloy steel,chrome-molybdenum steel,etc.
    Medium:Water Steam Oil
    Operation: Manual Pneumatic Electric

    Applicable standards

    Steel globe valves, BS1873
    Steel valves, ASME B16.34
    Face to face, ASME B16.10
    End flanges, ASME B16.5
    Butt welding ends, ASME B16.25
    Inspection and test, API 598

    Design Features

    Straight patteren body design
    OS&Y, Outside screw and yoke
    BB, Bolted bonnet
    Yoke integral with bonnet
    Rising stem and handwheel
    Renewable seat ring
    Loose disc,choice of plug or ball
    Horizontal servece
    Handwheel, & Gear box operator

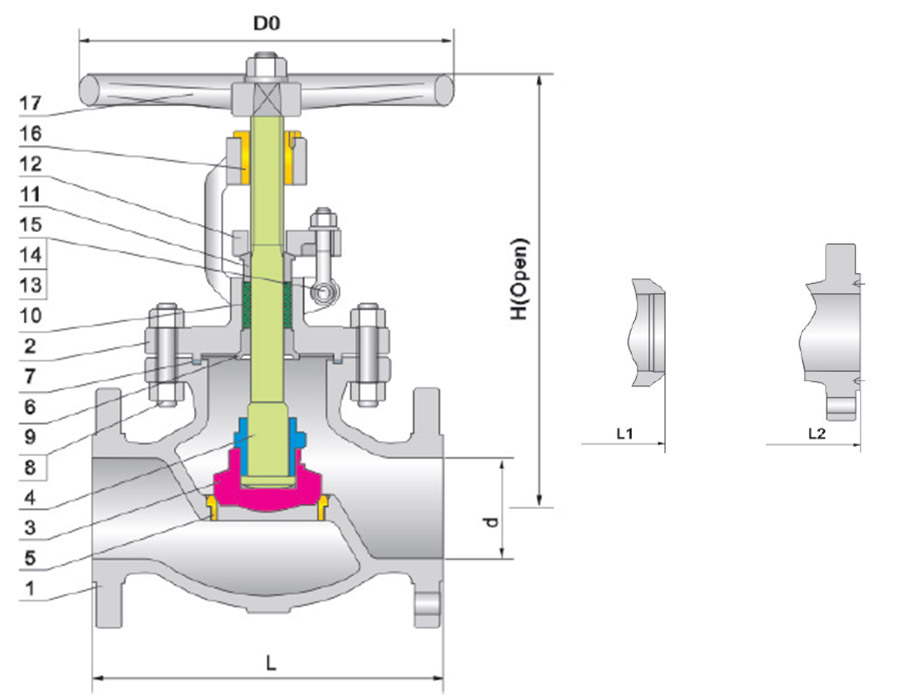

    Material of parts:

    No.

    ASTM Material

    Part Name

    Carbon steel

    11/4 Cr-11/2 Mo

    Low-term. Steel

    Stainless steel

    1

    Body

    A216-WCB

    A217-WC6

    A352-LCB

    ASTM A351 CF8M

    2

    Bonnet

    A216-WCB

    A217-WC6

    A352-LCB

    ASTM A351 CF8M

    3

    Disc

    A105+13Cr

    A182 F11+HF

    A350 LF2+13Cr

    A182 F316+STL

    4

    Stem

    A182-F6a

    CR-MO-V

    A182-F6a

    A182-F316

    5

    Seal Ring

    A105+13Cr

    A182 F11+HF

    A350 LF2+13Cr

         A182-F316+STL

    6

    Stem Back Seat

    A276-410

    A276-410

    A276-410

    A182-F316

    7

    Bonnet Gasket

    Spiral Wound(Graphite+304/316)

    8

    Bonnet Stud

    A193-B7

    A193-B16

    A320-L7

    A193-B8M

    9

    Bonnet Stud Nut

    A194-2H

    A194-7

    A194-4

    A194-8M

    10

    Packing

    Graphite

    11

    Gland

    A276-420

    A276 420

    A276-420

    Stainless steel

    12

    Gland Flange

    A216 WCB

    A217-WC6

    A352-LCB

    ASTM A351 CF8M

    13

    Eyebolt Pin

    Carbon steel

    A276 420

    Carbon steel

    Stainless steel

    14

    Eyebolt

    Carbon steel

    A193-B7

    Carbon steel

    A193-B8M

    15

    Eyebolt Nut

    Carbon steel

    A194-2H

    Carbon steel

    A194-8M

    16

    Yoke sleeve

    Bronze Alloy

    17

    Handwheel

    Malleable iron

    Note: 1)  Ductile Ni-Resist optional

              2)  Wedge and seat ring may either be solid facing material or a base material equal or better than the body/bonnet material with facing as shown.

    150 LB
    Dimensions: inches (millimeters)

    Sizes L / L1 H (Open) W
    2" 8 (203) 13-3/8 (340) 8-7/8 (225)
    2-1/2" 8-1/2 (216) 14-1/2 (368) 8-7/8 (225)
    3" 9-1/2 (241) 16-1/2 (419) 11-7/8 (302)
    4" 11-1/2 (292) 17-3/8 (441) 12-3/4 (325)
    5" 14 (356) 24 (610) 12-3/4 (325)
    6" 16 (406) 24 (610) 17-3/4 (451)
    8" 19-1/2 (495) 26-3/4 (679) 21-5/8 (549)
    10" 24-1/2 (622) 30 (762) 30 (762)
    12" 27-1/2 (699) 33-7/8 (860) 30 (762)
    14" 31 (787) 56 (1422) 31-1/2 (800)
    16" 36 (914) 64 (1626) 35-1/2 (902)
    GEAR OPERATOR RECOMMENDED FOR SIZE 10" AND ABOVE

    300 LB
    Dimensions: inches (millimeters)

    Sizes L / L1 H (Open) W
    2" 10-1/2 (267) 13-3/8 (340) 9 (229)
    2-1/2" 11-1/2 (292) 15-3/8 (390) 9 (229)
    3" 12-1/2 (318) 16-1/2 (419) 13 (330)
    4" 14 (356) 19-3/8 (492) 14 (356)
    5" 15-3/4 (400) 21-1/2 (546) 15-3/4 (400)
    6" 17-1/2 (445) 24-3/8 (619) 17-3/4 (451)
    8" 22 (559) 31-1/4 (794) 22 (559)
    10" 24-1/2 (622) 45 (1143) 34 (864)
    12" 28 (711) 49 (1245) 34 (864)
    GEAR OPERATOR RECOMMENDED FOR SIZE 8" AND ABOVE


    600 LB
    Dimensions: inches (millimeters)

    Sizes L / L1 H (Open) W
    2" 11-1/2 (292) 15-1/2 (394) 9-1/2 (241)
    2-1/2" 13 (330) 17 (432) 11 (279)
    3" 14 (356) 19 (483) 13 (330)
    4" 17 (432) 21 (533) 14 (356)
    5" 20 (508) 25 (635) 15-3/4 (400)
    6" 22 (559) 26-7/8 (683) 18 (457)
    8" 26 (660) 35 (889) 20 (508)
    10" 31 (787) 49 (1245) 24 (610)
    12" 33 (838) 58 (1473) 30 (762)
    GEAR OPERATOR RECOMMENDED FOR SIZE 8" AND ABOVE

    900 LB
    Dimensions: inches (millimeters)

    Sizes L / L1 H (Open) W
    2" 14-1/2 (368) 20-1/2 (521) 12 (305)
    3" 15 (381) 22-3/4 (578) 14 (356)
    4" 18 (457) 26-1/2 (673) 21-1/2 (546)
    6" 24 (610) 36 (914) 20 (508)
    8" 29 (737) 37 (940) 24 (610)
    GEAR OPERATOR RECOMMENDED FOR SIZE 6" AND ABOVE



    1500 LB
    Dimensions: inches (millimeters)

    Sizes L / L1 H (Open) W
    2" 14-1/2 (368) 24 (610) 14 (356)
    3" 18-1/2 (470) 26 (660) 16 (406)
    4" 21-1/2 (546) 28 (711) 18 (457)
    6" 27-3/4 (705) 37-1/2 (952) 24 (610)
    8" 32-3/4 (832) 45 (1143) 24 (610)
    GEAR OPERATOR RECOMMENDED FOR SIZE 6" AND ABOVE

    2500 LB
    Dimensions: inches (millimeters)

    Sizes L / L1 H (Open) W
    2" 17-3/4 (451) 25-1/2 (648) 16 (406)
    3" 22-3/4 (578) 32-1/2 (825) 20 (508)
    4" 26-1/2 (673) 47 (1194) 24 (610)
    6" 36 (914) 70-1/2 (1790) 28 (711)
    8" 40-1/4 (1022) / /
    GEAR OPERATOR RECOMMENDED FOR SIZE 6" AND ABOVE
