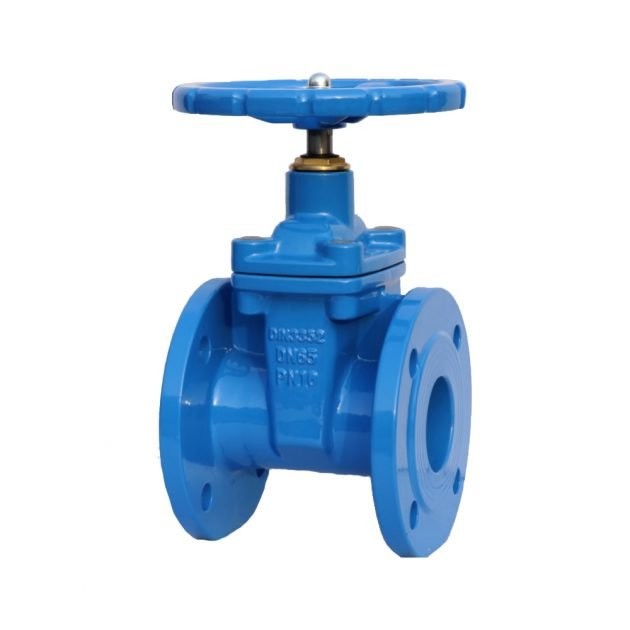

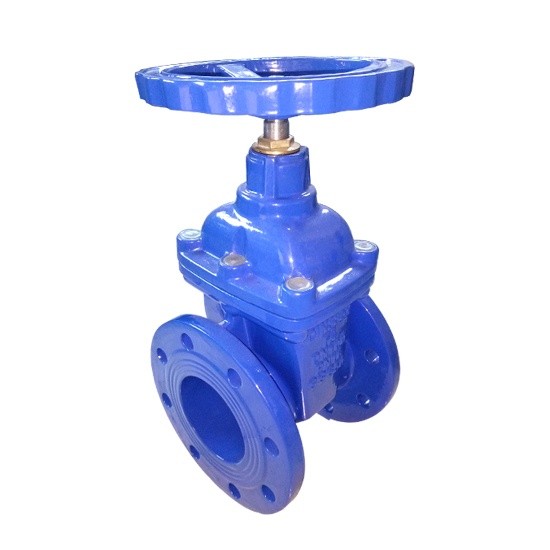

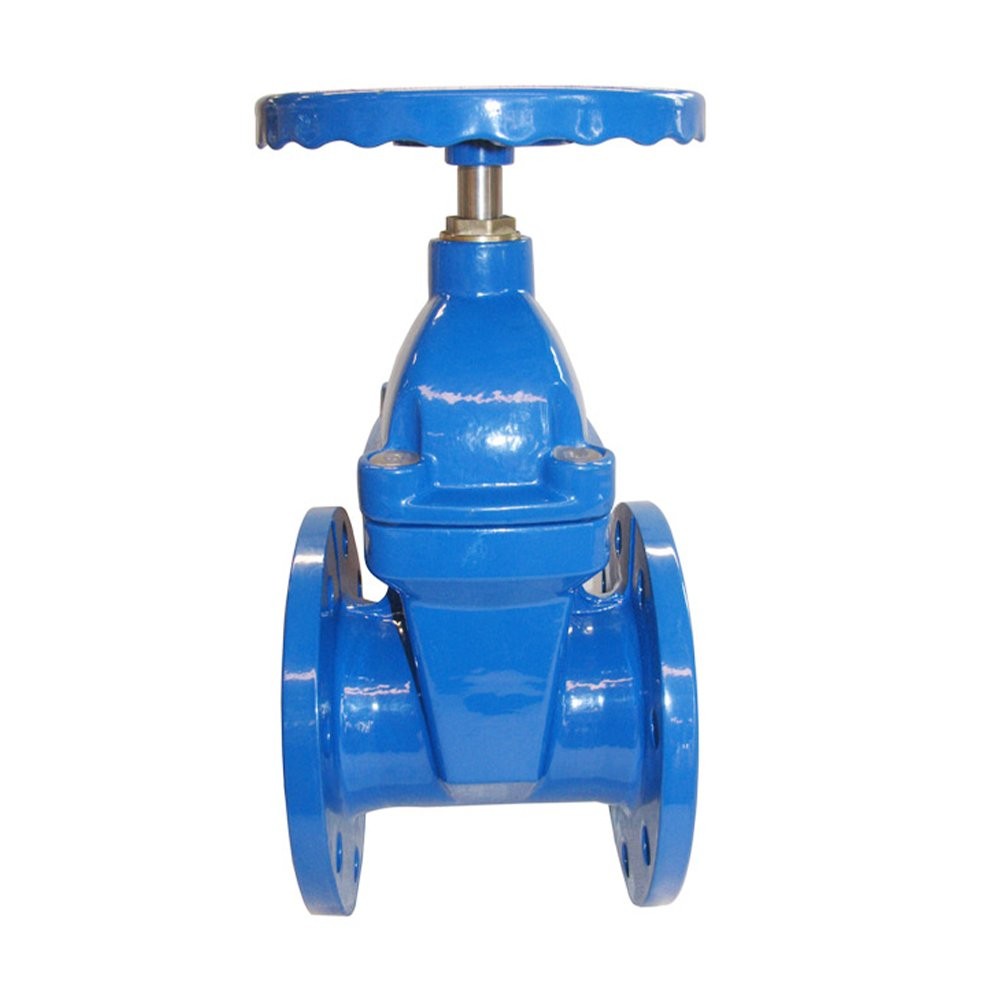

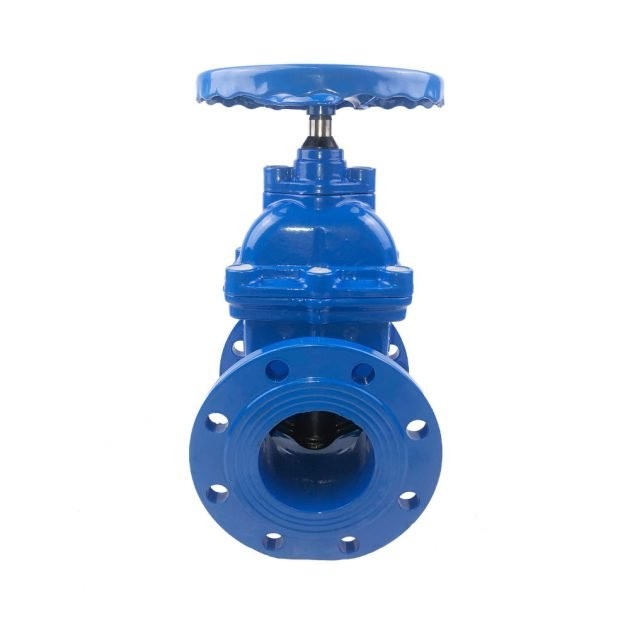

DIN F4/F5 Resilient seated gate valves NRS Flanged ends

  • Product Item:Z45X
  • Body : Ductile Iron GGG500-7
  • Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150
  • Stem : Stainless steel , BS970 431S29 or DIN17440x20Cr13
  • Wedge : D/I , core fully vulcanized with NBR or EPDM rubber
  • F4 Resilient Seated Non-Rising Gate Valve , Non-Rising Gate Valve , DI Seated Gate Valve
    Inquiry Send Email

    Description

    DIN F4/F5 Resilient seated gate valves NRS Flanged ends



    DESCRIPTION OF DIN F4/F5 Gate Valves
    1.Design confirms to: DIN3352
    2.Flanged drilled confirms to DIN2501
    3.Test & Inspection:DIN3230 / BS EN 12266-1
    4.Normal pressure:1.0MPa, 1.6MPa, 2.5MPa
    5.Suitable medium: water and neutral liquid.
    6.Working temperature: NBR≤80℃,-20℃ 7.Operator: Handwheel, nut, Extension Spindle, Gearbox

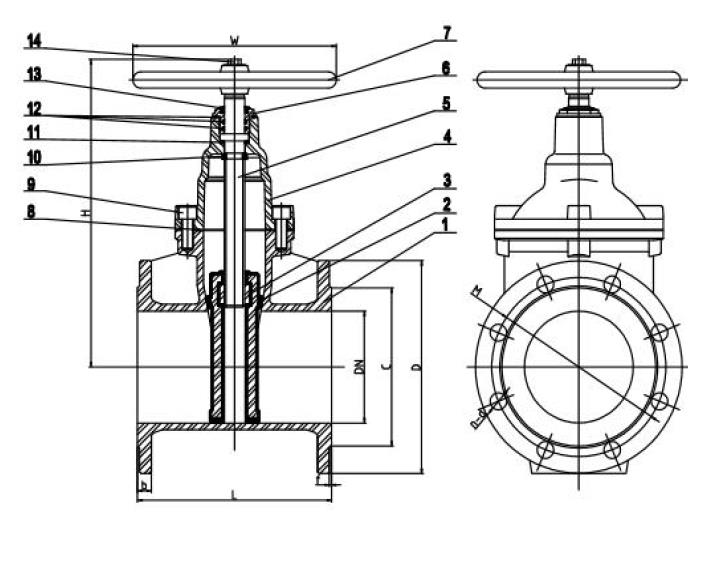

    MATERIAL LIST OF DIN F4/F5 Gate Valves

    NO. PART MATERIAL
    1 BODY GGG40/GGG50
    2 WEDGE GGG40/GGG50+NBR/EPDM
    3 STEM NUT BRASS/BRONZE/59-1/CZ132/5-5-5
    5 STEM 2Cr13/420/304
    4 BONNET GGG40/GGG50
    6 GLAND BRASS 59-1
    7 HAND WHEEL GGG40/GGG50

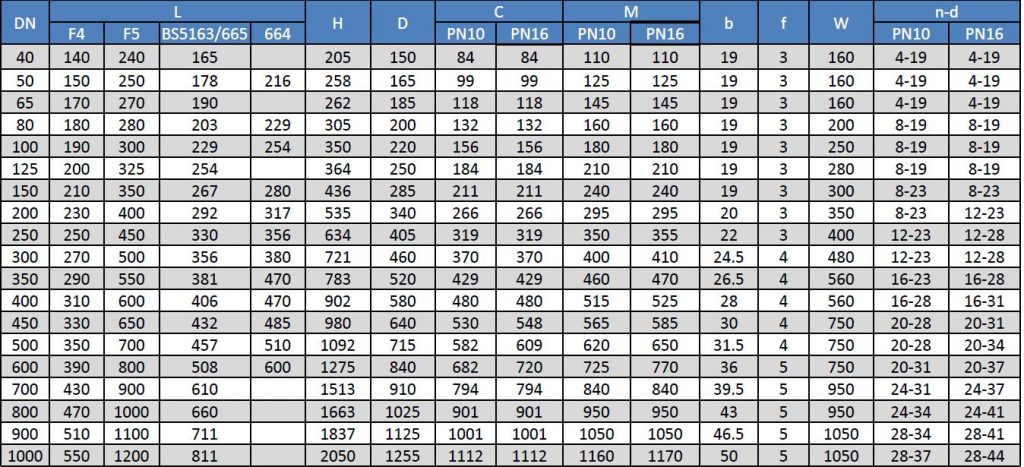

    DIMENSIONS(mm) BS EN1092-2 PN10/16 valves flanges
