Description

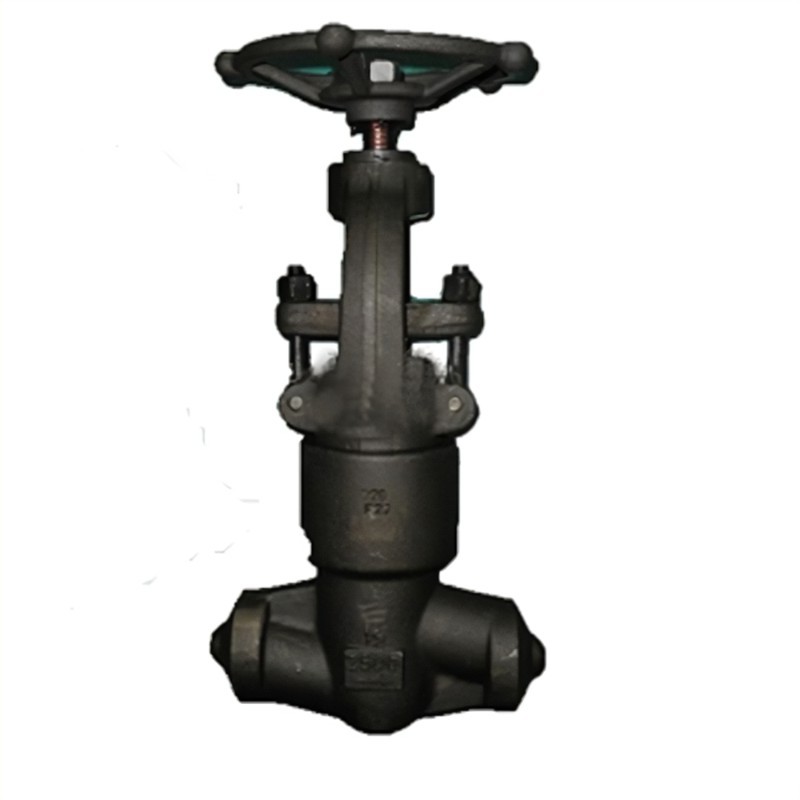

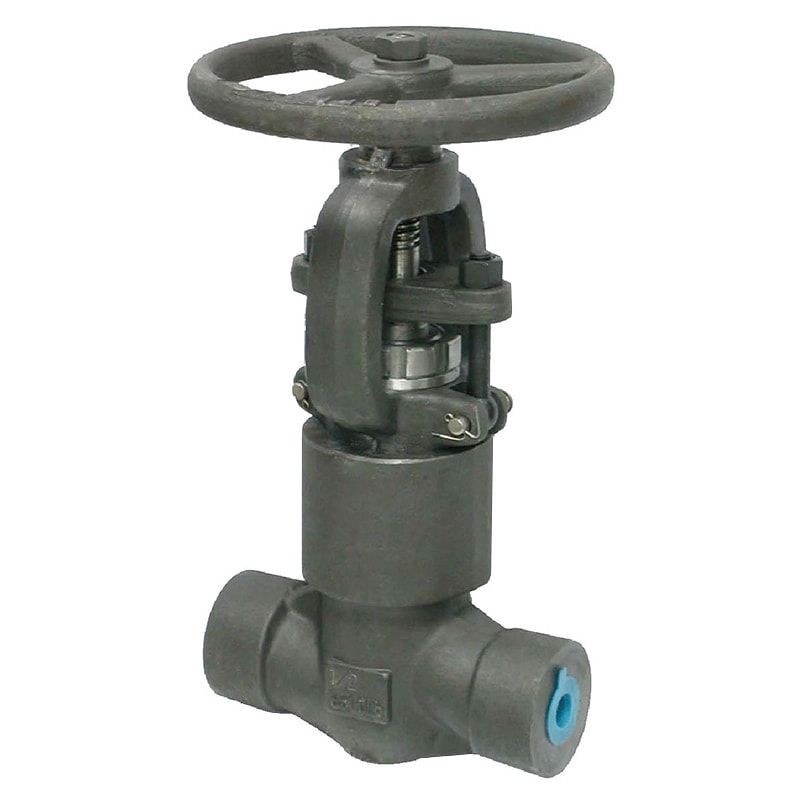

High Pressure PSB Forged Globe Valve Supplier, Offers Industrial, Api602, Ansi Class 900Lbs, 1500Lbs, 2500Lbs, Self-Sealing, Pressure Seal Bonnet, Forged Carbon Steel, Alloy Steel and Stainless Steel Globe Valves, Stop Valves, Full Port, Full Bore, Trim in 13CR, 8#, 5#, and Stainless Steel (SS304, SS316).
The Forged Steel Globe Valve Designed to OS&Y, Rising Stem, Sizes 1/2inch to 2inch, SW, Socket Weld, Handwheel Operated or Bare Stem As Per ISO 5211.
Plug Disc and Needle Disc Supplied
Specifications For Forged Globe Valve 900LBS – 1500LBS – 2500LBS (Pressure Seal Bonnet)
1. Design & Manufacture: API 602
2. Constructions: OS&Y, Pressure Sealed Bonnet (PSB);
3. Bore Type: Full Port (Full Bore)
4. Size Range: 1/2" to 2"
5. Pressure Ratings: ANSI 900Lbs, 1500Lbs & 2500Lbs
6. End Connections: Socket Weld (SW), Npt, Threaded, Screwed
7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent;
8. Various Trim Materials are Available to Suit Different Service Conditions
9. NACE MR 0175 on Request
10. Test and Inspection: API598
11. Rising Stem & Handwheel Operated
PRESSURE SEALING BONNET FORGE GLOBE VALVE MATERIALS LIST:
|
S.No. |
1 |
3 |
4 |
6 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
|
Part name |
Body |
Disc |
Stem |
Bonnet |
Pin |
Gland |
Eyebolt |
Packing gland |
Hex nut |
Stem nut |
Lock nut |
|
S.No. |
15 |
16 |
18 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
|
|
Part name |
Name plate |
Hand wheel |
Packing |
Stem block |
Disc nut |
Gasket ring |
Seal ring |
Seal seat |
Nut block |
Tightening nut |
|
