  1. Home
  2. Products
  3. Lining valve
  4. FEP/PTFE Lined Basket Strainer
  • FEP/PTFE Lined Basket Strainer
  • FEP/PTFE Lined Basket Strainer
  • FEP/PTFE Lined Basket Strainer
  • FEP/PTFE Lined Basket Strainer
FEP/PTFE Lined Basket StrainerFEP/PTFE Lined Basket StrainerFEP/PTFE Lined Basket StrainerFEP/PTFE Lined Basket Strainer

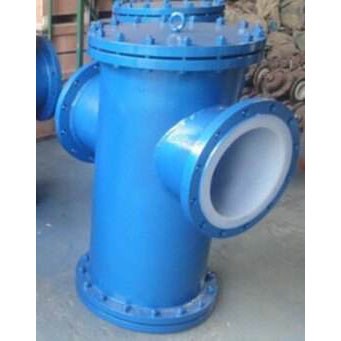

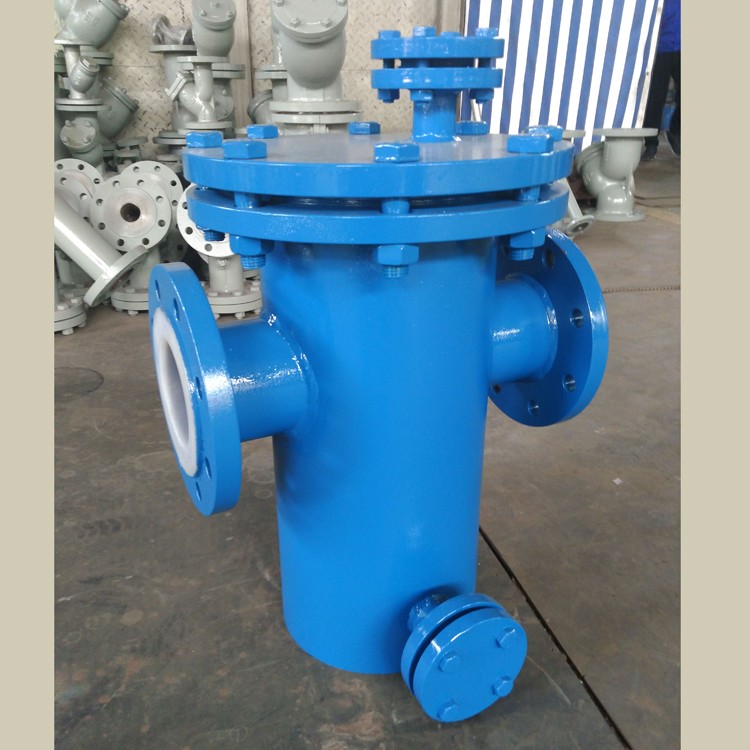

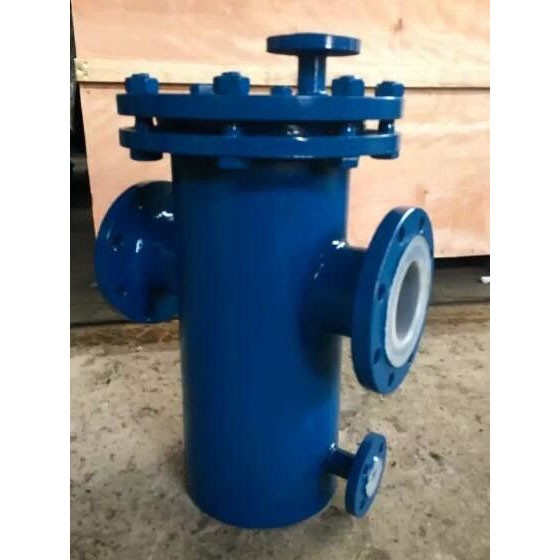

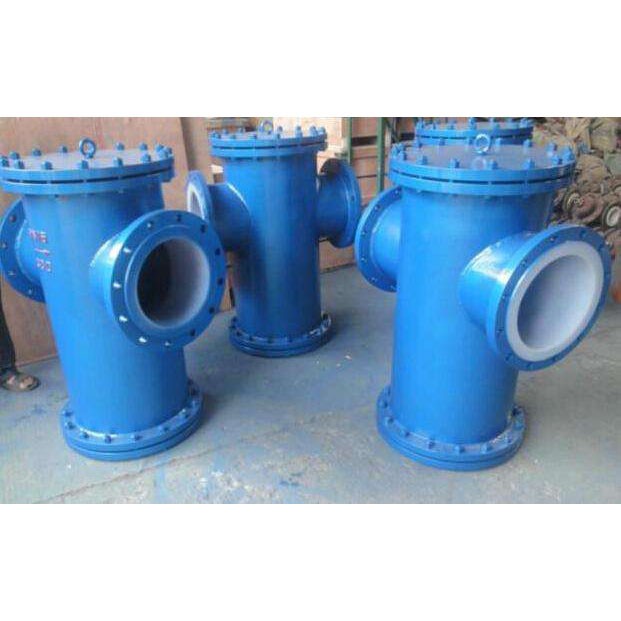

FEP/PTFE Lined Basket Strainer

  • Pipe Material: A216/WCB
  • Lining Material: PTFE, PFA, FEP, PP, PE, PO
  • Strainer Mesh:PTFE
  • Pressure Range: 150lb 300lb JIS, DIN
  • PTFE Lined Basket Strainer , FEP Lined Basket Strainer , Teflon lined basket strainer
    Inquiry Send Email

    Description

    PTFE Lined BaskeT type strainer  for chemical

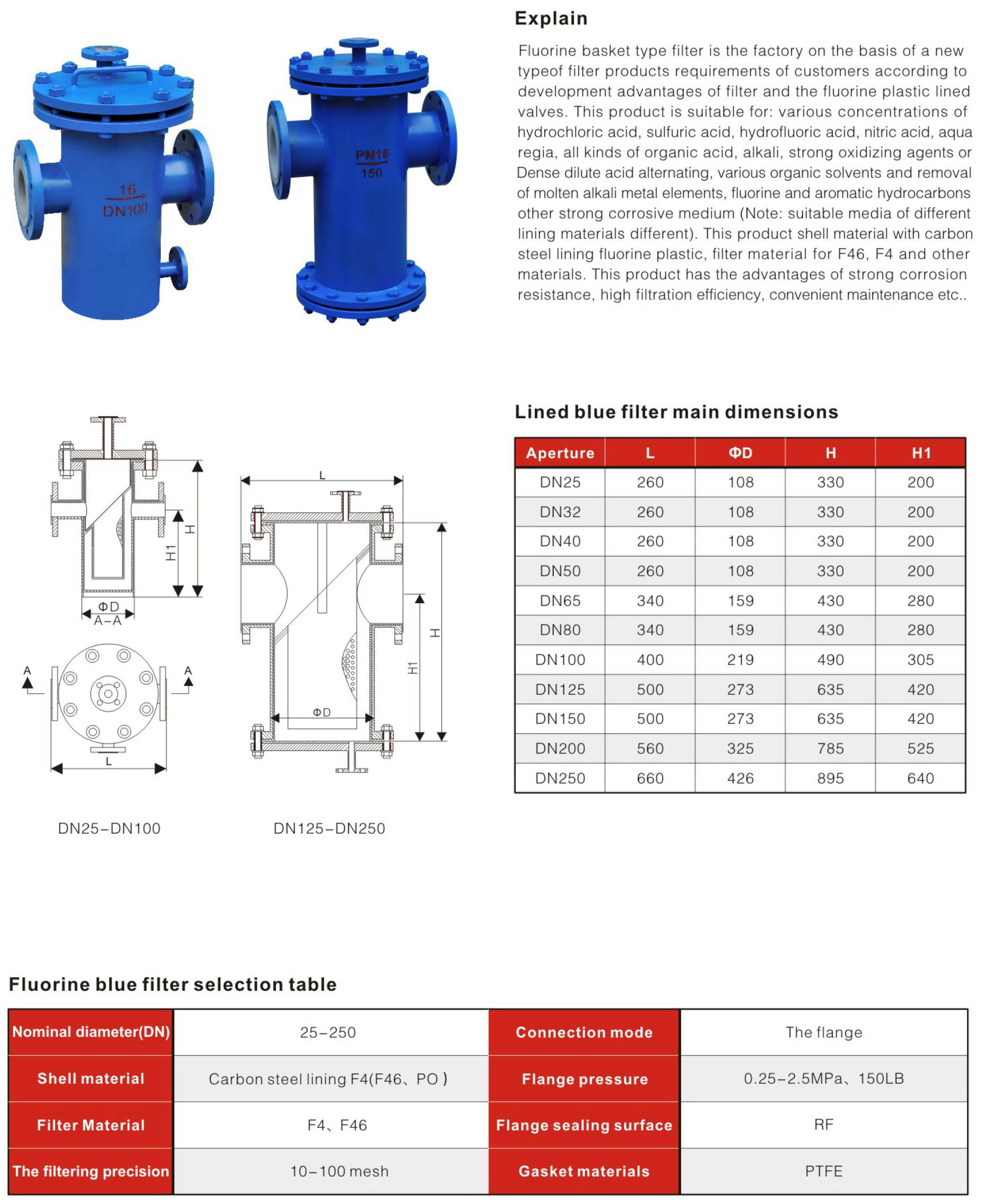

    Technical Specification
    Design and Manufacture: HG/T21637
    Flange Standard: ASME/ANSI 16.5, DIN, JIS
    Inspection and testing: HG/T21637

    Product Specification
    Pipe Material: A216/WCB
    Lining Material: PTFE, PFA, FEP, PP, PE, PO
    Strainer Mesh: TFE
    Nominal Diameter: NPS 1-10
    Pressure Range: 150lb 300lb JIS, DIN

    Connection Type: Flange connection


    Inquiry Us
