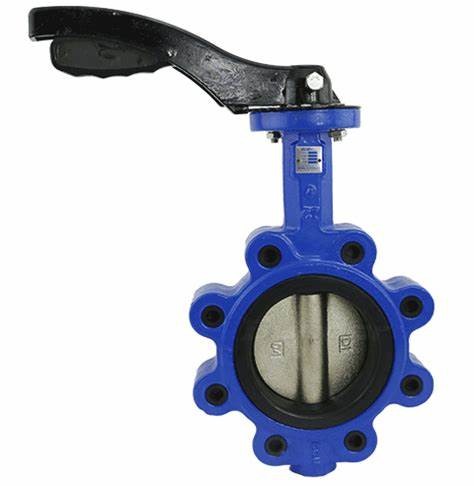

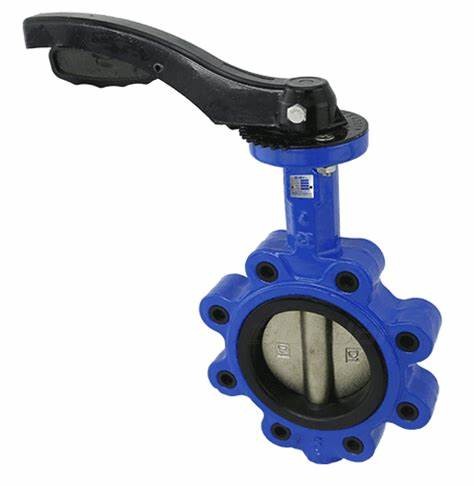

  • Aluminium Handle Operated Lug Butterfly Valve
  • Aluminium Handle Operated Lug Butterfly Valve
Aluminium Handle Operated Lug Butterfly ValveAluminium Handle Operated Lug Butterfly Valve

Aluminium Handle Operated Lug Butterfly Valve

  • Product Item：D371F4
  • Body: GGG40,CI,DI,WCB,CF8,CF8M
  • Disc: CF8M,1.4462,CF8M FEP lined,CF8 EPDM lined
  • Seat: PTFE,FPM,EPDM,PU,NBR
  • Flange accommodation: EN 1092 PN 6/PN10/PN16,ASME Class 150,JIS 5K/10K
    • PTFE lined wafer butterfly valve , Teflon lined wafer butterfly valve , PFA lined Butterfly valve
    Inquiry Send Email

    Description

    Standards:


    • Valve Design: API 609, MSS SP-67
    • Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
    • Pressure Test: API 598
    • Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
    • Top Flange: ISO5211



    Features:


    • Single Eccentric Disc-Shaft
    • Anti-Blow Out Stem
    • Bi-Directional
    • Fire safe Design



    Product Advantage


    • 1.The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline.
    • 2.The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve.
    • 3.Triangle support material, guarantee the required mechanical properties.
    • 4.According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation.
    • 5.No groove at the bottom to make sure no slag and full bore flow.

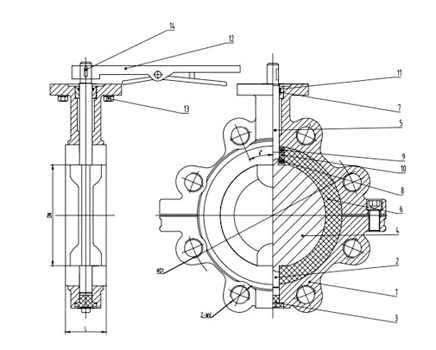

    SIZE A B C L ANSI 150B DIN PN 10 DIN PN 16 JIS 10K ISO 5211 Top Flange
    mm in øK N-M øK N-M øK N-M øK N-M øD øD1 N-ød
    40 1.5" 70 164 32 33 98.5 4-1/2"-13UNC-2B 110 4-M16 110 4-M16 105 4-M16 65 50 4-ø8 F05
    50 2" 80 169 32 43 120.6 4-5/8"-11UNC-2B 125 4-M16 125 4-M16 120 4-M16 65 50 4-ø8 F05
    65 2 1/2" 89 176 32 46 139.7 4-5/8"-11UNC-2B 145 4-M16 145 4-M16 140 4-M16 65 50 4-ø8 F05
    80 3" 95 183 32 46 152.4 4-5/8"-11UNC-2B 160 8-M16 160 8-M16 150 8-M16 65 50 4-ø8 F05
    100 4" 114 201 32 52 190.5 8-5/8"-11UNC-2B 180 8-M16 180 8-M16 175 8-M16 90 70 4-ø10 F07
    125 5" 127 214 32 56 215.9 8-3/4"-10UNC-2B 210 8-M16 210 8-M16 210 8-M20 90 70 4-ø10 F07
    150 6" 139 229 32 56 241.3 8-3/4"-10UNC-2B 240 8-M20 240 8-M20 240 8-M20 90 70 4-ø10 F07
    200 8" 175 257 45 60 298.4 8-3/4"-10UNC-2B 295 8-M20 295 12-M20 290 12-M20 125 102 4-ø12 F10
    250 10" 203 280 45 68 361.9 12-7/8"-9UNC-2B 350 12-M20 355 12-M24 355 12-M22 125 102 4-ø12 F10
    300 12" 242 327 45 78 431.8 12-7/8"-9UNC-2B 400 12-M20 410 12-M24 400 16-M22 125 102 4-ø12 F10
