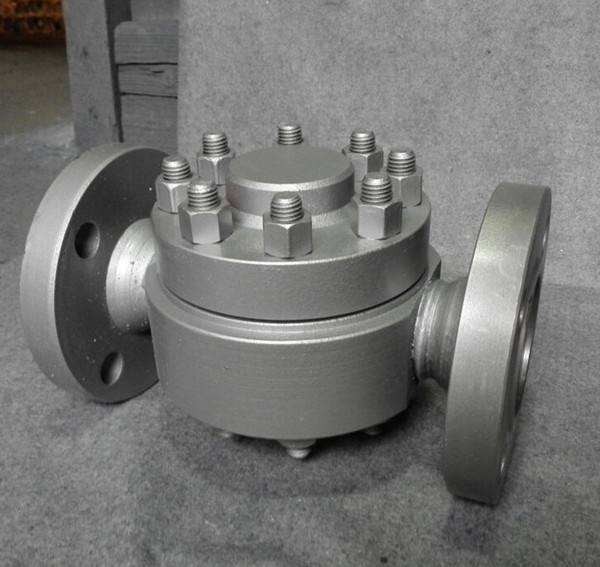

  • High-temperature-pressure disc type steam trap

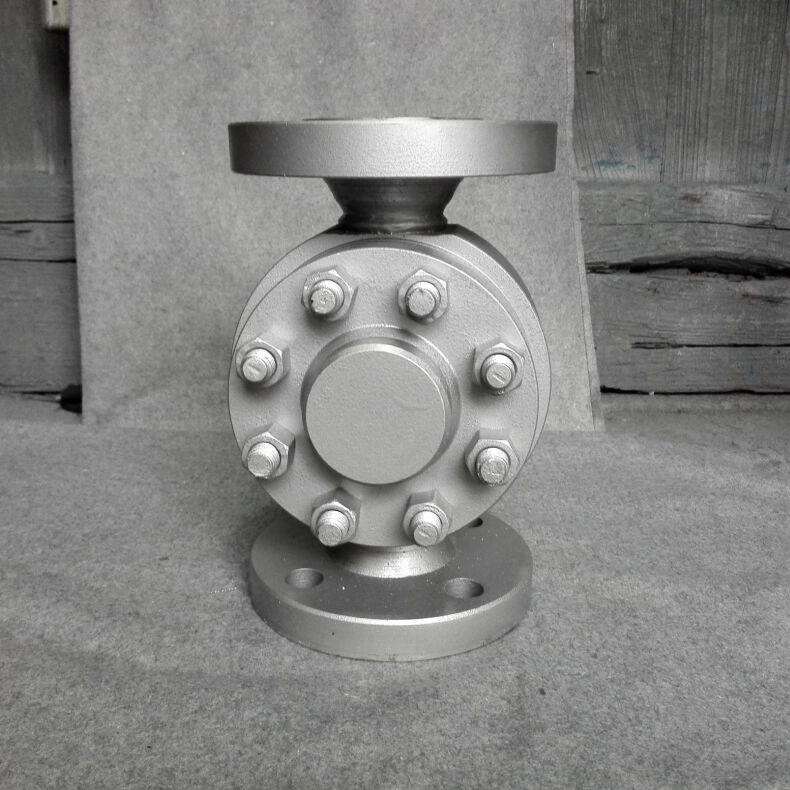

  • High-temperature-pressure disc type steam trap

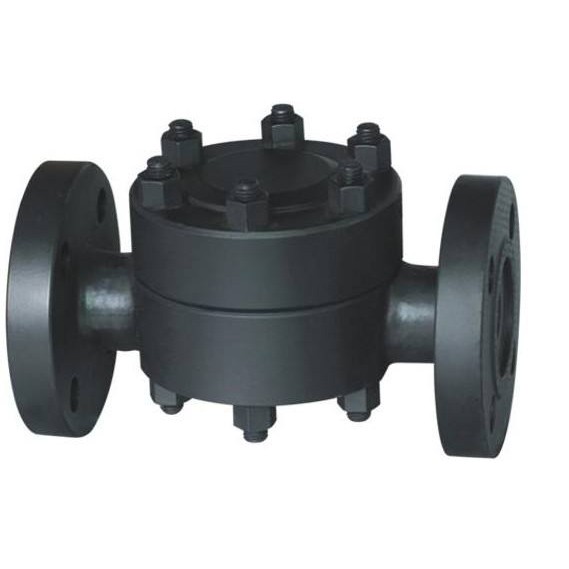

  • High-temperature-pressure disc type steam trap

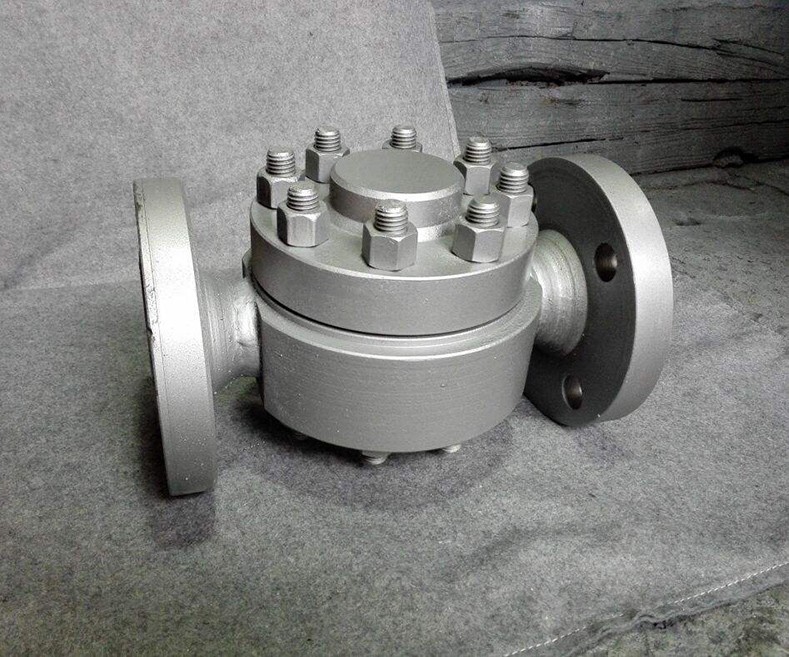

  • High-temperature-pressure disc type steam trap
High-temperature-pressure disc type steam trapHigh-temperature-pressure disc type steam trapHigh-temperature-pressure disc type steam trapHigh-temperature-pressure disc type steam trap

High-temperature-pressure disc type steam trap

  • Product Item:HRF3
  • Design Standard: GB/T 22654
  • Materials: WCB,WC6,SS304,SS316,F11,F22
  • Connection: Flanged and NPT,BSP
  • Flanged End: ASME B16.5,DIN
  • Thermodynamic Steam Trap , Stainless Steel Steam Trap , Cast Steel Steam Trap
    Inquiry Send Email

    Description


    High-temperature-pressure disc type steam trap

    Pressure Rating: 1.6-16.0Mpa
    Specification: DN15-50
    Material: cast steel
    Standard flanges: DIN, ANSI, JIS, JB79
    Structural characteristics:
    1.Automatic blowoff mechanism is installed inside the valve. It is a new-type crown valve plate with reliable sealing,and steam heat preservation mechanism with hign-efficiency energy conservation.
    2.Rapid air and condensate water exhaust while starting the equipment,great displacement and small steam leakage.
    3.Strong anticorrosion,reliable operation and durability.
    4.Free of adjustment and remarkable energy-saving result within the working pressure.


    Main functions of  high-temperature-pressure disc type steam trap:
    Used in the steam subcritical status for high- temperature-pressure sasturation,steam main pipeline and turbine.

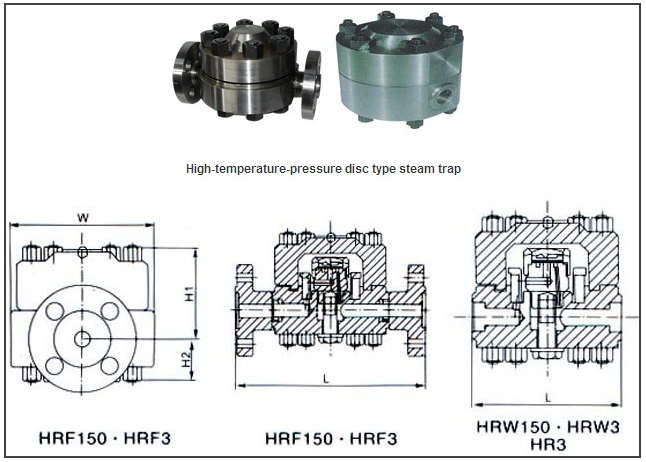

    main technical parameters,indexes of performance and connecting dimension
    Producnt model
    DN
    Conjunction method
    Max. working pressure
    Min. working pressure
    Max.allowable temp.
    Material of valve body
    External dimension (mm)
    L
    H1
    H2
    W
    HRF3
    15
    Flange
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    230
    78
    35
    135
    20
    Flange
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    230
    78
    35
    135
    25
    Flange
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    230
    78
    35
    135
    HRW3
    15
    Socket welded
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    130
    78
    35
    135
    20
    Socket welded
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    130
    78
    35
    135
    25
    Socket welded
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    130
    78
    35
    135
    HR3
    15
    Internal thread
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    130
    78
    35
    135
    20
    Internal thread
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    130
    78
    35
    135
    25
    Internal thread
    8 Mpa
    0.8Mpa
    500
    WC6 F22
    130
    78
    35
    135
    HRF 150
    CS19H -160V
    15
    Flange
    15Mpa
    0.8Mpa
    500
    WC6 F22
    400
    122
    58
    228
    20
    Flange
    15Mpa
    0.8Mpa
    500
    WC6 F22
    400
    122
    58
    228
    25
    Flange
    15Mpa
    0.8Mpa
    500
    WC6 F22
    400
    122
    58
    228
    32
    Flange
    15Mpa
    0.8Mpa
    500
    WC6 F22
    400
    122
    58
    228
    40
    Flange
    15Mpa
    0.8Mpa
    500
    WC6 F22
    400
    122
    58
    228
    50
    Flange
    15Mpa
    0.8Mpa
    500
    WC6 F22
    400
    122
    58
    228
    HRW 150
    CS69H -160V
    15
    Socket welded
    15Mpa
    0.8Mpa
    500
    WC6 F22
    220
    122
    58
    228
    20
    Socket welded
    15Mpa
    0.8Mpa
    500
    WC6 F22
    220
    122
    58
    228
    25
    Socket welded
    15Mpa
    0.8Mpa
    500
    WC6 F22
    220
    122
    58
    228
    32
    Socket welded
    15Mpa
    0.8Mpa
    500
    WC6 F22
    320
    122
    58
    228
    40
    Socket welded
    15Mpa
    0.8Mpa
    500
    WC6 F22
    320
    122
    58
    228
    50
    Socket welded
    15Mpa
    0.8Mpa
    500
    WC6 F22
    320
    122
    58
    228
