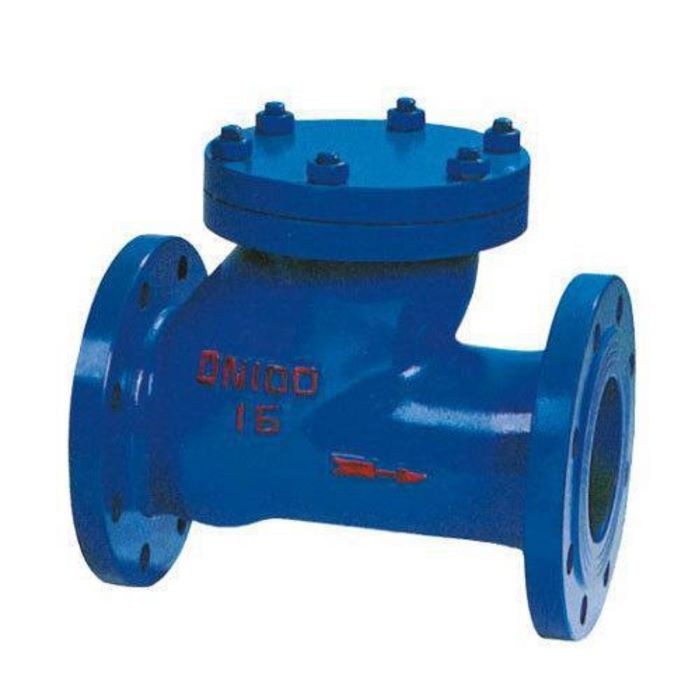

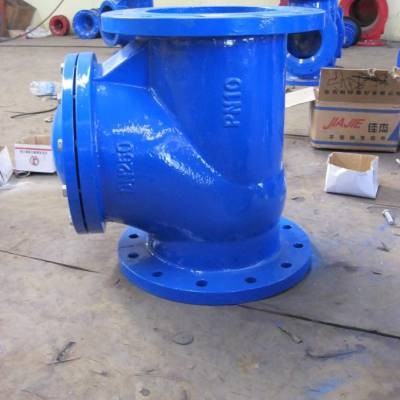

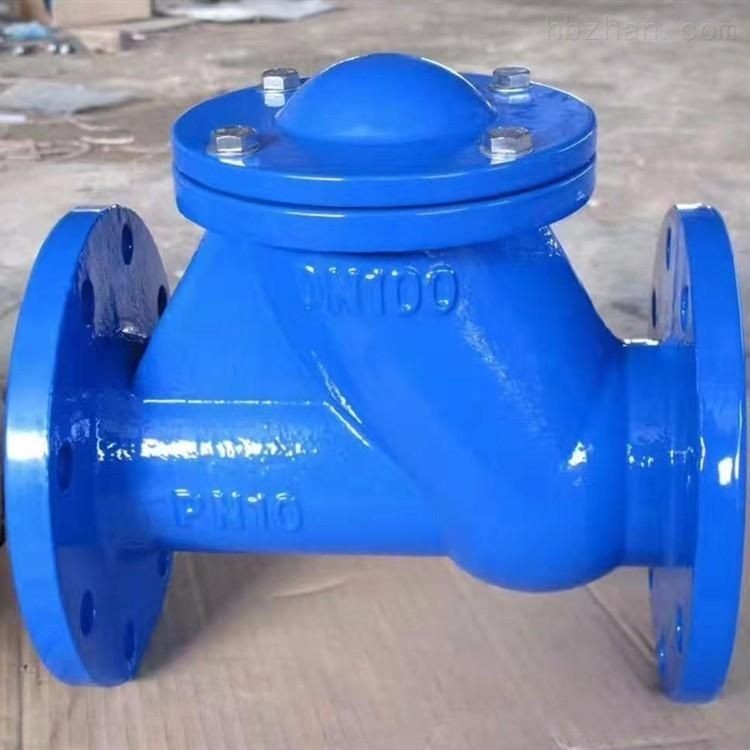

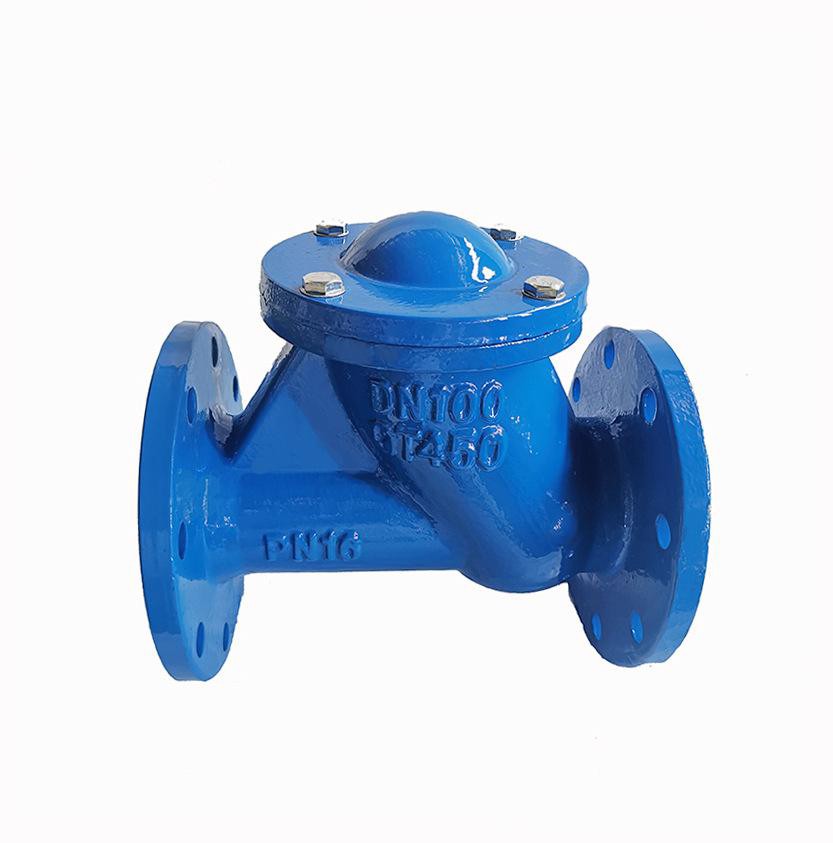

Ball Check Valve, Cast iron, Ductile iron, WCBBall Check Valve, Cast iron, Ductile iron, WCBBall Check Valve, Cast iron, Ductile iron, WCBBall Check Valve, Cast iron, Ductile iron, WCB

Ball Check Valve, Cast iron, Ductile iron, WCB

  • Product Item:HQ41X
  • Size DN50-DN300 2″-12″
  • Working Pressure PN10/PN16/125LB/150LB
  • Face to face BS5153,ASME B16.10, DIN F6
  • Working temperature ≦120℃
  • Ball Check Valve , Dutile Iron ball check valve , Stainless steel ball check valve , CI ball check valve
    Inquiry Send Email

    Description

    Ball Check Valve, Cast iron, Ductile iron, WCB


    Ball check valve Structure :

    The ball check valve has a simple structure and is mainly composed of a spherical device and a valve body. The spherical device is composed of a ball cover and a rubber ball. The rubber ball is processed into a core by a steel plate and is covered with a rubber layer to maintain a certain elasticity and sufficient strength.



    DN (mm) L D D1 D2 Z-Φd H
    50 180 160 125 100 4-Φ18 185
    65 200 180 145 120 4-Φ18 210
    80 260 195 160 135 4-Φ18 245
    100 300 215 180 155 8-Φ18 280
    125 350 245 210 185 8-Φ18 335
    150 400 280 240 210 8-Φ23 400
    200 500 335 295 265 8-Φ23 495
    250 600 390/405 350/355 320 12-Φ25 600
    300 700 440/460 400/410 375 12-Φ25 715
    350 800 500/520 460/470 435 16-Φ25 820

    Size DN50-DN300 2″-12″
    Working Pressure PN10/PN16/125LB/150LB
    Face to face BS5153,ASME B16.10, DIN F6
    Flange drilled EN1092-2
    Working environment Water, Oil, Steam
    Working temperature ≦120℃

    Working principle:

    The working principle is that the rubber ball is rolled in a short stroke in the dome to realize the opening and closing of the valve. When the water pump starts, the pressure of the water breaks the rubber ball, so that the rubber ball rolls to the right side, and the check valve opens; after stopping the pump, the rubber ball is forced to roll to the left side due to the backwater pressure of the system, and the check is stopped.

    The rubber ball is made of hollow steel ball, and the rubber with good elasticity is used to ensure the sealing and to reduce the damage to the pipeline system during the valve closing process. The tapered cone with a hole fixes the steel ball when the valve is opened and eliminates the pressure of the contact area between the rubber ball and the tapered body so that the contact is in surface contact, and the hydraulic loss caused by the chattering of the rubber ball in the valve body is reduced.

    Inquiry Us
