  • Thin Type Single-Plate Wafer Check Valve
  • Thin Type Single-Plate Wafer Check Valve
  • Thin Type Single-Plate Wafer Check Valve
Thin Type Single-Plate Wafer Check ValveThin Type Single-Plate Wafer Check ValveThin Type Single-Plate Wafer Check Valve

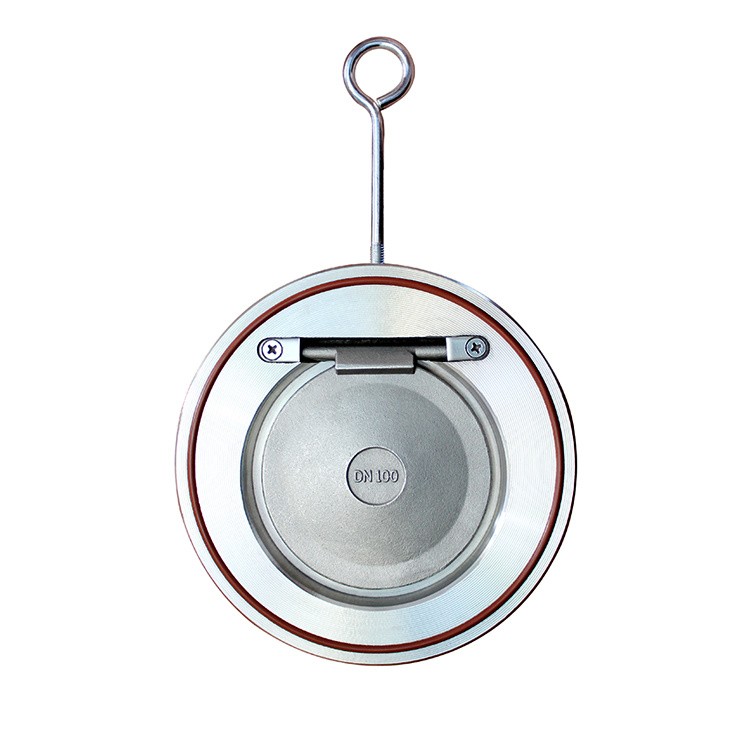

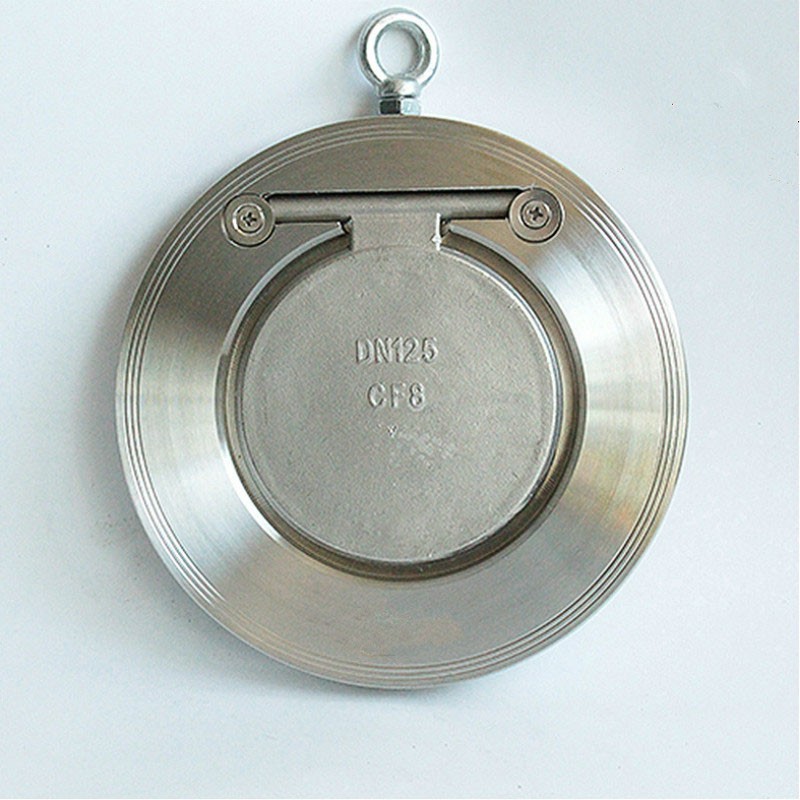

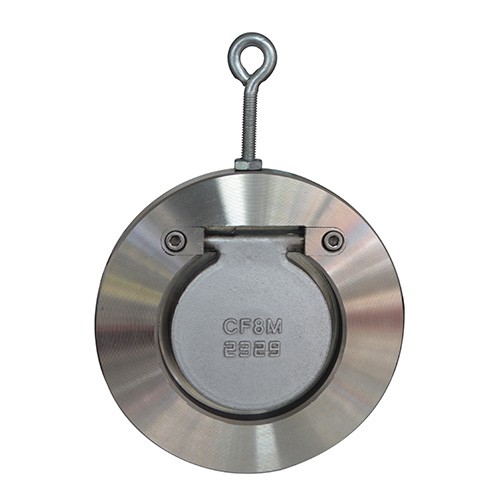

Thin Type Single-Plate Wafer Check Valve

  • Product Item:H77H
  • Design&Manufacture:API 6D, API 594
  • Face to Face: API 6D, ASME B16.10, EN 558
  • Material of Valve Body: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc
  • Pressure Rating: Class150 - Class600 or PN16 - PN100
  • Single-Plate Wafer Check Valve , Single Disc Wafer Check Valve , Thin Plate Check Valve
    Inquiry Send Email

    Description

    Thin Type Single-plate Wafer Check Valve

    This thin type of single-plate wafer check valves are swing type, that performs the same with swing check valve with much less cost. The disadvantage of this single-plate wafer check valves is, the inside diameters of the valves can only meet 60-80% of Norminal Pipe Size(NPS),  which limits the flow coefficient.

    Features of Thin Type Single-plate Wafer Check Valves:
    One Piece Forged Steel Body
    Short Face-to-face (Thin Type)
    Reduced Bore, Swing Plate
    Disc Spring Available
    O-ring on Body Available

    Applicable Standards of Thin Type Single-plate Wafer Check Valves:
    a) Design&Manufacture:API 6D, API 594
    b) Face to Face: API 6D, ASME B16.10, EN 558
    c) Connection End: ASME B16.5, EN 1092, JIS B2220
    d) Test and Inspection: API 6D, EN 12266, API 598

    Sizes: 2" - 36" or DN50 - DN900
    Pressure Rating: Class150 - Class600 or PN16 - PN100
    Material of Valve Body: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.

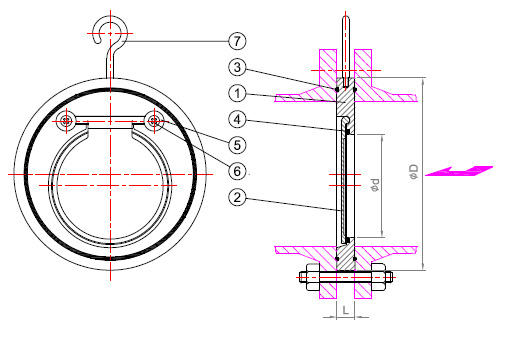

    arts No. Parts Name Material
    WCB CF8 CF8M
    1 Body A216 WCB A351 CF8 A351 CF8M
    2 Disc A216 WCB / A351 CF8 / A351 CF8M
    3 Body Seal NBR / EPDM / VITON / PTFE
    4 Seat NBR / EPDM / VITON / PTFE / METAL / A.S. Overlay
    5 Fix Bush SS316
    6 Socket Head Cap Screw SS316
    7 O-Bolt A105 SS304
    Note: The chart above only lists out some common composition of steel single door wafer check valve parts. We may provide other different parts material composition according to the customer's request or the actual valve working condition.

    Seat Material Medium Max. W,P. (Mpa) Max. Temperature Range ( °C )
    NBR W.O.G 1.2 -10 °C to 90 °C
    EPDM W.O.G 1.2 -20 °C to 120 °C
    VITON W.O.G 1.2 -30 °C to 160 °C
    PTFE W.O.G 1.2 -30 °C to 200 °C
    Metal W.O.G & Others 1.5 Same as Body
    Metal with Overlay W.O.G & Others 1.5 Same as Body

    NPS L ∮d ∮D NPS L ∮d ∮D
    inch mm 10K 150 LB inch mm 10K 150 LB
    1/2" 15A 14 8 55 47 6" 150A 20 113 220 220
    3/4" 20A 14 9 60 56 8" 200A 27 142 270 278
    1" 25A 14 12 70 66 10" 250A 29 190 325 340
    1-1/4" 32A 14 16 80 76 12" 300A 35 211 370 409
    1-1/2" 40A 14 21 85 85 14" 350A 38 260 415 448
    2" 50A 14 30 104 104 16" 400A 45 306 475 510
    2-1/2" 65A 14 43 124 124 18" 450A 55 358 530 548
    3" 80A 14 50 134 134 20" 500A 65 408 580 605
    4" 100A 18 72 155 174 22" 550A 70 450 640 657
    5" 125A 18 93 190 190 24" 600A 70 485 690 715
