  4. Manual operation Reactor Discharge valve

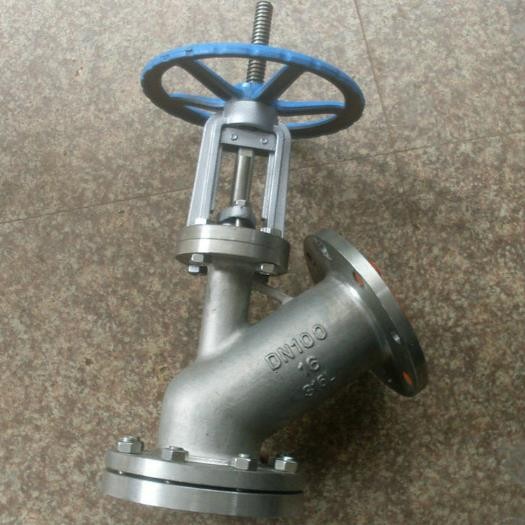

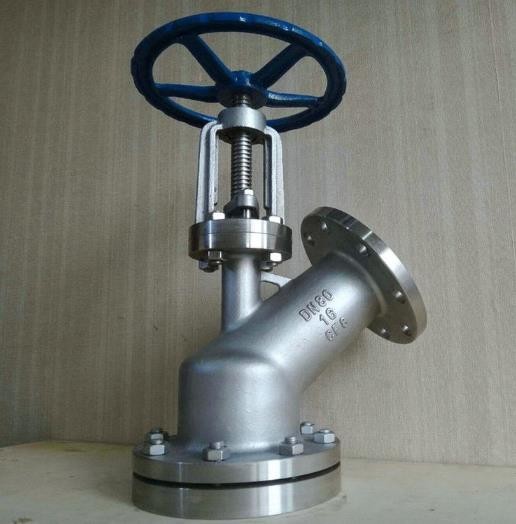

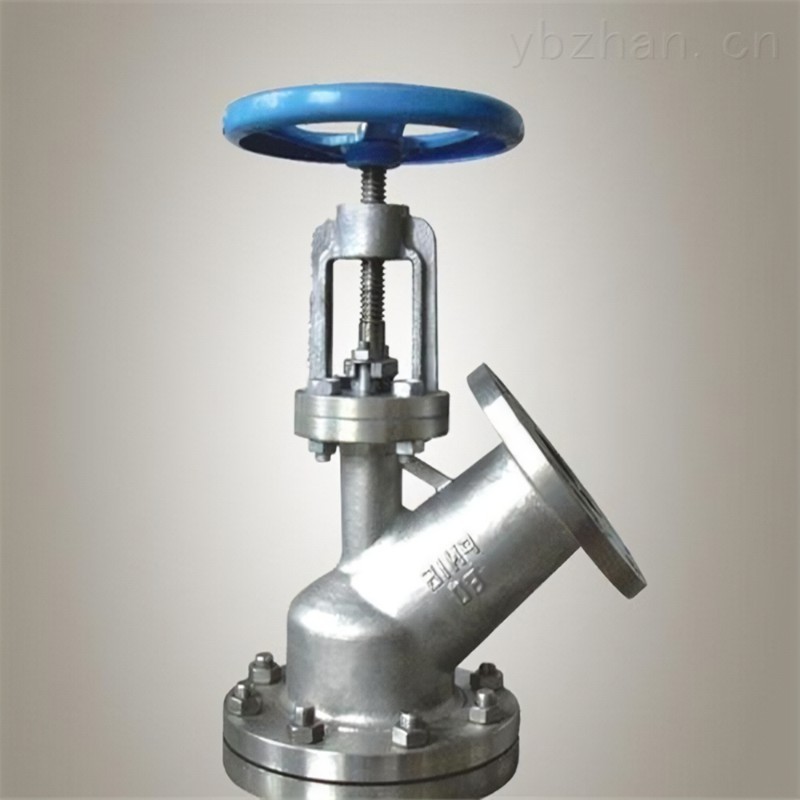

  • Manual operation Reactor Discharge valve
  • Manual operation Reactor Discharge valve
  • Manual operation Reactor Discharge valve
  • Manual operation Reactor Discharge valve
Manual operation Reactor Discharge valveManual operation Reactor Discharge valveManual operation Reactor Discharge valveManual operation Reactor Discharge valve

Manual operation Reactor Discharge valve

  • Size: 2”~8” DN50~DN200
  • Pressure: Class 150~Class 300 PN1.0~PN16
  • Body Material : WCB(A105), CF8(304), CF8M(316), CF3(304L), CF3M(316L)
  • Driving Type: Manual,bevel gea,pneumatic
  • Manual-operation-Reactor-Discharge-valve , Y type tank valve , Flush bottom valve , Tank Discharge valve
    Inquiry Send Email

    Description

    Manual operation Reactor Discharge valve


    Manual operation Reactor Discharge valve are designed for the convenient and fast discharging the material or samples from the bottom of the reactor,drain or feed vessel .The valve can be welded or installed on the vessel through the flange at the bottom of the valve , tank bottom angle valves are most commonly installed on feeding of vessels or dead space free draining and pipelines.

    Features

    1. This Range of manual control tank bottom angle valve is manufactured in integrated structure.
    2. Structures with disc opening into the tank and disc opening into the valve.
    3. Available with 45°,50°,90° degree outlet angle in the body.

    4.A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.

    1. The protection plate makes for the outstanding erosion resistance and corrosion resistance of the valve body.
    2. The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.

    Technical Parameters

    Flange connection

    ASME B16.5,GB/T9113

    Design standard

    ASME B16.34

    Pressure Range

    Class150~Class300

    Size Range

    DN50~DN 350, NPS2 ~NPS14

    Material

    carbon steel, stainless steel,

    Connection type

    Flange

    Working Temperature

    ≤425℃

    Operating Type

    Pneumatic, manual, electric

    Sealing surface material

    Alloy,Carbide

    Pressure test

    GB/T13927, API598
