  4. Weir Type Diaphragm Valve
  • Weir Type Diaphragm Valve
  • Weir Type Diaphragm Valve
  • Weir Type Diaphragm Valve
  • Weir Type Diaphragm Valve
Weir Type Diaphragm ValveWeir Type Diaphragm ValveWeir Type Diaphragm ValveWeir Type Diaphragm Valve

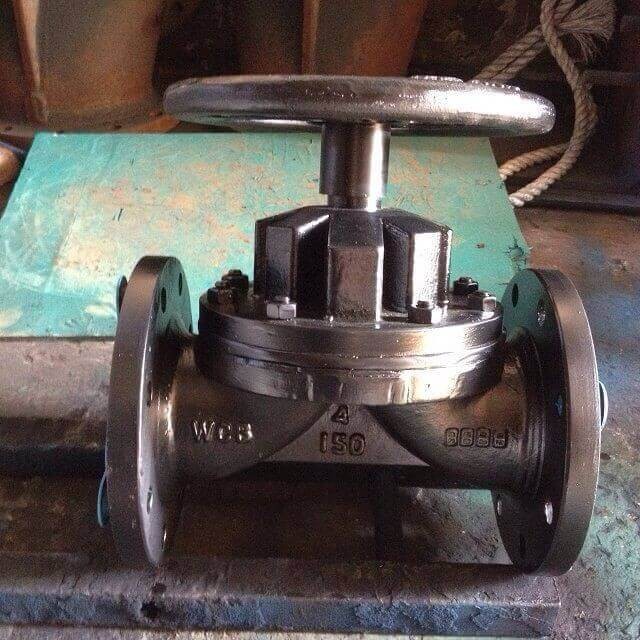

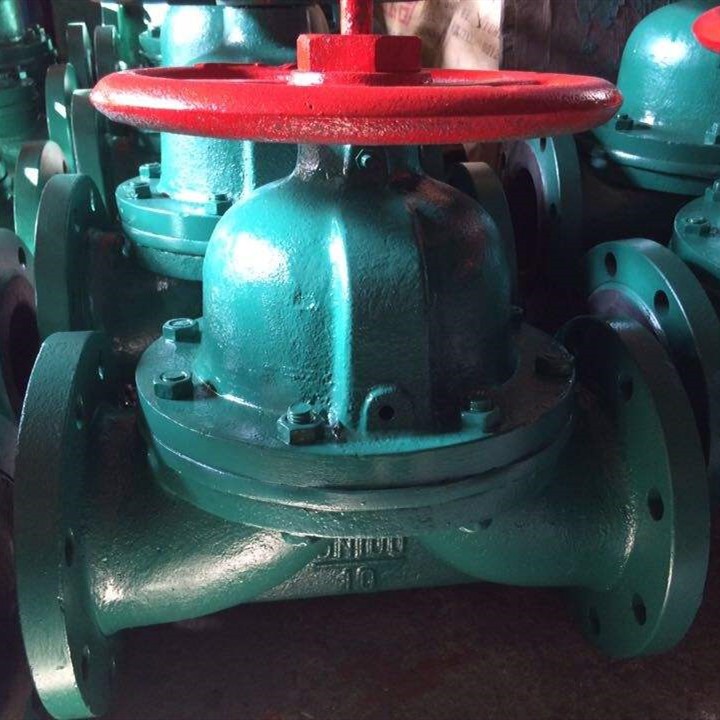

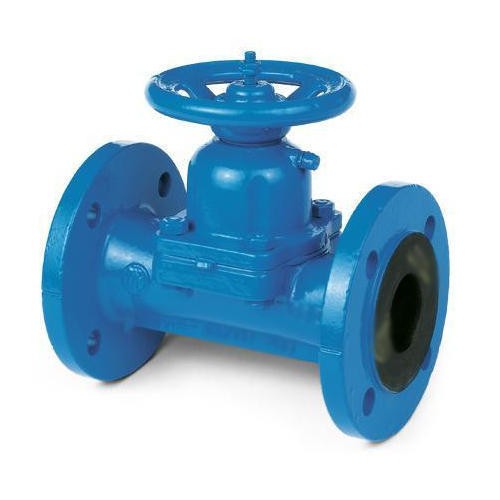

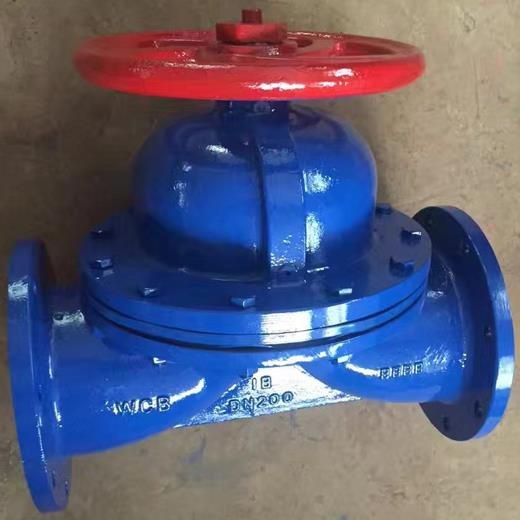

Weir Type Diaphragm Valve

  • Product Item:G41W/X
  • Body Materials Grey Iron * Ductile Iron * Cast Steel * Stainless Steel * FeCr * Monel
  • Hard Rubber (Ebonite) * Soft Rubber * Butyl Rubber * Neoprene® Rubber * Hypalon® Rubber * EPDM *
  • Size Range DN 10 – DN 300 (3/8” – 12”)
  • Actuation Manual Hand wheel * Pneumatic Actuators * Electric Actuators.
  • Rubber Weir Type Diaphragm Valve Cast Iron Carbon Steel Diaphragm Valve - Buy Diaphragm Valve , Cast Iron Diaphragm Valve , Rubber Lined Diaphragm Valve
    Inquiry Send Email

    Description

    Weir Type Diaphragm Valves

    Description:

    1.Weir type diaphragm valves is ideally suited for shut-off, flow control and throttling of corrosive process media in either liquid or gaseous state.
    Its main features are heavy-duty, robust construction, maintenance-free, easy replacement of components on site. Convenient, flexible and accurate open or close.
    2.It can sustain any corrosive medium in addition to the molten alkali metals and fluorine elements. It is ideal products used in chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc.
    3.It is not applicable for diaphragm used in medium with hard particles, which will cause diaphragm damage and leakage.
    4.The working temperature cannot exceed the specified range.
    5.Open the diaphragm too frequent will influence the sealing performance.
    6.Lining material:NR,EPDM,PFA,PTFE,F46 etc.
    7.Operation methods:manual,electric, pneumatic.
    8.TANA lined diaphragm valves are available as per the needs of applications in additional sizes and other than standard materials.
    We offer lining materials like NR,EPDM,PFA,PTFE,F46 etc.

    Temperature:

    NR:≤85℃
    EPDM:≤120℃
    PTFE : ≤120°C
    PFA: ≤120°C
    Lining Thickness:Min. 3.0mm

    Specification:

    Body Material:Cast Iron,Ductile Iron, A216/WCB, A351/CF8,A351/CF8M,A351/CF3,A351/CF3M,LCB,
    Lining Material:NR,EPDM,PFA,PTFE,F46 etc.
    Diaphragm Part:NR,EPDM,PFA,PTFE,F46 etc.
    Nominal Diameter: NPS 1/2"-16" DN15-400
    Pressure Range: 0.6Mpa ,1.0Mpa,1.6Mpa,class150
    Connection Type: Thread,Flange
    Operation Method:manual,electric, pneumatic.
    Suitable:≤85℃、≤100℃、 ≤120℃、≤150℃

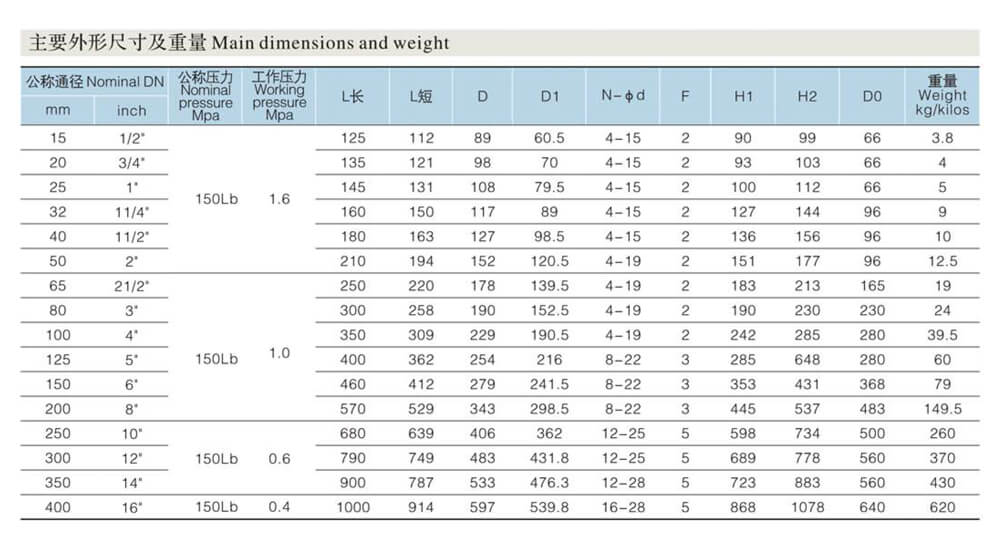

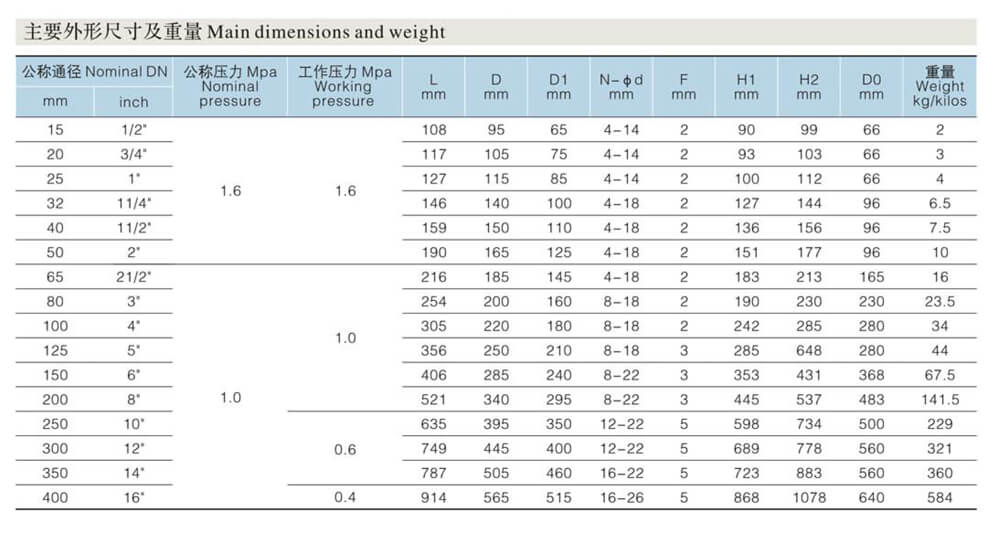

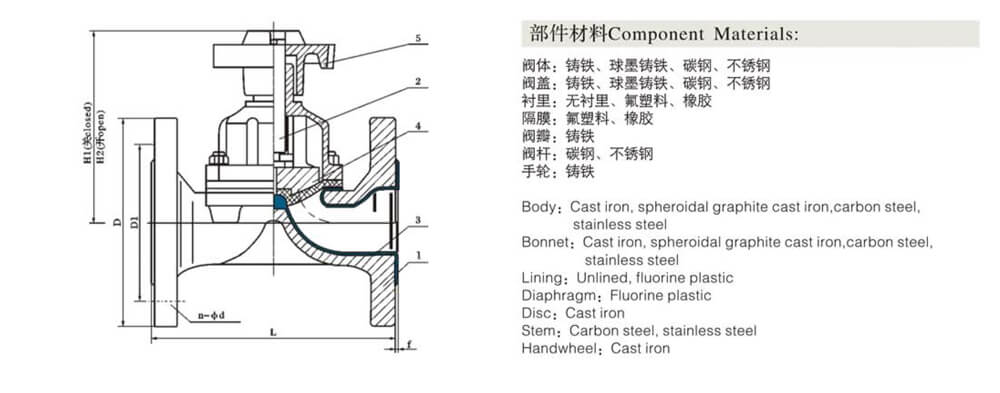

    The materials of main parts

    No.

    Part

    Cast iron

    Cast steel

    Stainless steel

    Z

    C

    P

    R

    P

    R

    1

    Body/Bonnet

    HT250

    WCB

    CF8

    CF8M

    CF3

    CF3M

    2

    disc/stem

    35

    1Cr13

    1Cr18Ni9Ti

    1Cr18Ni12Mo2Ti

    00cr18Ni10

    00Cr17Ni14Mo2

    3

    lined/seat

    PTFE(F4),FEP(F46),PFA

    4

    diagram

    FEP(F46),PFA,EPDM

    5

    yoke

    WCB

    CF8

    CF8

    6

    Stem nut

    ZCuAI10Fe3

    ZCuAI10Fe3

    ZCuAI10Fe3

    7

    bolt

    35

    1Cr17Ni2

    1Cr18Ni9Ti

    8

    nut

    45

    0Cr18Ni9

    0Cr18Ni9

    9

    handwheel

    WCB

    WCB

    WCB
