T type strainer

  • Design and manufacture: ASME B16.34
  • End flange dimension: ASME B16.5, ASME B16.47
  • BW end dimension: ASME B16.25
  • Pressure-temperature ratings: ASME B16.34
  • T Type Strainer , Stainless Steel T Type Strainer , Cast Steel Basket Strainer
    Inquiry Send Email

    Description

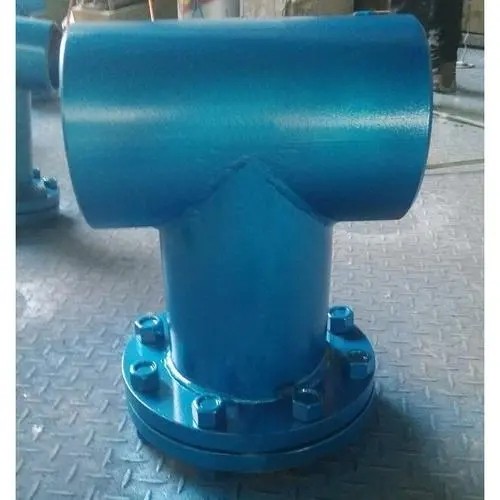

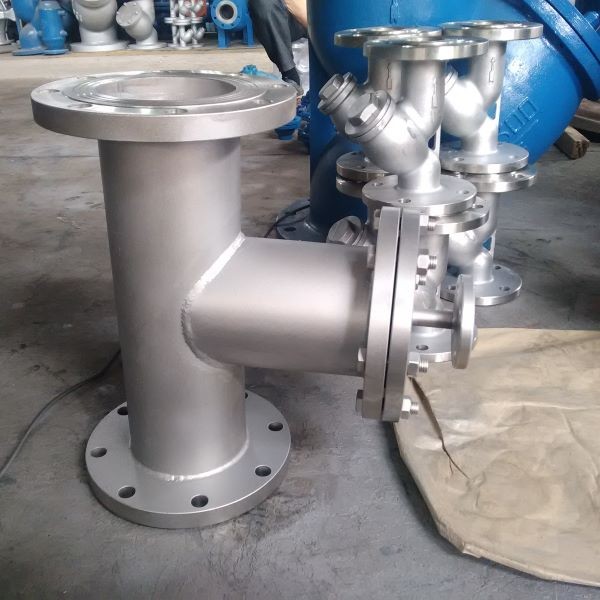

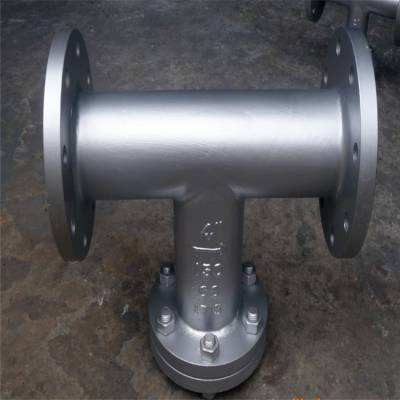

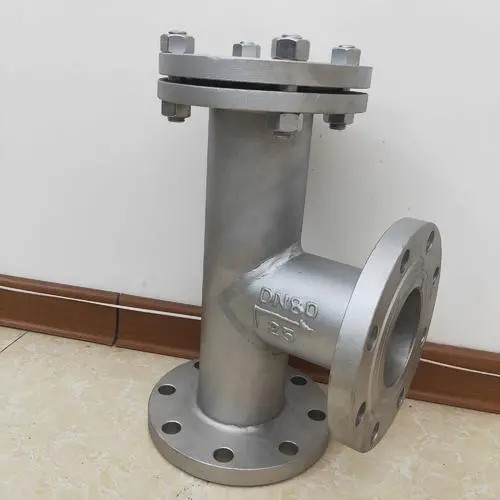

    T type strainer

    T STRAINER (T type strainer) is a equipment that eliminates a small amount of impurities and particles from liquid and gases. It can protect normal operation to compressor, pump and other equipment in the pipe system, it is widely used in the oil, petroleum industry and water treatment system.
    Tengs Valve supply various T strainers: carbon steel, stainless steel, flanged ends, BW (butt welded) ends, fabricated body, welded body, cast body. Fabricated T strainer, straight type and angle type, size range from 2“ to 36” rating from 150LBS to 300LBS, PN10 - PN40; body material in WPB, SS304, SS316 etc.

    T STRAINER STANDARDS:

    1. Design and manufacture: ASME B16.34
    2. Inspection and test: API598
    3. End flange dimension: ASME B16.5, ASME B16.47
    4. BW end dimension: ASME B16.25
    5. Face to face: ASME B16.10

    6. Pressure-temperature ratings: ASME B16.34


    Inquiry Us





    RELATED PRODUCTS

    A28Y Full Lift Plain Lever Safety Valve

    A28Y Full Lift Plain Lever Safety Valve

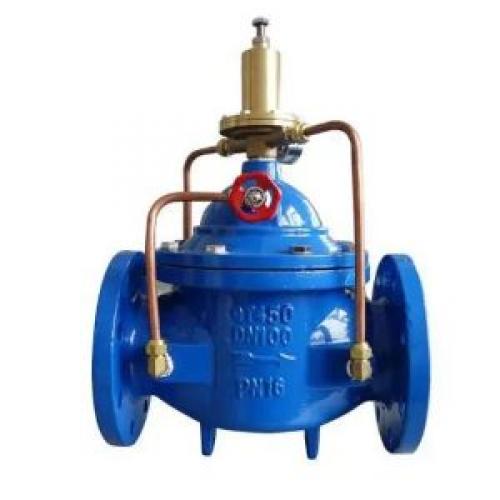

    500X Pressure Relief/Pressure Sustaining Valve

    500X Pressure Relief/Pressure Sustaining Valve

    Self Operated Micro Pressure Reducing Regulator

    Self Operated Micro Pressure Reducing Regulator

    DIN F4/F5 Resilient seated gate valves NRS  Flanged ends

    DIN F4/F5 Resilient seated gate valves NRS Flanged ends

    Pneumatic PFA PTFE lined Globe Control Valve

    Pneumatic PFA PTFE lined Globe Control Valve

    42X Direct Acting Diaphragm Type Pressure Reducing Valve

    42X Direct Acting Diaphragm Type Pressure Reducing Valve

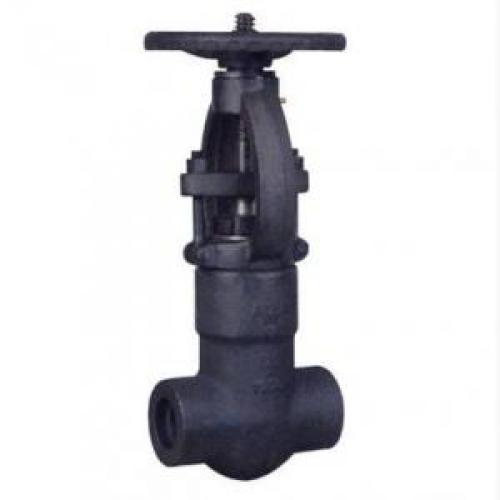

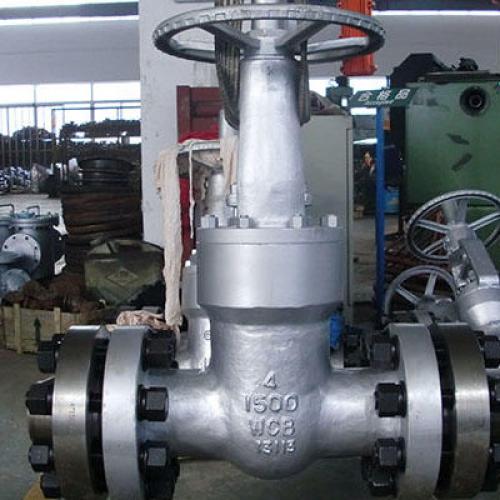

    Pressure Sealing Bonnet Flanged Forged Gate Valve 150LBS & 2500LBS

    Pressure Sealing Bonnet Flanged Forged Gate Valve 150LBS & 2500LBS

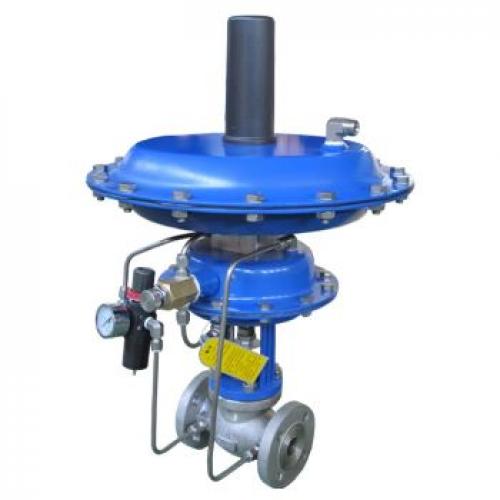

    ZZYVP Self-operated micro pressure regulator
