API 6D Expanding Gate ValveAPI 6D Expanding Gate ValveAPI 6D Expanding Gate ValveAPI 6D Expanding Gate Valve

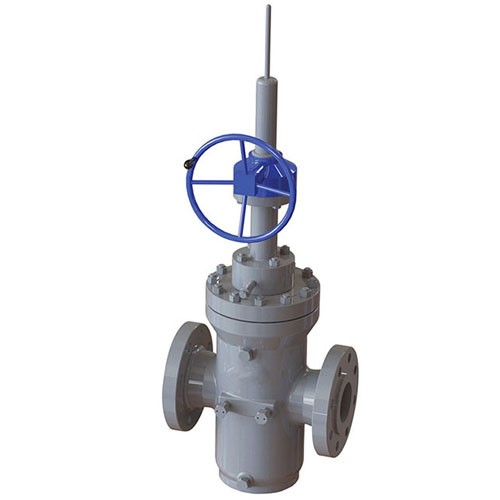

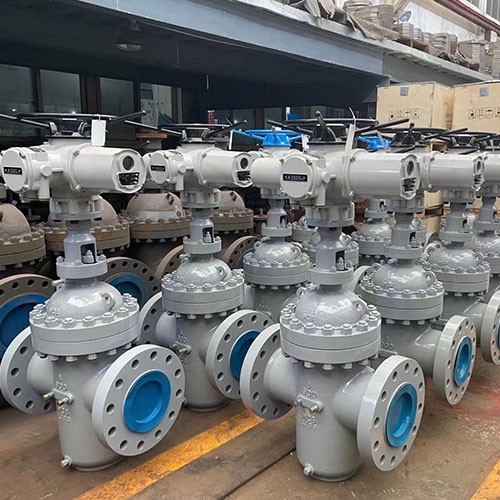

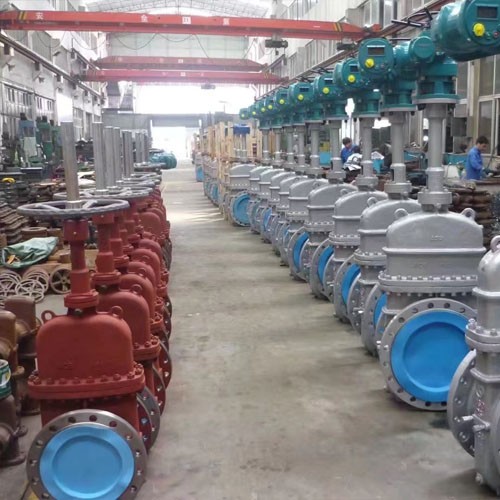

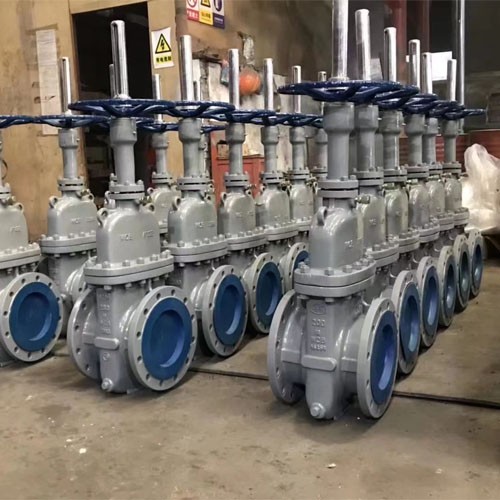

API 6D Expanding Gate Valve

  • Product Item:Z43H/Y
  • Design standard as per: API 6D、ASME B16.34、GB/T 19672
  • Body material: carbon steel, stainless steel
  • Working Temperature : -196˚C ~ +649˚C -320˚F ~ +1200˚F
  • Size Range : 2” – 48”
  • API 6D Expanding Gate Valve,slab gate valve , through conduit gate valve ,  Through Conduit Slab Gate Valve
    Inquiry Send Email

    Description


    Cast Steel API-6D Pipeline Expanding Gate Valves 300lb - 1500lb

    Features

    API-6D
    Full Bore allows for pigs & scrapers
    Low torque mechanical seal
    Bosses for taps & bypass
    Continual low turbulent flow
    Block & bleed capable
    Ring Joint Bonnet gaskets (Class 600lb-4500lb)
    Self relieving floating seats
    Long lasting protected seat faces
    Fugitive emission tested
    NACE MR-01-75

    Options

    Alternative Trims
    Mounting Pads for Actuation
    Gear Operated (Recommended for 6" and larger)
    Alternative Materials

    Standards

    API-6D
    ANSI B16.5
    ANSI B16.47
    MSS SP-25

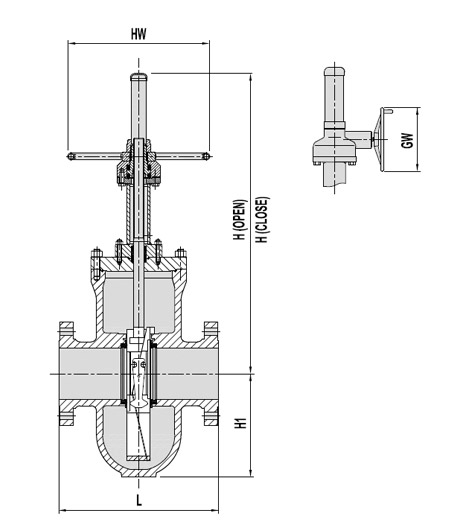

    Slab gate valve drawing

    300 LB
    Dimensions: inches (millimeters)

    Sizes L H1 H (Close) H (Open) HW GW
    4" 12 (305) 7-1/2 (190) 26-7/32 (666) 31 (787) 13-13/16 (350) /
    6" 15-7/8 (403) 13-1/2 (343) 35-7/8 (911) 42-7/8 (1089) 17-23/32 (450) /
    8" 16-1/2 (420) 15-3/4 (400) 38-13/16 (986) 47-7/16 (1205) / 18-1/8 (460)
    10" 18 (457) 19-11/32 (491) 45-23/64 (1152) 56-1/16 (1424) / 18-1/8 (460)
    12" 19-3/4 (501) 23-1/16 (586) 51 (1295) 63-25/32 (1620) / 18-1/8 (460)
    14" 30 (762) 25-25/32 (655) 46-21/32 (1185) 63-3/8 (1610) / 24 (610)
    16" 33 (838) 28-19/32 (726) 68-7/16 (1738) 84-21/32 (2150) / 24 (610)
    18" 36 (914) 32 (812) 75 (1906) 93-19/32 (2377) / 24 (610)
    20" 39 (991) 35-13/32 (899) 81-21/32 (2074) 102-9/16 (2605) / 28 (710)
    24" 45 (1143) 41-25/32 (1061) 94-19/64 (2395) 118-19/32 (3012) / 28 (710)

    600 LB
    Dimensions: inches (millimeters)

    Sizes L H1 H (Close) H (Open) HW GW
    2" 11-1/2 (292) 5-15/16 (151) 18-29/32 (480) 21-17/32 (547) 9-27/32 (250) /
    4" 17 (432) 10-1/16 (256) 26-15/16 (684) 31-15/16 (811) 15-3/4 (400) 12-7/32 (310)
    6" 22 (559) 12-11/16 (322) 32-29/32 (836) 45-17/64 (1150) 19-11/16 (500) 18-1/8 (460)
    8" 26 (660) 16-15/32 (418) 38-25/32 (985) 47-7/16 (1205) / 18-1/8 (460)
    10" 31 (787) 20 (508) 45-11/16 (1160) 56-17/32 (1436) / 18-1/8 (460)
    12" 33 (838) 23-1/16 (586) 51-7/64 (1298) 63-31/32 (1625) / 18-1/8 (460)
    14" 35 (889) 25-53/64 (656) 57-7/8 (1470) 72-3/64 (1830) / 24 (610)
    16" 39 (991) 29-7/32 (742) 61-5/8 (1565) 78-9/64 (1985) / 28 (710)
    18" 43 (1092) 32-19/32 (828) 69-1/2 (1765) 88-3/16 (2240) / 28 (710)
    20" 47 (1194) 35-15/16 (913) 77-23/64 (1965) 98-7/32 (2495) / 35-7/16 (900)
    24" 55 (1397) 42-23/32 (1085) 91-21/32 (2328) 117-3/32 (2974) / 35-7/16 (900)

    900 LB
    Dimensions: inches (millimeters)

    Sizes L H1 H (Close) H (Open) HW GW
    4" 18 (457) 9-1/16 (230) 26-7/32 (666) 31 (787) 17-23/32 (450) 12-7/32 (310)
    6" 24 (610) 13-7/64 (333) 32-7/8 (835) 39-31/32 (1015) 22 (560) 12-7/32 (310)
    8" 29 (737) 16-15/32 (418) 38-5/8 (981) 47-1/4 (1200) / 18-1/8 (460)
    10" 33 (838) 20 (508) 46-15/32 (1180) 57-5/32 (1452) / 18-1/8 (460)
    12" 38 (965) 23-13/16 (605) 53-17/32 (1370) 66-3/4 (1695) / 18-1/8 (460)
    14" 40-1/2 (1029) 26-37/64 (675) 58-1/4 (1480) 72-7/16 (1840) / 28 (710)
    16" 44-1/2 (1130) 29-23/32 (755) 69-7/32 (1758) 85-43/64 (2176) / 28 (710)
    18" 48 (1219) 33-1/8 (841) 70-1/16 (1780) 88-15/32 (2247) / 28 (710)
    20" 52 (1321) 36-17/32 (928) 77-3/4 (1975) 98-5/8 (2505) / 31-7/8 (810)
    24" 61 (1549) 43-5/8 (1108) 89-3/8 (2270) 114-3/8 (2905) / 35-7/16 (900)

    1500 LB
    Dimensions: inches (millimeters)

    Sizes L H1 H (Close) H (Open) HW GW
    4" 21-1/2 (546) 9-1/16 (230) 26-7/32 (666) 31 (787) 19-11/16 (500) 12-7/32 (310)
    6" 27-3/4 (705) 13-7/64 (333) 32-7/8 (835) 39-31/32 (1015) 25-3/16 (640) 18-1/8 (460)
    8" 32-3/4 (832) 16-15/32 (418) 38-5/8 (981) 47-1/4 (1200) / 24 (610)
    10" 39 (991) 20 (508) 46-15/32 (1180) 57-5/32 (1452) / 24 (610)
    12" 44-1/2 (1130) 23-13/16 (605) 53-17/32 (1370) 66-3/4 (1695) / 31-1/2 (800)

    Larger sizes available for each valve class above
