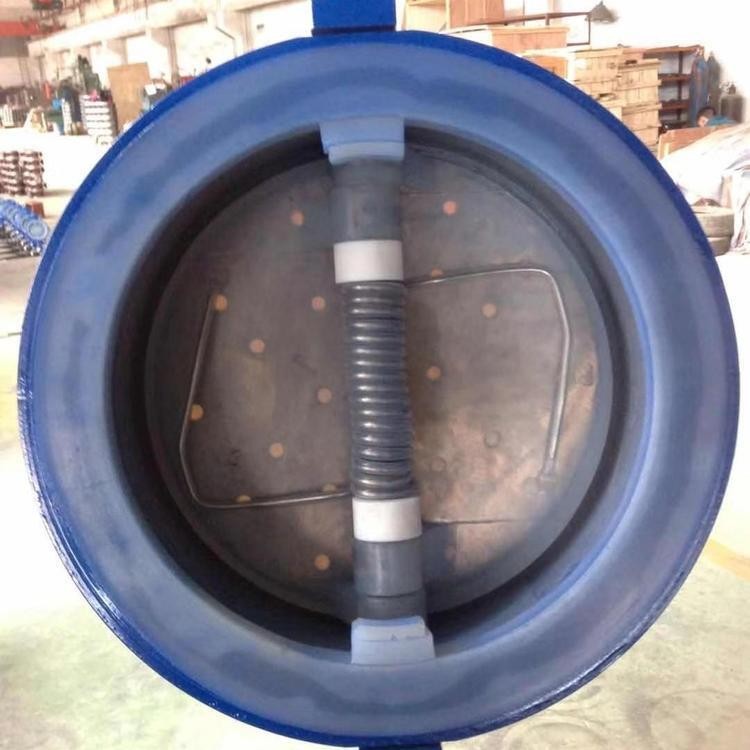

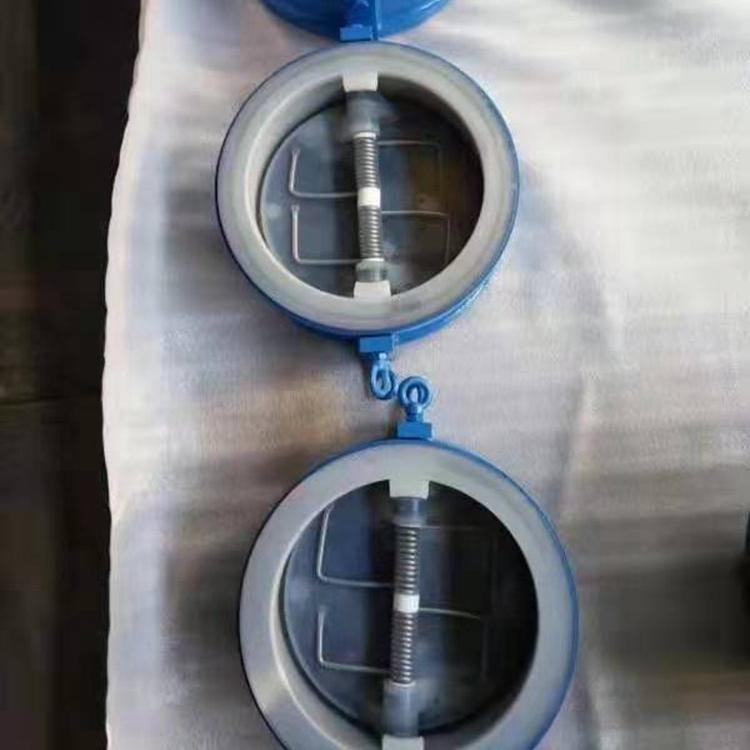

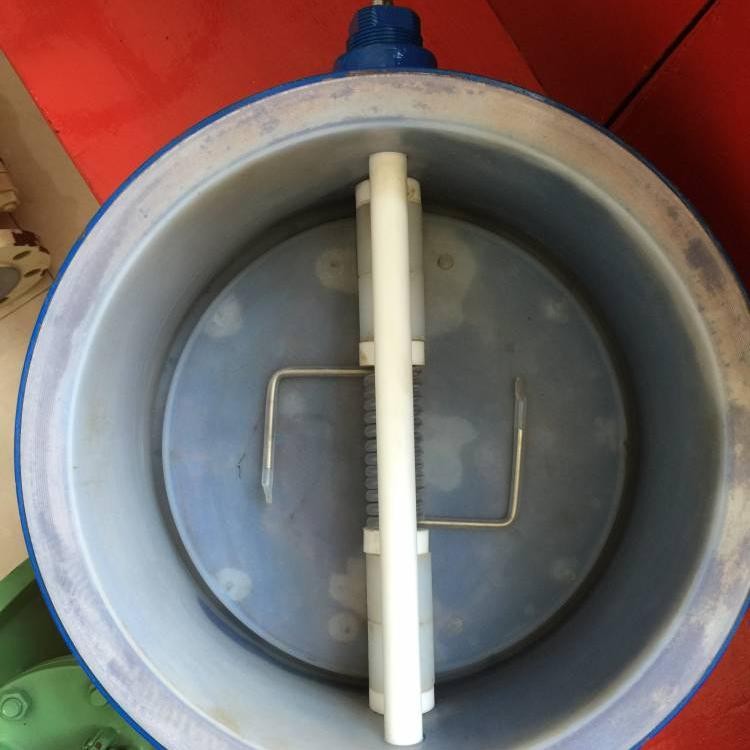

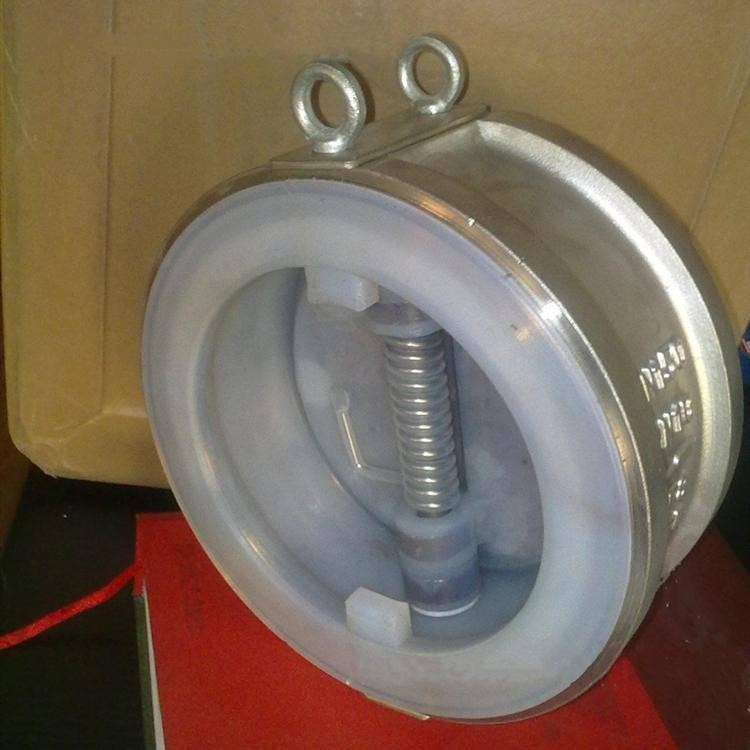

PTFE /PFA /FEP lined dual plate check valve

  • Body Material: WCB,CF8,CF3,CF8M,CF3M
  • Lining material: Fluorine plastic ( FEP, PTFE, PFA) or Rubber
  • Flange dimension standard: JB/T 79, ANSI B16.5, DIN 2543, JIS B2020
  • Face to face dimension: GB12221
  • PTFE PFA FEP lined dual plate check valve , PFA lined dual plate check valve , FEP lined dual plate check valve , PTFE lined dual plate check valve , lined dual disc check valve
    Inquiry Send Email

    Description

    PTFE /PFA /FEP lined dual plate check valve ( H76F4)


    PTFE /PFA /FEP lined dual plate check valve( H76F4) APPLICATION
    PTFE /PFA /FEP lined dual plate check valve is epecially designed for controlling the usual corrosive medium. Its body inner surface is lined with fluorine plastic like FEP/PTFE/PTFE or some other kinds of rubber. It features a high strength and aprominent performance of corrosion resistance. It can be selected to suit with different working temperature and fluid pipelines.

    PTFE /PFA /FEP lined dual plate check valve( H76F4)
    Lined Wafer Type Single Door Check Valve only allow one way flow direction and prevent the back-flow of liquids in pipeline. Generally check valve is automatically working, under the pressure function of one direction flow, the disc open, while when the liquid back flows, the valve will cut flow. PTFE Lined Disc Can also guarantee the tight sealing performance.

    PTFE /PFA /FEP lined dual plate check valve( H76F) STANDARD
    Design and manufacture standard: GB12235
    Face to face dimension: GB12221
    Flange dimension standard: JB/T 79, ANSI B16.5, DIN 2543, JIS B2020

    PTFE /PFA /FEP lined dual plate check valve( H76F) MATERIAL
    Body Material: WCB,CF8,CF3,CF8M,CF3M
    Ball Material: WCB
    Lining material: Fluorine plastic ( FEP, PTFE, PFA) or Rubber

    PTFE /PFA /FEP lined dual plate check valve( H76F)  TEST AND INSPECTION
    Lining Layer: Electrospark detecting
    Test Standard: GB/T 13927, API 598
    Nominal pressure : PN ( MPA)
    Body test pressure: PNX1.5
    Seal Test Pressure: PNX1.1
