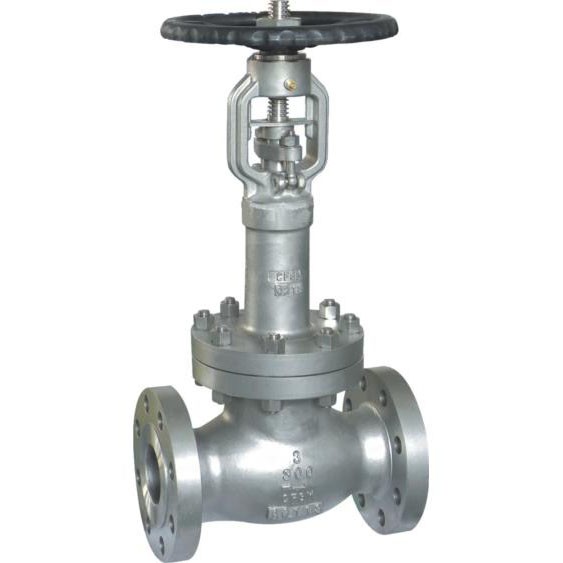

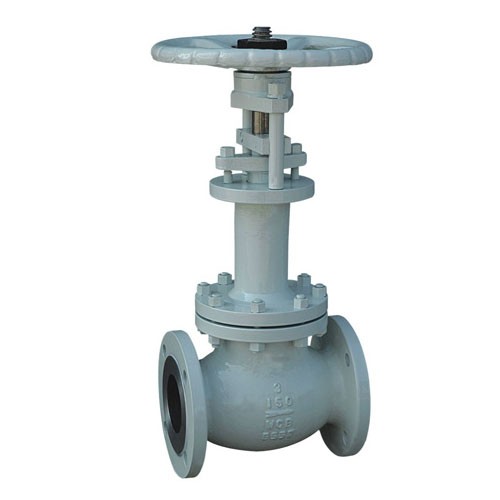

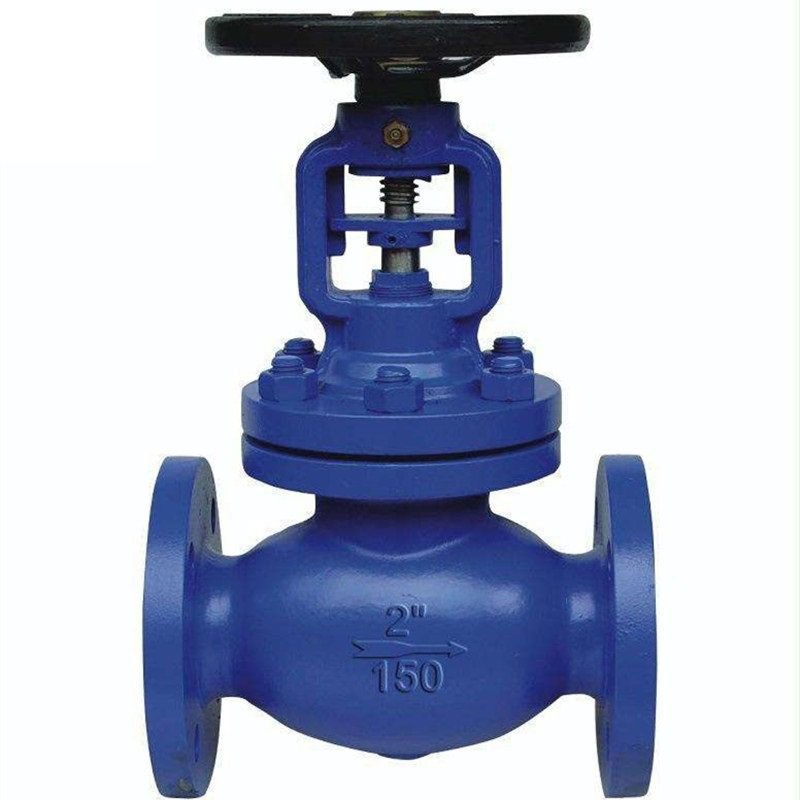

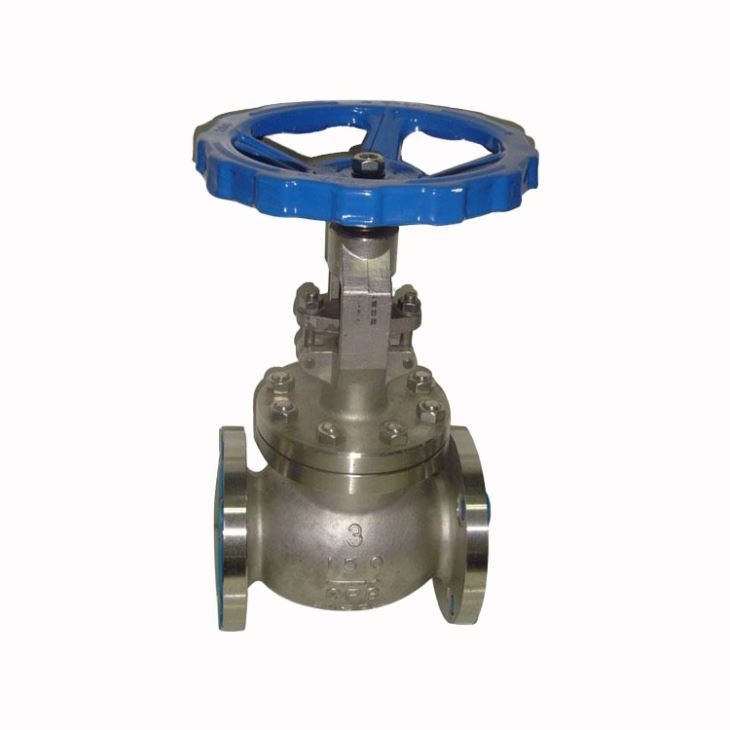

Bellow seal globe valveBellow seal globe valveBellow seal globe valveBellow seal globe valve

Bellow seal globe valve

  • Design standard: API 16.34
  • Face to face dimension: ANSI B 16.10
  • Flanged ends: ANSI B 16.5
  • Test & inspection: API 598
  • ANSI Globe Valve , Bellow Seal Globe Valve , Bellows Globe Valve
    Inquiry Send Email

    Description

    Bellow seal globe valve


    Application

    Petroleum, chemical industry, pharmacy, fertilizer, power industry etc.
    Advantage
    1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
    2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
    3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
    4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
    5.Ergonomic hand wheel. It provide longer service life and easier operation.
    Performance specification

    Nominal Pressure

    PN

    Test Pressure

    Strength test

    1.5PN

    LB

    Sealing test

    1.1PN

    Gas seal test

    0.6

    --

    --

    Suitable temp

    -196℃~600℃

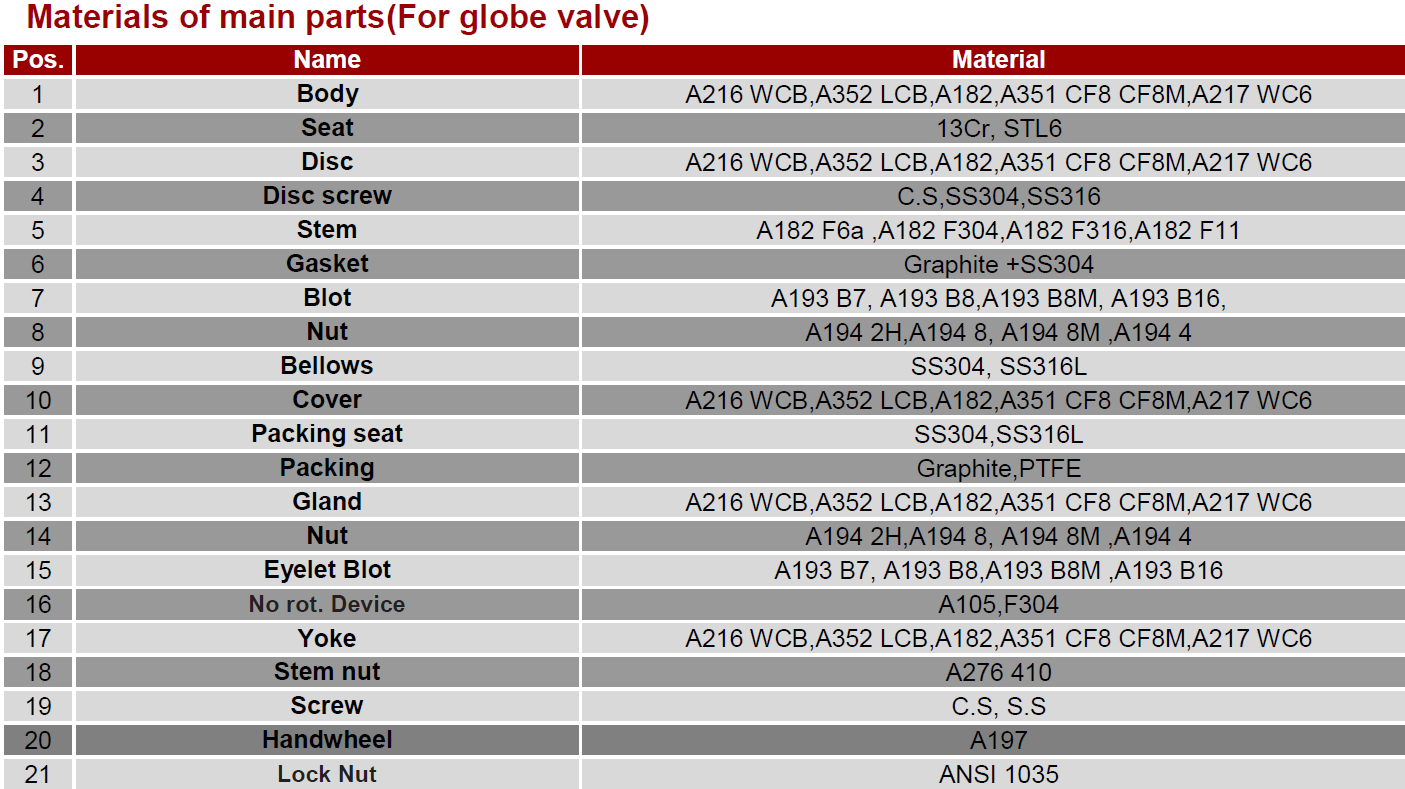

    Technical specification
    Design standard: API 16.34
    Face to face dimension: ANSI B 16.10
    Flanged ends: ANSI B 16.5

    Test & inspection: API 598



    150 LB
    DN Main connection size
    L D D1 D2 b f H n-Φd
    1/2" 108 90 60.5 35 10.7   215 4-Φ15
    3/4" 117 100 70 43 11..7   215 4-Φ16
    1" 127 110 79.5 51 12.7   220 4-Φ16
    1-1/4" 165 125 98.5 73 14   250 4-Φ16
    1-1/2" 203 150 120.5 92 16   260 4-Φ19
    2" 216 180 139.5 105 17.5   305 4-Φ19
    2-1/2" 241 190 152.4 127 19   325 4-Φ19
    3" 292 230 190.5 157 24   390 8-Φ19
    4" 406 280 241.5 216 25.4   455 8-Φ22
    5" 495 345 298.5 270 29   570 8-Φ22
    300 LB
    1/2" 152 95 66.5 35 14   215 4-Φ16
    3/4" 178 115 82.5 43 16   215 4-Φ19
    1" 203 125 89 51 17   220 4-Φ22
    1-1/4" 229 155 114.5 73 21   250 4-Φ22
    1-1/2" 267 165 127 92 22   260 8-Φ19
    2" 292 190 149 105 25.5   305 8-Φ22
    2-1/2" 318 210 168.5 127 29   325 8-Φ22
    3" 356 255 200 157 32   390 8-Φ22
    4" 444 320 270 216 37   455 12-Φ22
    5" 559 380 330 270 41   570 12-Φ25

    Inquiry Us
