Electric 3-way Control ValveElectric 3-way Control ValveElectric 3-way Control ValveElectric 3-way Control Valve

Electric 3-way Control Valve

  • Nominal size: DN20~300,、 NPS 3/4〞~ 12〞
  • Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
  • Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
  • Ⅰ:standard type(-20℃~230℃) Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion) Ⅲ:Low temperature extended type(-196℃~ -45℃) Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type
  • Electric 3-way Control Valve , 3-way Control Valve , Pneumatic 3-way Control Valve
    Inquiry Send Email

    Description

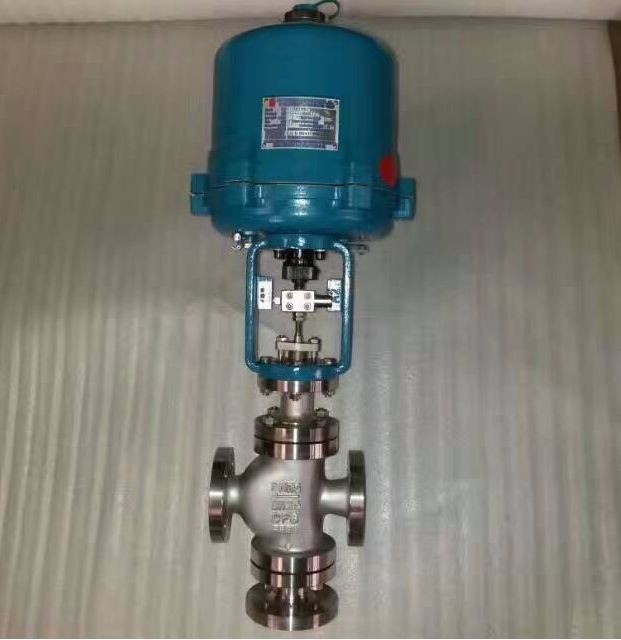

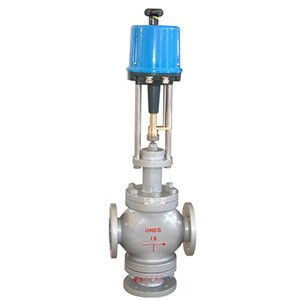

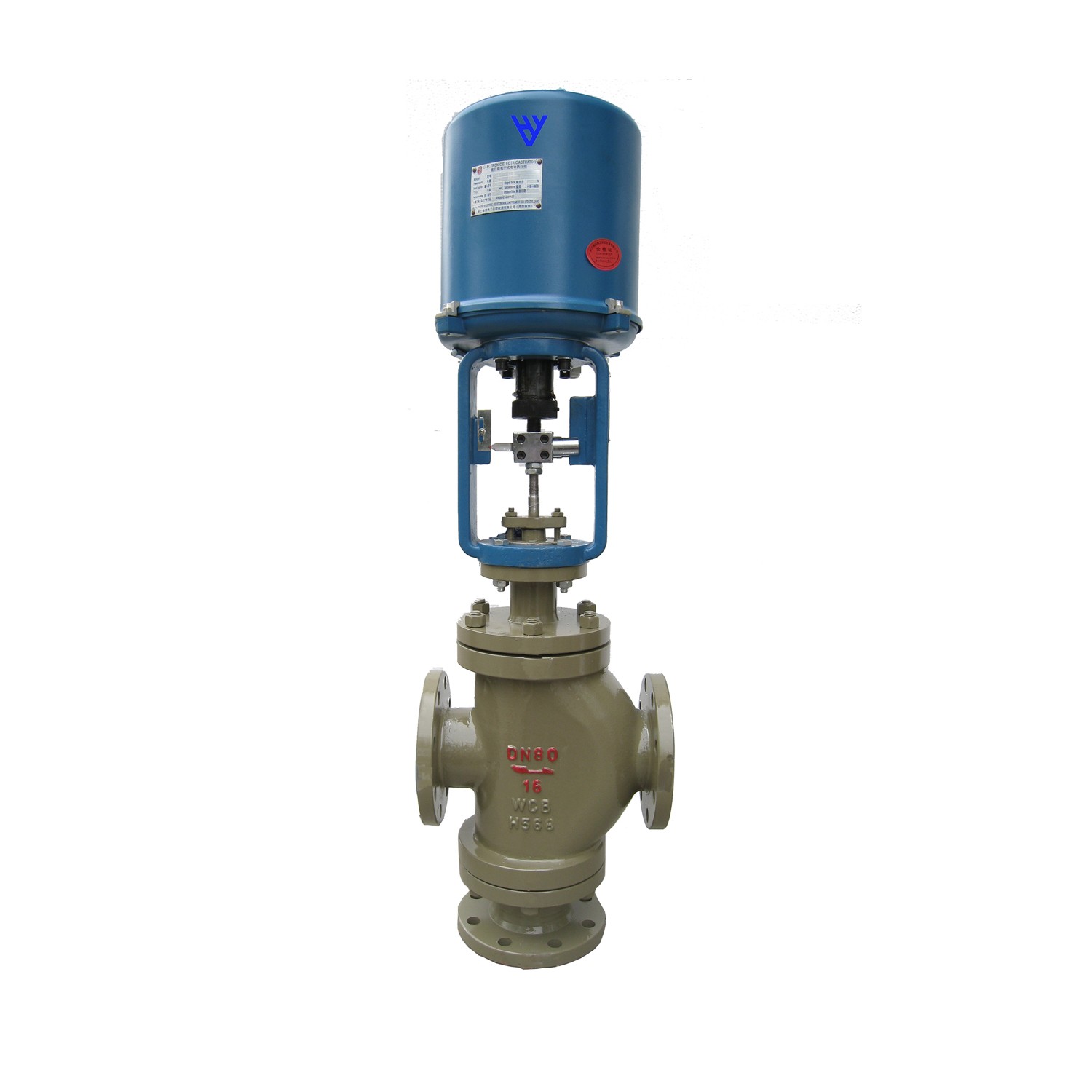

    Electric 3-way Control Valve

    • Electric 3-way Control Valve FEATURE

      Electric diverging 3-way control valve is diverging structure and has converging and diverging structure for choice,electric diverging 3-way control valve adopts double valve cores up and down guide structure, equipped with multiple spring actuator. Electric 3-way control valve can replace two sets two-way valve and widely used in many occasions to regulate pressure, flow rate, temperature and liquid level.
      The Electric diverging 3-way control valve body has the features as below:
      1.compact structure, light weight, sensitive action, low pressure drop loss, new high allowable pressure, large valve capacity, accurate flow characteristics and convenient maintenance, etc.,
      2.Electric diverging 3-way control valve can be used for various working conditions, especially for the temperature control system of oil industry heat exchange and automatic control of other industries.
      3.Spool structure with side guiding, well stability, no vibration, low noisy, Electric diverging 3-way control valve can bear high pressure difference, easy for connection.
      4.While with low nominal size and pressure difference, converging control valve can be used in diverging occasion. However, while nominal size higher than DN100 and high pressure difference, converging control valve and diverging control valve can’t be exchanged.
    • Electric 3-way Control Valve SPECIFICATION

      Control valve Body type: 3-way casting globe type
      Spool type: 3-way double seat spool
      Nominal size: DN20~300,、 NPS 3/4〞~ 12〞
      Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
      Connection: flange: FF、RF、MF、RTJ
      Welding: SW、BW
      Flange dimension: According to to IEC 60534
      Electric 3-way control valve
      Bonnet type:
      Ⅰ:standard type(-20℃~230℃)

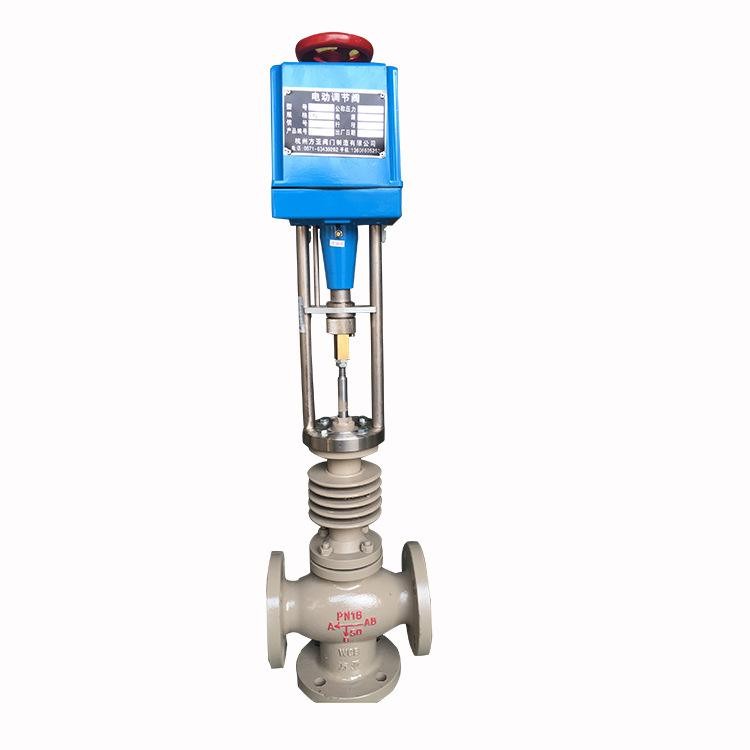

      Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
      Ⅲ:Low temperature extended type(-196℃~ -45℃)
      Ⅳ:Bellow seal type
      Ⅴ:Warm insulation Jacket type
      Packing: V type PFTE packing, flex. graphite packing, etc.
      Gasket: Metal graphite packing
      Electric 3-way control valve Actuator: Electric: 3810L series smart actuator, PSL series actuator.

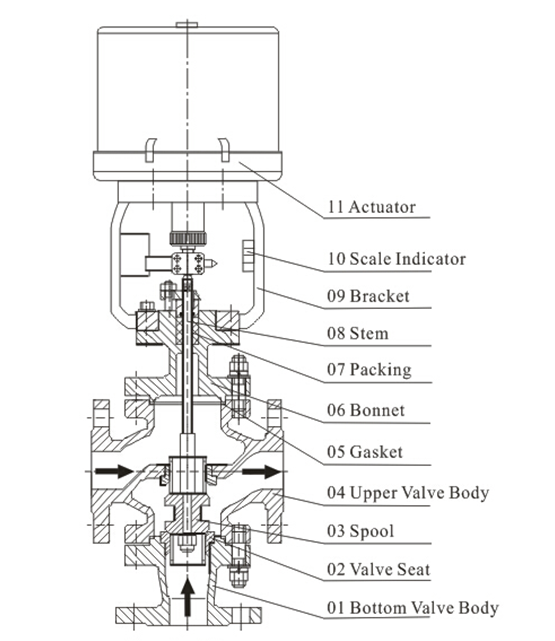

    • Electric 3-way Control Valve STRUCTURE


    • Electric 3-way Control Valve MATERIAL

      Component name Electric 3-way control valve Material
      Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
      Valve spool/Seat 304/316/316L(overlaying stellite alloy)
      Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
      Bellow 304,316,316L
      Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
      Stem 2Cr13/17-4PH/304/316/316L
      Electric actuator Component

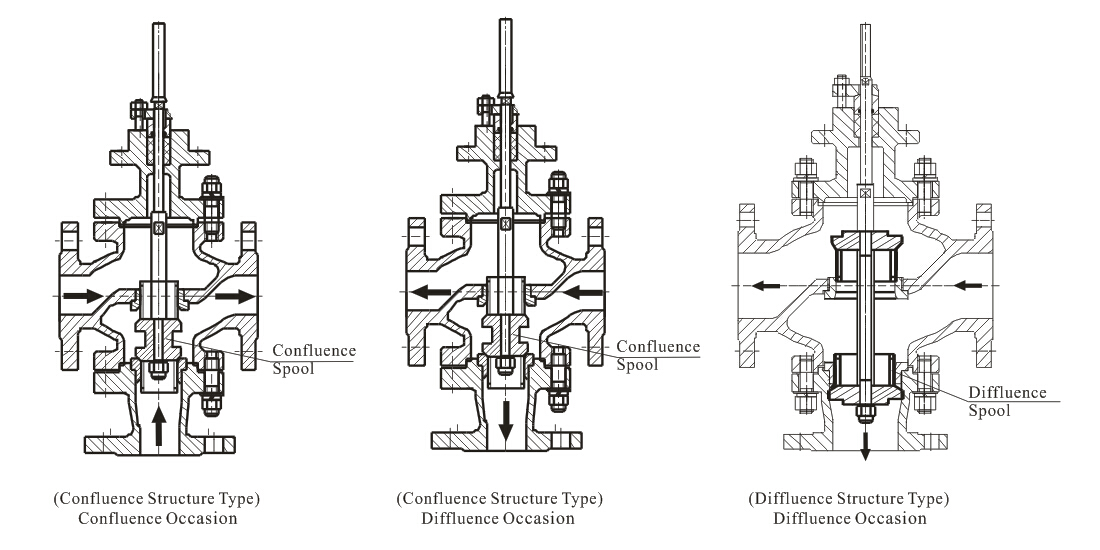

    • Electric 3-way Control Valve FLOW DIRECTION


    • Electric 3-way Control Valve TYPE CODE

      Z Actuator H Structure Nominal size Body material Bonnet type Nominal pressure
      Z series control valve R: electric 3810L type
      D: electric PSL type
      H: direct travel F: diverging type
      H: converging type

      DN25=NPS1〞=25

      C=WCB
      LC=LCB
      P=CF8
      PL=CF3
      R=CF8M
      RL=CF3M
      D= special material
      Ⅰ:standard type(-20℃~230℃)
      Ⅱ:Radiator type: (-45℃~ high than   230℃ occasion)
      Ⅲ:Low temperature       extended type
      (-196℃~ -45℃)
      Ⅳ:Bellow seal type
      Ⅴ:Warm insulation  Jacket type
      DN25= DN25
      NPS1〞=
      NPS 1〞
      PN16=16
      CL150LB=150 LB
      JIS10K=10K
      Such as: Electric diverging 3 way control valve, radiator type, pressure PN16, valve material WCB, nominal size DN50, type:  ZRHF-50CⅡ-16
    • ELECTRIC DIVERGING 3-WAY CONTROL VALVE PERFORMANCE

      Electric 3-way control valve Flow characteristic Linear, percentage
      Allowable range 30: 1
      Rated Cv value Percentage / linear CV8.5~1280
      Electric 3 way control valve
      Allowable leakage
      Metal seal:  IV grade(0.01% rated capacity)
      Leakage standard:  GB/T 4213
      Electric 3-way control valve Performance
      Intrinsic error (%) ±1.0
      Return difference(%) ≤1.0
      Dead zone(%) ≤1.0
      Difference from beginning to end point(%) ±2.5
      Rated travel difference(%) ≤2.5
    • ELECTRIC DIVERGING 3-WAY CONTROL VALVE SPECIAL REQUIREMENT

      Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
      low temperature test.
      Special treatment Trim nitrogen treatment, seat hard alloy treatment.
      Special rinse Degreasing and dehydration treatment
      Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
      Special dimension Customized face to face length or dimension
      Test and inspection Third party test report
    • ELECTRIC DIVERGING 3-WAY CONTROL VALVE ACTUATOR PARAMETER

      Electric 3-way control valve
      Type\ Method
      Electric actuator
      3810L series
      Intelligent integrated type
      Usage Regulating
      Air supply pressure or Power supply voltage Power: AC 200V±10%  50Hz
      Or Power:  AC 380V±10% 50Hz
      Connector Normal type:  cable inlet 2-PF(G1/2〞)
      Explosive proof:  Protection jacket PF(G3/4〞)
      Direct action Input signal increase, stem descend, valve close.
      Reaction Input signal increase, stem ascend, valve open.
      Input signal Input/output4~20mA.DC
      Lag ≤0.8%FS
      Linear type ≤+1%FS
      Environmental temperature Standard type: -10℃~+60℃
      With space heater : -35℃~+60℃
      Explosive proof: -10℃~+40℃
      Electric 3-way control valve
      Accessories
      Space heater (normal type)
      Non-standard accessories, need special customized notes.
    • ELECTRIC DIVERGING 3-WAY CONTROL VALVE TECHNICAL PARAMETER

      Seat diamter(mm) 25 32 40 50 65 80 100 125 150 200 250 300
      Rated flow coefficient, CV 8.5 13 21 34 53 85 135 210 340 535 800 1280
      Nominal size Travel Option flow coefficient Cv(★standard ●recommended)
      DN25 16 mm ★
      DN32 25 mm   ★
      DN40   ● ★
      DN50   ● ● ★
      DN65 40mm         ★
      DN80         ● ★
      DN100         ● ● ★
      DN125 60mm               ★
      DN150               ● ★
      DN200               ● ● ★
      DN250 100mm                 ● ● ★
      DN300                   ● ● ★
      Electric actuator Electric 3-way control valve
      Metal sealing max. allowable pressure difference(MPa)
      Type Thrust(N)
      3810L-08 800 1.52
      3810L-20 2000 3.05 1.86 1.19 0.76
      3810L-30 3000   2.79 1.79 1.14
      3810L-50 5000   4.66 2.98 1.91 1.13 0.6 0.47
      3810L-65 6500         1.35 0.8 0.57 0.39 0.26 0.16
      3810L-99 10000               0.61 0.42 0.20 0.17 0.11
      3810L-160 16000               0.97 0.67 0.35 0.27 0.18
