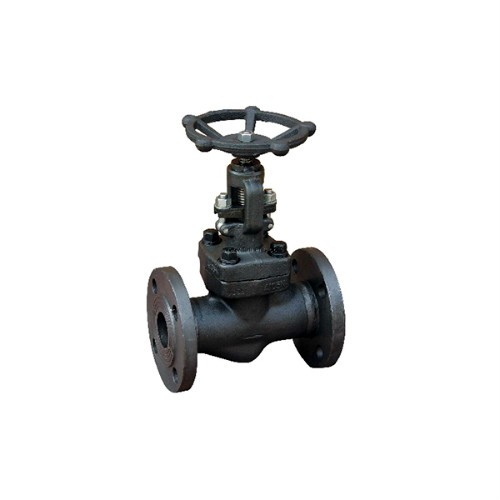

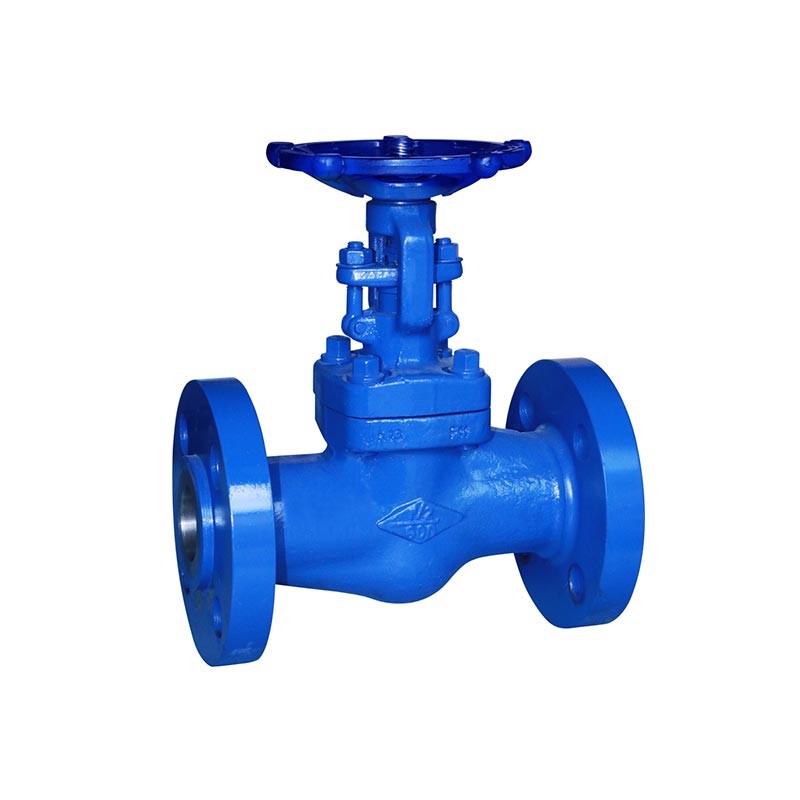

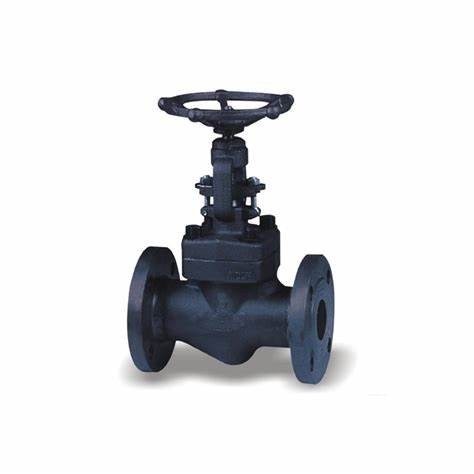

Flanged & Bw Ends Forged Globe Valve 150LBS - 2500LBS

Flanged & Bw Ends Forged Globe Valve 150LBS - 2500LBS

Product Item：J41Y

Design & Manufacture: API 602

Constructions: Out Screw And Yoke, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet

Pressure Ratings: ANSI 150#, 300#, 600#, 900#, 1500# & 2500#

Structure: BB, OS&Y

Description

Flanged Forged Globe Valve, API 602, Integral Flanged, Welded Flanged, RF, RTJ, BW Ends, Plug Disc and Needle Disc, OS&Y, Rising Stem, Bolted, Welded Bonnet, Pressure Seal Bonnet Forged Steel Globe Valves, Stop Valves, Ansi Class 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs, 2500Lbs, NPS 1/2 to NPS2 Carbon Steel, Stainless Steel, Duplex Steel Metal Seat Globe Valve Supplier and Exporter.

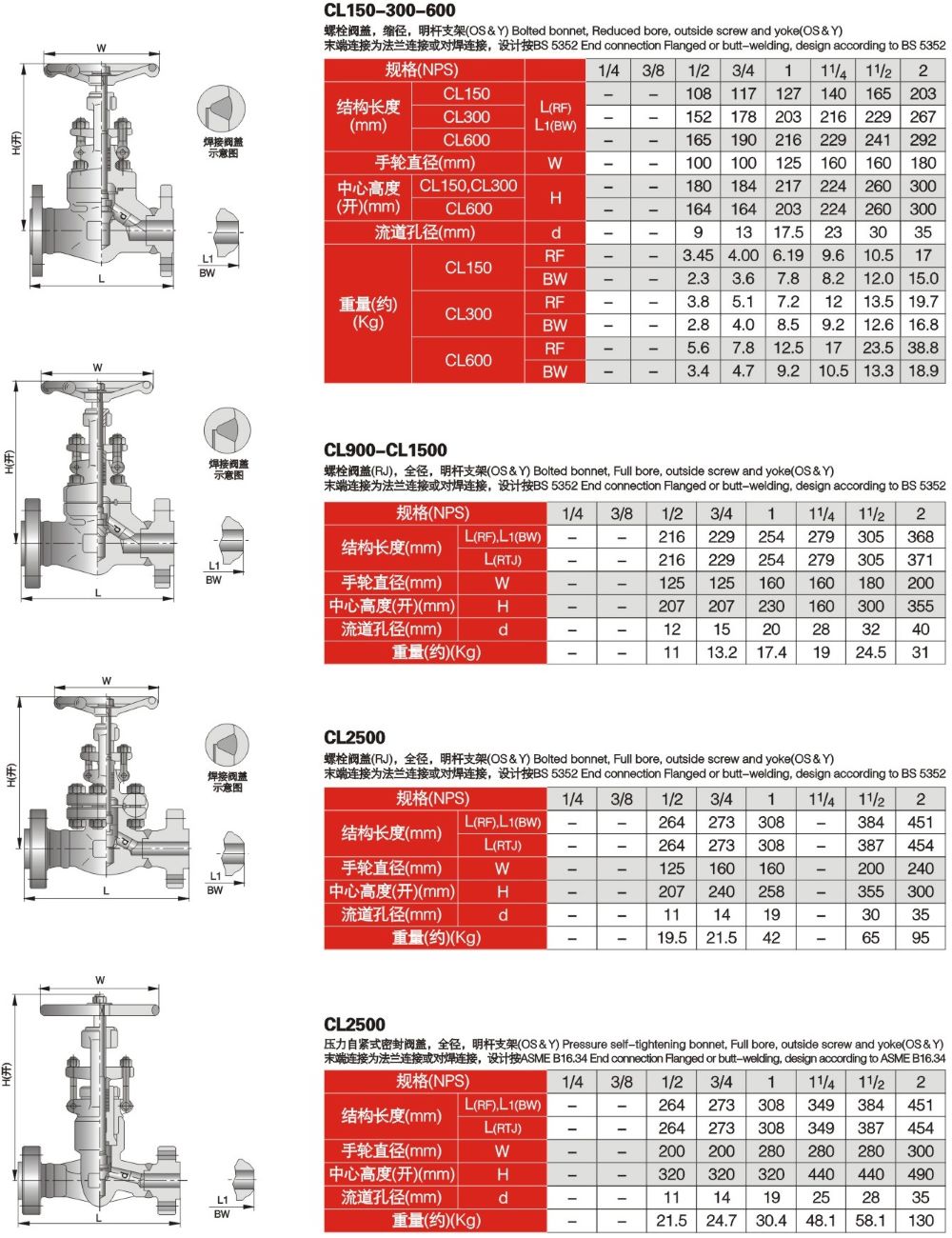

Specifications For Forged Globe Valve 150LBS – 2500LBS (Flange, Bw Ends)

1. Design & Manufacture: API 602
2. Constructions: Out Screw And Yoke, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet
3. Full Bore /Reduced Bore
4. Size Range: 1/2" to 2"
5. Pressure Ratings: ANSI 150#, 300#, 600#, 900#, 1500# & 2500#
6. End Connections: Flanged (RF, RJ), Butt Weld (BW)
7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent
8. Various Trim Materials: 13Cr, Stellite, Stainless Steel etc.
9. NACE MR 0175 on request
10. Test and Inspection: API598
11. Rising Stem, Handwheel.
