Description

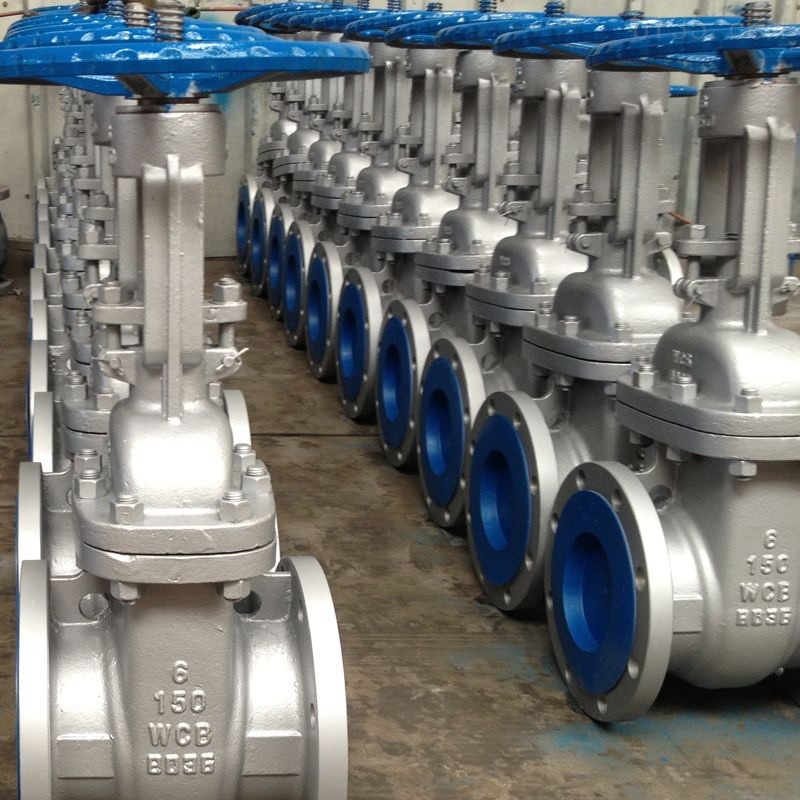

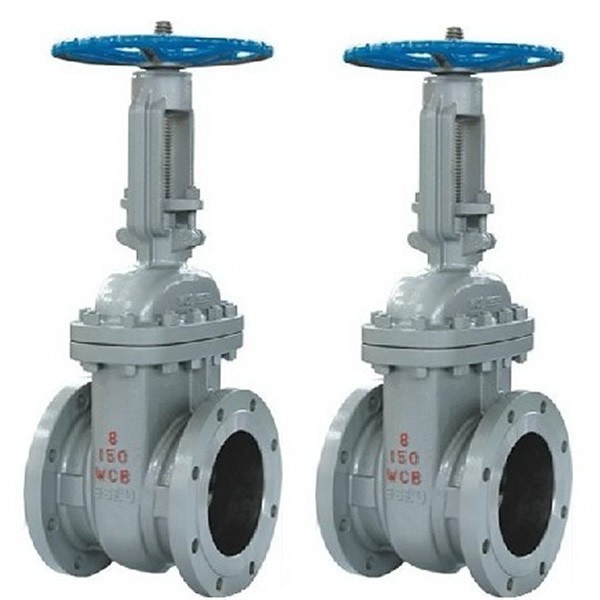

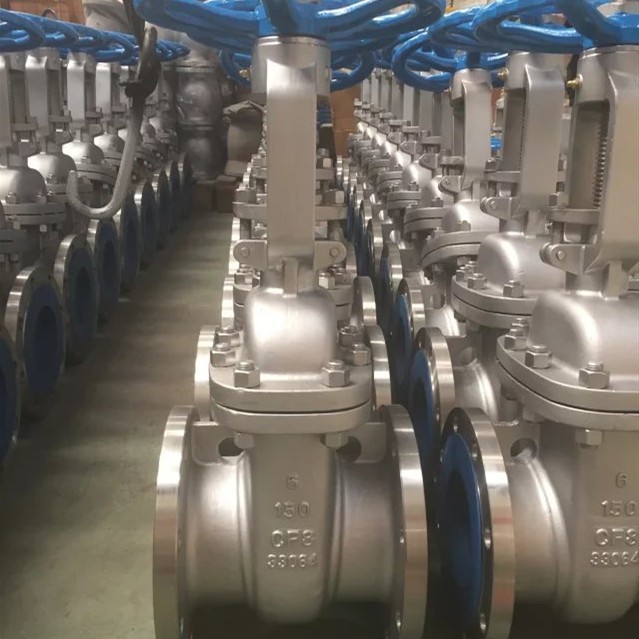

API 600 Gate Valve Class 150
Type： Z40H/W
Size：2"-48"
Pressure Range：Class 150∽Class 1500
Working Temp.：≤425°
Material：Carbon steel,Stainless steel,Alloy steel,special material,chromium molybdenum steel,etc.
Medium：Water Steam Oil
Operation: Manual Pneumatic Electric
Applicable standards
Steel gate valves, API 600/API 6D
Steel gate valves, ISO 10434/ISO 14313
Steel valves, ASME B16.34
Face to face, ASME B16.10
End flanges, ASME B16.5
Butt welding ends, ASME B16.25
Inspection and test, API 598
Design Feature
Full port design
OS&Y, Outside screw and yoke
BB, Bolted bonnet
Flexible wedge/solid wedge
Renewable seat
Forged T-Head stem
Handwheel, & Gear box operator
Material of parts:
|
No. |
ASTM Material |
||||
|
Part Name |
Carbon steel |
11/4 Cr-11/2 Mo |
Low-term. Steel |
Stainless steel |
|
|
1 |
Body |
A216-WCB |
A217-WC6 |
A352-LCB |
ASTM A351 CF8M |
|
2 |
Bonnet |
A216-WCB |
A217-WC6 |
A352-LCB |
ASTM A351 CF8M |
|
3 |
Wedge |
A216-WCB+13Cr |
A217-WC6+HF |
A352-LCB+13Cr |
A351-CF8M+STL |
|
4 |
Stem |
A182-F6a |
CR-MO-V |
A182-F6a |
A182-F316 |
|
5 |
Seat Ring |
A105+13Cr |
A182 F11+HF |
A350 LF2+13Cr |
A182-F316+STL |
|
6 |
Stem Back Seat |
A276-410 |
A276-410 |
A276-410 |
A182-F316 |
|
7 |
Bonnet Gasket |
Spiral Wound(Graphite+304/316) |
|||
|
8 |
Bonnet Stud |
A193-B7 |
A193-B16 |
A320-L7 |
A193-B8M |
|
9 |
Bonnet Stud Nut |
A194-2H |
A194-7 |
A194-4 |
A194-8M |
|
10 |
Packing |
Graphite |
|||
|
11 |
Gland |
A276-420 |
A276 420 |
A276-420 |
Stainless steel |
|
12 |
Gland Flange |
A216 WCB |
A217-WC6 |
A352-LCB |
ASTM A351 CF8M |
|
13 |
Eyebolt Pin |
Carbon steel |
A276 420 |
Carbon steel |
Stainless steel |
|
14 |
Bolt |
Carbon steel |
A193-B7 |
Carbon steel |
A193-B8M |
|
15 |
Nut |
Carbon steel |
A194-2H |
Carbon steel |
A194-8M |
|
16 |
Grease Fitting |
Brass + steel |
|||
|
17 |
Yoke sleeve |
Copper Alloy |
|||
|
18 |
Yoke sleeve nut |
Carbon steel |
|||
|
19 |
Handwheel |
Malleable iron |
|||
|
20 |
Handwheel nut |
Carbon steel |
|||
2) Wedge and seat ring may either be solid facing material or a base material equal or better than the body/bonnet material with facing as shown.
150 LB
Dimensions: inches (millimeters)
| Sizes | L | L1 (BW) | H (Open) | W |
|---|---|---|---|---|
| 2" | 7 (180) | 8-1/2 (216) | 14-1/2 (368) | 8 (200) |
| 2-1/2" | 7-1/2 (190) | 9-1/2 (241) | 17 (432) | 8 (200) |
| 3" | 8 (200) | 11-1/8 (283) | 18 (457) | 8-7/8 (225) |
| 4" | 9 (230) | 12 (305) | 22 (559) | 11 (279) |
| 5" | 10 (254) | 15 (381) | 26 (660) | 12-3/4 (325) |
| 6" | 10-1/2 (266) | 15-7/8 (403) | 30 (762) | 14 (356) |
| 8" | 11-1/2 (290) | 16-1/2 (420) | 38-1/2 (978) | 14 (356) |
| 10" | 13 (330) | 18 (457) | 46 (1168) | 18 (457) |
| 12" | 14 (356) | 19 (502) | 55-1/4 (1403) | 20 (508) |
| 14" | 15 (381) | 22 (559) | 60 (1524) | 21-1/2 (546) |
| 16" | 16 (407) | 24 (610) | 74-7/8 (1902) | 24 (610) |
| 18" | 17 (432) | 26 (660) | 79 (2007) | 27 (686) |
| 20" | 18 (457) | 28 (711) | 87-1/2 (2223) | 28 (711) |
| 24" | 20 (508) | 32 (813) | 105 (2667) | 31-1/2 (800) |
| 30" | 24 (610) | 38 (965) | 130 (3302) | 43 (1092) |
| 36" | 28 (711) | 44 (1118) | 162 (4115) | 51 (1295) |
| GEAR OPERATOR RECOMMENDED FOR SIZE 10" AND ABOVE | ||||
300 LB
Dimensions: inches (millimeters)
| SIZES | L/L1 | H (OPEN) | W | |
|---|---|---|---|---|
| 2" | 8-1/2 (216) | 16 (407) | 7-7/8 (200) | |
| 2-1/2" | 9-1/2 (241) | 17-3/8 (442) | 7-7/8 (200) | |
| 3" | 11-1/8 (283) | 19-3/4 (501) | 8-7/8 (225) | |
| 4" | 12 (305) | 23-3/8 (594) | 9-7/8 (251) | |
| 5" | 15 (381) | 23-3/4 (603) | 12-1/2 (318) | |
| 6" | 15-7/8 (403) | 32-1/8 (816) | 14 (356) | |
| 8" | 16-1/2 (420) | 41 (1041) | 15-3/4 (400) | |
| 10" | 18 (457) | 48-3/8 (1229) | 17-3/4 (451) | |
| 12" | 19-3/4 (501) | 57 (1448) | 20 (508) | |
| 14" | 30 (762) | 62-1/2 (1588) | 22 (559) | |
| 16" | 33 (838) | 69 (1753) | 25 (635) | |
| 18" | 36 (914) | 80-1/2 (2045) | 28 (711) | |
| 20" | 39 (991) | 91 (2311) | 35-1/2 (902) | |
| 24" | 45 (1143) | 120-1/2 (3061) | 43 (1092) | |
| GEAR OPERATOR RECOMMENDED FOR SIZE 8" AND ABOVE | ||||
600 LB
Dimensions: inches (millimeters)
| SIZES | L/L1 | H (OPEN) | W | |
|---|---|---|---|---|
| 2" | 11-1/2 (290) | 16-1/2 (420) | 7-7/8 (200) | |
| 2-1/2" | 13 (330) | 18 (457) | 8-7/8 (225) | |
| 3" | 14 (356) | 20-1/8 (511) | 9-7/8 (251) | |
| 4" | 17 (432) | 25 (635) | 14 (356) | |
| 5" | 20 (508) | 30-1/2 (775) | 15-3/4 (400) | |
| 6" | 22 (559) | 33-5/8 (854) | 17-3/4 (451) | |
| 8" | 26 (660) | 42-3/8 (1076) | 20 (508) | |
| 10" | 31 (787) | 49 (1245) | 25 (635) | |
| 12" | 33 (838) | 68-1/2 (1740) | 27 (686) | |
| 14" | 35 (889) | 69 (1753) | 31-1/2 (800) | |
| 16" | 39 (991) | 74 (1880) | 35-1/2 (902) | |
| 18" | 43 (1092) | 84-1/4 (2140) | 43 (1092) | |
| 20" | 47 (1194) | 93-1/2 (2375) | 51 (1295) | |
| 24" | 55 (1397) | 110 (2794) | 51 (1295) | |
| GEAR OPERATOR RECOMMENDED FOR SIZE 8" AND ABOVE | ||||
900 LB
Dimensions: inches (millimeters)
| SIZES | L/L1 | H (OPEN) | W | |
|---|---|---|---|---|
| 2" | 14-1/2 (368) | 26 (660) | 10-1/4 (260) | |
| 3" | 15 (381) | 26-3/8 (670) | 11-1/2 (292) | |
| 4" | 18 (457) | 30 (762) | 14 (356) | |
| 6" | 24 (610) | 40-3/4 (1035) | 20 (508) | |
| 8" | 29 (737) | 51 (1295) | 24 (610) | |
| 10" | 33 (838) | 61 (1549) | 27 (686) | |
| 12" | 38 (965) | 69-1/2 (1765) | 31-1/2 (800) | |
| 14" | 40-1/2 (1029) | 77 (1956) | 35-1/2 (902) | |
| 16" | 44-1/2 (1130) | 82-3/4 (2102) | 43 (1092) | |
| GEAR OPERATOR RECOMMENDED FOR SIZE 6" AND ABOVE | ||||
1500 LB
Dimensions: inches (millimeters)
| SIZES | L/L1 | H (OPEN) | W | |
|---|---|---|---|---|
| 2" | 14-1/2 (368) | 21-1/2 (546) | 11-1/2 (290) | |
| 3" | 18-1/2 (470) | 27-1/8 (689) | 14 (356) | |
| 4" | 21-1/2 (546) | 31-1/2 (800) | 20 (508) | |
| 6" | 27-3/4 (705) | 45 (1143) | 24 (610) | |
| 8" | 32-3/4 (832) | 53-1/2 (1359) | 27 (686) | |
| 10" | 39 (991) | 65 (1651) | 35-1/2 (902) | |
| 12" | 44-1/2 (1130) | 74 (1880) | 43 (1092) | |
| 14" | 49-1/2 (1257) | 83-1/2 (2121) | 51 (1295) | |
| 16" | 54-1/2 (1384) | 88 (2235) | 63 (1600) | |
| GEAR OPERATOR RECOMMENDED FOR SIZE 6" AND ABOVE | ||||
2500 LB
Dimensions: inches (millimeters)
| SIZES | L/L1 | H (OPEN) | W | |
|---|---|---|---|---|
| 2" | 17-3/4 (451) | 24-7/8 (632) | 12 (305) | |
| 3" | 22-3/4 (578) | 36 (914) | 20 (508) | |
| 4" | 26-1/2 (673) | 41-1/2 (1054) | 20 (508) | |
| 6" | 36 (914) | 57 (1448) | 24 (610) | |
| 8" | 40-1/4 (1022) | 63-3/8 (1610) | 24 (610) | |
| GEAR OPERATOR RECOMMENDED FOR SIZE 6" AND ABOVE | ||||
