  • EPDM NBR Viton Rubber Lined Wafer Check Valve
  • EPDM NBR Viton Rubber Lined Wafer Check Valve
  • EPDM NBR Viton Rubber Lined Wafer Check Valve
  • EPDM NBR Viton Rubber Lined Wafer Check Valve
EPDM NBR Viton Rubber Lined Wafer Check ValveEPDM NBR Viton Rubber Lined Wafer Check ValveEPDM NBR Viton Rubber Lined Wafer Check ValveEPDM NBR Viton Rubber Lined Wafer Check Valve

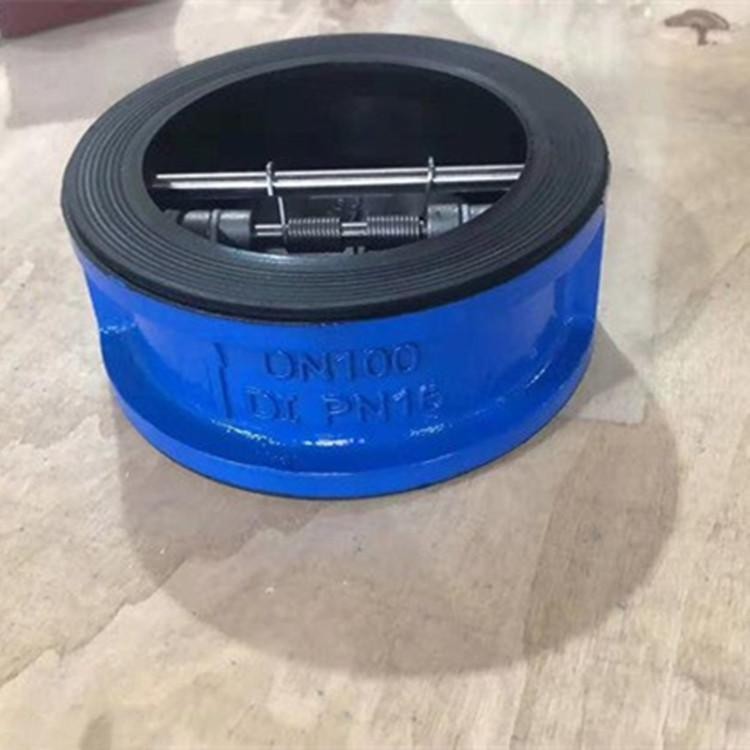

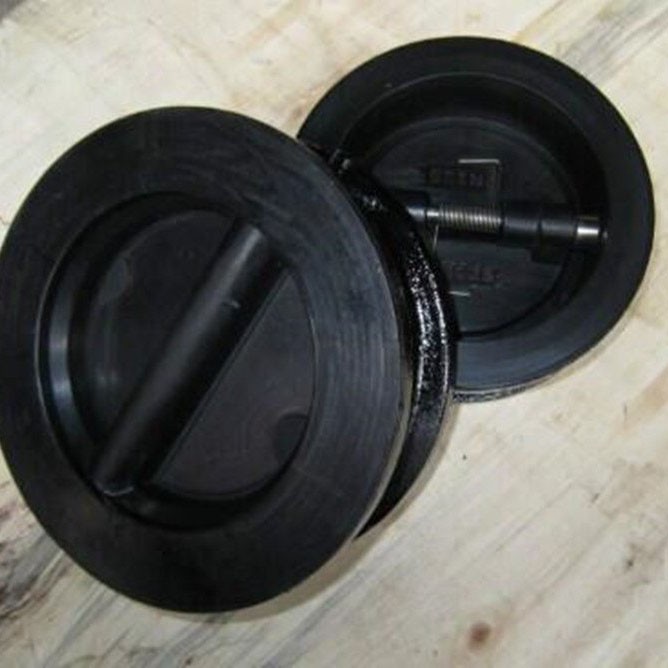

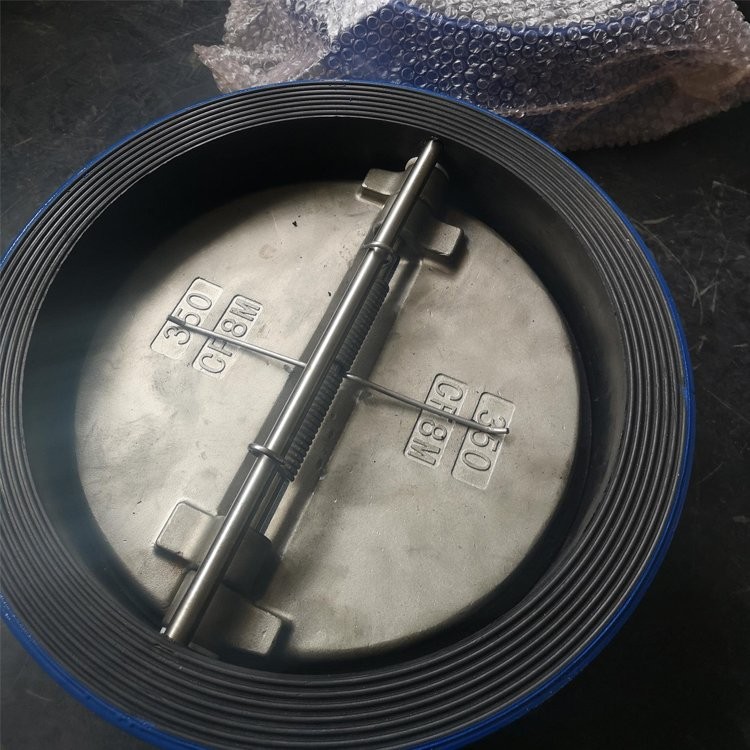

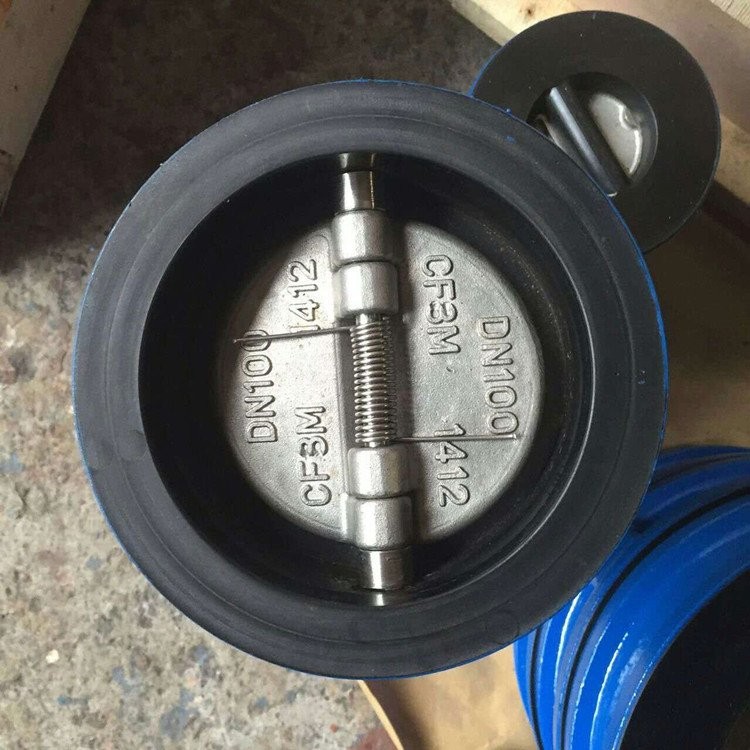

EPDM NBR Viton Rubber Lined Wafer Check Valve

  • Product Item:H76J
  • Body Material: WCB,CF8,CF3,CF8M,CF3M
  • Lining material: EPDM NBR Viton Rubber,IIR
  • Flange dimension standard: JB/T 79, ANSI B16.5, DIN 2543, JIS B2020
  • Face to face dimension: GB12221
  • Rubber Lined Wafer Check Valve , IIR rubber lined wafer check valve , EPDM rubber lined wafer check valve
    Inquiry Send Email

    Description

    EPDM NBR Viton Rubber Lined Wafer Check Valve


    Wafer end swing check valve is mainly composed of three parts: body,  disc( stem),  spring. The short closing stroke of disc and the spring force improve the closing effect,  while also reduce the pressure surge  and  slamming noise.

    PRODUCT DETAILS
    To API594
    Face to face per ANSI B 16.10
    Flange ends dimension ANSI B 16.5/ANSI B 16.47

    Final inspection tests to API598.



    Main Features:

    1.The short face to face dimension and compact design of this valve allow installation and service in tight spaces.

    2.Spring assisted for better dynamic behavior.

    3.Soft sealed for perfect tightness even at low differential pressure.

    4. Available with flanges EN1092-2 pn10 or PN16. ANSI B16.1 Class 125(other types available on request).

    5.Rubber lined and there is no leakage under the pressure test.

    6.Long service life. Withstood the test of tens of thousands opening/closing operations.



    Specifications:

    Size: 2" to 60",DN50-DN1500
    Class: 150LB to 2500LB,PN16-PN420
    Type: Double plate or single plate, wafer type, lugged type, flanged type

    Material: Di Ci B148 C95800, WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, C95800,C95500,MONEL, ALLOY 20 etc



    Application
    Ballast and bilge system     Chemical processing
    Desalination plants  Drilling rigs
    Drinking waterDry powder
    Food and beverage Gas plants
    HAVC  Mining industry
    Paper industry Sand handling
    Seawater
    Sugar industry
    Thermo technical water treatment
    Waste water



    Standard materials of parts

    Name Material
    Body Cast Iron  Ductile Iron  Carbon Steel  Stainless Steel  AL-Bronze
    Disc Ductile Iron  Carbon Steel Stainless Steel  AL-Bronze
    Pin Stainless Steel  Monel K500
    Seat BUNA  NBR  EPDM  VITON HEPDM  Neoprene  Hypalon Natural rubber
