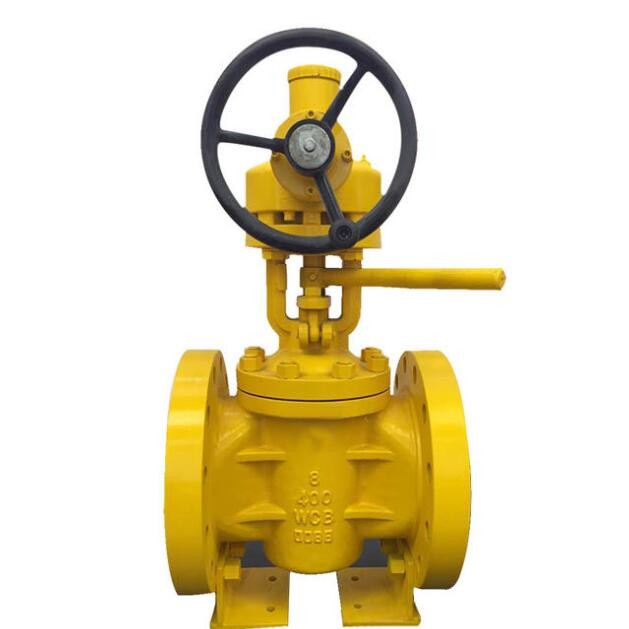

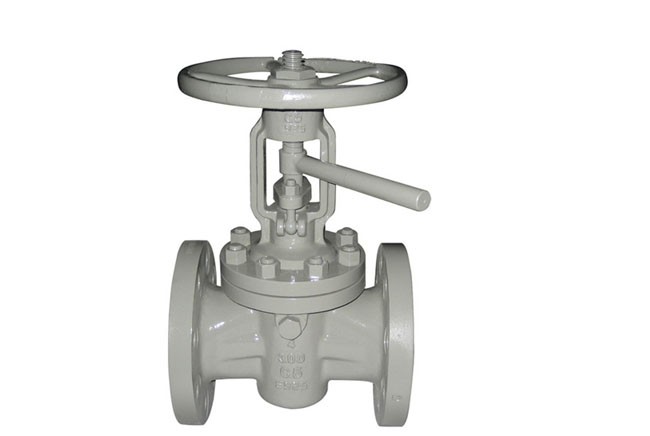

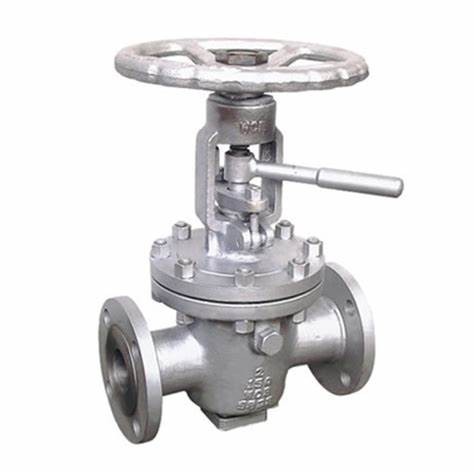

Flanged Connection Lift Type Plug Valve

  • Design API 6D / API 599
  • Size Range NPS 1/2"-16"(DN15-DN400)
  • Pressure Rating ASME Class 150~900(PN16~PN100)
  • Body Material Carbon steel, Stainless steel, Alloy steel
  • High Temperature Ansi Lifting Type Metal Seat Plug Valve - Buy Plug Valve , Metal Seat Plug Valve , Ansi Plug Valve
    Inquiry Send Email

    Description

    Flanged Connection Lift Type Plug Valve

    Bolt bonnet Os & Y lifting-round plug. Opening and closing of the valve is carried out while the sealed surface is taken off,so it will not cause abrasion on the sealed surface.Double direction.

    Principle of opening and closing of the valve

    process of opening and closing of the valve.When opening the valve,first of all,turn the hand wheel to make the plug lifted and separated with the sealed surface,the turn the handled by 90 degree to connect the channel of plug th the channel of valve body.so that the valve is opened.When closing the valve,first of all turn the handle by 90 degree to mark the channel of plug vertical to the channel of valve body,and then the hand wheel to descend the plug.so that the valve is closed.

    standards compliance Design and Manufacture: API 599,API 6D Face to face(end to end): ANsI B 16.10 Flanged connection: ANsI B16.5 Butt welded end: ANsI B16.25

    standard Material specifications

    NO.
    Part name
    Material
    A216 WCB
    A217 WC9
    A217 C5
    A351 CF8
    A351 CF8M
    A351 CF3
    A351 CF3M
    1
    Body
    A216 WCB
    A217 WCB
    A217 C5
    A351 CF8
    A351 CF8M
    A351 CF3
    A351 CF3M
    2
    Plug
    A351 CF8
    A351 CF8
    A351 CF8
    A351 CF8
    A351 CF8M
    A351 CF3
    A351 CF3M
    3
    Gasket
    Flexible graphite+stainless steel/PTFE
    4
    Cover
    A216 WCB
    A217 WC9
    A217 C5
    A351 CF8
    A351 CF8M
    A351 CF3
    A351 CF3M
    5
    Bolt
    A193 B7
    A193 B16
    A193 B16
    A1293 B8
    A193 B8M
    6
    Nut
    A194 2H
    A194 4
    A194 4
    A194 8
    A194 8M
    7
    Packing
    Flexible graphite/PTFE
    8
    Gland
    A216 WCB
    A216 WC9
    A216 C5
    A351 CF8
    A351 CF8M
    9
    Wrench
    A216 WCB
    A216 WC9
    A216 C5
    A351 CF8
    A351 CF8M
    10
    Yoke nut
    A439-D2/Cu-Allog
    11
    Hand wheel
    AsTM A536 Gr.60-40-18 A216 WCB

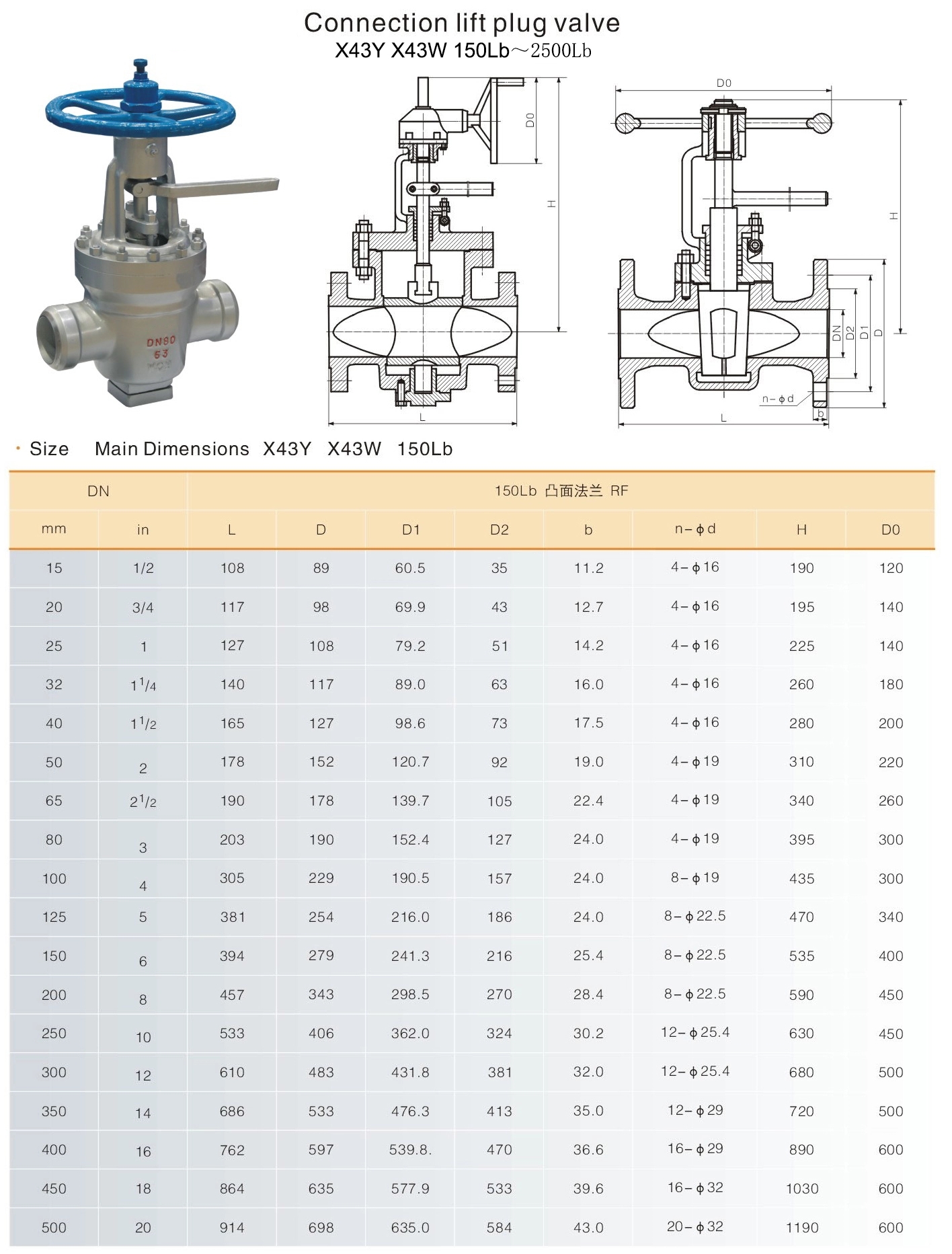

    Dimensions(mm) and Weights(Kg)

    Class 150Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF
    mm
    108
    117
    127
    140
    165
    178
    190
    203
    229
    254
    267
    292
    330
    356
    381
    H
    mm
    190
    195
    225
    260
    280
    310
    340
    395
    435
    470
    535
    590
    630
    680
    720
    W
    mm
    120
    140
    140
    180
    200
    220
    260
    300
    300
    340
    400
    450
    450
    500
    500
    Weight
    Kg
    9
    10
    11
    17
    19
    23
    25
    32
    55
    82
    98
    130
    178
    250
    380
    Class 300Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF,BW
    mm
    140
    152
    165
    178
    190
    216
    241
    283
    305
    381
    403
    419
    457
    502
    762
    H
    mm
    190
    195
    225
    260
    280
    310
    340
    395
    435
    470
    535
    590
    630
    680
    720
    W
    mm
    120
    140
    140
    180
    200
    220
    260
    280
    300
    340
    400
    450
    450
    500
    500
    Weight
    Kg
    10
    12
    14
    19
    21
    28
    34
    39
    75
    85
    135
    200
    255
    415
    650
    Class 600Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF,BW
    mm
    165
    190
    216
    229
    241
    292
    330
    356
    432
    508
    559
    660
    787
    838
    889
    H
    mm
    190
    195
    225
    260
    280
    310
    340
    395
    435
    470
    535
    590
    630
    680
    720
    W
    mm
    120
    140
    140
    180
    200
    220
    260
    280
    300
    340
    400
    450
    450
    500
    500
    Weight
    Kg
    13
    14
    19
    23
    25
    32
    40
    55
    105
    139
    300
    440
    730
    1150
    1570
    Class 900Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF,BW
    mm
    229
    229
    254
    279
    305
    368
    419
    381
    457
    559
    610
    737
    838
    965
    1029
    H
    mm
    190
    195
    225
    260
    280
    310
    340
    395
    435
    470
    535
    590
    630
    680
    720
    W
    mm
    120
    140
    140
    180
    200
    220
    260
    280
    300
    340
    400
    450
    450
    500
    500
    Weight
    Kg
    16
    17
    26
    30
    33
    39
    50
    70
    137
    181
    397
    590
    860
    1470
    1880
