    ZZYVP Self-operated micro pressure regulator

  • Product Item:ZZYVP
  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN10 ~ 16
  • Temperature :-40~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • ZZYVP Self-operated micro pressure regulator , Self-operated regulator
    Inquiry Send Email

    Description

    ZZYVP Self-operated micro pressure regulator

    • SELF-OPERATED MICRO PRESSURE REGULATOR FEATURE

      Self-operated micro pressure regulator can work without electricity and air supply. Self-operated micro pressure regulator is a kind of energy-saving pressure control valve which utilizes self-pressure changes of adjusted medium to realize automatic adjustment and constant value of pressure after valve.Self-operated micro pressure regulator applicable medium: non-corrosive gas.

      Self-operated micro pressure regulator can set target pressure on the director during operation, so it is convenient , quick ,labor-saving and time-saving.ZZYVP Pilot self-operated pressure regulator has Sensitive reaction, can detect minimum pressure and pressure changes(e.g.50mm water column pressure),decompression ratio is high, maximum decompression ratio is 100:1when the pressure before valve is below 8bar.
      Self-operated micro pressure control valve is twice as much as ZZY self operated regulator,specially applicable for gas decompression occasion, where pressure before valve  is 1~8bar and the pressure after valve is below 15KPa.

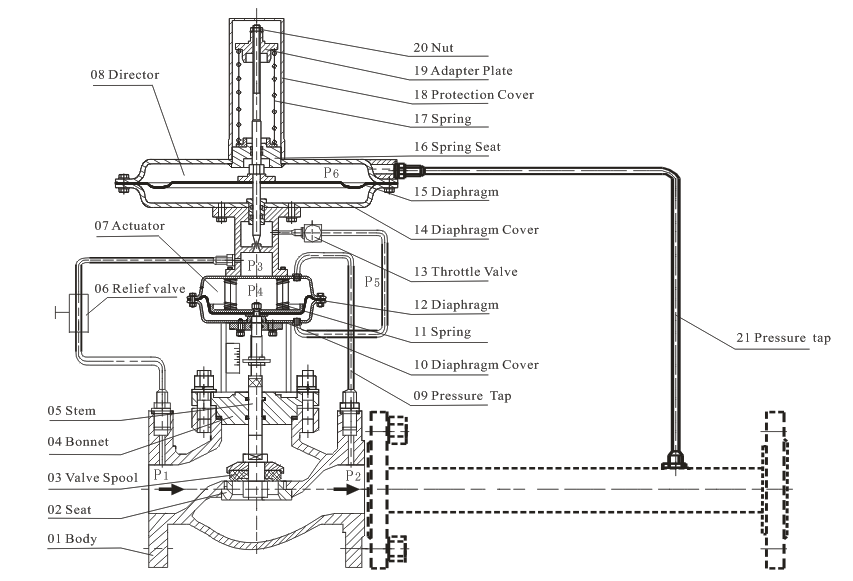

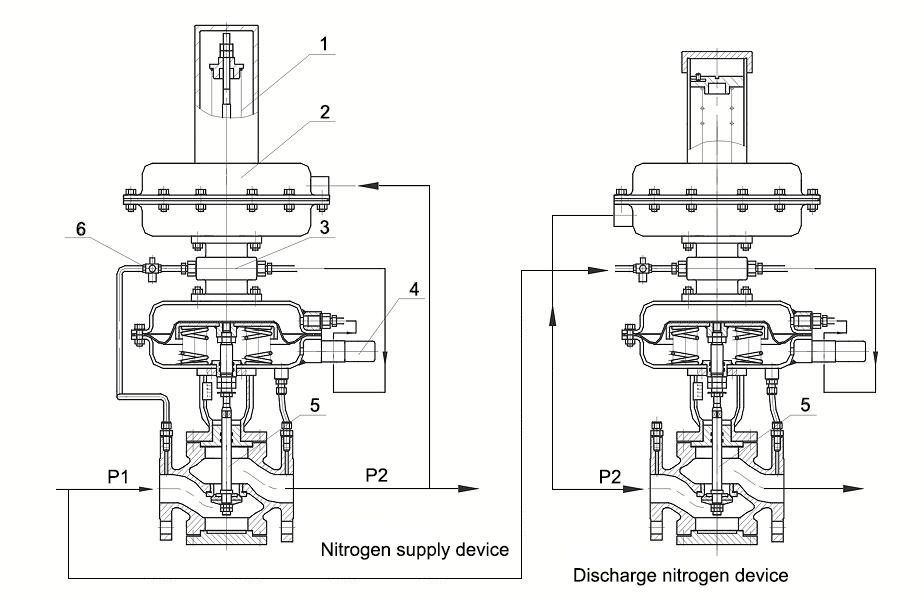

    • SELF-OPERATED MICRO PRESSURE REGULATOR STRUCTURE


    • SELF-OPERATED MICRO PRESSURE REGULATOR WORKING PRINCIPLE


      1.At the beginning, main valve spool of Self-operated micro pressure regulator keeps closed under spring11 action force. Director 08 keeps open under spring 17 action force.

      2. The medium flows into Self-operated micro pressure regulator under arrow direction, through relief valve 06, flow to director 08, through director 08 and throttle valve 13,flow to actuator 07 diaphragm chamber below. The pressure from actuator07 diaphragm chamber below is rising. The main valve will open under pressure. The medium flows into the valve,through pressure tap 09 and 21,then flow into the actuator07 diaphragm chamber above and director 08 diaphragm chamber above.

      3.When the pressure P2 after valve is rising, the pressure P4 acting on the actuator 07 diaphragm chamber above is rising, main valve opening degree is reducing and pressure  after valve is reducing(initial adjustment). Meanwhile,the pressure P6 acting on  the director 08 diaphragm chamber above is rising and director 08 opening degree is reducing. The pressure P5 into actuator 07 diaphragm chamber below is reducing. The Self-operated micro pressure control valve main valve opening degree is reducing further and the pressure after valve keeps reducing(fine adjustment).

      4.When the pressure P2 after valve is reducing, the pressure P4 acting on the actuator 07 diaphragm chamber above is reducing.Main valve opening degree is increasing,and pressure after valve is rising(initial adjustment). Meanwhile, the pressure P6 into director 08 diaphragm chamber above is reducing , director 08 opening degree is increasing, and pressure P5 into the  actuator 07 diaphragm chamber below is rising. The main valve of Self-operated micro pressure regulator opening degree is increasing further and the pressure after valve keeps increasing(fine adjustment).

      5.The main valve spool of Self-operated micro pressure regulator and director 08 won’t stop working until it reaches the set value. At this moment, the pressure after valve is set value,  dynamic decompression can be realized.
    • SELF-OPERATED MICRO PRESSURE REGULATOR MATERIAL

      Component name Control Valve Material
      Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
      Valve spool/Seat 304/316/316L(overlaying stellite alloy)
      Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
      Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
      Control valve stem 2Cr13/17-4PH/304/316/316L
      Diaphragm Cover Normal:Q235,Special:304
      Diaphragm NBR with reinforced polyester fabric
      Spring Normal:60Si2Mn,Special:50CrVa
    • SELF-OPERATED MICRO PRESSURE REGULATOR PARAMETER

      Nominal diameter DN(mm) 20 25 32 40 50 65 80 100 125 150
      The seat diameter DN(mm 6 15 20 25 32 40 50 65 80 100 125 150
      Coefficient (KV) 0.32 4 5 8 12.5 20 32 50 80 125 160 320
      pressure range KPa 0.5-100
      Nominal pressure PN(MPa) 1.0 1.6
      Working TemperatureT(℃) -40~80
      Flow characteristic Quick opening
      Adjusting error (%) ≤5
      Allow the pressure drop (MPa) 1.6 1.6 1.1 0.4 0.6
      Effective area (cm2) 200 280 400
      Leakage Class IV;Class VI
    • SELF-OPERATED MICRO PRESSURE REGULATOR DIMENSION


    • DN L S H1 H2
      20 150 308 390 715
      25 160 308 390 715
      32 180 308 390 735
      40 200 394 435 755
      50 230 394 435 755
      65 290 394 435 795
      80 310 394 435 795
      100 350 394 435 825
      150 480 498 565 1105
