TEMPORARY STRAINER

  • Manufacturing Size Range : 3/4" to 36"
  • Pressure Rating : ANSI150#, ANSI 300# , ANSI 600#, ANSI 900#, ANSI 1500#
  • Stainless Steel Perforated Temporary Basket Cone Filter Strainer - Buy Stainless Steel Mesh Cone Filters , Stainless Steel Mesh Tube , Inox 304 Cone Filters
    Inquiry Send Email

    Description

    TEMPORARY STRAINER

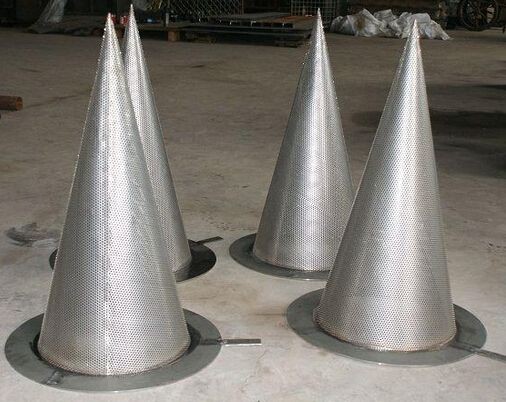

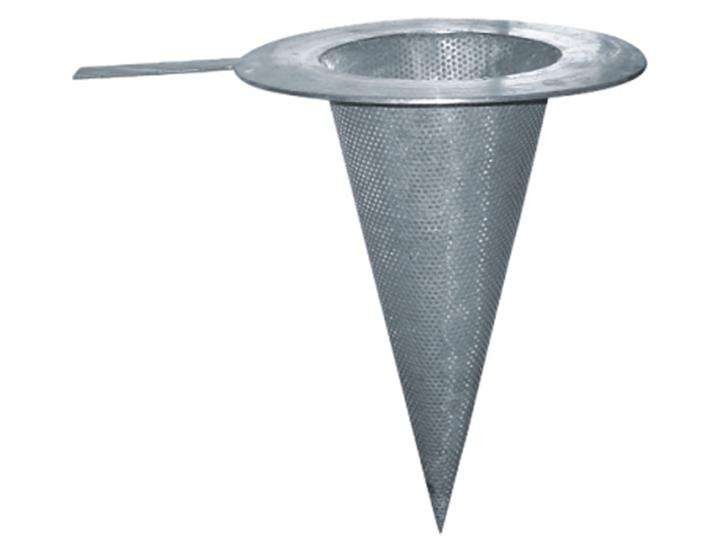

    TEMPORARY STRAINER or Conical Strainer (also called as a Inline Strainer / Inline Filter), Cone-Hat Type Filter Strainers and Steel Conical Strainers, which are mounted between two flanges (Wafer Type, Sandwich) to protect pipelines and plants.

    Manufacturing Size Range : 3/4" to 36"
    Suitable to mount between & Pressure Rating : ANSI150#, ANSI 300# , ANSI 600#, ANSI 900#, ANSI 1500#

    Material of Construction for Conical Strainer :

    Stainless Steel 304 / 316
    Stainless Steel 304L / 316L

    Features of Inline Conical Strainer :


    Adequate strength of elements and housing
    Lower Cost
    Less Weight
    Gross filtration area minimum 3 to 5 times of inlet cross section area
    Strainers meet ASME B16.5 or ASME B16.25 & ASME B16.34 requirements

    Stainless Steel Perforated Temporary Basket Cone Filter Strainer

    The TEMPORARY STRAINERs are used in pipelines for a short time during activities such as commissioning or start up, to remove
    sediment and debris, thus prevent damage to gauges, pumps, control valves, flow meters and other process equipment.

    The TEMPORARY STRAINER can be used in steam, water, oil or gas service, and are installed between two flanges for quick protection
    of equipment. They can be constructed of carbon steel or stainless steel, and are used either temporarily, or where cost is of
    prime importance.

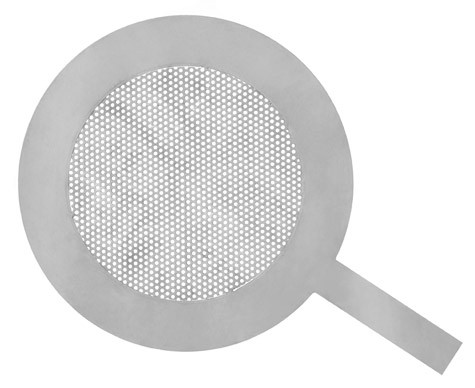

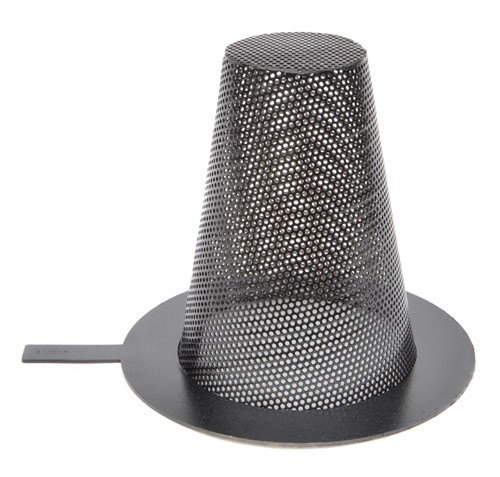

    Our Filters manufacture TEMPORARY STRAINERs in Cone Type (TC), Basket Type (TB), and Plate Type (TP).



    Product name
    Stainless Steel Perforated Temporary Basket Cone Filter Strainer
    Hole size
     from 1/32" to 1/2" diameter
    Material
    SS 304, SS316, SS316L, CARBON STEEL
    Main function

    To use in new pipeline start-up service

    Line flushing after any modification work

    Protection device to avoid damage to the pumps, gauges, meters, and other equipments

      Application Fields:

      Process Industry   Water and Waste Water Treatment

      Power Industry     Pulp and Paper

      Marine           Chemical Industry

      Oil and Gas       Steel Mills

      Metals and Mining

    Usual Sizes: Usually the fabricated conical strainers or basket strainers are from 2” to 24” (larger sizes are available)Unless otherwise specified, a 1/8" perforated 304 stainless steel screen will be supplied with 150% open area. 100% and 200% open area designs are also available upon request. Other perforated metal sizes and meshes are available to fit for different fluid flow rates and volumes. The handles or the identifier tags are normally 3" long by 1" wide. But we could adjust the size of the handle or identifier tags according to different projects.
