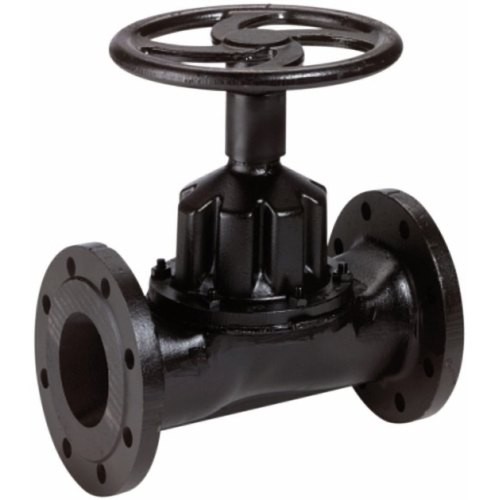

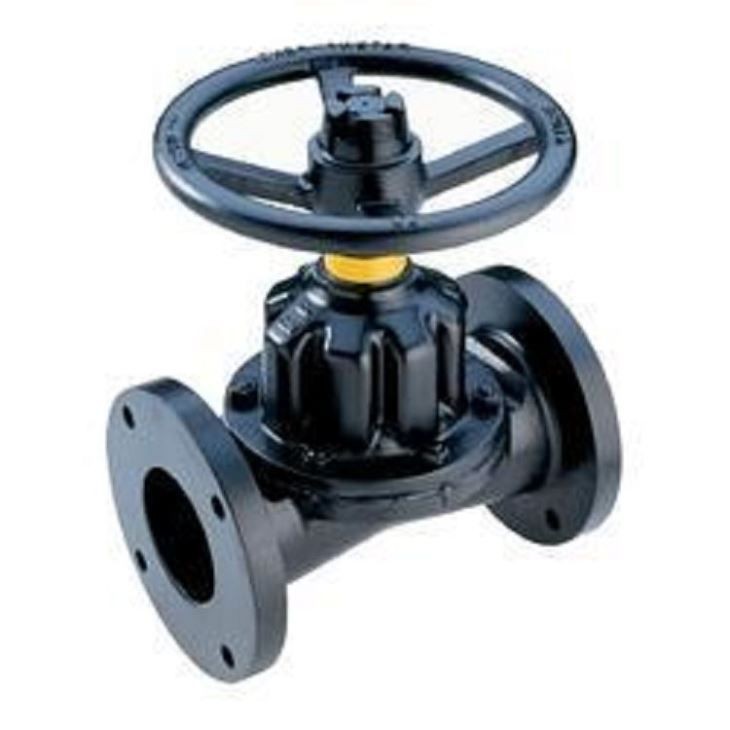

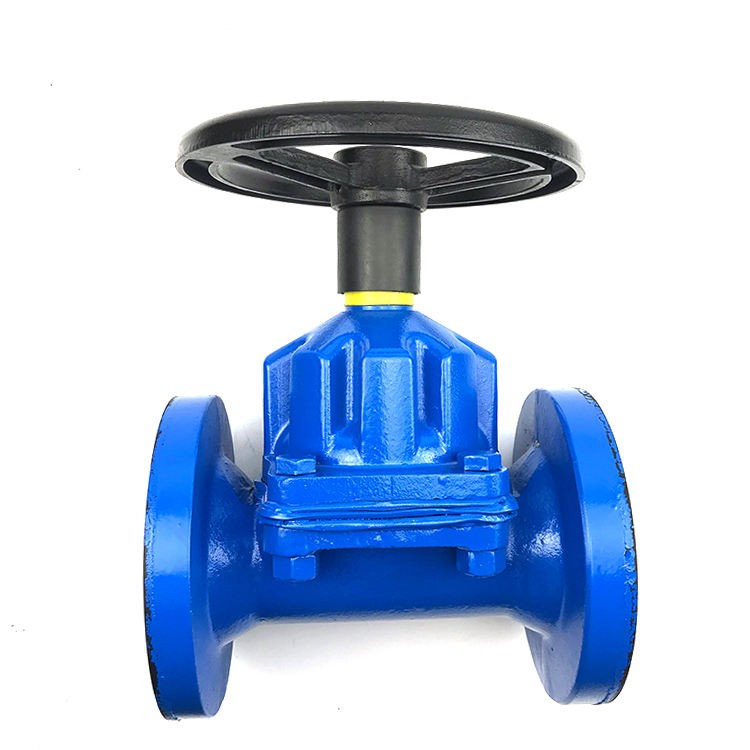

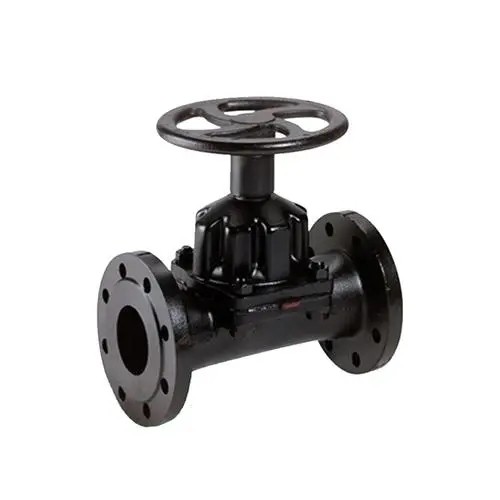

    Straight Through Diaphragm Valve

    Straight Through Diaphragm Valves is used to control non corrosive or general corrosive medium. The inner cavity surface of the valve body is unlined or covered with various kinds of rubber, suitable for different working temperature and liquid pipeline. Diaphragm valve is a special type of truncation valve, flexible seal open and closed, to ensure no leakage, streamlined flow channel, so that the pressure loss is small, no packing letter, so there is no leakage, the valve body and cover are separated by the middle diaphragm, so that the valve cover above the diaphragm, the valve stem and other zero parts are not eroded by the medium and the diaphragm can be replaced, The maintenance cost is low, the lining material is diverse, it can be applied to all kinds of media, and has the characteristics of high strength and good corrosion resistance.

    Technical Specification
    Normal Size Range: 1/2"-16"
    Normal Pressure Rating: PN10~PN16, CLASS150
    Operation: Handwheel, Pneumatic, Electric
    Temperature Range: -29~150 Degree C

    Standards compliance
    Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89
    Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
    Flanged Dimension: BS 5156-85, ANSI B16.5, EN 1092, GB/T 17421-98
    Inspect & Test: BS 5156, MSS SP-82, GB/T 13927

    Component Materials
    Body / Bonnet: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel & Duplex
    Lining (Optional):
    Fluorine -- PTFE, FEP, PCTFE, PVDF, TFE, PFA, RPP, PO
    Rubber  -- NR, BR, IIR, CR, EPDM, CSPE, FKM, SI
    Diaphragm: Rubber
    Compressor / Disc: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel
    Stem: Carbon Steel & Stainless Steel
    Handwheel: Iron & Steel

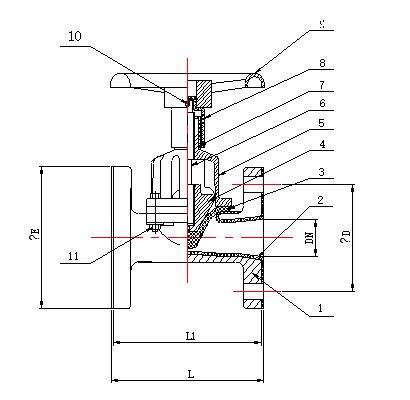

    NO.
    Part
    Material
    1
    Body
    GG25
    2
    Lining
    NR
    3
    Diaphragm
    NR
    4
    Disc
    GG25
    5
    Bonnet
    GG25
    6
    Shaft
    Steel
    7
    Sleeve
    ABS
    8
    Sleeve
    ABS
    9
    Handle
    GGG40
    10
    Pin
    Steel
    11
    Bolt
    Steel

    DN(mm)
    50
    65
    80
    100
    125
    150
    200
    250
    300
    L (mm)
    194
    216
    258
    309
    362
    412
    527
    640
    755
    L1(mm)
    188
    222
    252
    301
    354
    404
    517
    630
    745
    ΦE (mm)
    165
    185
    198
    220
    250
    283
    335
    395
    445
    ΦD (mm)(EN1092-2)PN10
    125
    145
    160
    180
    210
    240
    295
    350
    400
    PN16
    355
    410
