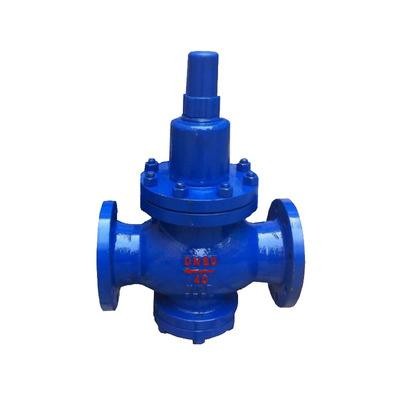

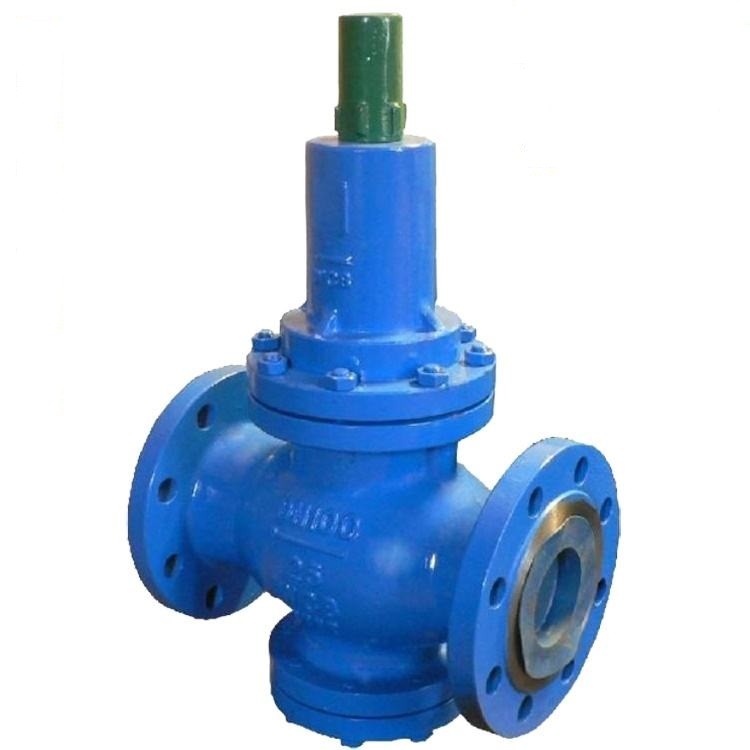

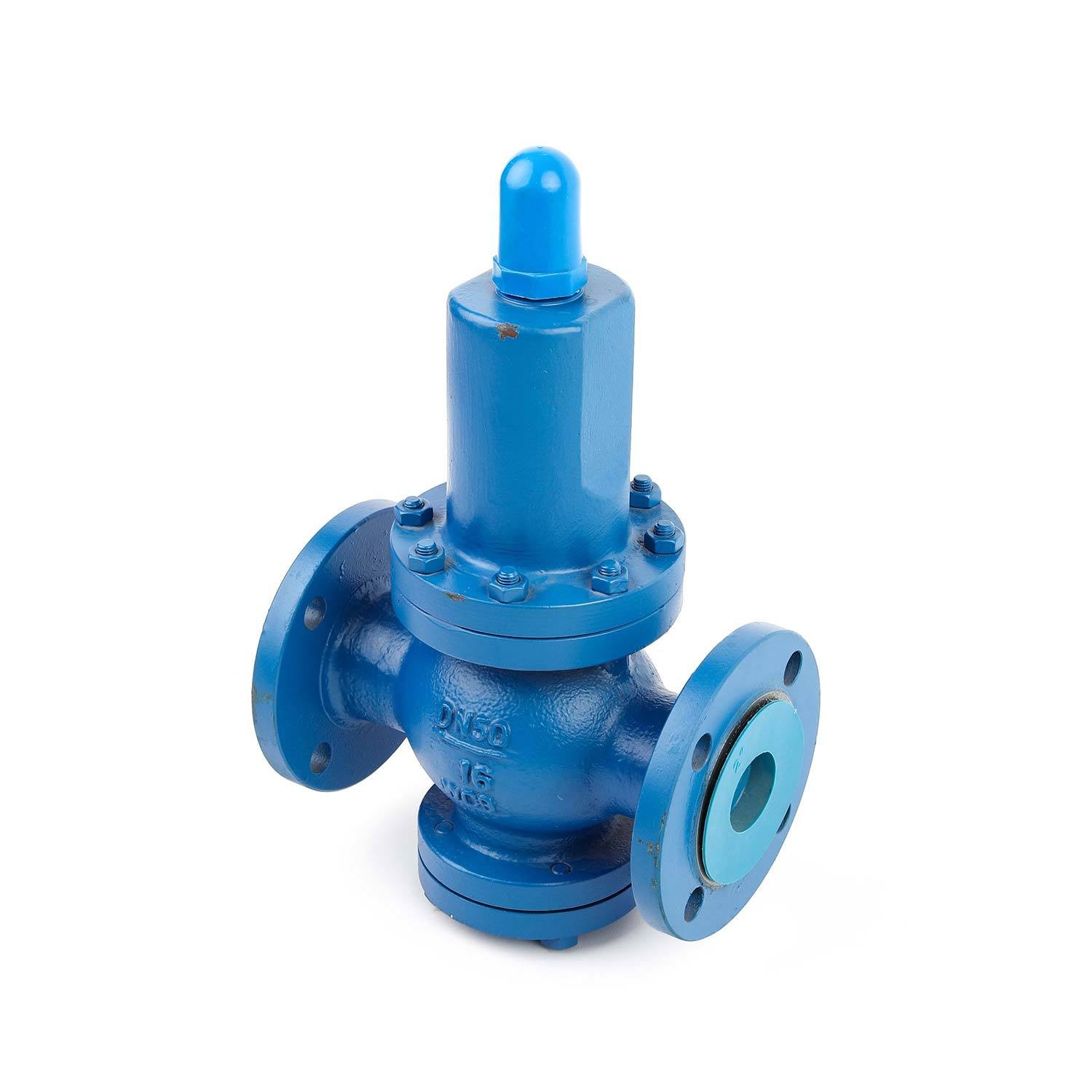

  • 42X Direct Acting Diaphragm Type Pressure Reducing Valve
  • 42X Direct Acting Diaphragm Type Pressure Reducing Valve
  • 42X Direct Acting Diaphragm Type Pressure Reducing Valve
  • 42X Direct Acting Diaphragm Type Pressure Reducing Valve
42X Direct Acting Diaphragm Type Pressure Reducing Valve 42X Direct Acting Diaphragm Type Pressure Reducing Valve 42X Direct Acting Diaphragm Type Pressure Reducing Valve 42X Direct Acting Diaphragm Type Pressure Reducing Valve

42X Direct Acting Diaphragm Type Pressure Reducing Valve

  • Product Item:Y42X
  • Pressure Rating: 1.0- 6.4Mpa
  • Nominal Diameter: DN20-400
  • Body Material: Steel, CF8
  • Standard flanges: DIN, ANSI, JIS.
  • 42X Direct Acting Diaphragm Type Pressure Reducing Valve , PRV valve , Pressure Reducing Valve
    Inquiry Send Email

    Description

    42X Direct Acting Diaphragm Type Pressure Reducing Valve


    Brief Introduction.

    This series pressure reducing valve is a new type regulating valve which adopts piston to replace the diaphragm. The performance is reliable and it's can be used for a long time. The down pressure can be adjusted according to the requirement, and it can be set at a fixed pressure in the application, which won't be changed as the fluctuation of the up pressure and the flowing rate.

    Field of Application.

    Product Name: Y42X-GVPR12 Direct Action Piston Pressure Reducing Valve.

    Pressure Rating: 1.0- 6.4Mpa
    Nominal Diameter: DN20-400
    Body Material: Steel, CF8
    Standard flanges: DIN, ANSI, JIS.



    Flow Characteristics.
    DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
    Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500

    • Y42X DIAPHRAGM PRESSURE REDUCING VALVE  TECHNICAL PARAMETER

      Nominal pressure(MPa) 1.0 1.6 2.5
      Shell test pressure(MPa) 1.5 2.4 3.75
      Seal test pressure(MPa) 1.1 1.6 2.5
      Max. Inlet pressure(MPa) 1.1 1.6 2.5
      Outlet pressure range(MPa) 0.2-0.8 0.2-1.0 0.4-1.6
      Pressure characteristic deviation(MPa)△P2P GB12246-1989
      Flow characteristic deviation(MPa)△P2G GB12246-1989
      Max. Pressure difference(MPa) 0.15 0.15 0.15
      Leakage Level 0 m L/min
      Note:Shell test does not include diaphragm and roof.
    • Y42X DIAPHRAGM PRESSURE REDUCING VALVE FLOW COEFFICIENT

      DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
      Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500
    • Y42X DIAPHRAGM PRESSURE REDUCING VALVE  MAIN MATERIAL

      Part Name Part Material
      Body/Bonnet/End bonnet WCB/Cast iron/Ductile iron
      Seat 2Cr13/
      Cylinder sleeve 2Cr13/Copper
      Piston Cast iron
      Guide valve seat / stem 2Cr13
      Main valve spring 1Cr18Ni9Ti
      Guide valve sprig 50CrVA
      Regulating spring 60Si12Mn

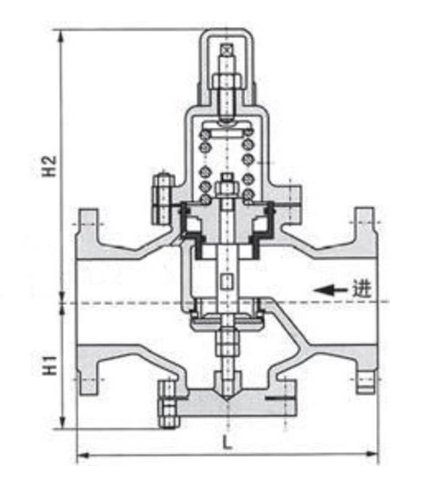

    • Y42X DIAPHRAGM PRESSURE REDUCING VALVE OUTLINE DIMENSION

      DN Outline dimension (PN1.6-2.5Mpa)              Unit(mm)
      L H Hl
      15 160 225 90
      20 160 265 98
      25 180 265 110
      32 200 265 110
      40 220 320 125
      50 250 320 125
      65 280 325 130
      80 310 385 160
      100 350 385 170
      125 400 430 200
      150 450 430 210
      200 500 560 240
      250 650 690 290
      300 800 800 335
      350 850 880 375
      400 900 980 405
      450 900 1100 455
      500 950 1130 465
