  1. Home
  2. Products
  3. Lining valve
  4. Rubber lined lift check valve
  • Rubber lined lift check valve
  • Rubber lined lift check valve
  • Rubber lined lift check valve
  • Rubber lined lift check valve
Rubber lined lift check valveRubber lined lift check valveRubber lined lift check valveRubber lined lift check valve

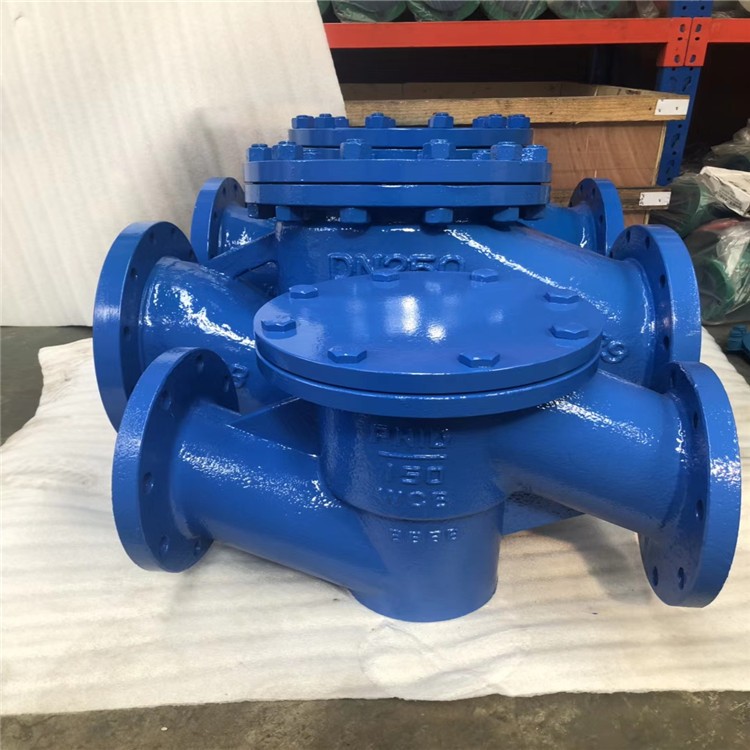

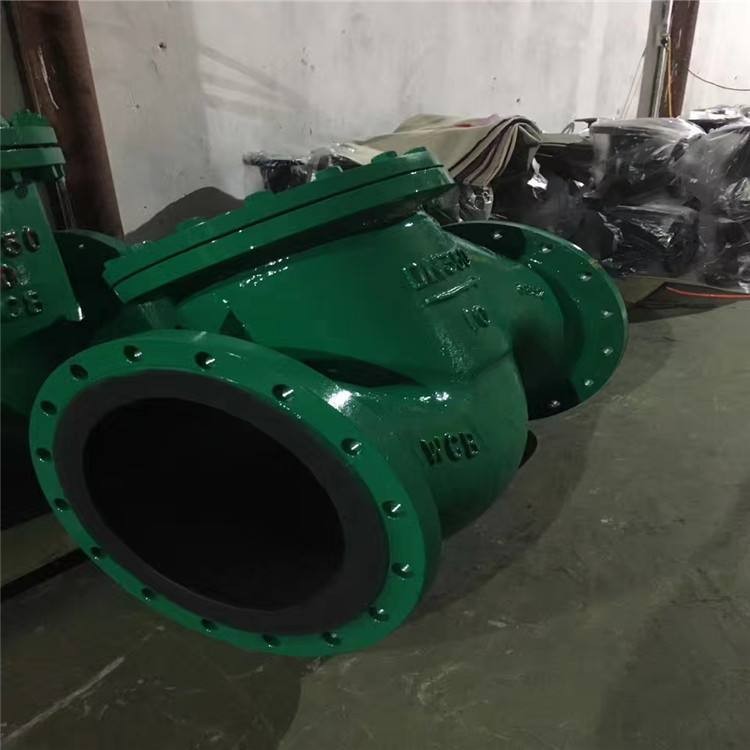

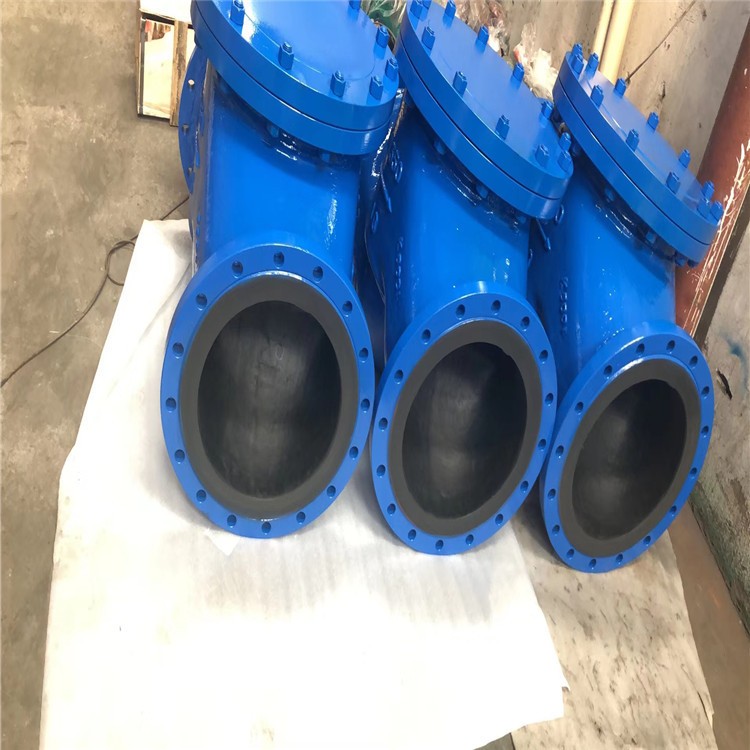

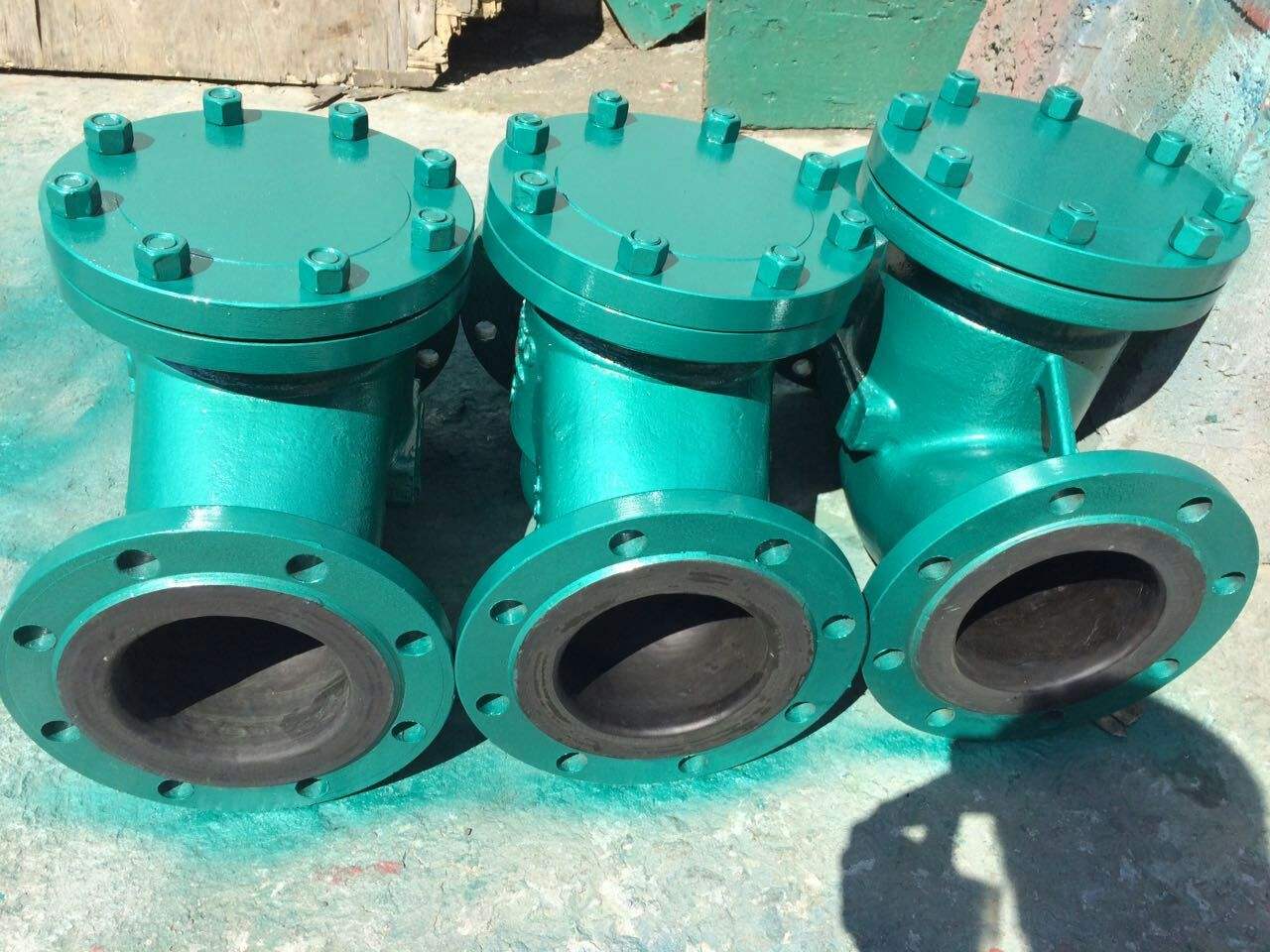

Rubber lined lift check valve

  • Product Item:H42J
  • Design standard:GB12236
  • Flange dimension standard: JB/T 79, ANSI B16.5, DIN 2543, JIS B2020
  • Face to face dimension: GB12221
  • Lining material: Rubber -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI
  • Rubber lined lift check valve , Rubber lined lift type check valve , Rubber lined double flange lift check valve
    Inquiry Send Email

    Description

    Rubber lined lift check valve


    Main parts and materials

    Part name Material
    Body Cast steel、Stainless steel、Lining F4  、F46
    Disc Cast steel、Stainless steel、Lining F4  、F46
    Cover Cast iron、Cast steel、Stainless steel、Ling Rubber -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI
    Washer Rubber -- NR, BR, IIR, CR, EPDM, NBR,CSPE, FKM, SI

    ■ PTFE-lined Check Valve Standard

    Technical specification
    Design standard GB12236
    Structure length GB12221
    Flange standard JB/T79-94
    GB9113.1-26
    Inspection test GB/T13927
