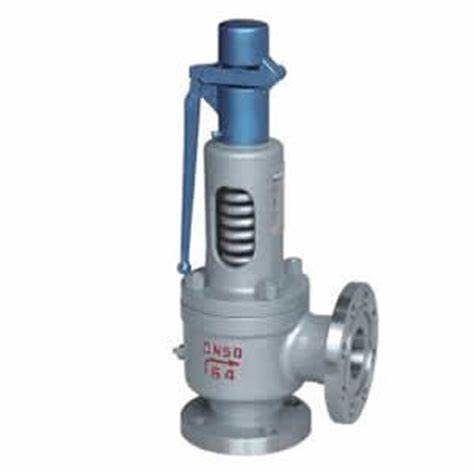

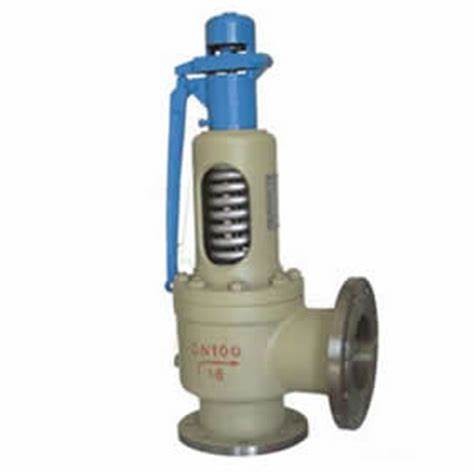

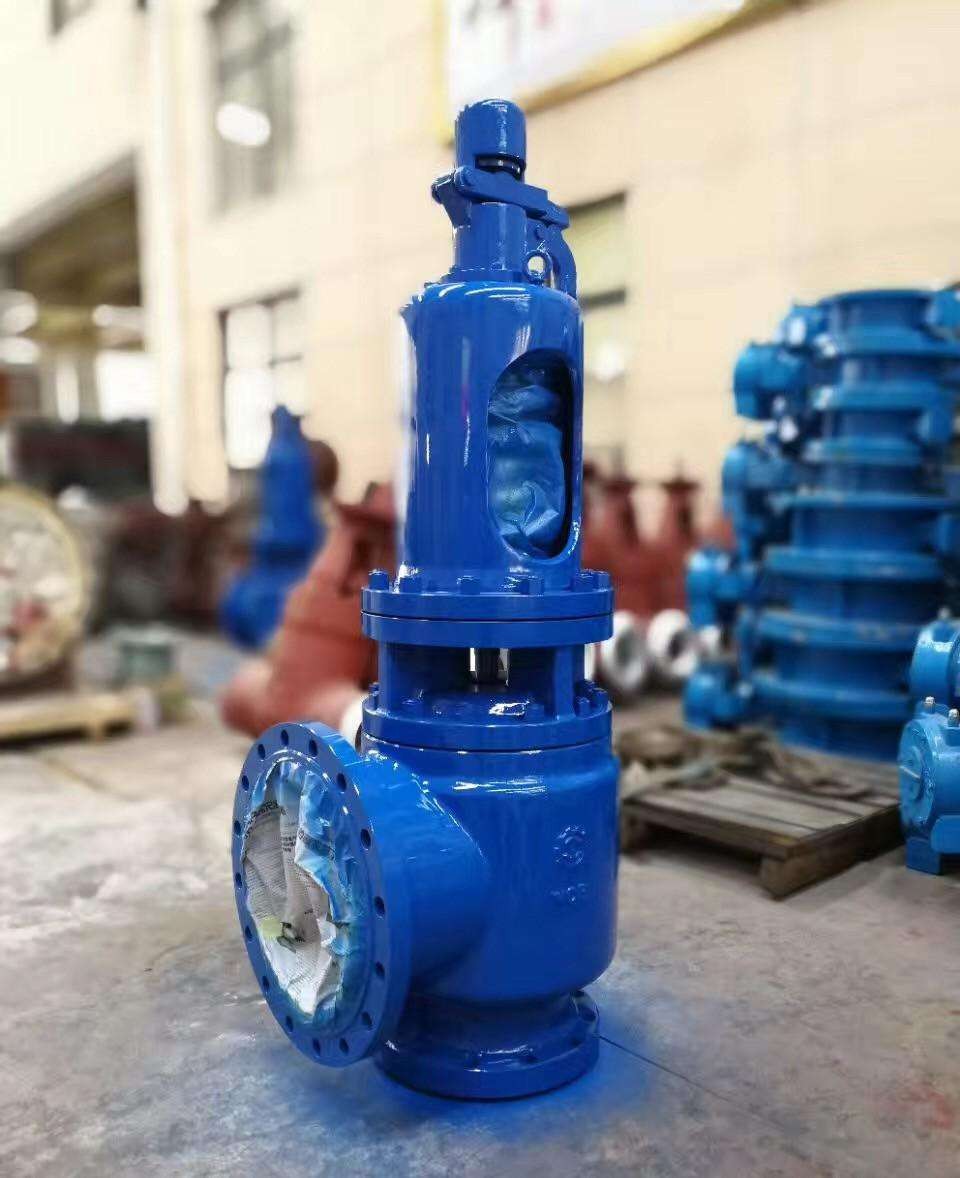

A48Y Open Bonnet Plain Lever Type Safety Valve

A48Y Open Bonnet Plain Lever Tpye Safety Valve

Safety Valves/pressure safety valves, angle type
Full lift safety valve
Standard safety valve for boiler, open bonnet,
metal to metal seated, with plain type lifting device,
Inlet: Flanged connection acc. to ANSI B16.5
Outlet: Flanged connection acc. to ANSI B16.5

Applications

Provided as safety device for protection against excessive pressure in pressure vessels.
Approved for gases, vapours and fluids
Working temperatures: Lower than 300°C

Standards Compliance

Design and Manufacture: API RP 520
Face to Face(end to end): API 526

Test and Inspection: API 527

Remark: 150Lb for outlet flange
