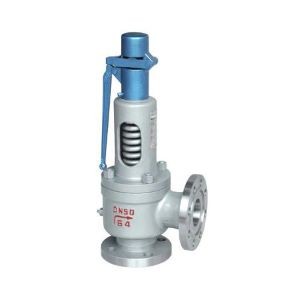

A42Y Conventional Type Safety Valve

A42Y conventional type Safety Valve

Safety Valve/pressure safety valve, angle type
full lift safety valve
Conventional type, Standard safety valve for fluids and gas
metal to metal seated
Flanged connection acc. to ANSI B16.5

Applications:

Provided as safety device for protection against excessive pressure in pressure vessels
Approved for gases and fluids
Working temperatures: -60°C up to +300°C for stainless steel material, -29°C up to 300°C for cast steel material
Standards Compliance:
Design and Manufacture: API RP 520
Face to Face(end to end): API 526
Test and Inspection: API 527
Essential:
Valves are delivered at a set pressure, therefore when ordering

please confirm set pressure, medium and temperature
