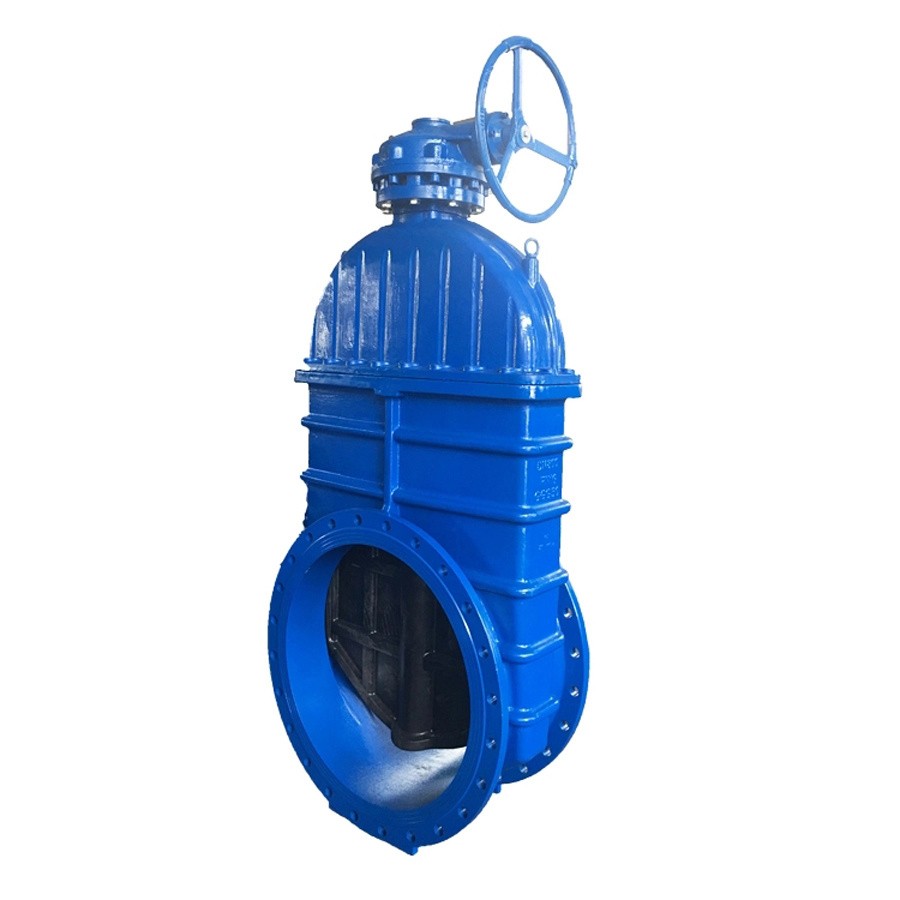

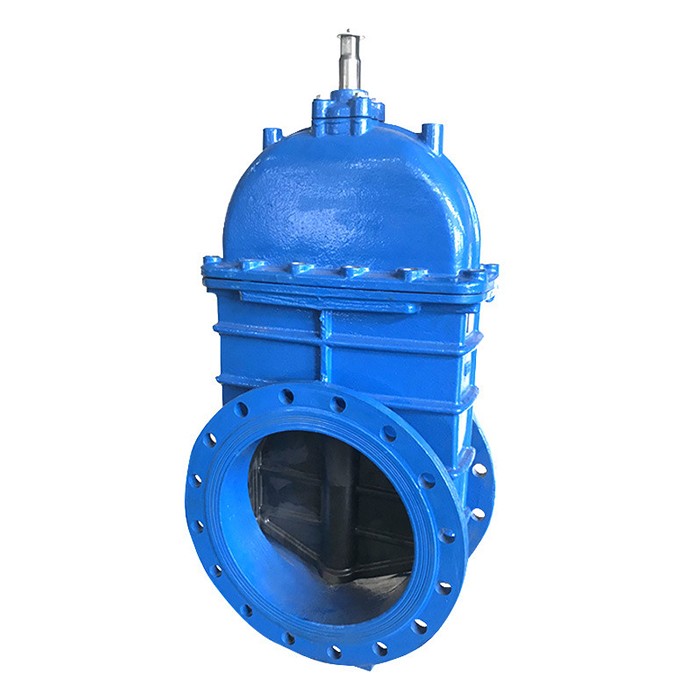

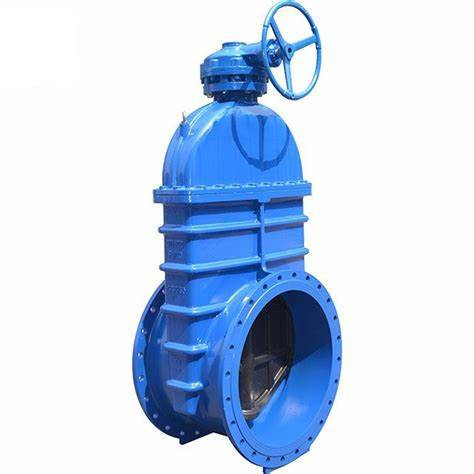

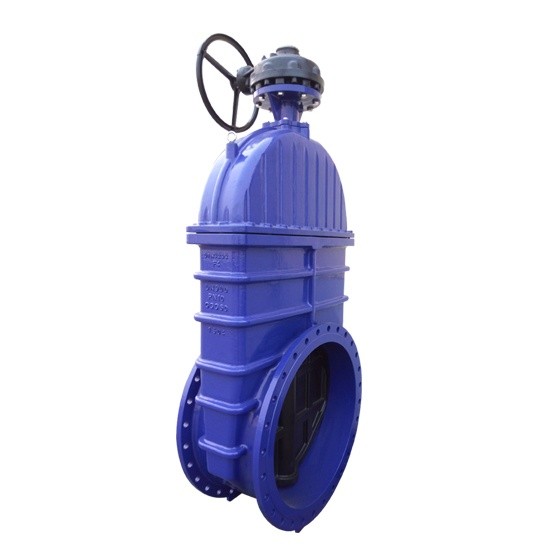

Big size resilient seated gate valve

  • Product Item:Z41X
  • Design & manufacturing: BS5163
  • Face to face: BS5163
  • Flanged ends: EN1092-2, DIN2501 PN10/PN16
  • Materials: ductile iron GGG40, GGG50
  • Big size resilient seated gate valve , BS5163 Resilient Gate Valve , Resilient soft seal gate valve
    Inquiry Send Email

    Description

    Big size resilient seated gate valve

    Features:
    Bolted Bonnet Replaceable O-ring
    Rubber encapsulated wedge, Brass Wedge Nut.
    Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC



    Technical Specification:
    Valve design according to EN 1171,DIN3352,EN 1074-1 and 2 Face to face dimensions according to EN 558-1 , DIN3202 F4/F5 Standard flange drilling to EN 1092-2,ISO 7005-2
    Hydraulic test according to EN 12266,ISO5208
