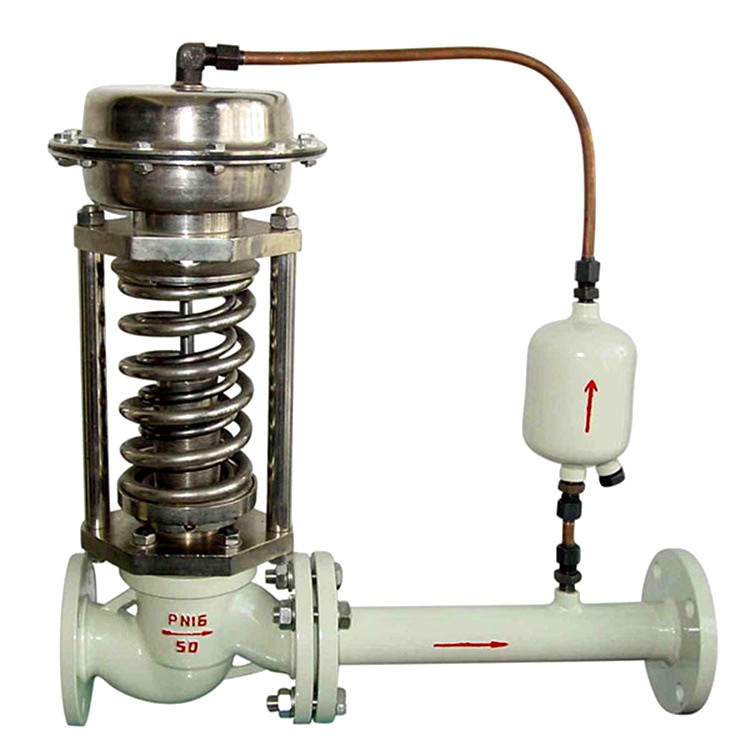

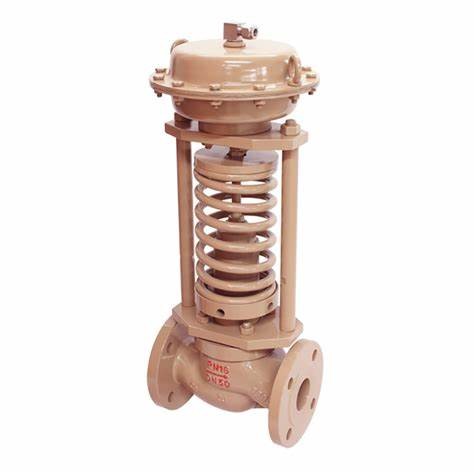

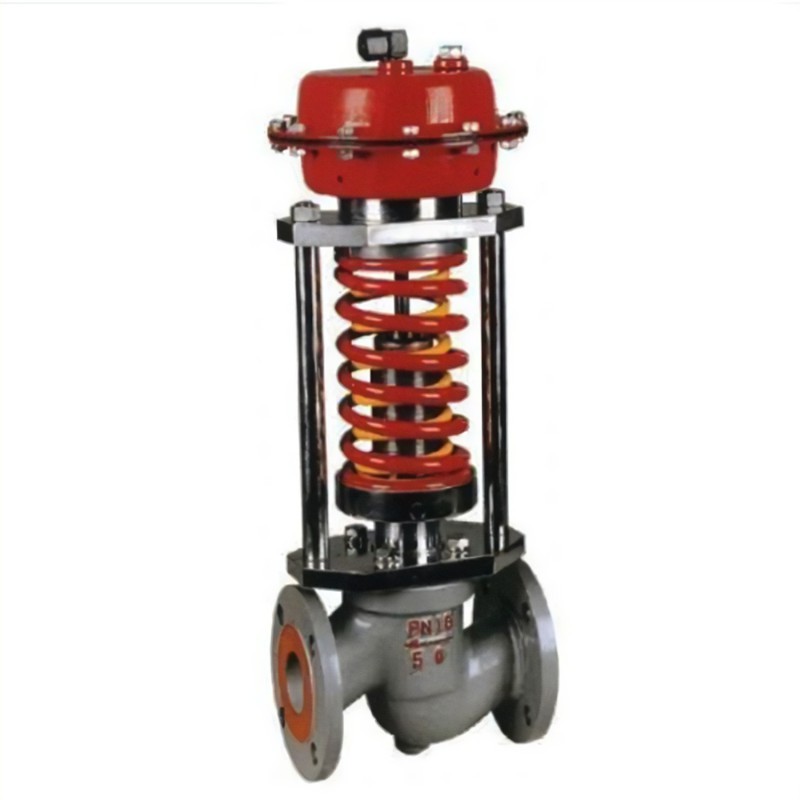

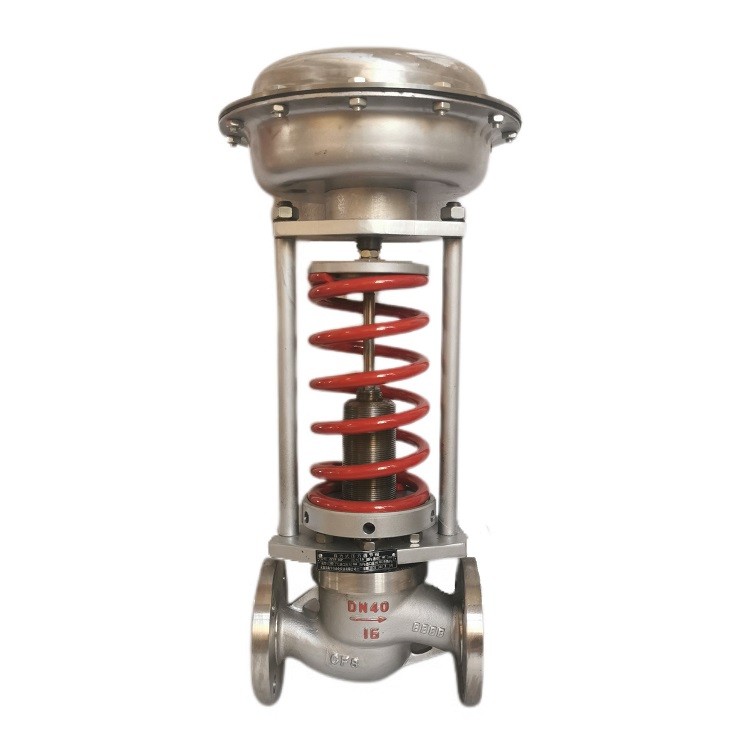

    ZZYP Self actuated pressure control valve

    • Self actuated pressure control valve can change differential pressure and flow before and after the valve to keep the pressure before (or after) the valve at a constant level, using the self energy of the medium to be controlled as the power source, without external power. It features flexible action, good seal property and low fluctuation of the pressure set point. Self actuated pressure control valve is widely used for the automatic control of the pressure-reducing stabilization and pressure-relief stabilization for the gases, liquid and steam.

      Self actuated pressure control valve has other advantages as smart and accurate regulating,taking up small space and simple operation and Self actuated pressure control valve is widely used in the pressure control of gas,steam or water in petroleum, chemical, electric power, metallurgy, food, textile, machinery, civil construction industry.

      Self actuated pressure control valve is designed and manufactured according to the standard of AMSE/API/BS/DIN/GB

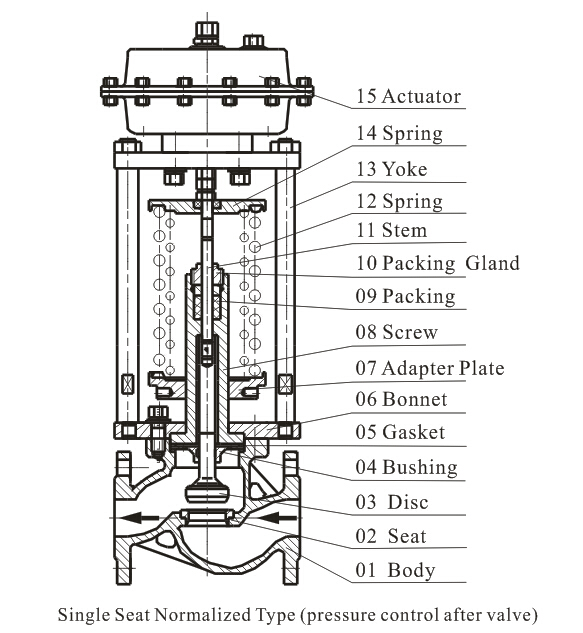

    • SELF ACTUATED PRESSURE CONTROL VALVE STRUCTURE

    • SELF ACTUATED PRESSURE CONTROL VALVE MATERIAL

      Component name Control Valve Material
      Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
      Valve spool/Seat 304/316/316L(overlaying stellite alloy)
      Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
      Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
      Control valve stem 2Cr13/17-4PH/304/316/316L
      Diaphragm Cover Normal:Q235,Special:304
      Diaphragm NBR with reinforced polyester fabric
      Spring Normal:60Si2Mn,Special:50CrVa
    • SELF ACTUATED PRESSURE CONTROL VALVE PARAMETER

      Nominal diameter
      DN(mm)
      20 25 32 40 50 65 80 100 125 150 200 250 300
      Coefficient(KV) 5 8 12.5 20 32 50 80 125 160 320 450 630 900
      Rated stroke(mm) 8 10 12 15 18 20 30 40 45 60 65
      Nominal diameter
      DN(mm)
      20
      The seat diameter
      DN(mm)
      2 3 4 5 6 7 8 9 10 12 15 20
      Coefficient(KV) 0.02 0.08 0.12 0.20 0.32 0.5 0.80 1.20 1.80 2.80 4.0 5
      Nominal pressure MPa 1.6,2.5,4.0,6.4(6.3)/2.0,5.0,11.0
      Bar 16,25,40,64(63)/20,50,110
      Lb ANSI:Class150、Class300、Class600
      pressure range
      KPa
      15~50、40~80、60~100、80~140、120~180、160~220、200~260、
      240~300、280~350、330~400、380~450、430~500、480~560、540~620、
      600~700、680~800、780~900、880~1000、900~1200、1000~1500、
      1200~1600、1300~1800、1500~2100、
      Flow characteristic Quick opening
      Adjust the accuracy ±5-10(%)
      Working
      TemperatureT(℃)
      -60~350(℃)    350~550(℃)
      Leakage Class IV;Class VI

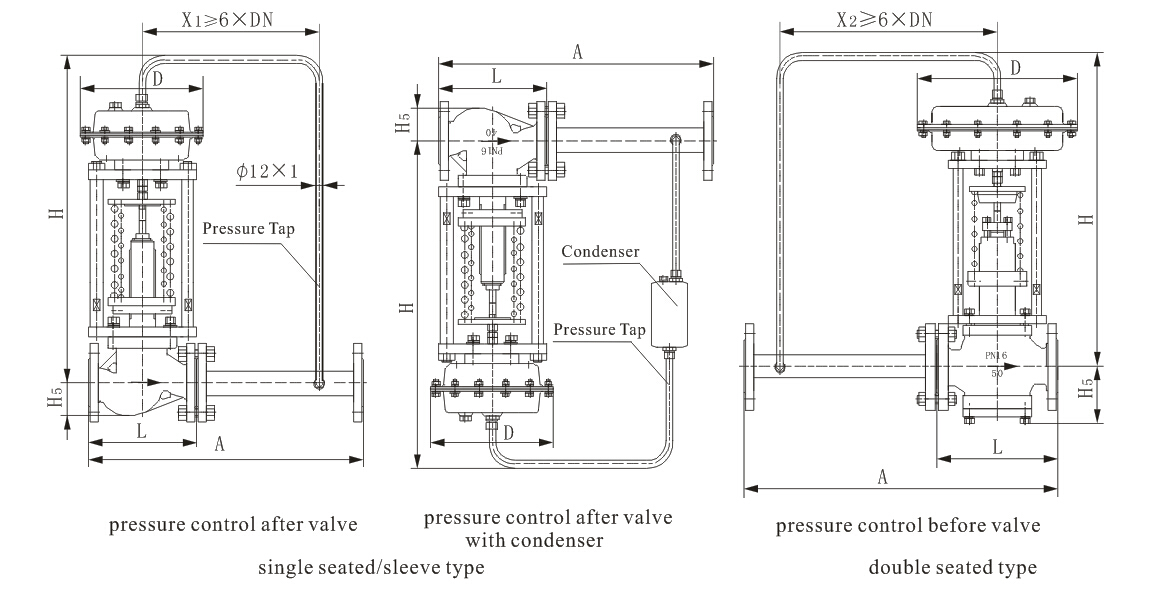

    • SELF ACTUATED PRESSURE CONTROL VALVE OUTLINE DIMENSION


    Nominal diameter
    DN(mm)
    20 25 32 40 50 65 80 100 125 150 200 250 300
    B 383 512 603 862 1023 1380 1800 2000 2200
    L(Pn16、25、40) 150 160 180 200 230 290 310 350 400 480 600 730 850
    L(PN64) 230 260 300 340 380 430 500 550 650 775 900
    pressure range
    KPa
    15~140 H 475 520 540 710 780 840 880 940 950
    A 280 308
    120~300 H 455 500 520 690 760 800 870 900 950
    A 230
    280~500 H 450 490 510 680 750 790 860 890 940
    A 176 194 280
    480~1000 H 445 480 670 740 780 780 850 880 930
    A 176 194 280
    Weight (Kg)
    (PN16)
    26 37 42 72 90 112 130 169 285 495 675


    Inquiry Us
