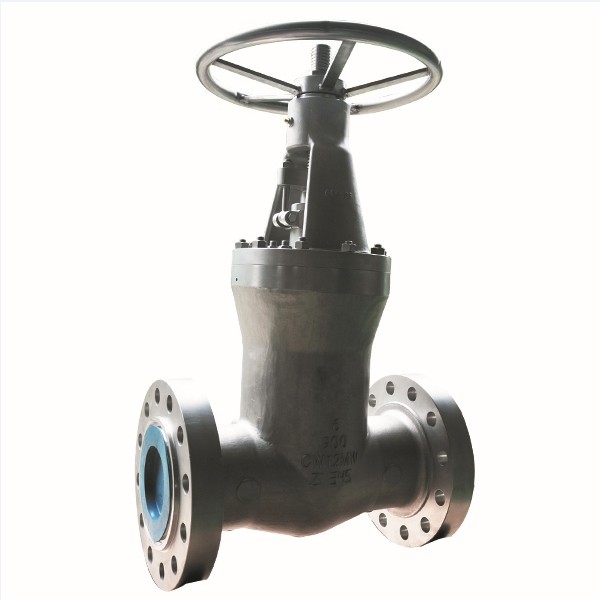

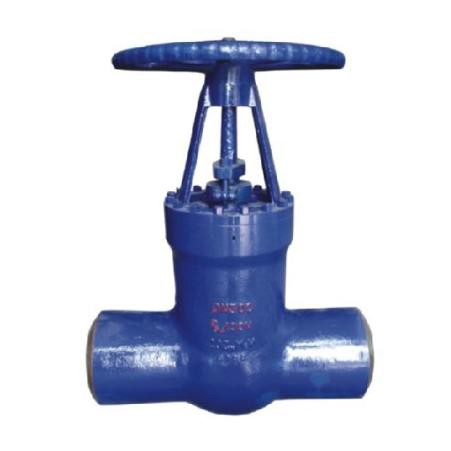

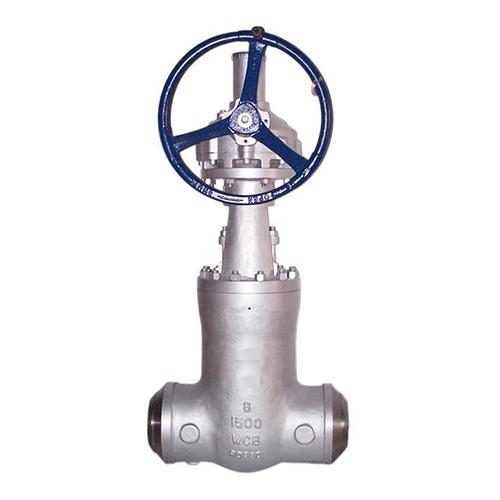

Pressure Seal Bonnet Gate Valves Class 1500LB - 2500LB
Class 1500LB and 2500LB High Pressure Cast Steel Gate Valve, Pressure Seal Bonnet, Bolted Bonnet, Rising Stem, Outside Screw and Yoke, China API600 & API6D Flexible Wedge Gate Valves, Nace Mr0175, Bypass Valve Design, Carbon Steel, Stainless Steel, Flanged and BW Ends Gear Operated Metal Seated Industrial Gate Valve Supplier.
2. Structure: OS&Y, Pressure Sealing Bonnet, Solid or Flexible Wedge Design
3. Valve Size: 2" to 24" (1500Lbs), 2" to 12" (2500Lbs)
4. Valve Pressure: ANSI 1500Lbs / Class 1500Lb, 2500Lbs / Class 2500Lb
5. End Connections: Flanged (RF, RTJ), Butt Weld
6. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, 4A, 5A, WC6, WC9, C5, C12 or Equivalent
7. Various Trim Materials are Available to Suit Different Service Conditions: Full Stellite etc.
8. Type of Drive: Manual, Bevel Gear, Electric Actuator, Bare Stem
9. Special Design & Requirement: NACE MR 0175/ISO15156

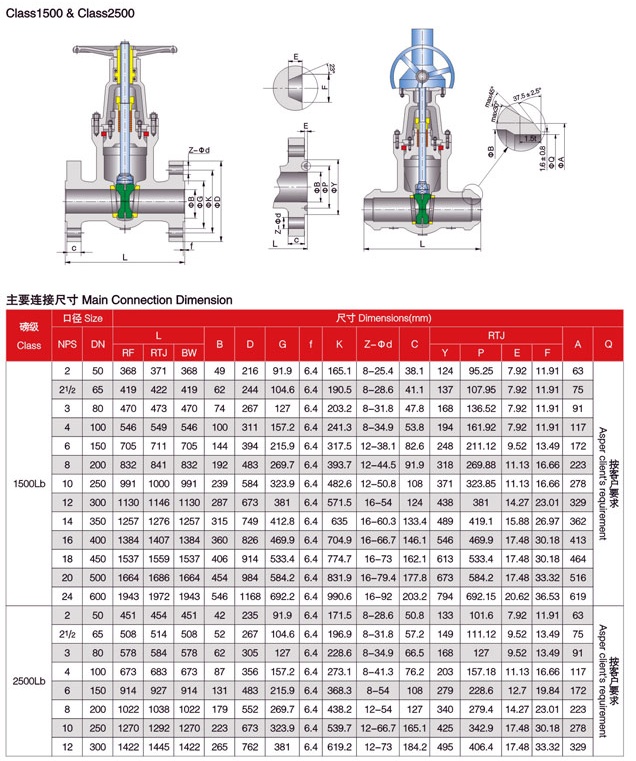

Pressure Seal Bonnet Gate Valves Class 1500LB - 2500LB Dimensions Details:
