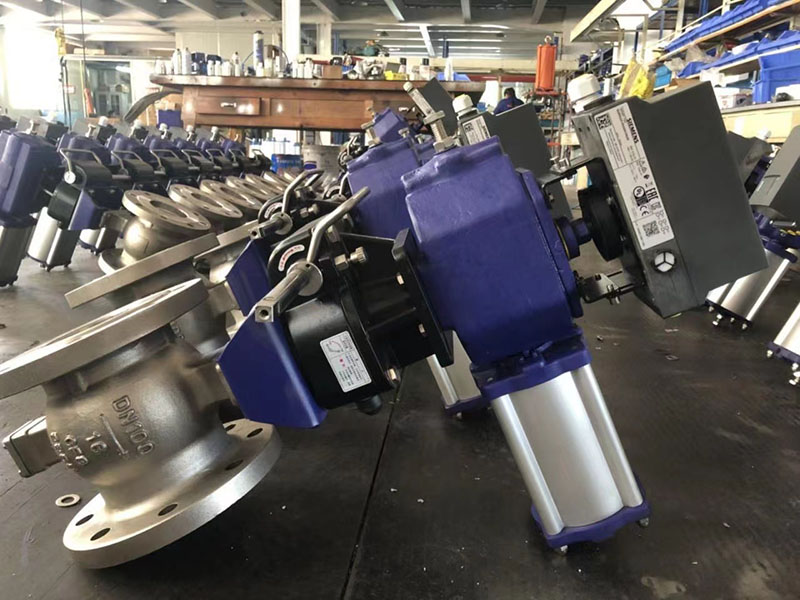

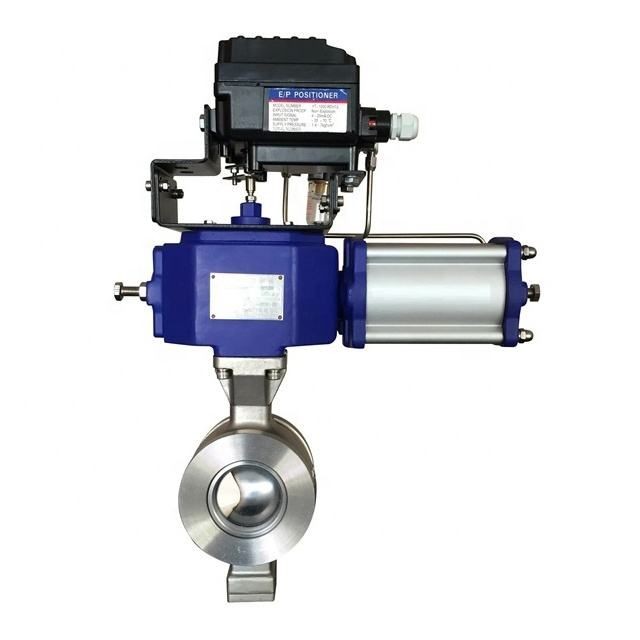

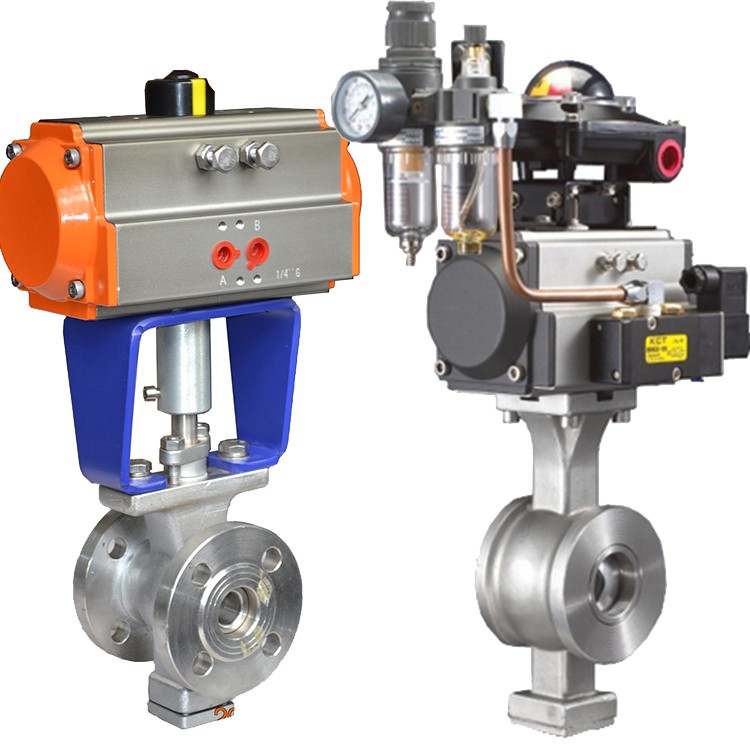

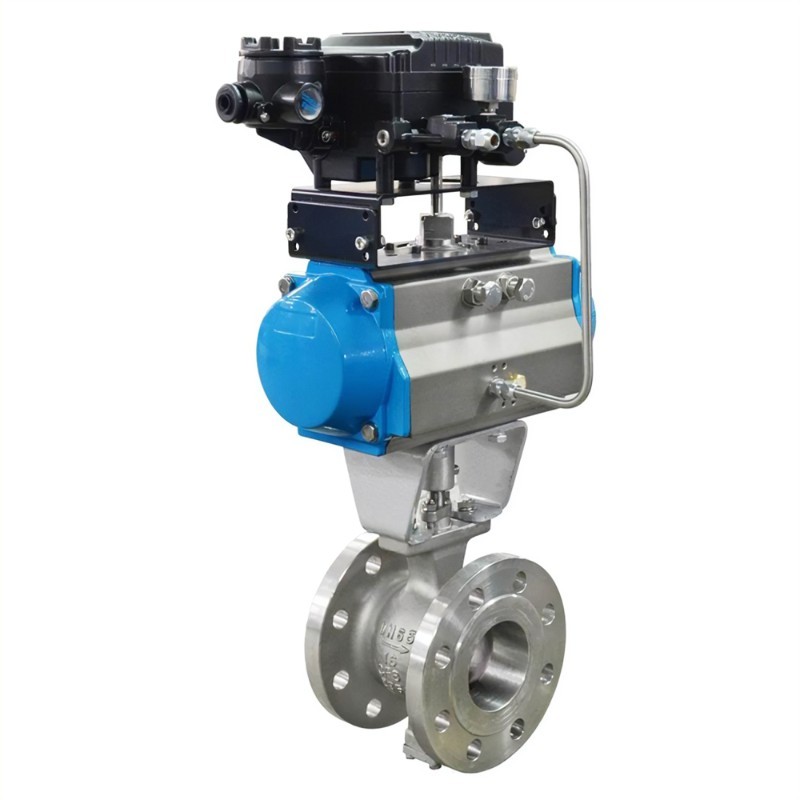

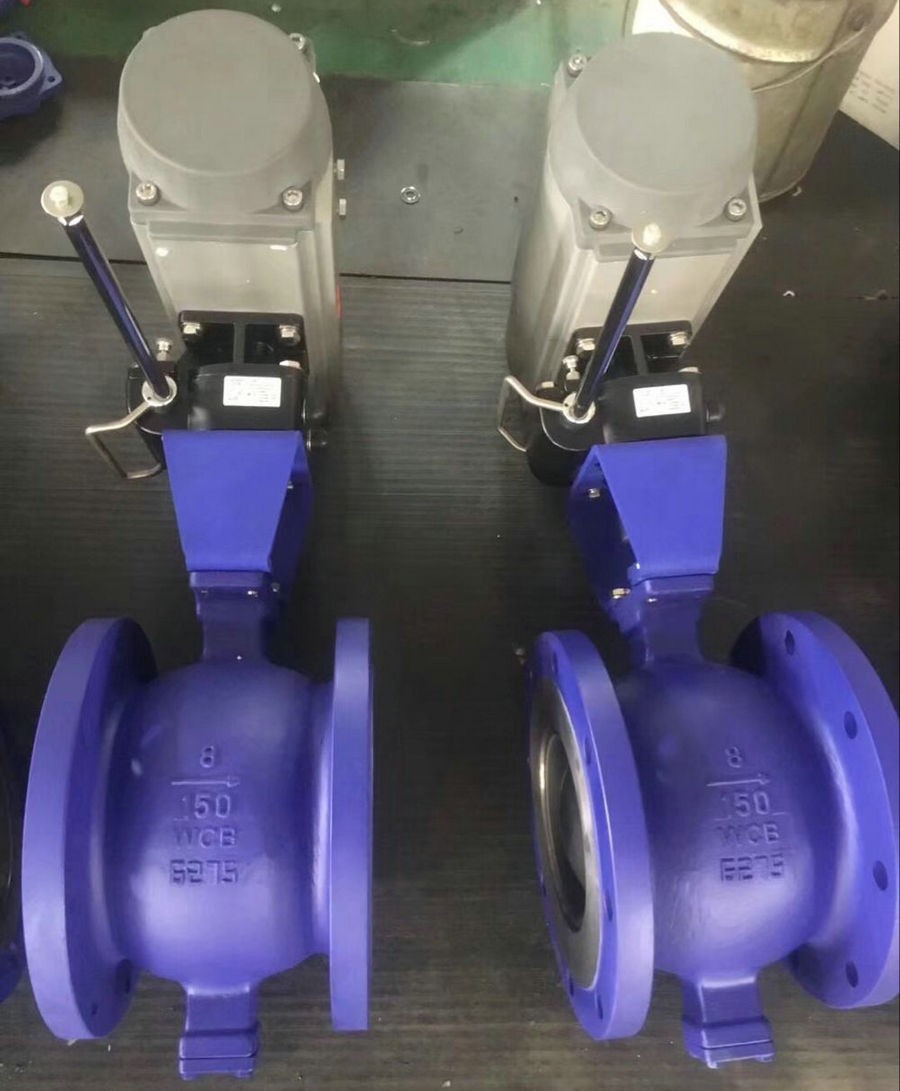

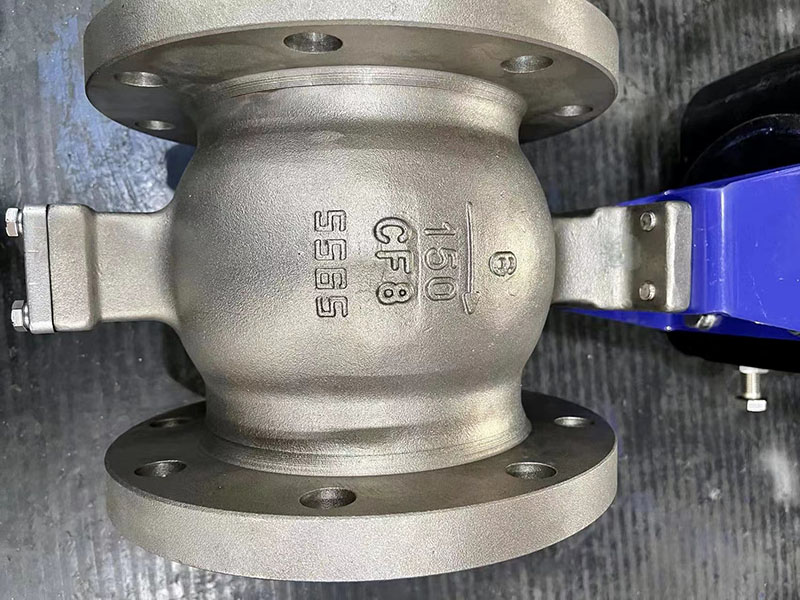

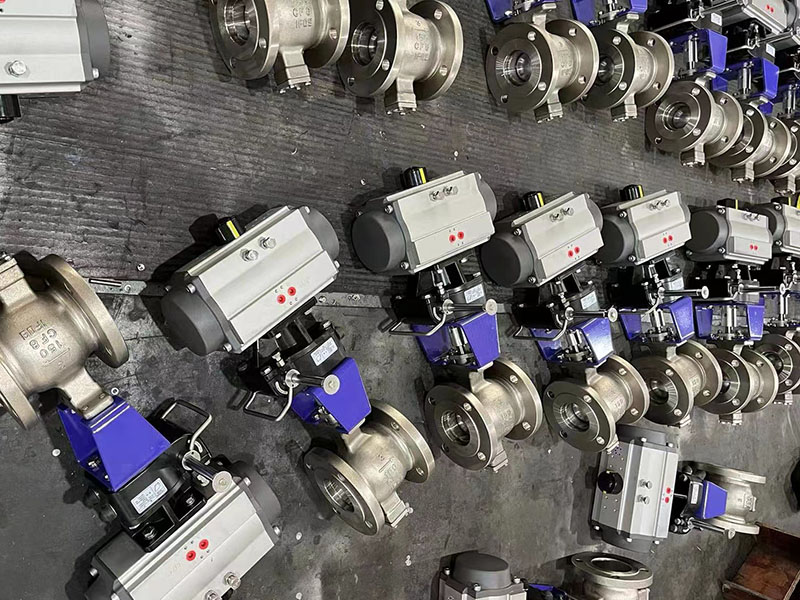

Pneumatic actuated stainless steel segmented ball valve Overview:
Pneumatic actuated stainless steel segmented ball valve is compased of pneumatic actuator (double acting or single acting) and V notch segmented ball valve (flange type or wafer type) has the V type gap in the segmented ball valve plug which will do wedge-shaped sheared action when the Pneumatic actuated stainless steel segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat. The Pneumatic actuated stainless steel segmented ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
Pneumatic actuated stainless steel segmented ball valve equipped with pneumatic or electric actuator can meet various control requirements, Pneumatic actuated stainless steel segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.
Pneumatic actuated stainless steel segmented ball valve pneumatuc actuator technical:
Pneumatic actuated stainless steel segmented ball valve performance:
Pneumatic actuated stainless steel segmented ball valve (bare shaft) structure:
Pneumatic actuated stainless steel segmented ball valve Parts details list:
Pneumatic actuated stainless steel segmented ball valve is compased of pneumatic actuator (double acting or single acting) and V notch segmented ball valve (flange type or wafer type) has the V type gap in the segmented ball valve plug which will do wedge-shaped sheared action when the Pneumatic actuated stainless steel segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat. The Pneumatic actuated stainless steel segmented ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
Pneumatic actuated stainless steel segmented ball valve equipped with pneumatic or electric actuator can meet various control requirements, Pneumatic actuated stainless steel segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.
Pneumatic actuated stainless steel segmented ball valve main technical data:
Pneumatic actuated stainless steel segmented ball valve technical:
Pneumatic actuated stainless steel segmented ball valve technical:
| Model | |
| Structure | Segment ball |
| Nominal Diameter | Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700) |
| Pressure Rating | ASME Class 150 ~ CLASS 300 |
| Connection | Flange Type (RF、RTJ、FM）、Wafer type |
| Body Material | WCB, WCC, WC6, WC9, LCB, CF8, CF8M, CF3 .etc |
| Trim Material | Carbon steel、304、316、316L、17-4PH |
| Packing | PTFE, Flexible Graphite |
| Washer | Serrated washer (extremely soft CS, SUS316.etc), wound gaskets |
| Characteristic | EQP, Quick open |
| Ratio | 100:1 |
| Seal Surface | Soft seal 、 Metal seal |
| Travel | 90° |
| Coating | Black for Carbon Steel, Stainless steel without coating |
Pneumatic actuated stainless steel segmented ball valve pneumatuc actuator technical:
| Model Spec | Pneumatic Piston | Crank Arm Piston |
| Power/Air Supply | Air supply: 400~600Kpa | Air supply: 400~600Kpa |
| Joint | Rc1/4”, Rc3/8”, Rc1/2”, | ---------- |
| Direct action | Air increase, valve close | Signal increase, valve close |
| Reverse action | Air increase, valve open | Signal increase, valve open |
| Double action | According to signal converting | |
| Ambient Temp | -30~+70℃ | -30~+70℃ |
| Standard Coating | Yellow | ------------ |
| Accessories |
Solenoid valve, Limited switch Air filter, locker, etc. |
Solenoid valve, Limited switch Air filter, locker, etc. |
Pneumatic actuated stainless steel segmented ball valve performance:
| Rated CV | According to “Flow Characteristic” |
| Characteristic | Equal to EQP |
| Ratio | 100:1 |
| Leakage | ANSI/FCI70-2 和 IEC60534-4 Class VI-Soft; Class IV – metal seat |
| Hysteresis | 3% (Positioner), 1% (Without positioner) |
| Linear | 5% (Positioner), 1% (Without positioner) |
Pneumatic actuated stainless steel segmented ball valve (bare shaft) structure:

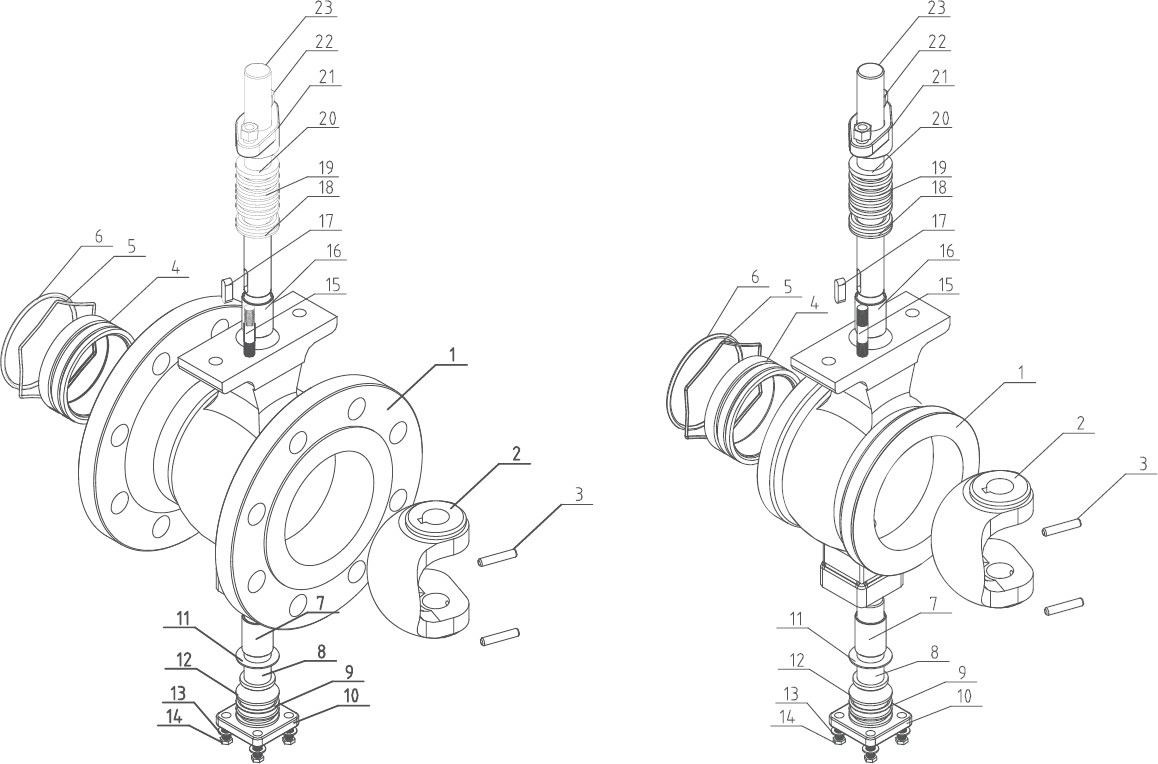

Pneumatic actuated stainless steel segmented ball valve Parts details list:
| No | Name | Qty | Material | ||
| 1 | Valve body | 1 | WCB | CF8 | CF8M |
| 2 | Segment ball | 1 | CF8+HCr | CF8+HCr | CF8M+HCr |
| 3 | Cylindrical pin | 2 | 304 | 304 | 316 |
| 4 | Seat | 1 | 304+Hard Alloy | 304+Hard Alloy | 316 |
| 5 | Spring | 1 | 316 | 316 | 316 |
| 6 | O ring | 1 | Fluororubber | Fluororubber | Fluororubber |
| 7 | Self lubricant bearing | 1 | 304+PTFE | 304+PTFE | 316+PTFE |
| 8 | Down stem | 1 | 20Cr13 | 304 | 316 |
| 9 | O Ring | 1 | Fluororubber | Fluororubber | Fluororubber |
| 10 | Back gland | 1 | WCB | CF8 | CF8M |
| 11 | Ring gasket | 1 | PTFE | PTFE | PTFE |
| 12 | Adjustable gasket | 1 | PTFE | PTFE | PTFE |
| 13 | Flat gasket | 4 | Q235 | 304 | 304 |
| 14 | Bolt | 2 | 25# | 304 | 304 |
| 15 | Double screw bolt | 1 | 25# | 304 | 304 |
| 16 | Self lubricant bearing | 1 | 304+PTFE | 304+PTFE | 316+PTFE |
| 17 | Flat key | 1 | 20Cr13 | 304 | 316 |
| 18 | Down packing | 1 | PTFE | PTFE | PTFE |
| 19 | Middle packing | 1 set | PTFE | PTFE | PTFE |
| 20 | Up packing | 1 | PTFE | PTFE | PTFE |
| 21 | Packing gland | 1 | WCB | CF8 | CF8M |
| 22 | Bolt | 2 | 35# | 304 | 304 |
| 23 | Up stem | 1 | 20Cr13 | 304 |
316 |
Pneumatic control segment ball valve Rated CV:
Size mm
25
32
40
50
65
80
100
125
150
Rated Cv
27
47
70
135
210
390
560
790
1130
Size mm
200
250
300
350
400
450
500
600
700
Rated Cv
1860
2900
4320
6640
8000
10000
12200
17270
25000
