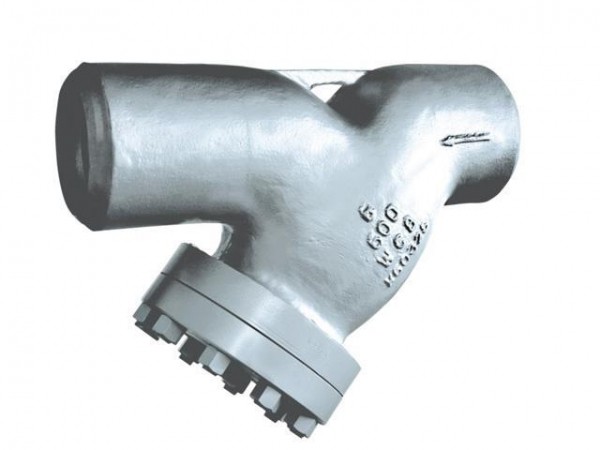

Y Type Strainer

  • Product Item:GL41
  • Body Materials: WCB, A105, LCB, LCC, LF2, CF8, SS304, CF8M, SS316, CF3, SS304L, CF3M, SS316L, Cast iron, Ductile iron
  • Pressure Rating: ANSI 150lb, 300lb, 600lb, 900lb, 1500lb, PN10, PN16, PN25, PN40, PN64
  • Sizes: 1/2”- 36
  • Screen: Stainless steel (304SS, 316SS)
  • Carbon Steel Y Strainer For Steam - Buy Y Strainer Carbon Steel , Y-strainer Class 1500 , Y Strainer
    Inquiry Send Email

    Description

    Y Type Strainer


    Y TYPE STRAINER (Y Type Filter) Manufacturer, Supplier From China, Offers Carbon Steel, Alloy Steel and Stainless Steel Industrial Y Strainer, Flanged, RF, RTJ, BW Ends for Class 150Lb – 2500Lb, Pn10 – Pn64 ; Cast Steel (A216 WCB, A351 -CF8 / CF8M / CF3M), Welded / Fabricated Body Industrial Y Type Strainers (Y Type Filter) on Request.

    INDUSTRIAL Y TYPE STRAINER SPECIFICATIONS

    1. Strainer Sizes: 1/2”- 36”
    2. Pressure Rating: ANSI 150lb, 300lb, 600lb, 900lb, 1500lb, PN10, PN16, PN25, PN40, PN64
    3. Suitable Medium: Water, gas, oil, steam etc.
    4. Body Materials: WCB, A105, LCB, LCC, LF2, CF8, SS304, CF8M, SS316, CF3, SS304L, CF3M, SS316L, Cast iron, Ductile iron
    5. Screen: Stainless steel (304SS, 316SS)
    6. Mesh Size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh, 200mesh, 400mesh etc.
    7. End Connections: BW, RF, RTJ, SW, NPT

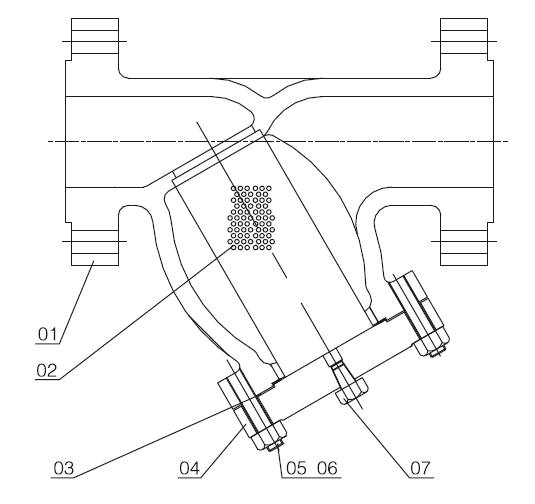

    Y strainer main parts and material list:

    No.

    Part name

    Material

    01

    Body

    A216-WCB

    A351-CF8

    A351-CF3

    A351-CF8M

    A351-CF3M

    02

    Screen

    304SS, 316SS, 304LSS, 316LSS

    03

    Gasket

    Graphite+ stainless steel (304SS, 316SS)

    04

    cover

    A105/WCB

    A182-F304

    A182-F304L

    A182-F316

    A182-F316L

    05

    Bolt

    A193 B7

    A193 B8

    A193 B8M

    06

    Nut

    A194 2H

    A194 8

    A194 8M

    07

    Drain pug

    A193 B7

    A193 B8

    A193 B8M







    Inquiry Us
