  • YQ98002 Filter piston type safety pressure relief valve

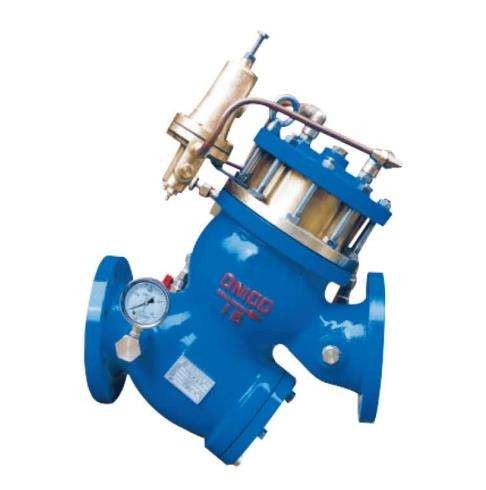

YQ98002 Filter piston type safety pressure relief valve

  • Product Item:YQ98002
  • Port size:DN20~800
  • Temperature :0~80℃
  • Pressure:PN10 ~ 25
  • Body material:Cast iron,Ductile iron,WCB,Stainless steel
  • YQ98002 Filter piston type safety pressure relief valve
    Inquiry Send Email

    Description

    YQ98002 Filter piston type safety pressure relief valve

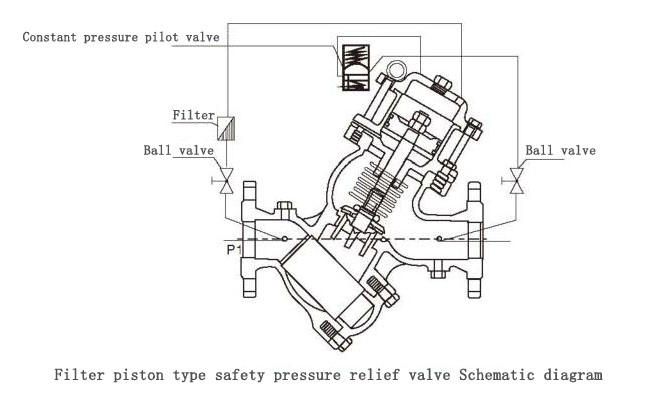

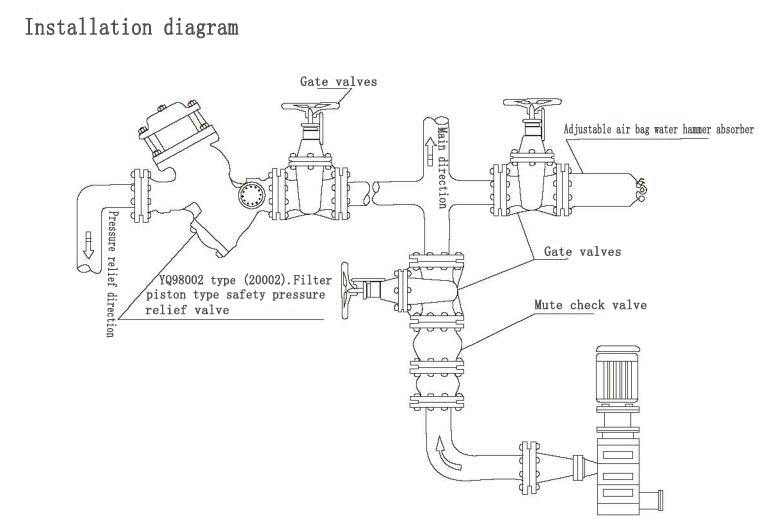

    YQ98002 filter piston safety relief valve is installed in the pipeline of high-rise buildings, fire water supply system and other water supply system. When the pressure in the water supply pipeline exceeds the set pressure of the relief valve, the relief valve automatically opens the rapid pressure relief to protect the pipeline safety. It can also be used as pressure holding valve to ensure the upstream water supply pressure of the main valve. YQ8002 filter piston type safety pressure relief valve produced by our company can accurately maintain the same safety set pressure, once overpressure, pressure relief valve quickly open, timely pressure relief. YQ98002 filter piston safety pressure relief valve, stable and reliable closure, eliminate pressure aftershock.

    Nominal Pressure PN (MPa) 1.6 2.5
    Nominal Diameter DN (mm)  50, 60, 80, 100, 150, 200, 250, 300, 350, 400
    Shell Test Pressure (MPa) 2.40 3.75
    Sealed Test Pressure (MPa) 1.76 2.75
    Range of Pressure 0 ≤ 1.6 MPa, 0 ≤ 2.5 MPa
    Fluids Temperature (°C) 0 ~ 100
    Fluids Water
    Main technical parameters
    Nominal pressure
    1.0-2.5Mpa
    Nominal diameter
    DN50-400mm
    Applicable medium
    Water, oil
    Suitable temperature
    0-100℃
    Standard of the flange
    GB/T17241.6
    Test standard
    GB/T13927
