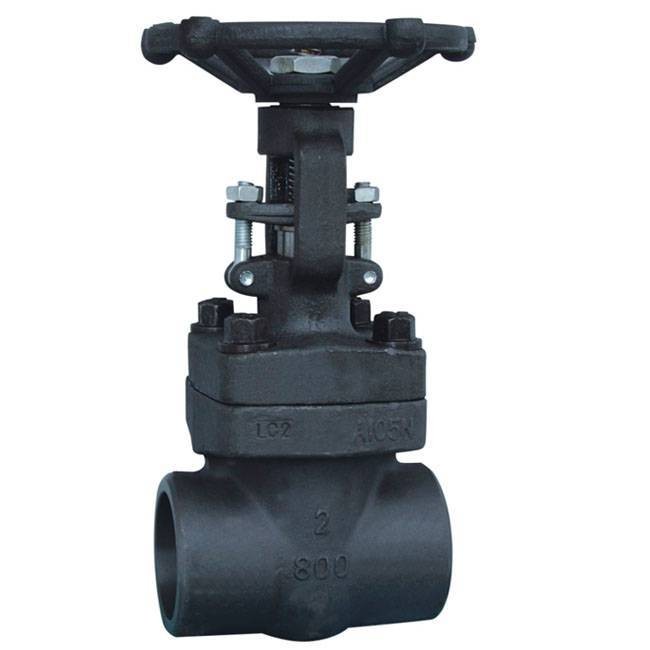

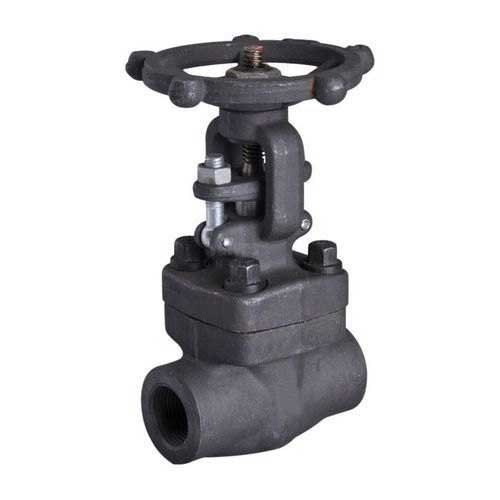

API 602 Forged Steel Gate ValvesAPI 602 Forged Steel Gate ValvesAPI 602 Forged Steel Gate ValvesAPI 602 Forged Steel Gate Valves

API 602 Forged Steel Gate Valves

  • Product Item:Z61Y
  • Design to API 602,ASME B16.34,BS 5352
  • Socket Welded Ends to ASME B16.11 Flanged Ends to ASME B16.5
  • Screwed Ends to ASME B1.20.1 Butt Welded Ends to ASME B16.25
  • Material in A105,A182 F316,A182 F304,A182 F11,A182 F22,Alloy 20,monel.
  • API 602 Forged Steel Gate Valves,Forged Gate Valve , Socket Weld Gate Valve , Gate Valve 1 Inch , Lever Gate Valve
    Inquiry Send Email

    Description

    API 602 Forged Steel Gate Valves

    API 602 forged steel gate valves are accessible in three bonnet design. The primary design is the bolted bonnet type with female and male joint, spiral wound gasket, and make of F304L or graphite. Ring joint gasket is also accessible on request. The second design is the welded bonnet which with a seal and threaded welded joint. On request a complete penetration strength welded joint is accessible. The third design is the pressure seal bonnet which with a threaded and pressure seal bonnet joint.

    Application(s)

    Water, petroleum and natural gas

    Design Features

    • Bonnet joint is accuracy machined and has a unique surface end for extensive service life.
    • Completely encapsulated gasket design with metal-to-metal body to bonnet contact for best and controlled gasket compression.
    • Bonnet/body threads and power-weld, for welded bonnet control devices, the bonnet is threaded in twin protection against leakage.
    • API 602 conventional port and fullport designs accessible.
    • Big range of end connectionas per customers needs, flanged, SW, BW,FNPT,  including other types.
    • Material in A105,A182 F316,A182  F304,A182 F11,A182 F22,Alloy 20,monel.
    • Class 150 to CLass 800 to Class 2500 to Class 4500,size 1/2”4”.

    Design Standard(s)

    • API 602
    • API 598
    • B16.34
    • MSS-SP-25
    • NACE MR01-75

    Face-to-Face

    • ASME B16.10 or MFR’s standard

    End Connection

    • Flange RF or RTJ
    • Butt welded
    • Socket weled
    • Threaded

    Test Standard(s)

    • API 598

    800 LB
    Dimensions and Weights inches/lbs (millimeters/kgs)

    NPS

    Conv.

    3/8

    1/2

    3/4

    1

    1 1/4

    1 1/2

    2

    Full

    3/8

    1/2

    3/4

    1

    1 1/4

    1 1/2

    2

    L


    3 (79)

    3 (79)

    3-5/8 (92)

    4-3/8 (111)

    4-3/4 (120)

    4-3/4 (120)

    5-1/2 (140)

    7 (178)

    H (OPEN)


    6-1/2 (166)

    6-1/2 (166)

    6-3/4 (169)

    7-3/4 (193)

    9 (230)

    9-3/4 (246)

    11 (283)

    13 (332)

    W


    4 (100)

    4 (100)

    4 (100)

    5 (125)

    6-1/2 (160)

    6-1/2 (160)

    7 (180)

    8 (200)

    Weights

    Bolted

    5.3 (2.4)

    5.1 (2.3)

    5.7 (2.6)

    9.9 (4.5)

    13.0 (5.9)

    15.8 (7.2)

    24.6 (11.2)

    41.4 (18.8)

    Welded

    5.3 (2.4)

    5.3 (2.4)

    5.9 (2.7)

    10.1 (4.6)

    13.4 (6.1)

    16.3 (7.4)

    25.1 (11.4)

    42.0 (19.1)

    1500 LB
    Dimensions and Weights inches/lbs (millimeters/kgs)

    NPS

    Conv.

    3/8

    1/2

    3/4

    1

    1 1/4

    1 1/2

    2

    Full

    3/8

    1/2

    3/4

    1

    1 1/4

    1 1/2

    2

    L


    3 (79)

    4-1/4 (111)

    4-1/4 (111)

    4-1/4 (111)

    4-3/4 (120)

    4-3/4 (120)

    5-1/2 (140)

    7 (178)

    H (OPEN)


    6-1/2 (166)

    6-3/4 (170)

    7-1/2 (193)

    9 (230)

    9-3/4 (246)

    11-1/4 (283)

    12-3/4 (325)

    13-1/4 (334)

    W


    4 (100)

    5 (125)

    5 (125)

    6-1/4 (160)

    6-1/4 (160)

    7 (180)

    7-3/4 (200)

    7-3/4 (200)

    Weights

    Bolted

    5.3 (2.4)

    10.3 (4.7)

    10.3 (4.7)

    15.0 (6.8)

    19.8 (9)

    27.3 (12.4)

    38.5 (17.5)

    41.4 (18.8)

    Welded

    5.3 (2.4)

    10.6 (4.8)

    10.6 (4.8)

    15.2 (6.9)

    20.2 (9.2)

    27.7 (12.6)

    38.9 (17.7)

    42.0 (19.1)

    Inquiry Us
