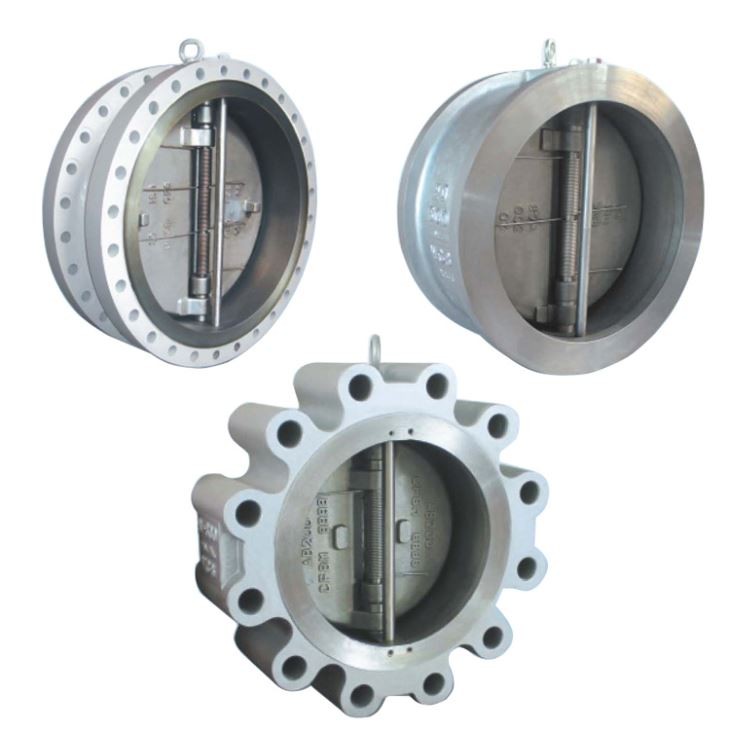

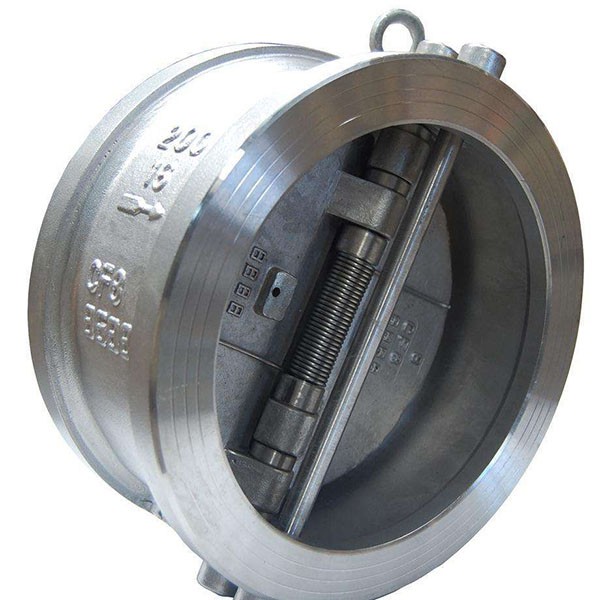

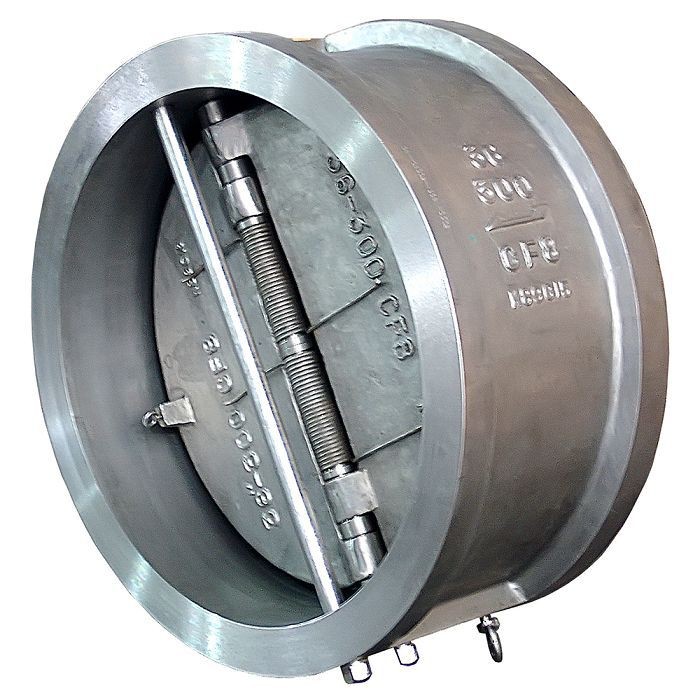

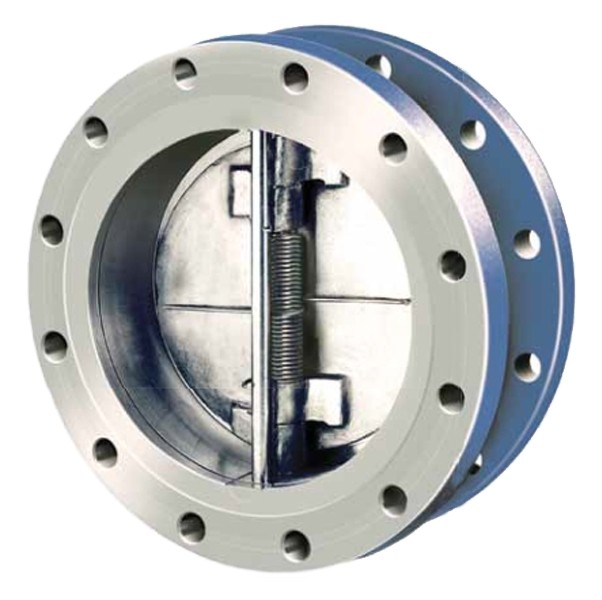

Dual Plate Wafer Check Valve

  • Product Item:H76H
  • Body Material: WCB,LCB,WC6,WC9,C12,C5,CF8,CF3,CF3M,CF8M,etc
  • Design & Manufacture Std.: API 6D, API594, ASME B16.34
  • End Type: wafer, wafer plug, wafer flange
  • Disc Type: Double disc or Single disc
  • Dual Plate Wafer Check Valve , Dual Disc Check Valve , Dual Plate Check Valve
    Inquiry Send Email

    Description

    Dual Plate Wafer Check Valve is defined as a mechanical device that allows a one directional fluid's flow. Dual Plate Wafer Check Valves work through a disc with a spring that opens when the fluid flows in regular direction; and, when the fluid returns, the spring closes the disc to avoid the passage of the fluid.

    The most appropriate application of this valve is to absorb backpressure and its consequences, as well as irrigation residues. The design in Walworth's Dual Plate Wafer Check Valves offer a lot of advantages in comparison with other check valves. Their compact size allows it to work as efficiently as any other.

    WALWORTH offers the majority of the known and used materials in this product line, including but not limited to:

    1. Carbon steels such as WBC.
    2. Low carbon alloys such as WC6, WC9, etc.
    3. Medium alloys such as C5, C12, C12A, etc.
    4. Stainless steels such as CF8, CF8M, CF8C, CF10, CG8M, etc.
    5. Super stainless steels such as CN7M (Alloy 20), CN3M (Modified alloy 20), CT15C, etc.
    6. Nickel alloys such as Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40 (Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M (Hastelloy B2), CW6M (Inconel 625), etc.

    WALWORTH offers a great variety of interior materials, including but not limited to the list published in API-600. Additional internal materials are available as high resistance steels, stainless steels, high nickel alloys (Monel, Inconel, Incoloy, Hastelloy, etc), among others.

    Design features

    -Design in accordance to MSS-SP-594.

    -Compact body with a design piece type Dual Plate Wafer Check Valve

    -Patented spring that allows the soft closure of the disc as to prevent rupture and premature wear.

    -Heavy work and corrosion resistant arrow.

    -The two plates offer maximum resistance with the maximum time in open position.

    -Total contact with metal-metal seats allow a tight seal with a minimal work pressure.

    -Thrust pulleys to reduce forks friction and wear.

    -Tests in accordance to API-598

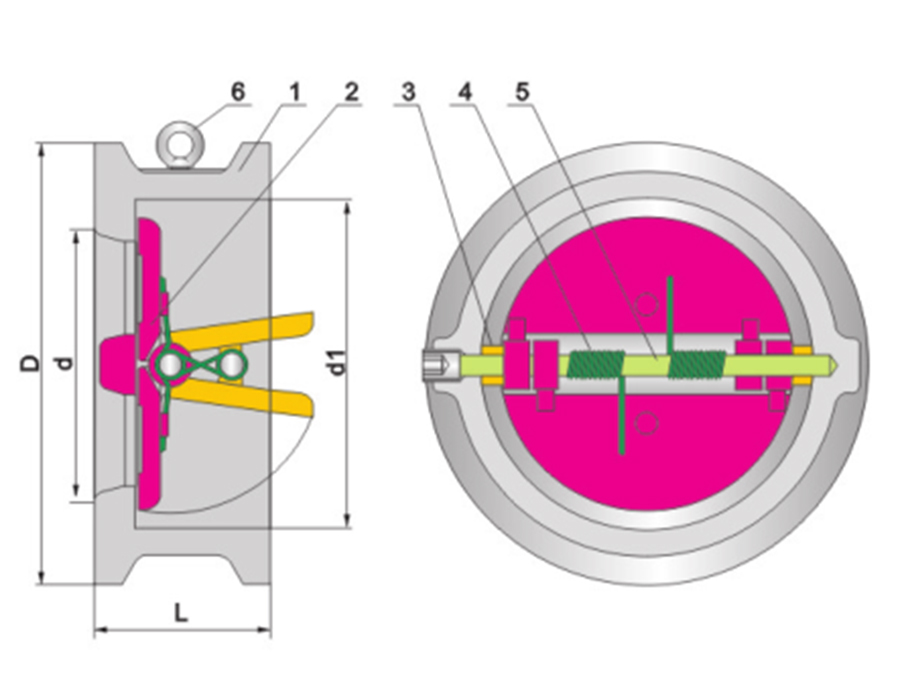

    No.

    ASTM Material

    Part Name

    Carbon steel

    11/4 Cr-11/2 Mo

    Low-term. Steel

    Stainless steel

    1

    Body

    A216-WCB

    A217-WC6

    A352-LCB

    ASTM A351 CF8M

    2

    Plate

    A216-WCB+13Cr

    A217-WC6+HF

    A352-LCB+13Cr

    ASTM A351 CF8M+HF

    3

    Stop Pin

    A276-420

    A276-304

    A276-420

    A276-304

    4

    Back Spring

    SS304

    SS304

    SS304

    SS316

    5

    Hinge Pin

    A276-420

    A276-304

    A276-420

    A276-316

    6

    Eyebolt

    Carbon steel/Stainless steel
