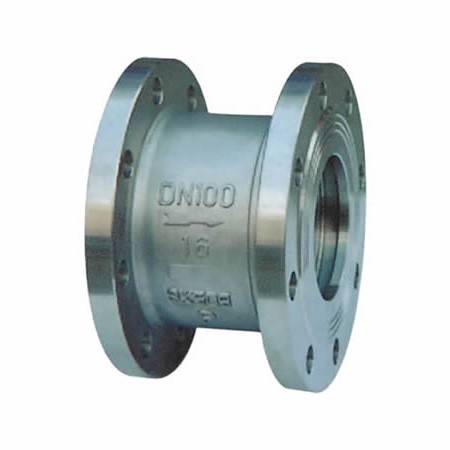

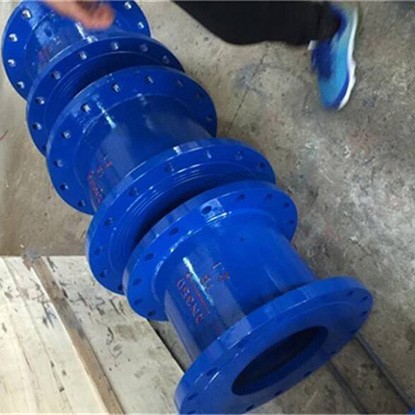

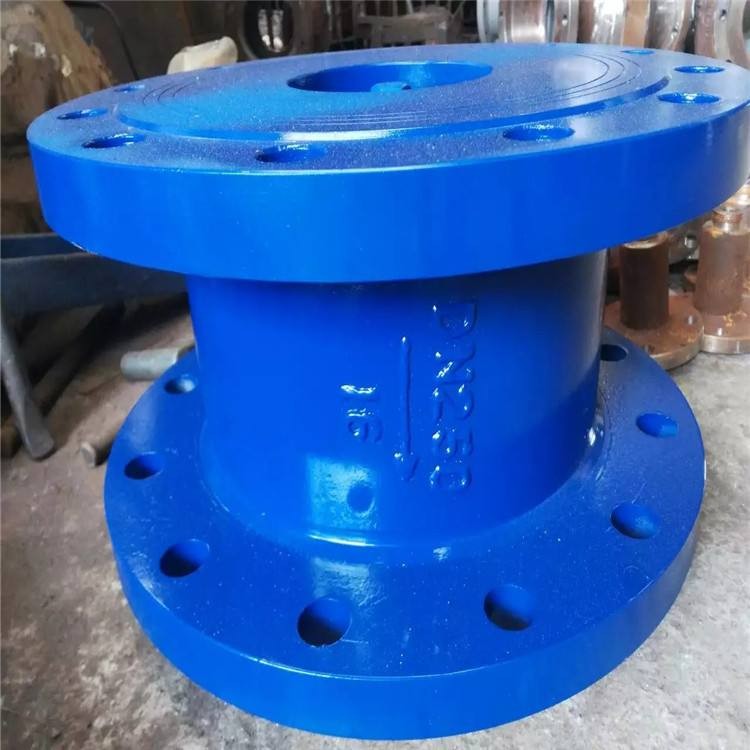

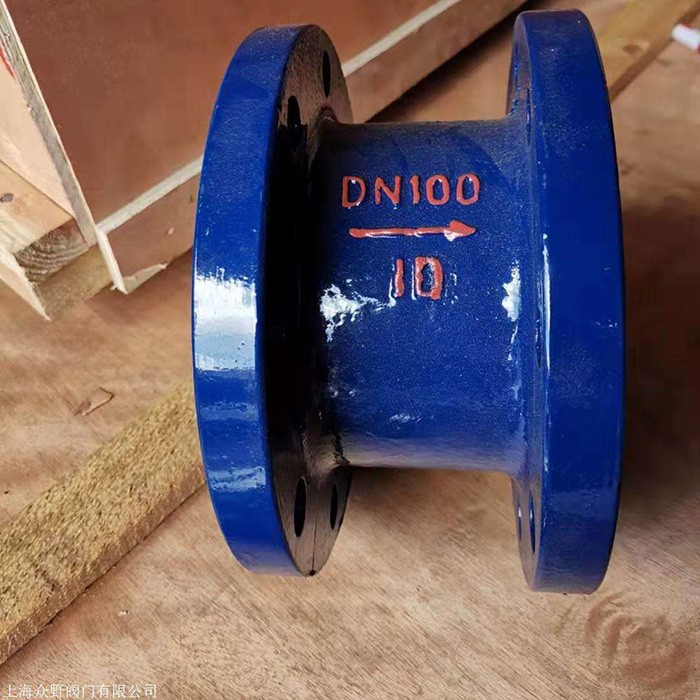

  • Y(B)43X Type Proportional Pressure Reducing Valve (PRV)
  • Y(B)43X Type Proportional Pressure Reducing Valve (PRV)
  • Y(B)43X Type Proportional Pressure Reducing Valve (PRV)
  • Y(B)43X Type Proportional Pressure Reducing Valve (PRV)
Y(B)43X Type Proportional Pressure Reducing Valve (PRV)Y(B)43X Type Proportional Pressure Reducing Valve (PRV)Y(B)43X Type Proportional Pressure Reducing Valve (PRV)Y(B)43X Type Proportional Pressure Reducing Valve (PRV)

Y(B)43X Type Proportional Pressure Reducing Valve (PRV)

  • All flanges on the flanged ratio valves are drilled according to DIN, ANSI 150, Table E/C/D/F/H, JIS or BS4504 Table II.
  • Ratios: Screwed – 2:1 & 3:1 Flanged – 3:2, 2:1, 3:1, 4:1 & 5:1
  • Suitable Temperature:≤80℃
  • Applicable Medium:water
  • Proportional Pressure Reducing Valve , Fixed ratio pressure reducing valve , PRV valve
    Inquiry Send Email

    Description

    Y(B)43X Type Proportional Pressure Reducing Valve (PRV)

    Structure and function

    Y43X - 16, Y13X - 10 proportional-type reducing valve. This valve is mainly constituted by the body, inlet flange, piston, large cylinder sleeve, small cylinder sleeve, outlet flanges and o-shaped rings, sealing gaskets, etc. proportional reducing valve makes use of different sectional area of two float piston ends to constitute the front-back pressure difference, and change the back-pressure to achieve the purpose of pressure-reducing. Proportional reducing valve is of unique structure, superior performance, large flow, switch smooth, without noise, stable ratio of reduced pressure namely: “reducing dynamic pressure” and “reducing static pressure”, and has function:reduce and eliminate the phenomenon of water hammer to water supply pipe, eliminate the instruments of vibration,protection pipe and water conservation.

    Standards pressure ratio for 2:1, 3:1,4:1, 5:1, and 3:5:2 etc, designed according to user's requirements of special proportion of valve.

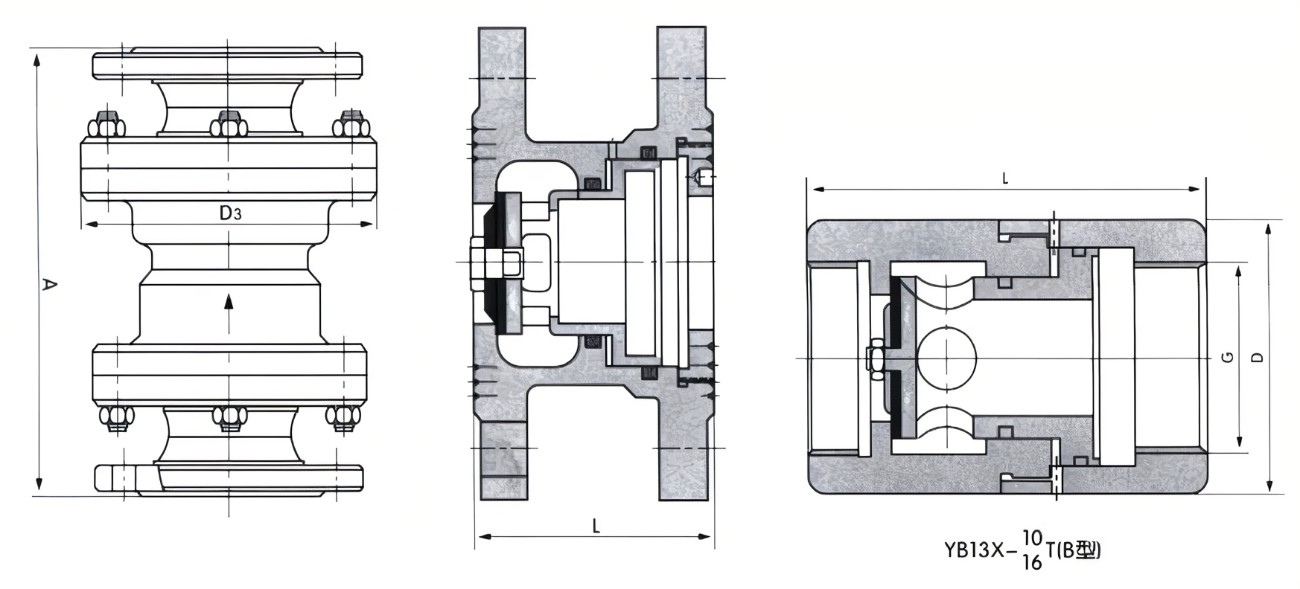

    Dimensions & Constructral Diagram


    Main External Dimensions(Flange-Connection DimensionPN1.0MPa Abide By GB4216.4-84 Standard,PN1.6MPa Abide By GB4213.5-84 Standard )

    Y43X main technical parameter of fixed proportion reducing valve

    Applicable medium water,gas
    Applicable temperature ≤ 90°C
    pressure error ≤ 8%
    min. starting –up pressure 2∶1 0.2MPa
    3∶1 0.3MPa
    connection type flange, internal thread
    material of main parts body tin bronze stainless steel cast iron
    internal component tin bronze stainles steel tin bronze or stainless steel

    Nominal Diameter DN(mm) A D3
    25 232 115/125
    32 246 140/150
    40 256 150/155
    50 270 165/175
    65 306 185/200
    80 320 210/230
    100 340 240/265
    125 400 275/300
    150 429 310/350
    200 358 355/400
    type nominal pressure Nominal Diameter DN(mm) L
    YB43X-10T (Btype) 1.0 50 85
    65 102
    80 122
    100 140
    125 160
    150 178
    200 230
    YB43X-16T (Btype) 1.6 50 85
    65 102
    80 122
    100 140
    125 160
    150 178
    200 230
    Nominal Diameter DN(mm) dimensions(mm)
    C L D
    15 1/2" 80 50
    20 3/4" 80 50
    25 1" 90 54
    32 1 1/4" 100 60
    40 1 1/2" 110 68
    50 2" 120 80
