  • Glass Lined Diaphragm Valve
  • Glass Lined Diaphragm Valve
  • Glass Lined Diaphragm Valve
  • Glass Lined Diaphragm Valve
Glass Lined Diaphragm ValveGlass Lined Diaphragm ValveGlass Lined Diaphragm ValveGlass Lined Diaphragm Valve

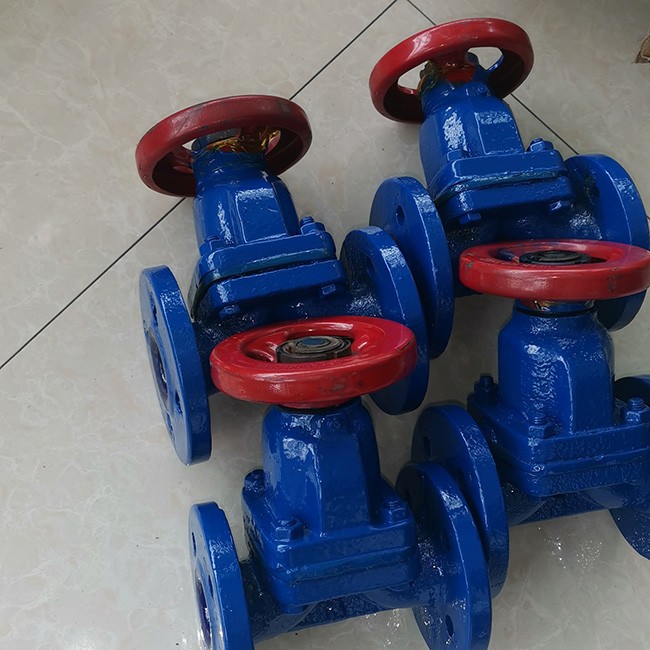

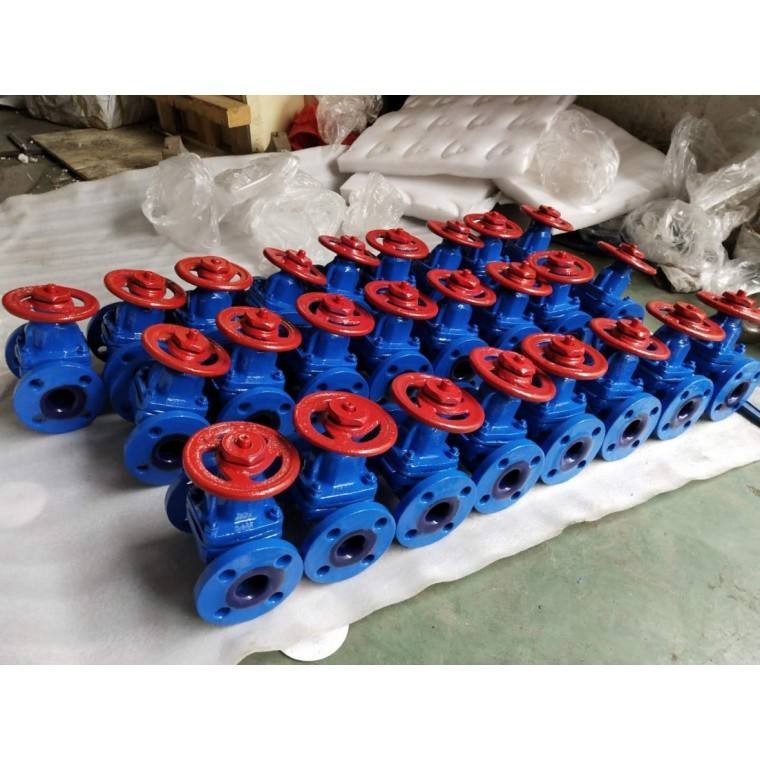

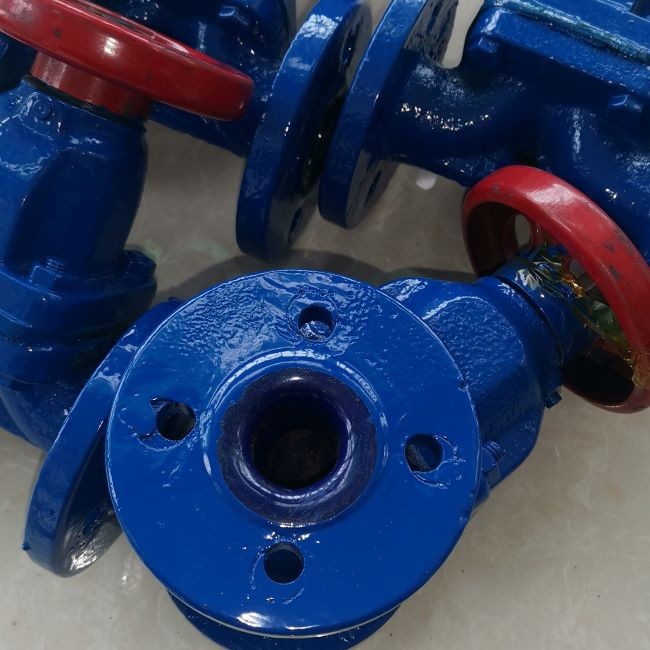

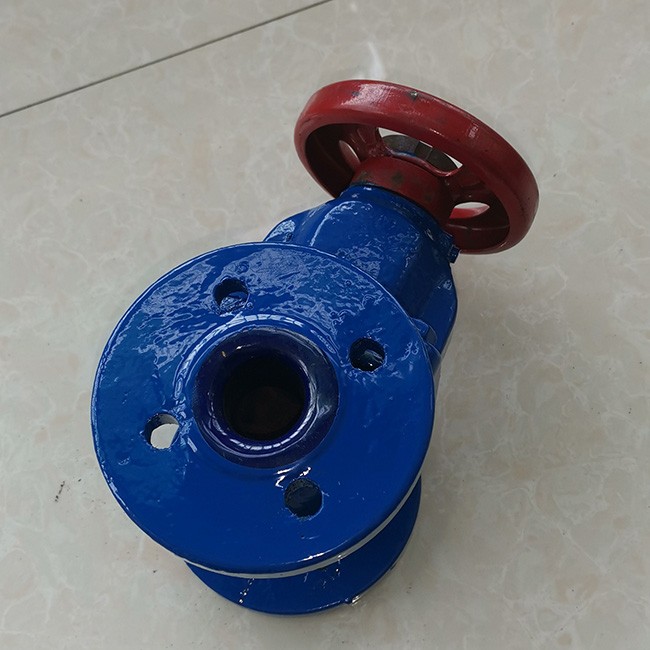

Glass Lined Diaphragm Valve

  • Product Item:G41C-10
  • Design and Manufacture: GB/T 12224
  • Face to Face Dimension: Manufacturer's Standard
  • Flange Dimension: JB/T 79.1, ANSI B16.5 DIN 2543, JIS B2020
  • Diaphragm:NR, PTFE+EPDM
  • Weir Enamel Diaphragm Valve , Ceramic Diaphragm Valve , Ceramic lined diaphragm valve , lining diaphragm valve
    Inquiry Send Email

    Description

    Glass Lined Diaphragm Valve


    Product description:

    Design and manufacturing: GB12239
    Structure length: GB12221, JB1688
    Flange connection size: GB4216, JB78

    Application:

    This valve is specially used for opening and closing in general corrosive medium pipelines whose working temperature is ≤100℃.

    Test:

    Lining layer: electric spark detection
    Test and inspection according to GB/T13927 standard
    Nominal pressure: PN (MPa)
    Valve body: PN×1.5
    Sealing: PN×1.1

    Structural features:

    1. The enamel surface is very smooth and has the characteristics of isolating metal ions
    2. Has good wear resistance and electrical insulation

    Parts list:

    1. Valve body 2. Valve body lining 3. Diaphragm 4. Disc 5. Valve stem 6. Valve cover 7. Handwheel


    DN PN WP L D D1 n-Фd H1 H2 D0 Weight (Kg)
    15 1.0 0.6 125 95 65 4-14 105 112 100 3
    20 135 105 75 4-14 116 125 100 4
    25 145 115 85 4-14 123 137 120 5.5
    332 160 140 100 4-18 134 152 120 7
    40 180 150 110 4-18 155 175 140 9
    50 210 165 125 4-18 171 197 140 12
    65 250 185 145 4-18 206 240 200 19
    80 300 200 160 4-48 220 260 200 26
    100 350 220 180 8-18 272 324 280 39
    125 400 250 210 8-18 338 406 280 63
    150 460 285 240 8-23 380 460 320 86
    200 0.4 570 340 295 8-23 506 626 400 142
    250 680 395 350 12-23 590 726 500 261
