  • Full Port Trunnion Ball Valves 150lb - 2500lb
  • Full Port Trunnion Ball Valves 150lb - 2500lb
  • Full Port Trunnion Ball Valves 150lb - 2500lb
  • Full Port Trunnion Ball Valves 150lb - 2500lb

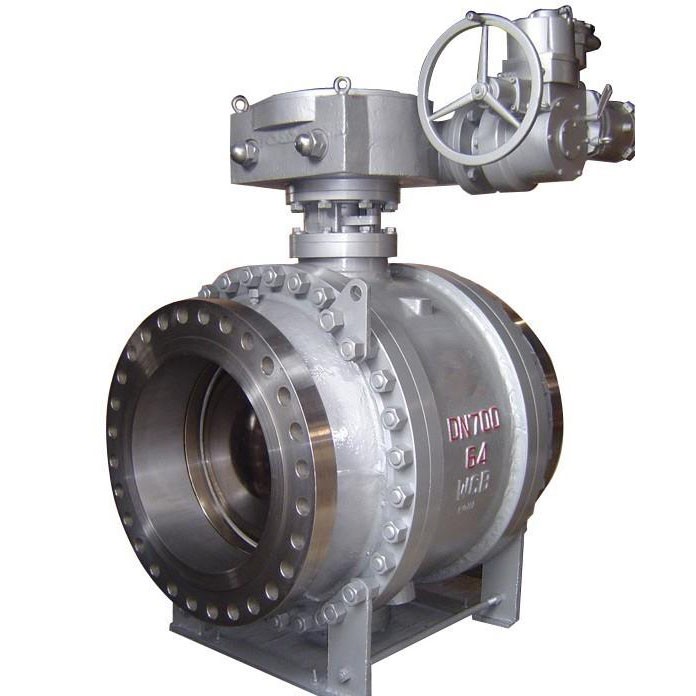

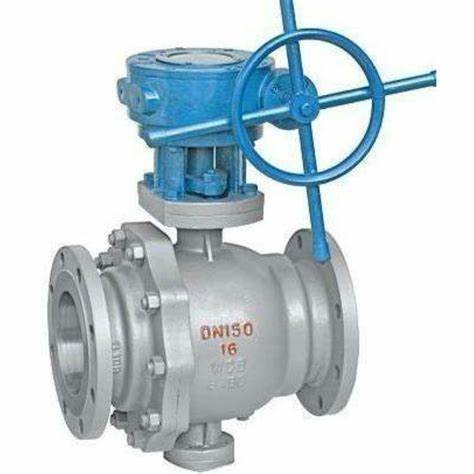

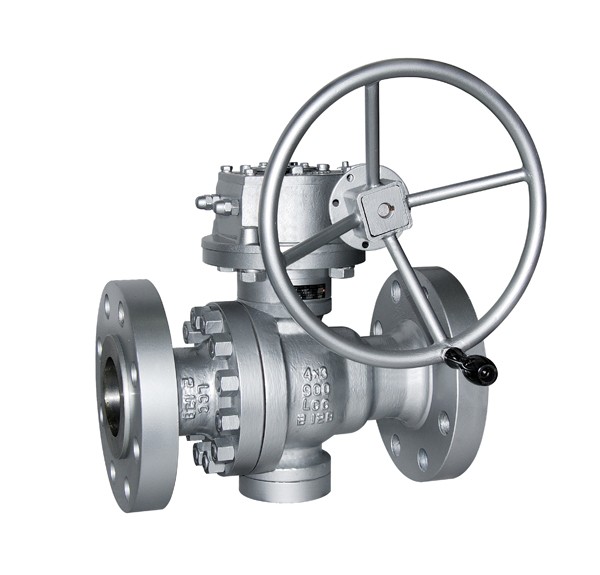

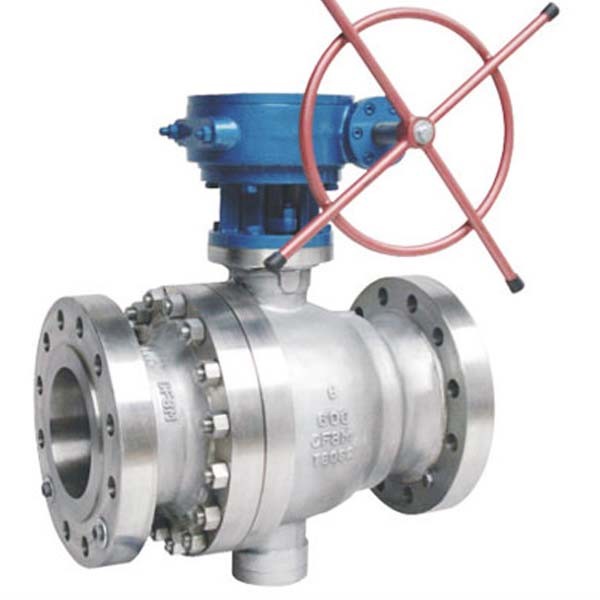

Full Port Trunnion Ball Valves 150lb - 2500lbFull Port Trunnion Ball Valves 150lb - 2500lbFull Port Trunnion Ball Valves 150lb - 2500lbFull Port Trunnion Ball Valves 150lb - 2500lb

Full Port Trunnion Ball Valves 150lb - 2500lb

  • Product Item:Q47F/H
  • Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
  • Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
  • Ends Connections: Flanged R.F, RTJ, Welded or Victaulic
  • Pressure Ratings: ANSI #150 to 2500
  • Full Port Trunnion Ball Valves 150lb - 2500lb , fixed ball valve , stainless steel ball valve
    Inquiry Send Email

    Description


    Full Port Trunnion Ball Valves 150lb - 2500lb

    Features

    API 6D design
    Fire-safe Certified API 607
    Blowout-proof stem
    Adjustable Stem packing, anti-static device
    Integral ISO mounting pad for actuation
    Integral locking device
    NACE to MR-01-75

    Options

    Body Material: WCB, A105, LF2, LCC & 316SS
    Seat Material: Reinforced teflon, Viton, Devlon, Nylon or Peek
    Ball Material: 316, 304, LF2 & A105+ENP
    Other material available upon request

    Standards

    API-6D
    ANSI B16.34
    ANSI B16.10
    ANSI B16.5
    MSS SP-25
    API 607
    API 6FA
    Note: Gear operators recommended for 8" and larger

    150 LB
    Dimensions: inches (millimeters)

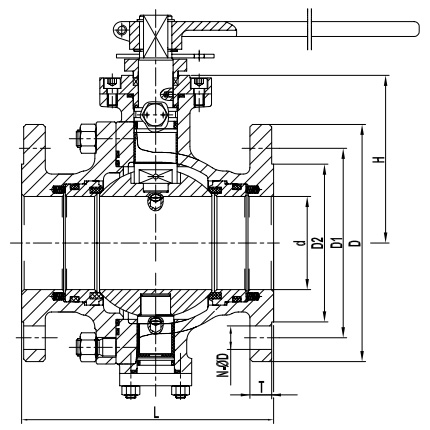

    Sizes d L D D1 D2 T N-ØD H
    Inside Flange Diameter Face to Face Outside Diameter of Flange Bolt Circle Outside Diameter of Raised Face Flange Thickness No. of Holes / Hole Diameter Center to Top
    2" 2 (50) 7 (178) 6 (150) 4-3/4 (120.5) 3-5/8 (92) 9/16 (14.5) 4-Ø3/4 (19) 3-21/32 (93)
    3" 3 (75) 8 (203) 7-1/2 (190) 6 (152.5) 5 (127) 11/16 (17.5) 4-Ø3/4 (19) 4-21/32 (118.5)
    4" 4 (100) 9 (229) 9-1/16 (230) 7-1/2 (190.5) 6-3/4 (171) 29/32 (22.5) 8-Ø3/4 (19) 5-21/32 (143.5)
    6" 6 (150) 15-1/2 (394) 11 (280) 9-1/2 (241.5) 8-1/2 (216) 15/16 (24) 8-Ø7/8 (22) 8-3/16 (208)
    8" 8 (201) 18 (457) 13-1/2 (345) 11-3/4 (298.5) 10-5/8 (270) 1-1/16 (27) 8-Ø7/8 (22) 9-3/4 (248)
    10" 10 (252) 21 (533) 16 (405) 14-1/4 (362) 12-3/4 (324) 1-9/64 (29) 12-Ø1 (25) 11-9/16 (294)
    12" 12 (303) 24 (610) 19 (485) 17 (432) 15 (381) 1-1/4 (30.5) 12-Ø1 (25) 13-9/16 (344.5)
    14" 13-3/4 (334) 27 (686) 21 (535) 18-3/4 (476) 16-1/4 (413) 1-5/16 (33.5) 12-Ø1-9/64 (29) 14-27/32 (377)
    16" 15-1/4 (385) 30 (762) 23-1/2 (595) 21-1/4 (540) 18-1/2 (470) 1-3/8 (35) 16-Ø1-9/64 (29) 16-15/32 (418)
    18" 17-1/4 (436) 34 (864) 25 (635) 22-3/4 (578) 21 (533) 1-1/2 (38.5) 16-Ø1-1/4 (32) 18-7/32 (463)
    20" 19-1/4 (487) 36 (914) 27-1/2 (700) 25 (635) 23 (584) 1-5/8 (41.5) 20-Ø1-1/4 (32) 19-3/4 (502)
    24" 23-1/4 (589) 42 (1067) 32 (815) 29-1/2 (749.5) 27-1/4 (692) 1-27/32 (46.5) 20-Ø1-3/8 (35) 23-1/16 (586)
    26" 25 (633) 45 (1143) 34-1/4 (870) 31-3/4 (806.5) 29-1/2 (749) 2-11/16 (68) 24-Ø1-3/8 (35) 24-21/32 (626)
    28" 27 (684) 49 (1245) 36-1/2 (927) 34 (864) 31-1/2 (800) 2-13/16 (71) 28-Ø1-3/8 (35) 25-11/32 (644)
    30" 29 (735) 51 (1295) 38-3/4 (984) 36 (914.5) 33-3/4 (857) 3 (75) 28-Ø1-3/8 (35) 28-11/32 (720)
    32" 30-11/16 (779) 54 (1372) 41-3/4 (1060) 38-1/2 (978) 36 (914) 3-3/16 (81) 28-Ø1-5/8 (41) 29-7/32 (742)
    36" 34-7/16 (874) 60 (1524) 46 (1168) 42-3/4 (1086) 40-1/4 (1022) 3-1/2 (90) 32-Ø1-5/8 (41) 33-1/32 (839)
    40" 38-7/16 (976) 69 (1753) 50-3/4 (1289) 47-1/4 (1200) 44-1/2 (1124) 3-1/2 (90) 36-Ø1-5/8 (41) 36 (913.5)
    42" 40-5/32 (1020) 73 (1855) 53 (1346) 49-1/2 (1257) 47 (1194) 3-13/16 (97) 36-Ø1-5/8 (41) 37-1/8 (943)
    48" 45-29/32 (1166) 84 (2134) 59-1/2 (1511) 56 (1422) 53-1/2 (1359) 4-1/4 (108) 44-Ø1-5/8 (41) 43-3/16 (1097)
    56" 53-1/2 (1360) 98 (2489) 68-3/4 (1746) 65 (16
