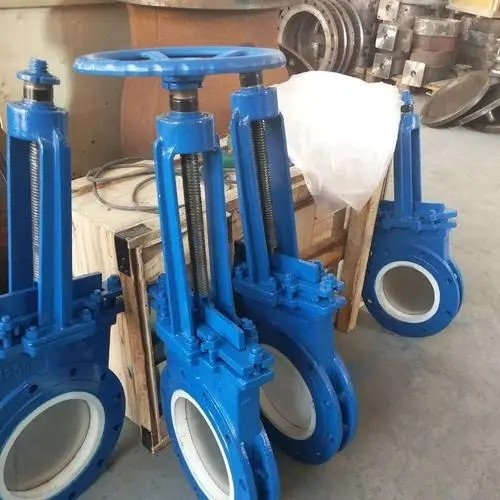

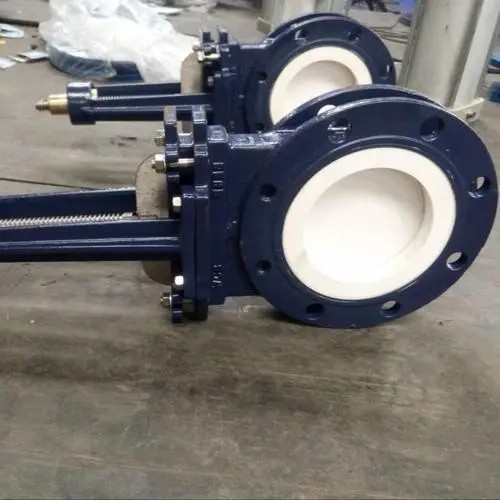

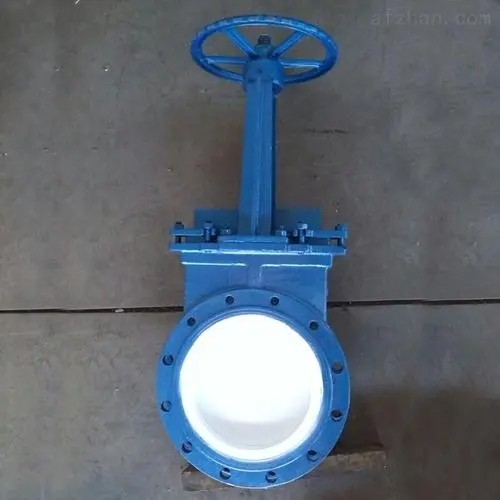

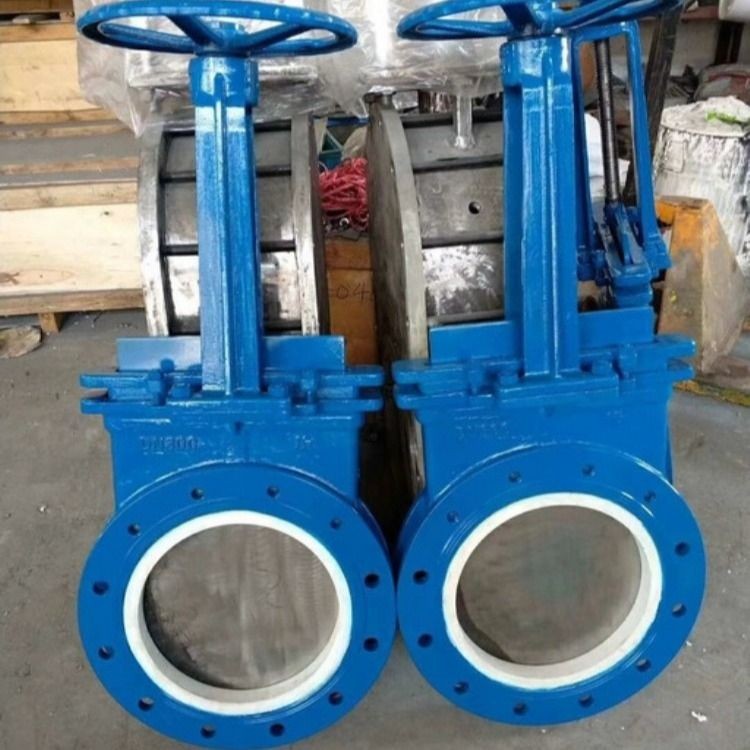

Ceramic knife gate valve

  • Size: DN50-DN1200, 2” -48”
  • Body Material: GG25, GGG40 ,WCB ,4A,CF8,CF8M,CF3M,CG8M
  • Lined Material: Ceramic
  • Type: WAFER , SEMI-LUGGED, FULL-LUGGED
  • Ceramic Lined Knife Gate Valve with Handwheel , Ceramic Lined Gate Valve , Knife Gate Valve
    Inquiry Send Email

    Description

    Ceramic knife gate valve

    1. Ceramic knife gate valves have one piece integral body design to reduce  flow resistance

    2. Inlet seat and outlet seat are ceramics materials. Because high hardness and high strength of high pure 99% Al2O3 ceramics, Foyo ceramic knife gate valves have much longer service life than general metal seated knife gate valves in similar conditions.
    3. The gates of ceramic knife gate valves are hardened with nitriding treatment, Tungsten carbide T.C. or hard Chrome to improve working performance.
    4. Several structures of ceramic knife gate valves are available on customers' requirement.

    5. The actuation of ceramic knife gate valves can be hand wheel, pneumatic cylinder, electric motor and hydraulic actuator, special requirements are available on customer’s requirement.

    Ceramic Grade

    Aluminium Oxide

    Zirconia

    95% Al2O3

    99.5% Al2O3

    95% Y-PSZ

    Density

    3.7

    3.9

    6

    Hardness (HV)

    1630

    1820

    1340

    HRC

    80

    82

    74

    Fracture Toughness (MPa)

    4.5÷1.1

    4.3÷0.8

    9÷2

    Compressive Strength 20C (MPa)

    2150+340

    2650+350

    2130+420

    Thermo Shock Resistance (C )

    210

    180

    260

    Color

    White

    Light yellow

    White

    Inquiry Us
