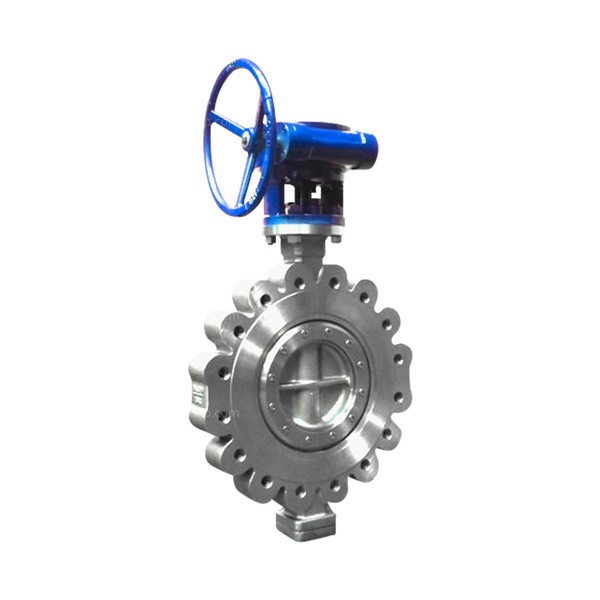

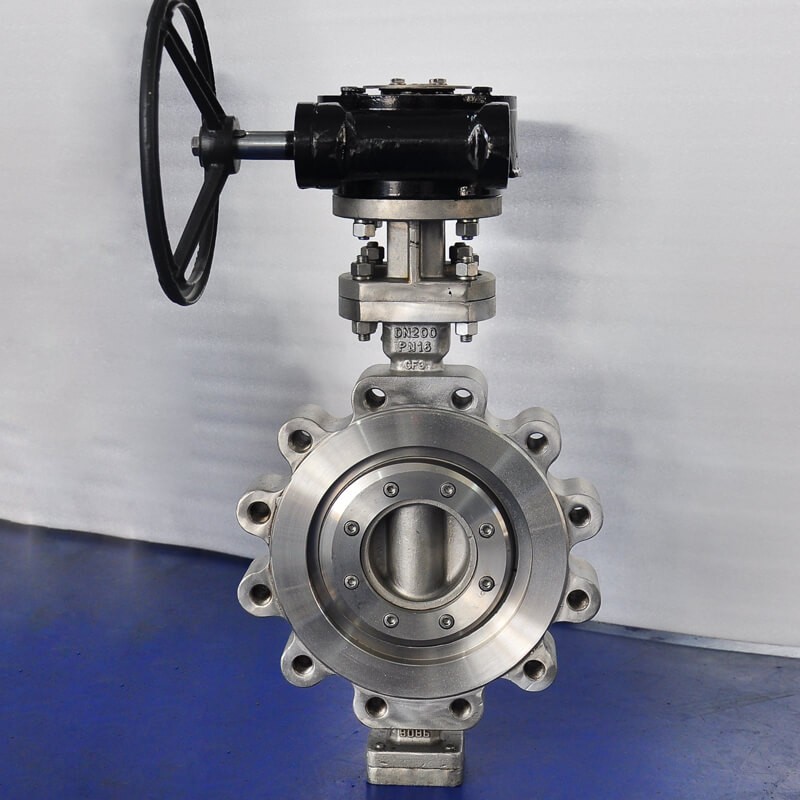

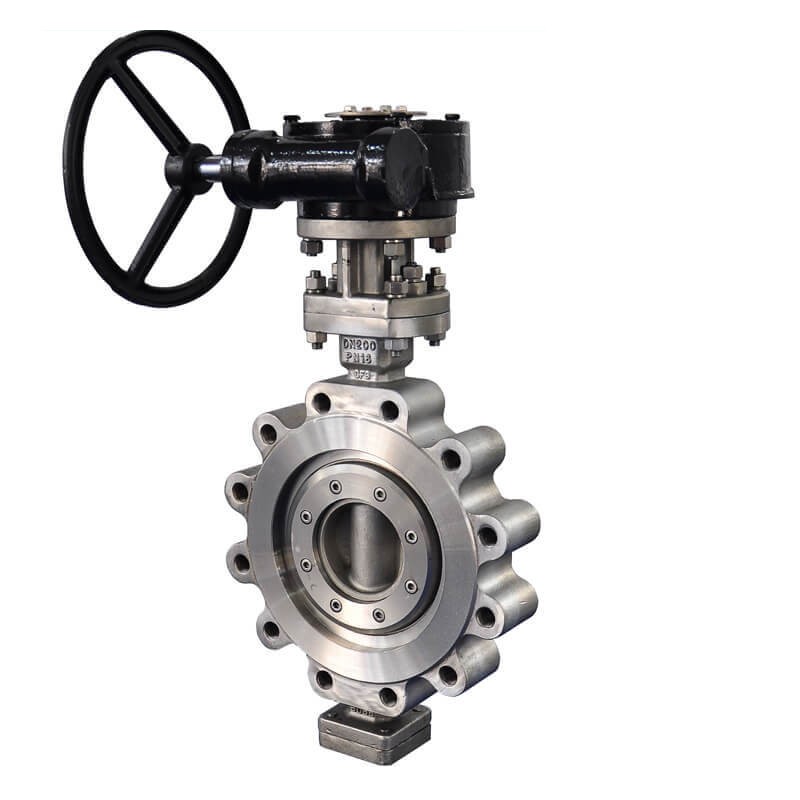

Lug Type Triple Offset Butterfly ValveLug Type Triple Offset Butterfly ValveLug Type Triple Offset Butterfly Valve

Lug Type Triple Offset Butterfly Valve

  • Product Item:D373H
  • Design and manufacture: API 609, EN 593
  • Face to face dimension: API 609, EN 558-1, ISO 5752
  • End flange connection: ASME B16.5, ASME B16.47, EN 1092
  • Pressure-temperature rating: ANSI B16.34 Size: 2"-120"
  • Wafer Type Metal to Metal Butterfly Valve , Tripple Offset Wafer type Butterfly Valve
    Inquiry Send Email

    Description

    Lug Type Triple Offset Butterfly Valve


    Specification
    • Structure type: Lug Type Three Eccentric Butterfly valve
    • Design and manufacture: API 609, EN 593
    • Inspect and testing: API 598, EN 12266-1, ISO 5208
    • Face to face dimension: API 609, EN 558-1, ISO 5752
    • End flange connection: ASME B16.5, ASME B16.47, EN 1092
    • Pressure-temperature rating: ANSI B16.34
    • Size:  2"-120"
    Application
    Three eccentric configuration, hermetic capability reliably,which ensure disc never touch sealing seat when it start, solve the problem of hermetical seat burden unequally,prolong service life, and ensure reliable hermetic capability with advantage of high temperature resistant, wearable,antisepsis etc.

    Materials
    Body
    WCB, LCB, CF8, CF3, CF8M, CF3M, Duplex Steel etc
    Disc
    WCB, LCB, Al-bronze, CF8, CF3, CF8M, CF3M, Duplex Steel etc
    Stem
    416, 316, 2Cr13, 1Cr18Ni9Ti, Monel
    Seal ring
    SS+graphite/PTFE laminated or solid metal sealing ring
    Packing
    Flesxible graphite, fluorine plastic

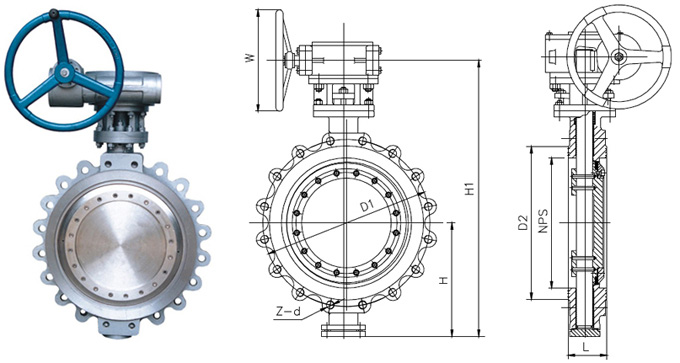

    Dimensions
    API 150LB Series
    DN
    L
    H
    H1
    D1
    D2
    M
    z-d
    50
    43
    110
    345
    120.5
    92
    M18
    4-19
    80
    49
    125
    380
    152.5
    127
    M18
    4-19
    100
    56
    145
    415
    190.5
    157
    M18
    8-19
    125
    64
    165
    455
    216
    186
    M20
    8-22
    150
    70
    175
    545
    241.5
    216
    M20
    8-22
    200
    71
    210
    615
    298.5
    270
    M20
    8-22
    250
    76
    250
    695
    362
    324
    M24
    12-25
    300
    86
    285
    830
    432
    381
    M24
    12-25
    350
    92
    320
    900
    476
    413
    M27
    12-29
    400
    102
    355
    980
    540
    470
    M27
    16-29
    450
    114
    380
    1030
    578
    533
    M30
    16-32
    500
    127
    415
    1110
    635
    584
    M30
    20-32
    600
    154
    475
    1305
    749.5
    692
    M33
    20-35
    750
    165
    580
    1525
    914
    857
    M33
    28-35
    900
    203
    680
    1765
    1085
    1022
    M39
    32-41

    API 300LB Series
    DN
    L
    H
    H1
    D1
    D2
    M
    z-d
    50
    43
    110
    345
    127
    92
    M18
    8-19
    80
    49
    125
    380
    168.5
    127
    M20
    8-22
    100
    56
    145
    415
    200
    157
    M20
    8-22
    125
    64
    165
    455
    235
    186
    M20
    8-22
    150
    70
    175
    545
    270
    216
    M20
    12-22
    200
    71
    210
    615
    330
    270
    M24
    12-26
    250
    76
    250
    695
    387
    324
    M27
    16-29
    300
    86
    285
    830
    451
    381
    M30
    16-32
    350
    92
    320
    900
    514
    413
    M30
    20-32
    400
    102
    355
    980
    571
    470
    M33
    20-35
    450
    114
    380
    1030
    628
    533
    M33
    24-35
    500
    127
    415
    1110
    686
    584
    M33
    24-35
    600
    154
    475
    1305
    813
    692
    M39
    24-41
    750
    165
    580
    1525
    997
    857
    M45
    28-49
    900
    203
    680
    1765
    1168
    1022
    M50
    32-52
