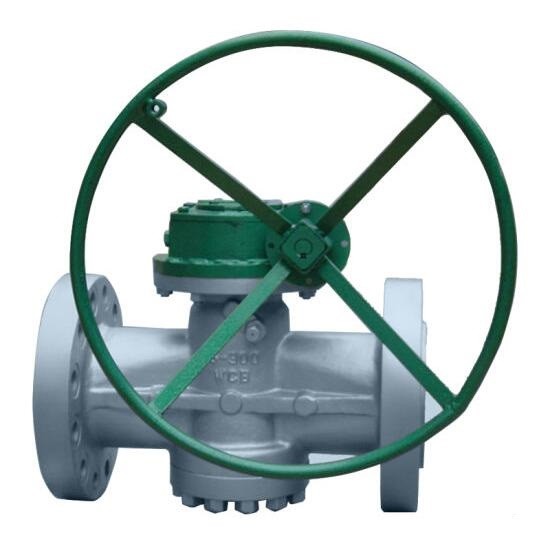

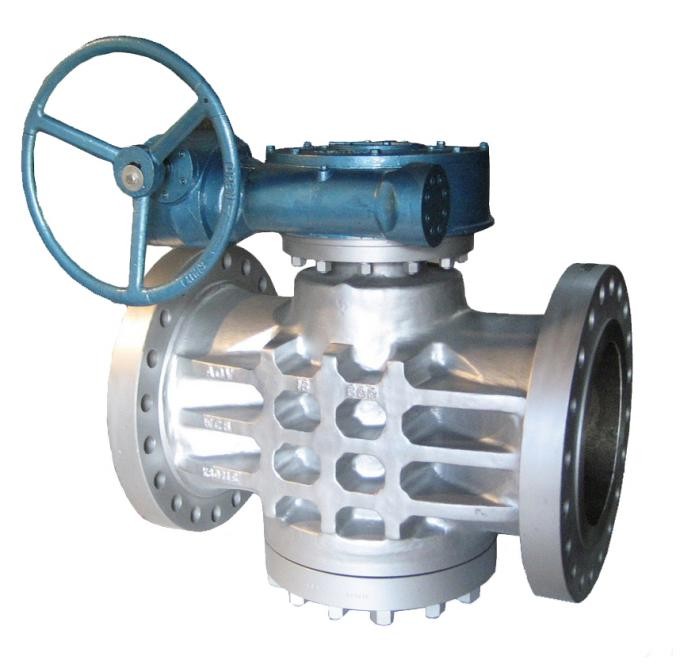

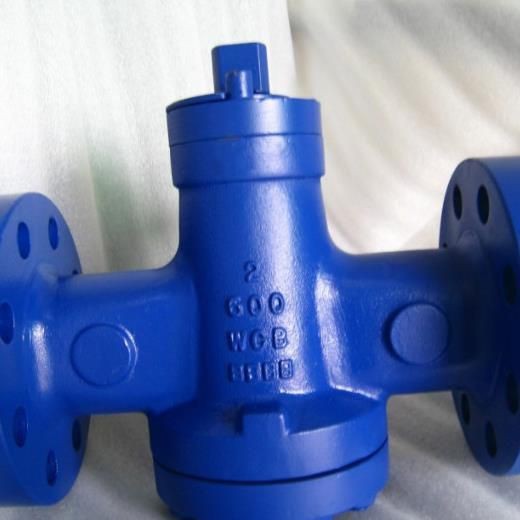

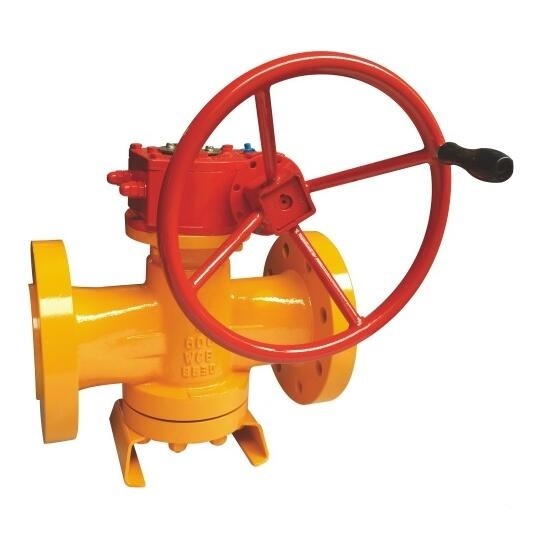

  • Inverted pressure balance lubricated plug valve
  • Inverted pressure balance lubricated plug valve
  • Inverted pressure balance lubricated plug valve
  • Inverted pressure balance lubricated plug valve
Inverted pressure balance lubricated plug valveInverted pressure balance lubricated plug valveInverted pressure balance lubricated plug valveInverted pressure balance lubricated plug valve

Inverted pressure balance lubricated plug valve

  • Product Item:X47H
  • Design: API 599, API6D
  • Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)
  • Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
  • Pressure Rating: Class 150LB ~ 900LB
  • Inverted pressure balance lubricated plug valve , Cast steel plug valve , stainless steel plug valve
    Inquiry Send Email

    Description


    Inverted pressure balance lubricated plug valve

    Design Features:

    Nominal Size Range: NPS 1/2”~ 14”
    Pressure Rating: Class 150LB ~ 900LB
    Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)
    Design Specifications:
    Design: API 599, API6D
    Pressure-temperature rating: ASME B16.34
    Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
    Flange design: ASME B16.5
    Butt welding design: ASME B16.25

    Actuators:

    Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever, Chain wheels
    Body Material:
    A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel),
    All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers' requirements as applicable.
    Quality Assurance (QA):
    Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
    Quality Control (QC):
    The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.

    Pressure Testing:

    Each valve is pressure tested in accordance with API 6D, API 598, or special customers' requirements as applicable.

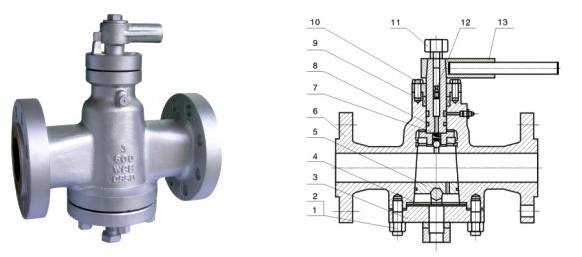

    Standard Material specifications

    NO.
    Part name
    Material
    A216 WCB
    A351 CF8
    A351 CF8M
    A351 CF3
    A351 CF3M
    1~2
    Body/Nut
    A193 B7/A194 2H
    A193 B8/A194 8
    A193 B8M
    A194 8M
    3
    Cover
    A216 WCB
    A351 CF8
    A351 CF8M
    4
    Gasket
    Flexible graphite+stainless steel/PTFE
    5
    Plug
    A182 F304
    A351 CF8
    A351 CF8M
    A351 CF3
    A351 CF3M
    6
    Body
    A216 WCB
    A351 CF8
    A341 CF8M
    A182 F304L
    A351 CF3M
    7
    stem
    A182 F410
    A182 F304
    A182 F316
    A182 F304L
    A351 CF3M
    8
    O-ring
    NBR/FEP/sBR
    9
    Packing
    Flexible graphite/PTFE
    10
    Gland
    A216 WCB
    A351 CF8
    A351 CF8M
    11~12
    Oichozzle/check valve
    Material see body
    13
    Wrench
    AsTM A47-32510 A216 WCB

    Dimensions(mm) and Weights(Kg)

    Class 150Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF
    mm
    108
    117
    127
    140
    165
    178
    190
    203
    229
    254
    267
    292
    330
    356
    381
    H
    mm
    180
    180
    185
    200
    210
    215
    250
    270
    300
    340
    365
    400
    450
    510
    590
    W
    mm
    400
    400
    500
    500
    600
    600
    820
    820
    300
    300
    320
    320
    350
    380
    380
    Weight
    Kg
    10
    12
    14
    17
    19
    21
    29
    33
    48
    75
    98
    125
    171
    230
    370
    Class 300Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF,BW
    mm
    140
    152
    165
    178
    190
    216
    241
    283
    305
    381
    403
    419
    457
    502
    762
    H
    mm
    180
    180
    185
    200
    210
    215
    250
    270
    300
    340
    365
    400
    450
    510
    590
    W
    mm
    400
    400
    500
    500
    600
    600
    820
    820
    300
    300
    320
    320
    350
    380
    380
    Weight
    Kg
    12
    14
    16
    19
    21
    24
    31
    36
    61
    86
    130
    190
    225
    380
    560
    Class 600Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF,BW
    mm
    165
    190
    216
    229
    241
    292
    330
    356
    432
    508
    559
    660
    787
    838
    889
    H
    mm
    180
    180
    185
    200
    210
    215
    250
    270
    300
    340
    365
    400
    450
    510
    590
    W
    mm
    400
    400
    500
    500
    600
    600
    820
    820
    300
    300
    320
    320
    350
    380
    380
    Weight
    Kg
    14
    16
    18
    20
    24
    29
    35
    47
    91
    129
    210
    320
    660
    920
    1250
    Class 900Lb
    size
    inch
    1/2
    3/4
    1
    1-1/4
    1-1/2
    2
    2-1/2
    3
    4
    5
    6
    8
    10
    12
    14
    L-RF,BW
    mm
    229
    229
    254
    279
    305
    368
    419
    381
    457
    559
    610
    737
    838
    965
    1029
    H
    mm
    180
    180
    185
    200
    210
    215
    250
    270
    300
    340
    365
    400
    450
    510
    590
    W
    mm
    400
    400
    500
    500
    600
    600
    820
    820
    300
    300
    320
    320
    350
    380
    380
    Weight
    Kg
    17
    19
    21
    24
    30
    37
    44
    65
    110
    160
    255
    380
    810
    1050
    1460
